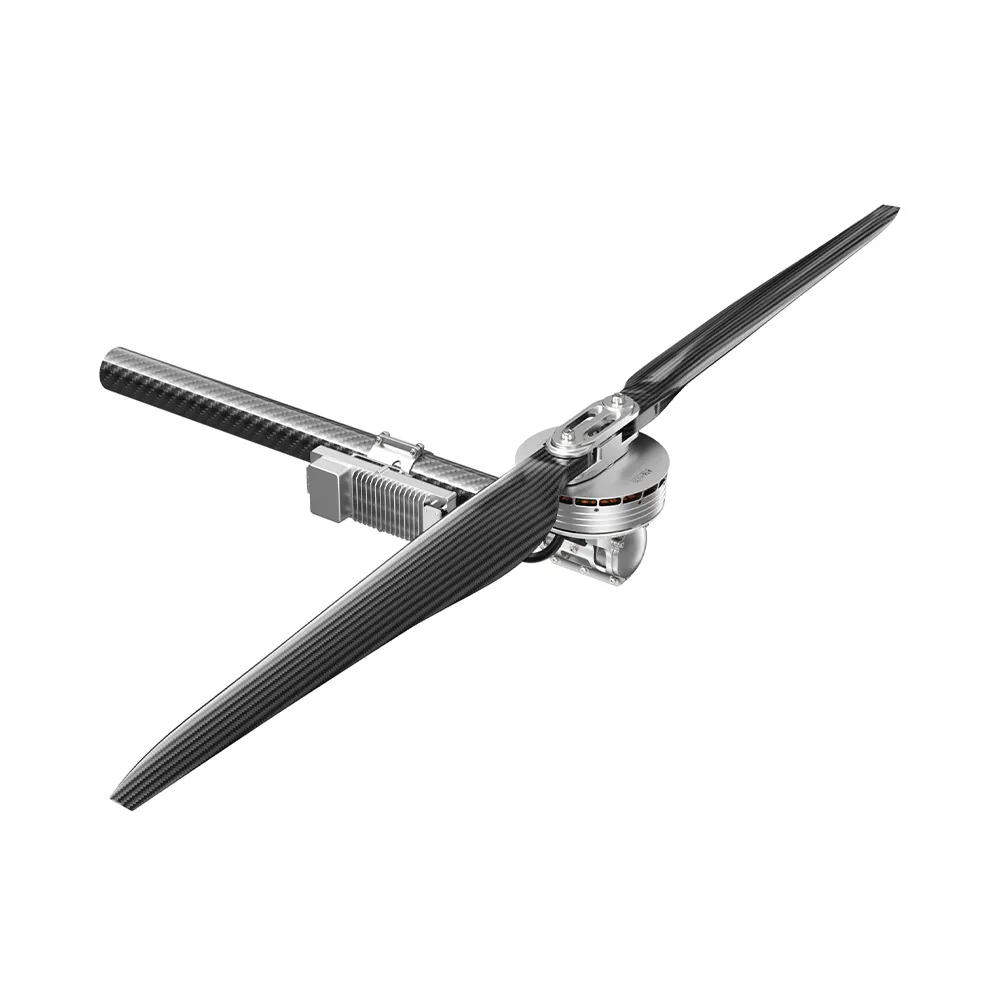

T-MOTOR A16-24S Heavy-Lift UAV Modular Propulsion System

About T-MOTOR A16-24S Modular Propulsion System:

Conquer Industrial Extreme Heavy-Lift Operations with 24S High-Voltage PowerEngineered for heavy-payload logistics drones, large-scale agricultural aircraft, and industrial multirotor platforms, the T-MOTOR A16-24S is a flagship ultra-heavy-lift propulsion system integrating a massive high-torque motor, a FOC vector control ESC, and dynamic carbon fiber folding propellers. Built for high-voltage 24S LiPo/LiHV power architectures, the A16 system provides 18–21 kg rated payload per axis (reaching an astounding 42 kg peak thrust). It directly eliminates component selection guesswork, overcurrent thermal failure under extreme loads, and poor weather vulnerability while offering real-time telemetry output and rapid clamp-mount installation on 50mm carbon tubes.

T-MOTOR

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 700.00

5.0 | 0Sold

Options (4)

Quantity

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Payment | Every order you place with us is safe & secure

A16-24S

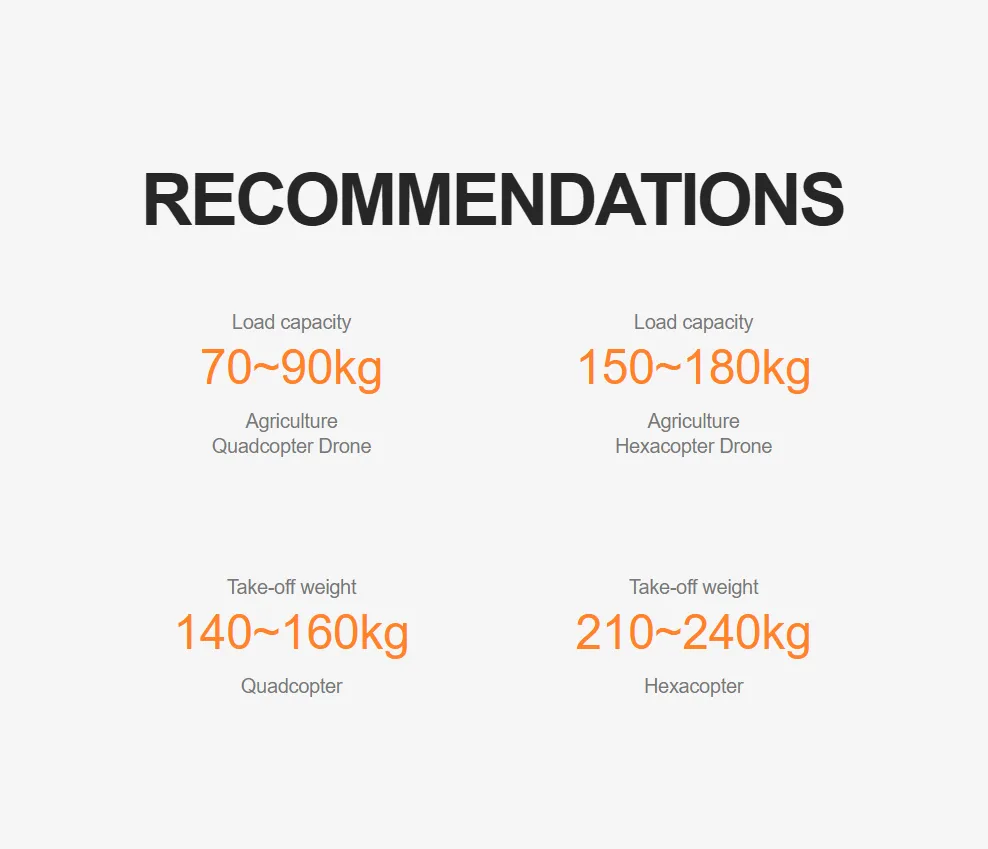

The preferred solution for 140~160kg agricultural drones

A16-24 24SFOC 260A EFZ6324

MOTOR ESC PROPELLER

Technical Drawing

Specification

Model No.	A16-24S KV35	Tube Size	60mm
Setup	A16-24S (Motor)+24S FOC 260A (ESC) +EFZ6324 (Propeller)	Wire Material, Wire Gauge, Color	Power Wires: 8#AWG Red & Black Signal Wires: 5+1 Shielded
Recommended Battery	24~28S (LiPo)	Wire Length	2000±5mm
Rated Thrust	35~40kg	Weight	6030±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust	9.3g/W (35kg)	IP	IPX5
Max. Thrust	80kg	Recommended Ambient Temperature	-20~55℃

Motor Specs
Stator Size	155*23.5mm	KV	35

ESC Specs
Throttle Range	1100~1940us (Fixed)	Max. Voltage	120V
Protocol	DRONE CAN、UAV CAN、 CUBE CAN	Peak Current (For A Short Time)	260A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO

Prop Specs
Model No.	EFZ6324 (Folding Carbon Fiber)	Length	63 Inch (1600.2mm)

Test Data

Type	Voltage (V)	Throttle	Current (A)	Thrust (gf)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
A16-24S KV35 + 24S FOC 260A + EFZ6324	92	30%	9.05	12012	7.92	876	86.80	14.40	76 (Ambient Temperature: 25)
		35%	13.12	15973	10.45	996	89.90	13.20
		40%	18.44	20402	13.35	1116	91.50	12.00
		45%	24.81	25105	16.33	1260	92.70	10.90
		50%	32.52	29951	19.59	1356	92.50	10.00
		55%	41.32	35394	23.03	1452	91.90	9.30
		60%	50.67	40166	26.34	1576	91.40	8.60
		65%	61.48	45502	29.91	1657	91.10	8.00
		70%	74.01	51151	33.66	1778	89.90	7.50
		75%	86.95	56618	37.22	1848	89.60	7.00
		80%	103.79	62754	41.59	1959	89.10	6.60
		85%	121.52	68611	45.76	2028	86.50	6.10
		90%	133.68	72671	48.45	2088	85.70	5.90
		95%	148.48	77006	51.35	2139	84.00	5.60
		100%	165.78	80586	54.63	2190	82.00	5.30
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)

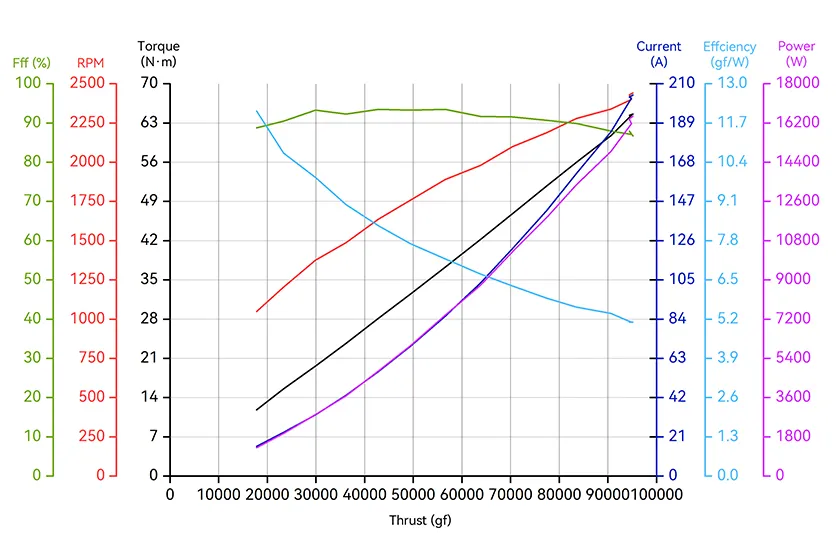

Analysis Chart

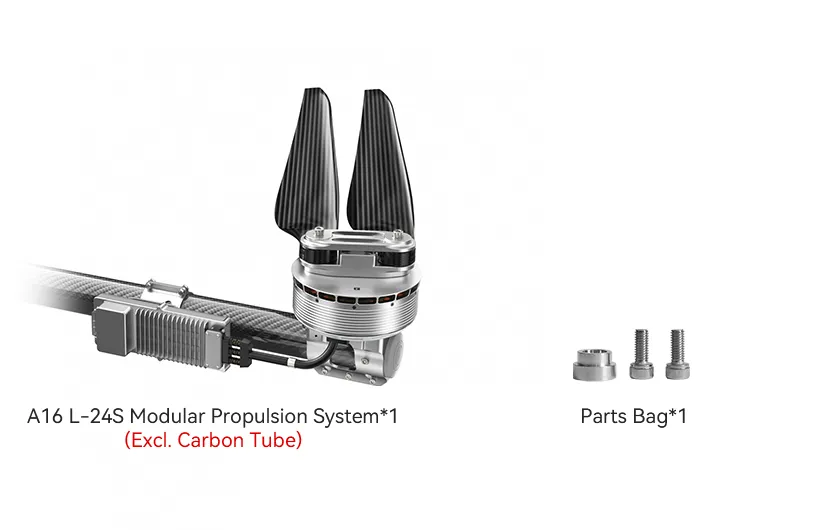

Packing List

Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at online@mepsking.com.
