Q: What UAV platforms is the T-MOTOR A12XL-14S propulsion kit suitable for?

A: The T-MOTOR A12XL-14S is designed for heavy-lift multirotor UAVs, including agricultural drones, cargo drones, and industrial UAV platforms. It is suitable for large quadcopters and hexacopters requiring high thrust and reliable power output.

Q: What components are included in the A12XL-14S modular propulsion kit?

A: The kit includes a matched A12XL KV77 motor, 14S FOC 200A ESC, and MF4918P folding propeller. The components are optimized to work together, reducing compatibility issues during UAV system integration.

Q: What battery voltage does the T-MOTOR A12XL-14S support?

A: The A12XL-14S propulsion system supports 12S–14S LiPo batteries, providing high-voltage efficiency and strong power output for heavy-duty UAV applications.

Q: How much thrust can the A12XL-14S propulsion kit generate?

A: The system delivers approximately 20–22kg rated thrust and up to 43.6kg maximum thrust per propulsion unit, making it suitable for large payload UAV platforms.

Q: Does the A12XL-14S ESC support CAN communication?

A: Yes. The integrated FOC 200A ESC supports multiple communication protocols, including PWM, DRONE CAN, UAV CAN, and CUBE CAN, allowing flexible integration with professional flight controllers and UAV systems.

New

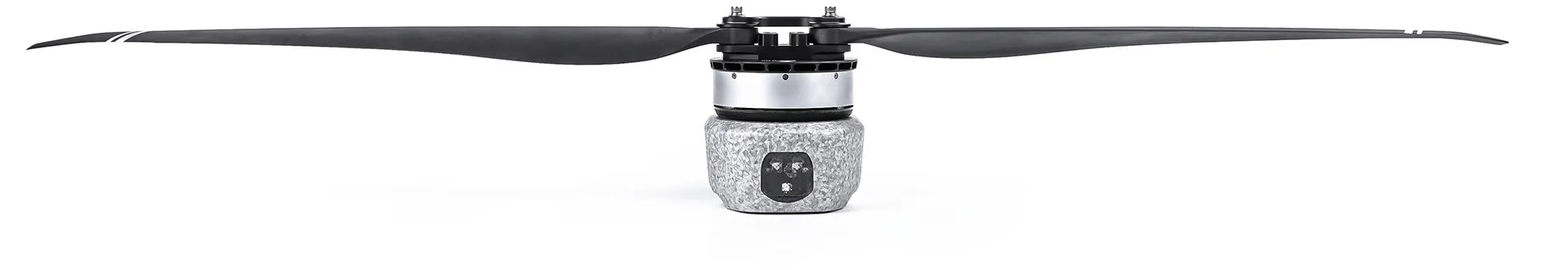

T-MOTOR A12XL-14S Heavy-Lift UAV Modular Propulsion Kit

T-MOTOR A12XL-14S Modular UAV Propulsion Kit:

The T-MOTOR A12XL-14S is a high-performance modular propulsion system designed for heavy-lift multirotor UAV platforms. Combining the A12XL KV77 motor, 14S FOC 200A ESC, and MF4918P folding propeller, this integrated solution delivers optimized power, efficiency, and reliability without the need for complex component matching.

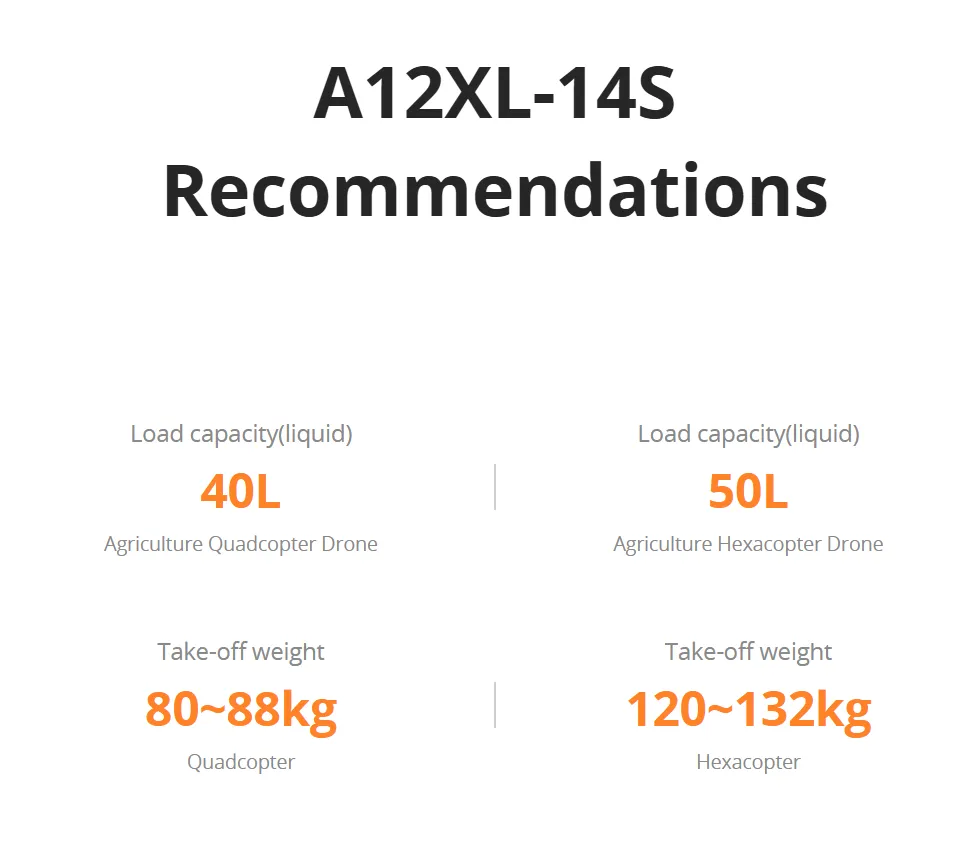

Built for industrial applications, the A12XL-14S provides 20–22kg rated thrust and up to 43.6kg maximum thrust, making it suitable for large agricultural quadcopters, hexacopters, and heavy-duty UAV platforms.

The matched FOC 200A ESC supports PWM and CAN communication protocols, including DRONE CAN, UAV CAN and CUBE CAN, allowing flexible integration with professional flight control systems. The optimized propulsion combination improves efficiency, response speed, and overall flight stability.

Designed for demanding outdoor operations, the system features IPX6 protection, supports 12–14S LiPo batteries, and maintains reliable performance across a wide temperature range. Whether used for agricultural spraying, cargo transport, or industrial UAV missions, the A12XL-14S delivers dependable heavy-lift propulsion with simplified installation and improved system compatibility.

T-MOTOR

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 457.90

5.0 | 0Sold

Options (4)

Quantity

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Payment | Every order you place with us is safe & secure

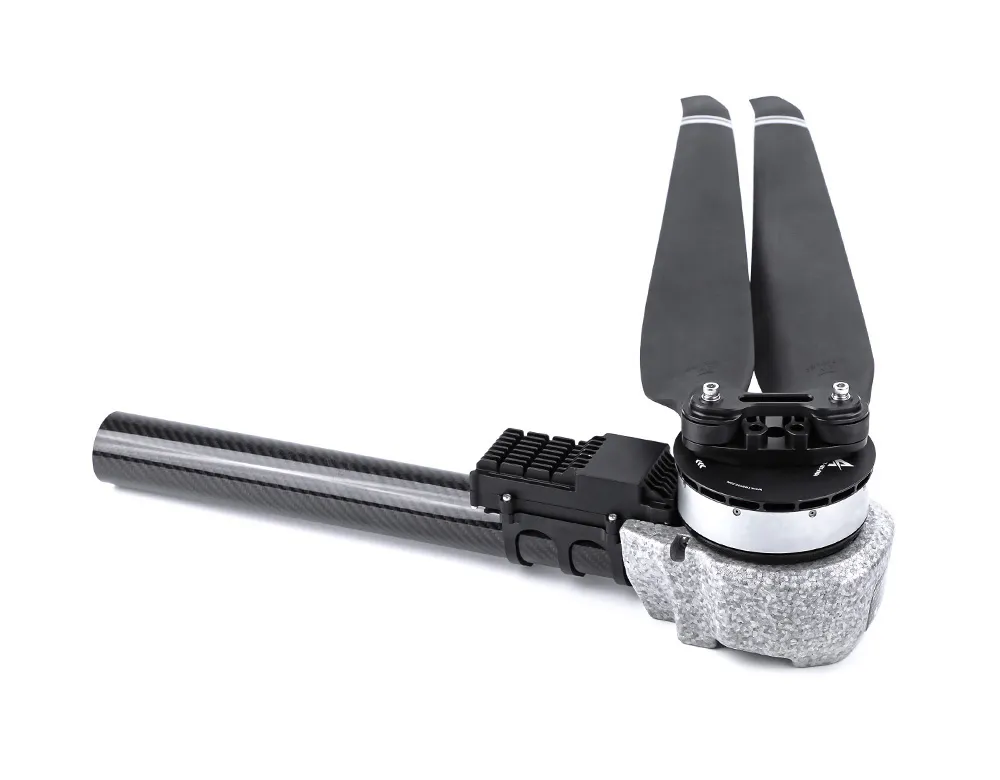

A12XL-14S

MODULAR Propulsion System

A12XL-14S 14S FOC 200A MF4918P

MOTOR ESC PROPELLER

Technical Drawing

t-motor-a12xl-14s-uav-modular-power-kit-drawing

Specification

Model No.	A12XL KV77	Tube size	50mm
Setup	A12XL-14S (Motor)+14S FOC 200A (ESC)+ MF4918P (Prop)	Wire material, wire gauge, color	Power wires: 10#AWG red & black Signal wires: 5P Teflon
Recommended battery	12~14S (LiPo)	Wire length	1700±5mm
Rated thrust	20~22kg	Weight	2800±2%g (incl. Wires+prop)
Efficiency at rated thrust	8.7g/W (21kg)	IP	IPX6
Max. thrust	43.6kg	Recommended ambient temperature	-20～55℃

Motor specs.
Stator size	111 * 22mm	KV	77

ESC specs.
Throttle range	1100~1940us	Max. voltage	61V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN	Peak current (for a short time)	200A (Open environment and temperature≤60℃)
Control method	PWM/CAN	BEC	NO

Prop specs
Model No.	MF4918P (Polymer Folding)	Length	49 inch (1244.6mm)

Test Data

Type	Voltage (V)	Throttle	Current (A)	Thrust (g)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
A12XL KV77 + 14S FOC 200A + MF4918P	54	30%	9.80	7526	4.15	1092	89.90	14.30	173 (Ambient Temperature: 27.8)
		35%	14.72	10046	5.50	1249	90.80	12.70
		40%	20.72	12653	6.90	1410	91.50	11.40
		45%	28.18	15595	8.48	1560	91.40	10.30
		50%	36.67	18627	10.07	1740	93.50	9.50
		55%	46.38	21583	11.70	1860	91.90	8.70
		60%	57.24	24530	13.36	1950	89.30	8.00
		65%	70.08	27829	15.12	2100	89.20	7.50
		70%	83.33	30804	16.73	2193	87.00	7.00
		75%	98.18	33819	18.35	2280	84.40	6.50
		80%	114.04	36613	19.93	2400	83.30	6.10
		85%	131.55	39391	21.45	2463	80.00	5.70
		90%	143.36	40907	22.29	2523	78.40	5.40
		95%	160.09	42808	23.25	2607	75.90	5.10
		100%	171.82	43604	23.72	2610	72.40	4.90
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)

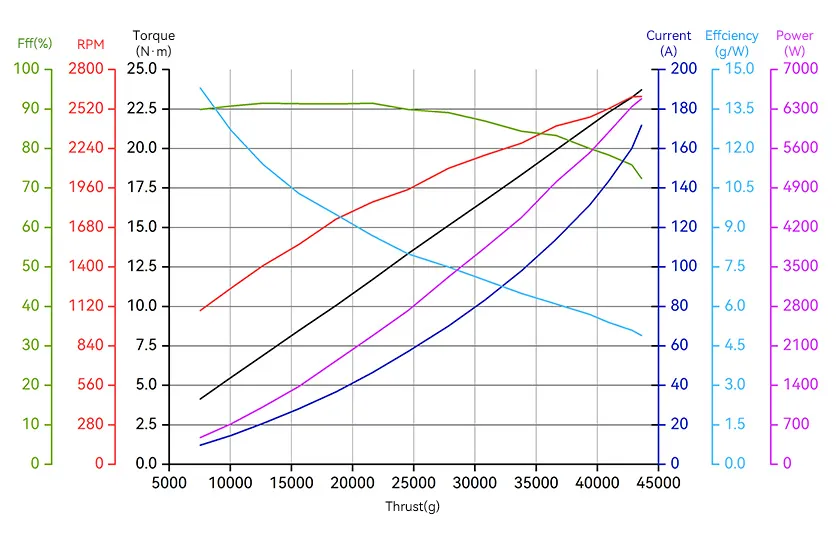

Analysis Chart

Load curve

t-motor-a12xl-14s-uav-modular-power-kit-analysis

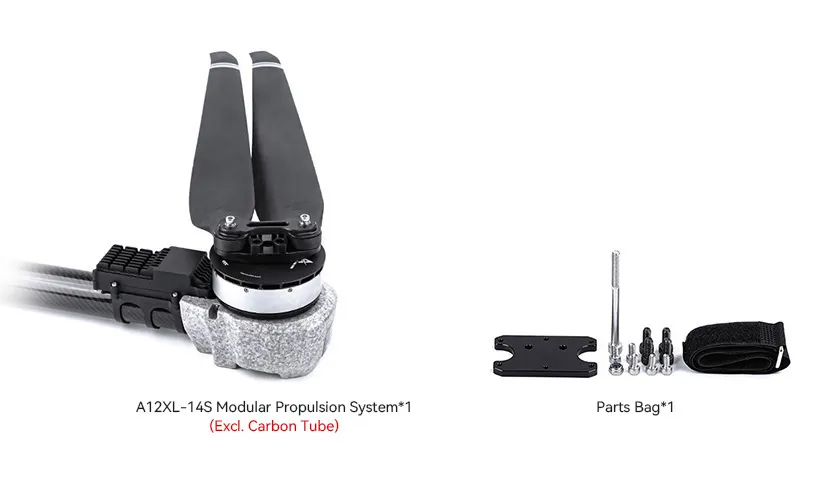

Packing List

t-motor-a12xl-14s-uav-modular-power-kit-package

Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at online@mepsking.com.
