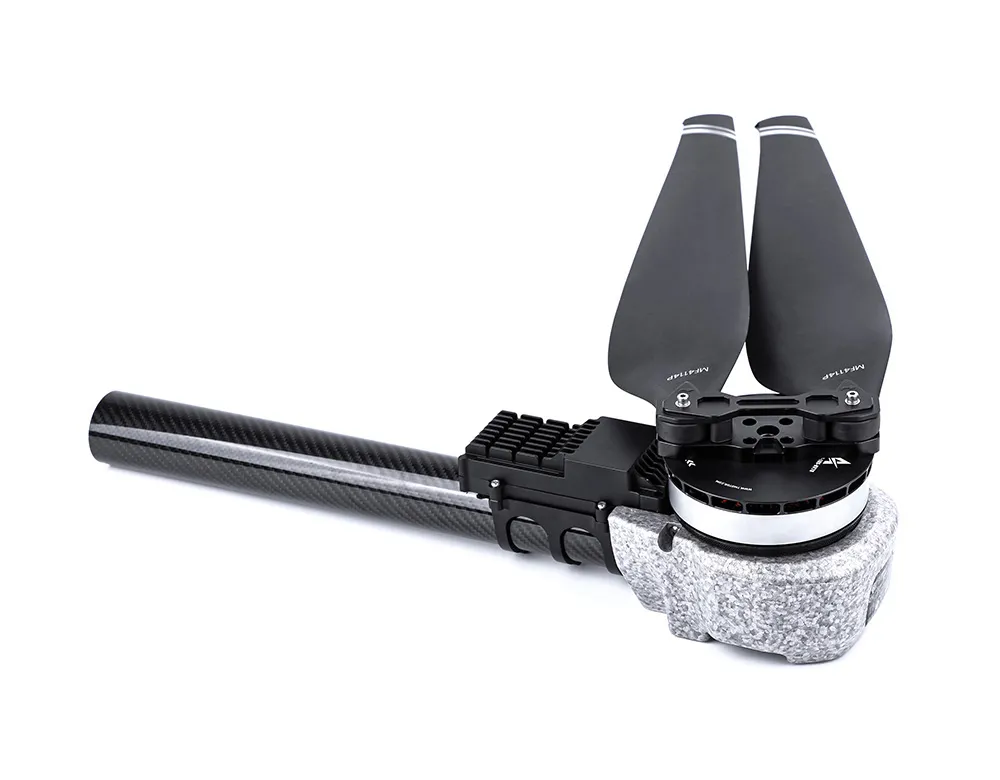

The T-MOTOR A12-14S UAV Modular Propulsion Kit delivers powerful, efficient, and reliable performance with a perfectly matched motor, ESC, and propeller system. Designed for professional UAV applications, it supports up to 30L liquid payload quadcopters and 40L liquid payload hexacopters, providing stable thrust and exceptional efficiency for agriculture, inspection, mapping, and industrial operations.
One system. Maximum power. Reliable flight performance.
Power wires：10#AWG red & black Signal wires: 5P Teflon
Recommended battery
12~14S (LiPo)
Wire length
1700±5mm
Rated thrust
15~18kg
Weight
2285±2%g (incl. Wires+prop)
Efficiency at rated thrust
8.2g/W (15.7kg)
IP
IPX6
Max. thrust
32.8kg
Recommended ambient temperature
-20～55℃
Motor specs.
Stator size
111*15mm
KV
86
ESC specs.
Throttle range
1100~1940us
Max. voltage
61V
Protocol
DRONE CAN、 UAV CAN、 CUBE CAN
Peak current (for a short time)
200A (Open environment and temperature≤60℃)
Control method
PWM/CAN
BEC
NO
Prop specs
Model No.
MF4114P (Polymer Folding)
Length
41 inch (1043.5mm)
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)

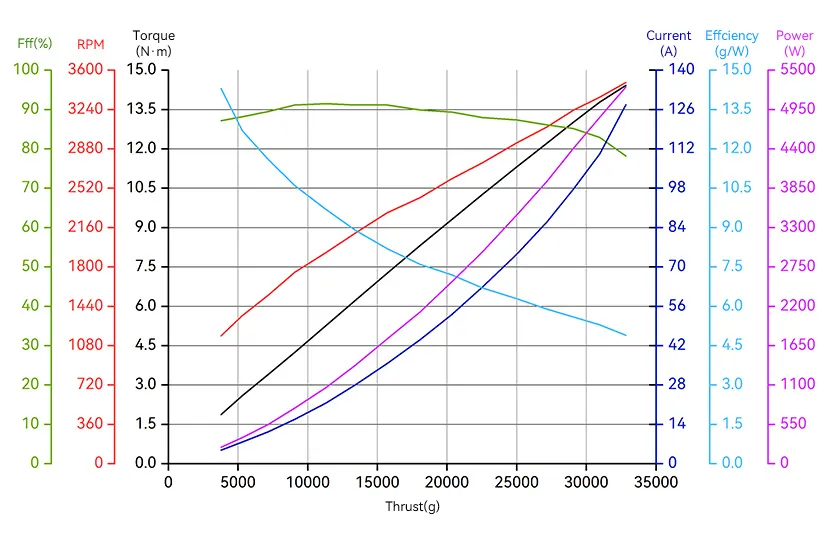

Analysis Chart

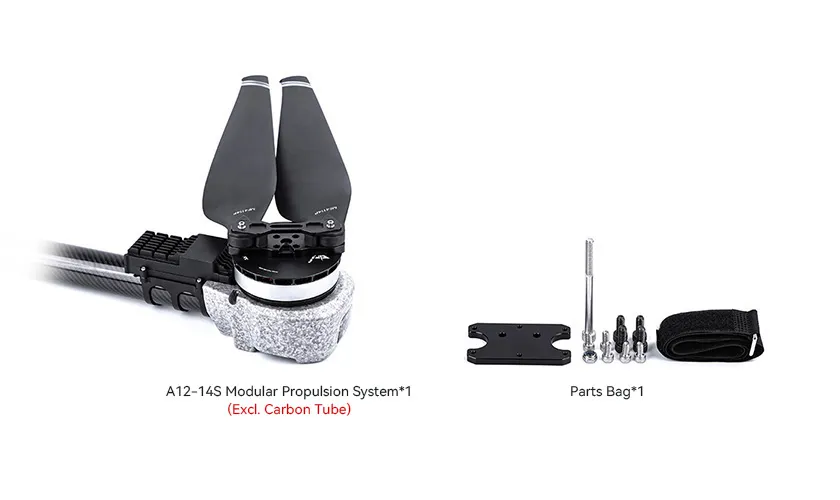

Packing List
Before using this product, please check whether all the items listed above are included in the package. If anything is missing, please contact our online customer service or email us at online@mepsking.com.
