JHEMCU Updated GHF411-HD AIO Flight Controller F4 & 40A Bluejay 4in1 ESC

About GHF411-HD AIO Flight Controller:

This is the Updated HD version of JHEMCU GHF411 AIO Flight Controller with higher 40A rating and 6S capability! GHF411AIO-HD uses STM32F411+ICM-42688-P gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, OSD module, barometer, and black box. The brushless electrical adjustment part adopts BLHELI-S 8-bit MCU with built-in TVS module, eliminating the need for external welding of TVS module.



Features:

● Higher 40A Rating and 6S Capability

● Stable Flight Performance

● Integrated BEC and OSD

● BLHELI-S 8-bit MCU

● Built-in TVS Module

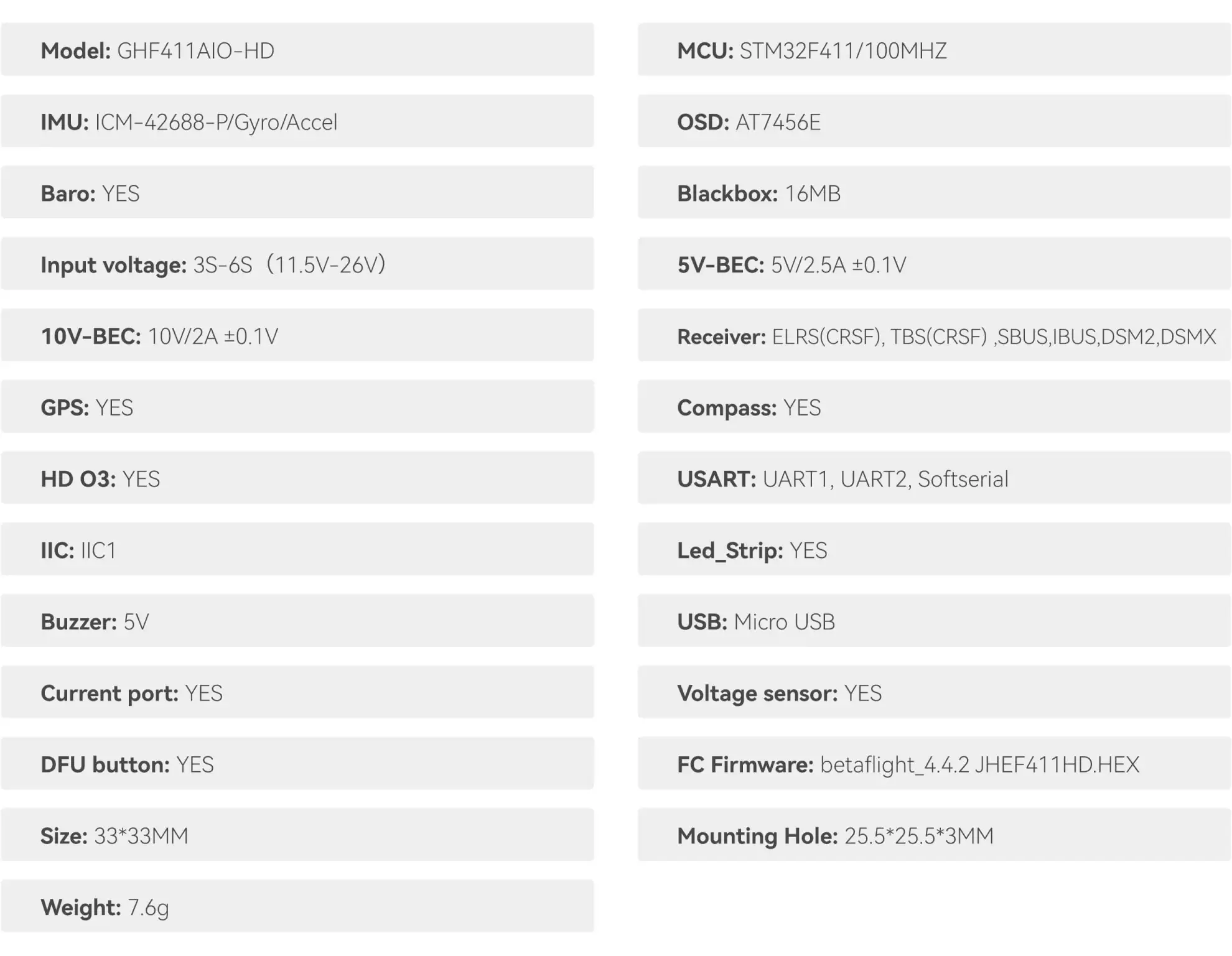

Specifications:

● Model: GHF411AIO-HD

● MCU:  STM32F411/100MHZ

● IMU:  ICM-42688-P/Gyro/Accel

● OSD: AT7456E

● Baro: YES

● Blackbox: 16MB

● Input voltage: 3S-6S(11.5V-26V)

● 5V-BEC: 5V/2.5A ±0.1V

● 10V-BEC: 10V/2A ±0.1V

● Receiver: ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

● GPS: YES

● Compass: YES

● HD O3: YES

● USART: UART1,UART2,Softserial

● IIC: IIC1

● Led_Strip: YES

● Buzzer: 5V

● USB: Micro USB

● Current port: YES

● Voltage sensor: YES

● DFU button:  YES

● FC Firmware: betaflight_4.4.2 JHEF411HD.HEX

● Size: 33*33MM

● Mounting Hole: 25.5*25.5*3MM / 26.5*26.5*3MM

● Weight: 7.6g



● Model: ESC

● ESC Current: 40A

● ESC MCU: EFM8BB21

● ESC TYPE: Blheli_S

● ESC Firmware: G_H_30_48_v0.19.2.HEX（bluejay）

● ESC signal: Dshot150，Dshot300，Dshot60



Product recommendation:

● MEPS 2004 brushless motor


Package included:

● 1* JHEMCU Updated GHF411-HD AIO



JHEMCU
Flash Sale
10:56:53
$ 59.90 $99.90
-40%
5 | 200+Sold
Options (1)
jhemcu updated ghf411 aio flight controller f4 and 40a bluejay 4in1 esc
GHF411 HD AIO
Quantity
fpv racing week gift pc
Estimated Transit Time: 5-15 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Higher 40A Rating and 6S Capability.
Stable Flight Performance.
Integrated BEC and OSD.
BLHELI-S 8-bit MCU.
Built-in TVS Module.
Payment | Every order you place with us is safe & secure
Share
Copy

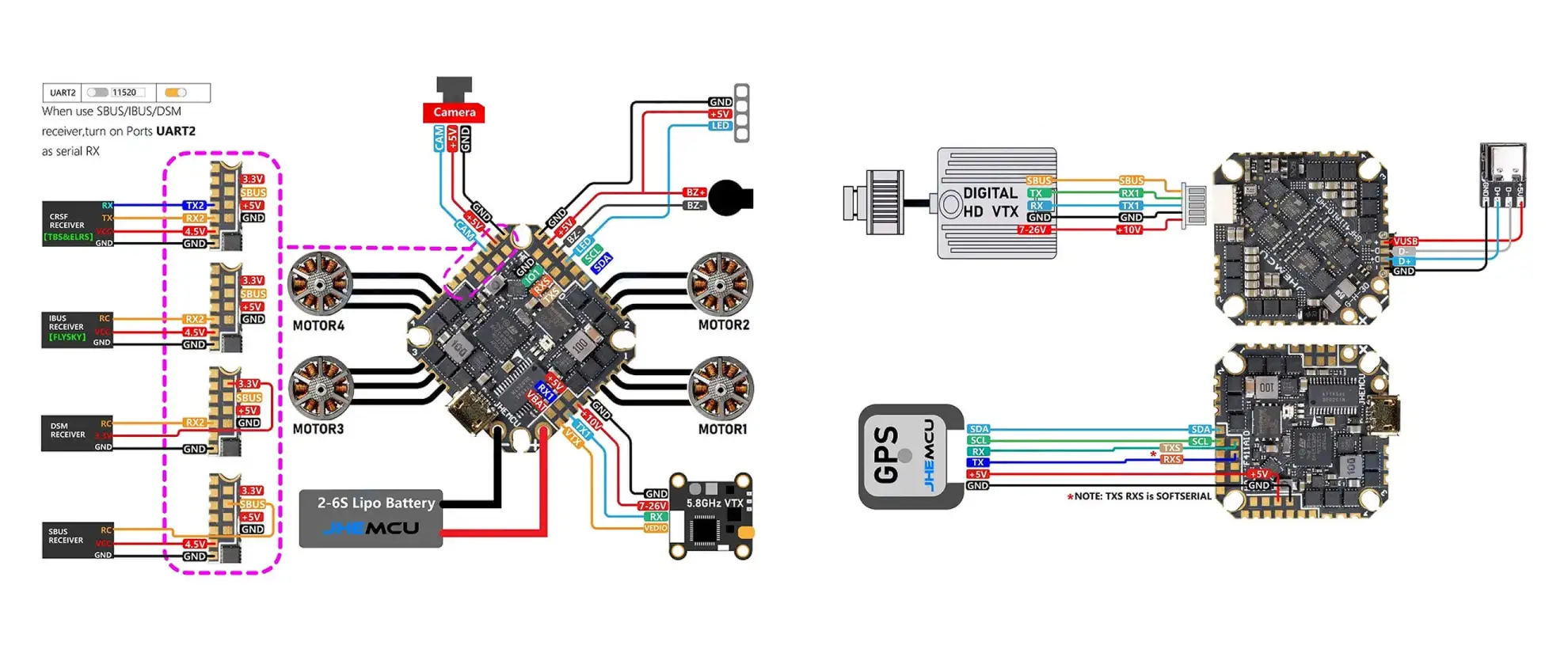

jhemcu updated ghf411 hd aio flight pc 1

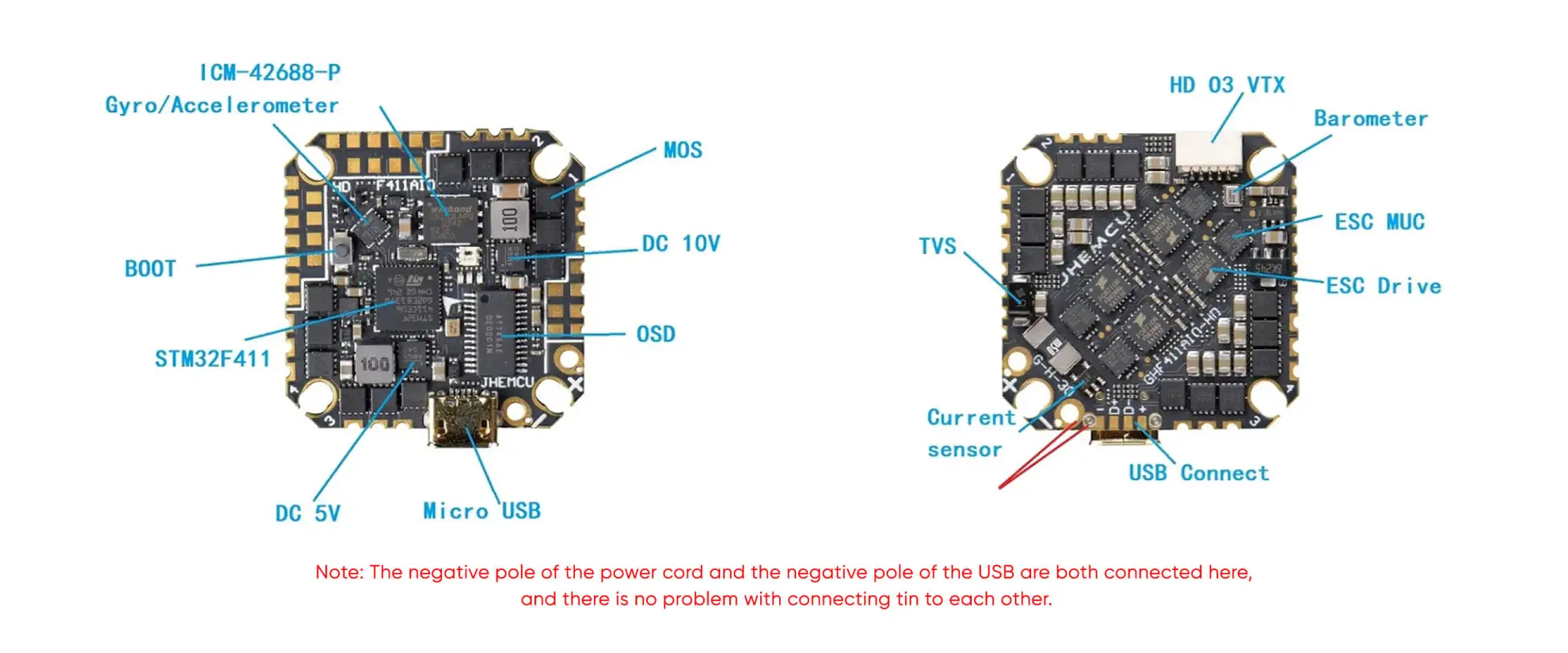

jhemcu updated ghf411 hd aio flight pc 2

Parameter

jhemcu updated ghf411 hd aio flight pc 3

Recommendations

Reviews
  • B************K
    Verified
    Just finished a 3-inch build with this AIO. The Bluejay firmware makes the motors sound so smooth. Layout is easy to follow for soldering. Everything was well packed and arrived in perfect condition.
    Model：GHF411 HD AIO
  • f***********e
    Verified
    worth the price honestly. clean aio design, stable ESC performance and no overheating issues on my 6S ultralight build.
    Model：GHF411 HD AIO
  • A********V
    Verified
    really lightweight for a 40A aio. flight feels responsive and stable, especially on quick direction changes.
    Model：GHF411 HD AIO
  • i************t
    Verified
    Well made flight controller perfect all-in-one.For my 2.5 inch toothpick trying to keep it light as possible with the power needed to move. Thanks for the gear!
    Model：GHF411 HD AIO
    Replied by MEPSKING:Thank you for your review and pictures! We’re happy to hear the flight controller is a perfect all-in-one solution for your 2.5” toothpick build. Keeping it lightweight while delivering the power you need is exactly what it’s designed for. Thanks for your support, and enjoy the flight!
  • C*********V
    Verified
    Just finished building a lightweight 3.5” setup with this AIO and honestly impressed so far. Board layout is clean and solder pads are easier to work with than expected.
    Model：GHF411 HD AIO
  • F******a
    Verified
    Très bon AIO pour un build compact. 40A ESC handles 6S surprisingly well and motors stay pretty smooth even on aggressive throttle.
    Model：GHF411 HD AIO
  • T*******h
    Verified
    Overall good board, but wiring was a bit tight on my frame because of the compact layout. Probably easier if you already have some build experience.
    Model：GHF411 HD AIO
    Additional reviews after 7 days
    support replied quickly when I asked about O3 pinout compatibility, appreciated that.
  • r*********e
    Verified
    arrived faster than expected and packaging was really good. plugged everything in and it worked out of the box with Bluejay.
    Model：GHF411 HD AIO
    Additional reviews after 8 days
    been using for over a week now, no desync issues so far.
  • 1
  • 2
FAQ Feel free to ask us any questions
ASK A QUESTION
Q: What are the features of this AIO?
Q: What are the recommended applications for this AIO?
Q: What do I need to be aware of before using this AIO?
Q: Is this AIO suitable for a 3–4 inch cinewhoop?
Q: Will this AIO support DJI O3 or other HD FPV systems?
