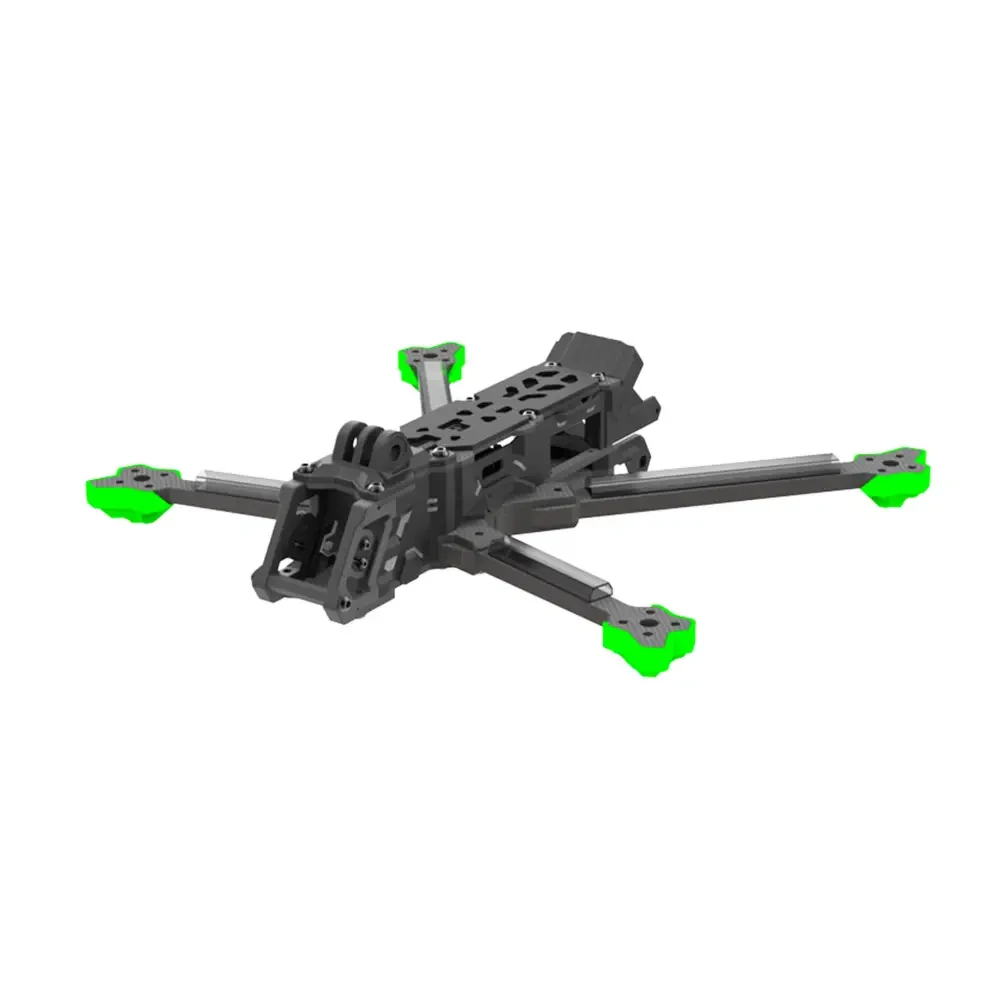

iFlight Nazgul Evoque F5 V2 5 inch Drone Frame
About iFlight Nazgul Evoque F5 V2 5 Inch Drone Frame Kit:
The iFlight Nazgul Evoque F5 V2 5 inch drone frame is designed to keep your electronics safe from dust and moisture, ensuring reliable performance every time you fly. This 5 inch drone frame features a unique design that minimizes contamination buildup on the flight controller and ESC, helping to prevent malfunctions or short circuits.
With strategic airflow, the Nazgul Evoque F5 V2 keeps your components cool without sacrificing weight or performance. The frame also includes illuminated side panels and a 360-degree TPU guard for added protection and visibility. Made from high-quality carbon fiber, the iFlight Nazgul Evoque F5 Frame is a durable and lightweight choice for FPV enthusiasts looking for a reliable and high-performing 5 inch drone frame kit.
Features:
● [100% original and brand new accessories]-DJI O3 HD air unit digital transmission V1 upgraded to V2, radiator specially designed for DJI O3 air unit
● [Durable and Durable]-The latest Nazgul frame upgrade provides maximum protection
● [High quality]-This frame kit suitable for professional use, new camera mount with TPU damping insert for wider camera field of view
● [Replaceable]-Damaged originals can be replaced and the new side panels fit the O3 Air unit on the back perfectly
● [Easy to install]-The frame is easy to install, fine workmanship, and comes with a new dual 5.8G VTX antenna TPU mount
Specification:
● Product Name: Evoque F5 V2 5 Inch Drone Frame Kit
● Frame wheelbase: 225mm (Squashed X) / 223 mm (DeadCat)
● Frame Dimension: L258*W199*H25 mm (Squashed X) / L190*W136*H36 mm (DeadCat)
● Frame Body Dimension: 36mm
● Arm Thickness: 6mm
● Bottom Plate Thickness: 3mm
● Top Plate Thickness: 2mm
● Upper Plate Thickness: 3mm
● Camera Plate Thickness: 3mm
● Max Flight Stack Height: 22mm
● Max VTX Height: 23mm
● Motor Mounting: 16x16mm
● VTX Mounting: 25.5*25.5/Φ1.6mm
● Weight: 240grams
Product Recommendation:
● MEPS SZ 2306 Brushless Motor
● MEPS mini SZ 45A FPV ESC
● MEPS mini SZ F7 Flight Controller
● MEPS RunCam Phoenix 2 SE Camera
Package Included:
1 x Evoque F5 V2 Frame Kit
