FlyFishRC Volador VX3 O3 Freestyle Frame Kit

About the Volador VX3 O3 FPV Frame:

Introducing the Volador VX3 O3 Freestyle Frame Kit, designed to deliver a 5-inch flying experience in a compact 3-inch frame. The Squashed X configuration ensures maximum control and compatibility with various analog and HD systems. High-quality TPU components enable a neat and integrated installation. The included silicone damping board plugin eliminates jello in the DJI O3 Air Unit DVR and supports 19mm/20mm cameras. Made from high-strength CNC aluminum alloy and T700 carbon fiber with chamfered edges, this frame is both durable and visually appealing. Complete with all necessary accessories and Loctite-treated hardware, the VX3 O3 offers a reliable, resonance-minimized build.

Features:

● Squashed X Configuration: Ensures maximum control and compatibility with various analog and HD systems.

● High-Quality TPU Components: Facilitates a neat and integrated installation, ideal for precise builds.

● Silicone Damping Board Plugin: Eliminates jello in the DJI O3 Air Unit DVR, compatible with 19mm/20mm cameras.

● Premium Materials: Constructed from high-strength CNC aluminum alloy and T700 carbon fiber with uniformly chamfered edges.

Specifications:

● Model: Volador VX3 O3

● Wheelbase:144mm

● Arm Thickness: 3.5mm

● Top Plate Thickness: 2mm

● Middle Plate Thickness: 2.4mm

● Bottom Plate Thickness: 2.4mm

● Keystone Thickness: 3.5mm

● CNC Side Plate Thickness: 5mm

● Propeller size: 3~3.5 inch

● Material: T700 carbon plate

● FPV Cam Spacing: 19mm/20mm

● Weight: 68.3g(with TPU parts)

● Colour: Tropical Mix

● Dimensions:118mm*135mm

● Stack Mounting Holes: 20*20mm/25.5*25.5mm(M2)

● VTX Mounting Holes: 20*20mm/25.5*25.5mm(M2)

Product recommendation:

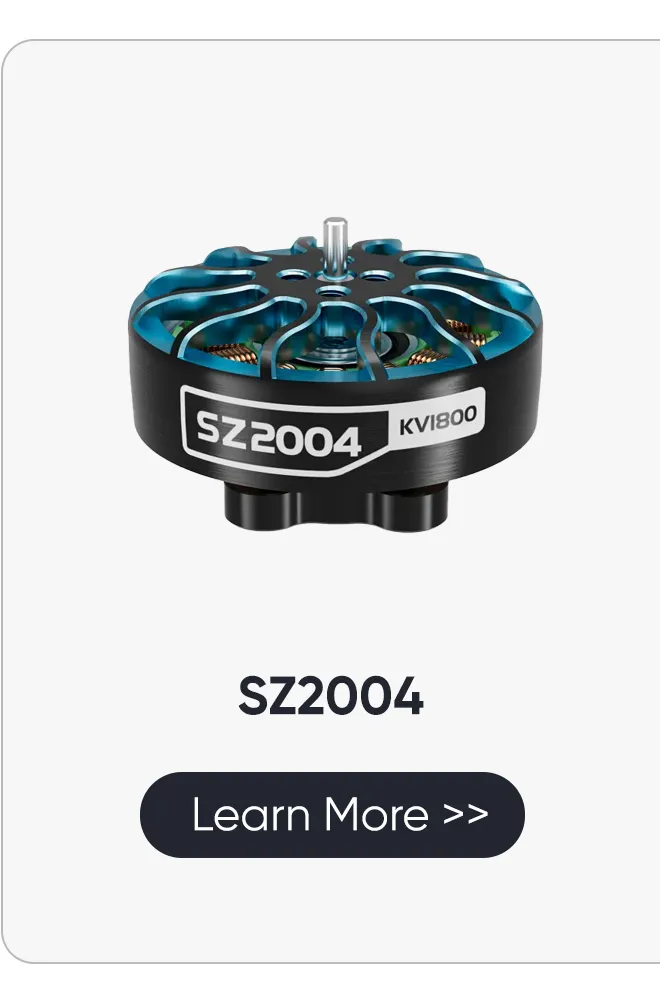

● MEPS 2004 Brushless motors

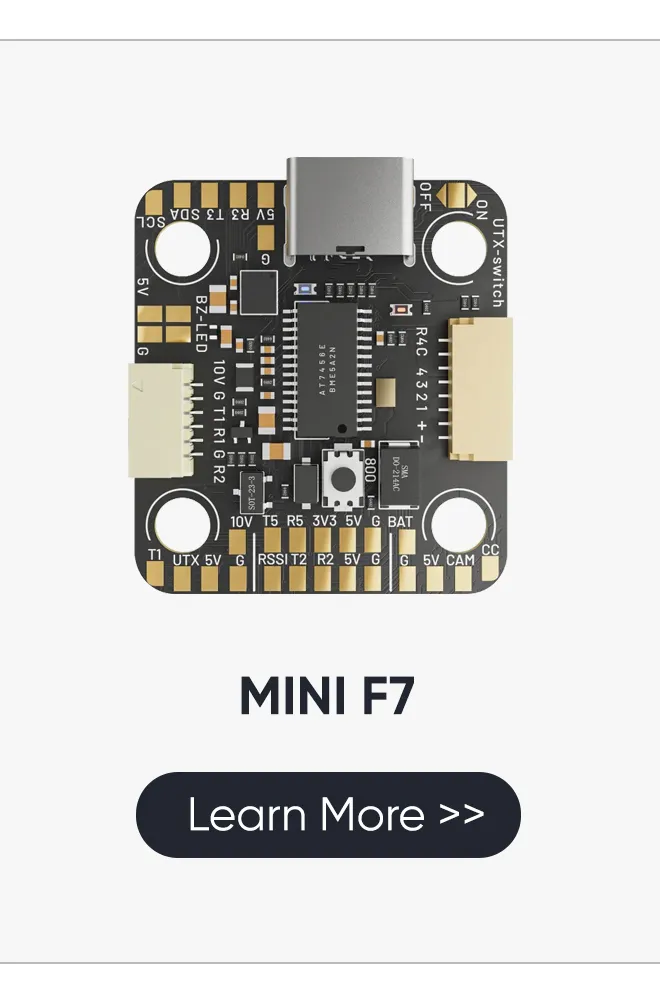

● MEPS SZ F7 MINI flight controller

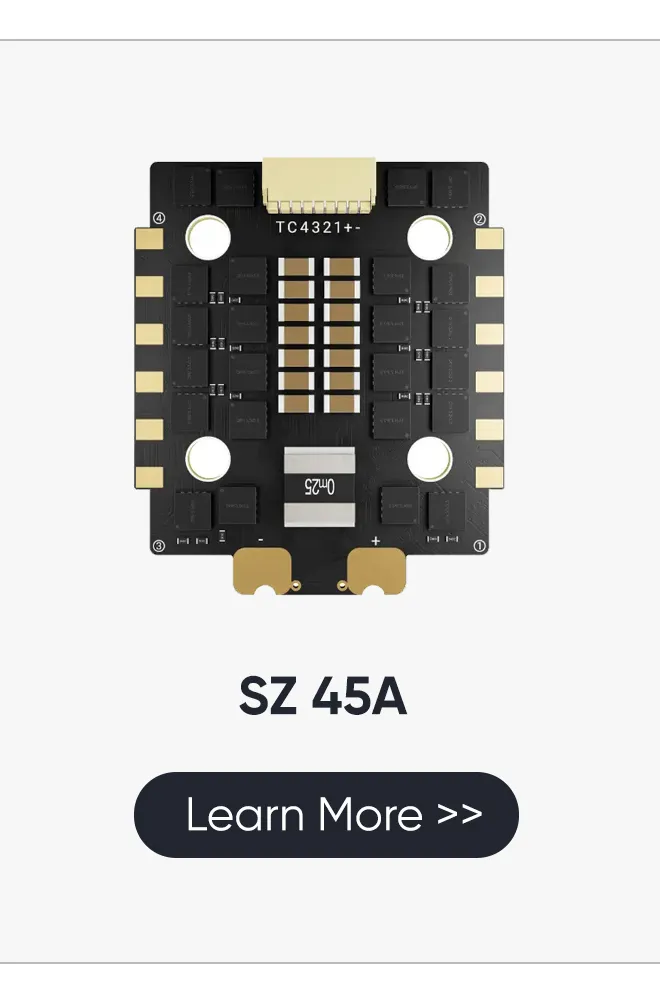

● MEPS SZ 45A MINI ESC

Package included:

● 1* FlyFishRC Volador VX3 O3 Freestyle Frame Kit
