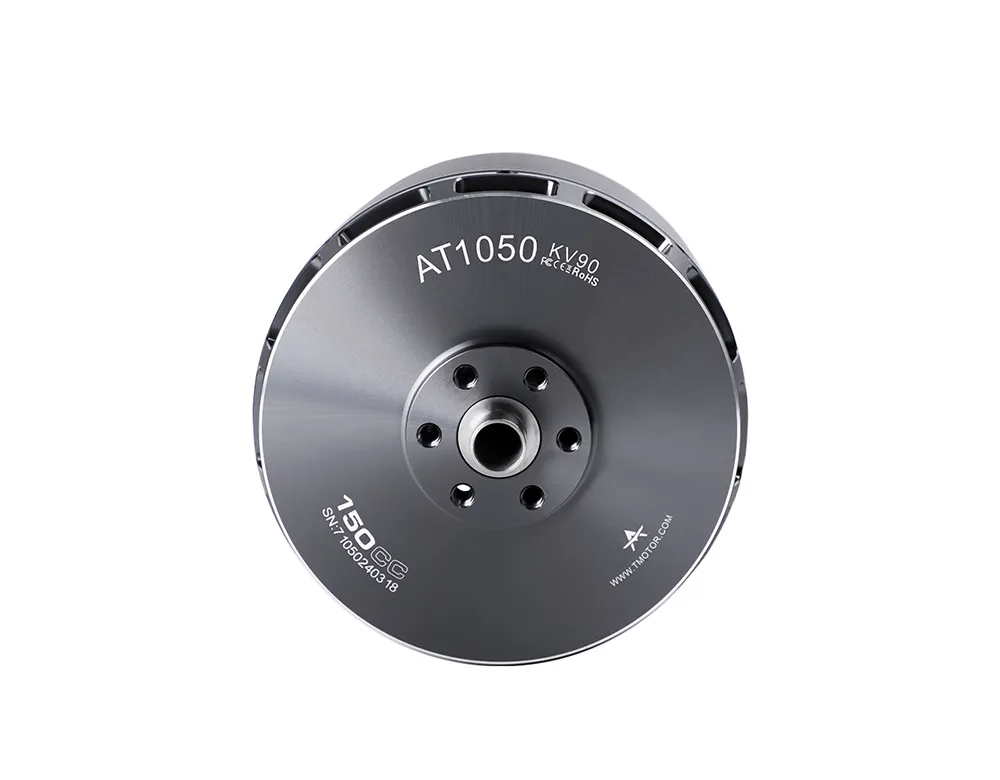

T-MOTOR AT1050 150CC 24S Fixed Wing UAV Motor 90KV

About T-MOTOR AT1050 150CC Fixed Wing Motor:

T-MOTOR AT1050 150CC fixed wing motor is designed as a high-performance propulsion solution for large UAVs and heavy-duty aircraft, providing powerful thrust, high efficiency, and reliable operation. Featuring a 90KV configuration, 24S LiPo compatibility, up to 8000W continuous power output, and a maximum thrust of 36kg, it delivers strong performance for demanding fixed-wing applications. The AT1050 supports customizable magnetic encoder installation for real-time RPM monitoring and features a removable propeller hub compatible with fixed-pitch and folding propellers. With optimized heat dissipation, high-temperature resistant materials, and a durable 24N28P motor structure, it is an ideal choice for professional UAV platforms requiring stable power and long-term reliability.

T-HOBBY

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 679.00

5.0 | 0Sold

Options (1)

Quantity

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Payment | Every order you place with us is safe & secure

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-show

Recommendation

Keep Monitoring For Motor Speed In Real Time

Compatible with magnetic encoder system, ensure flight safety.

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-speed

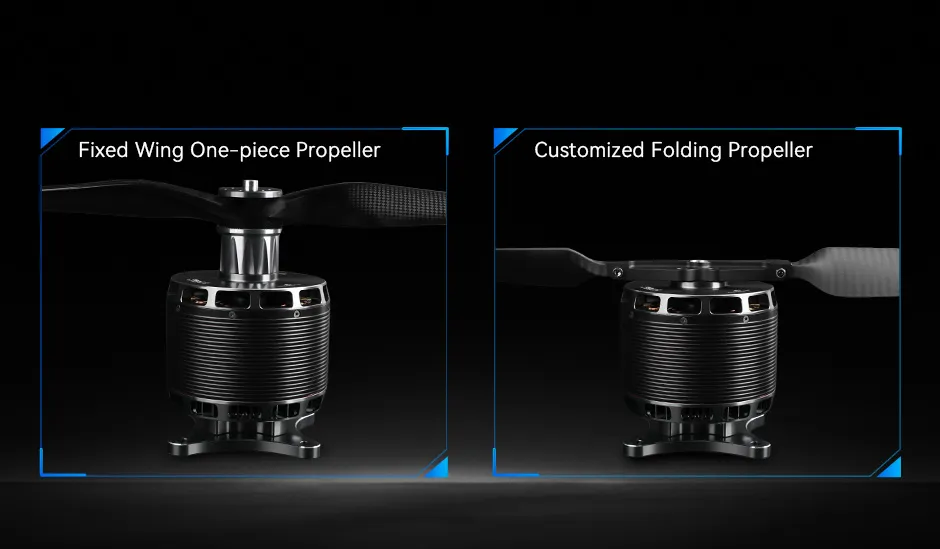

Rmovable Propeller Hub For Multiple Applications

Adapts to the installation of fixed wing one-price propellers, folding propellers and other propellers. Provide convenient and safe way of locking propeller.

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-propeller-hub

High Efficiency And Heat Dissipation Making Last Longer

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-high-efficiency

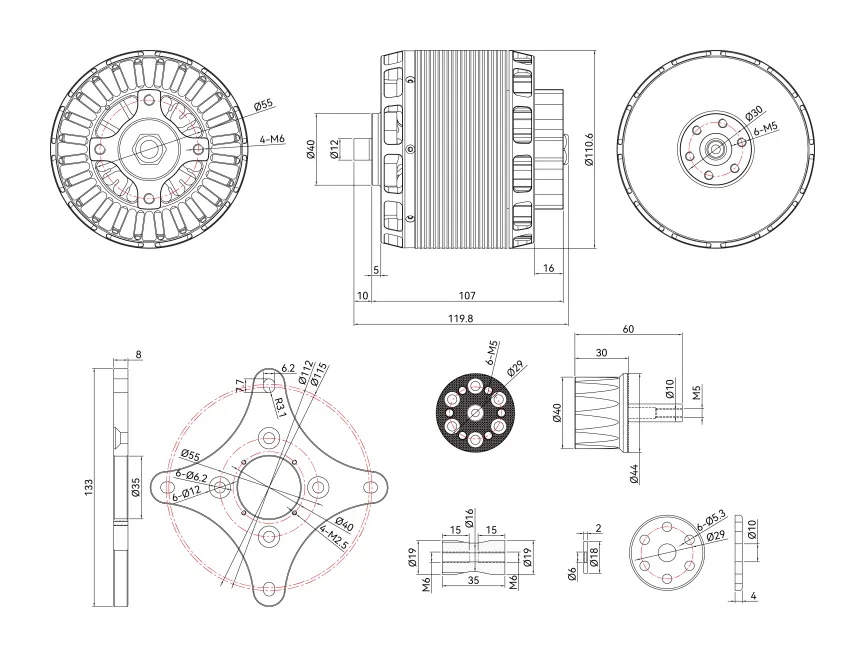

Technical Drawing

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-drawing

Specification

Specification		Specification
Type	AT1050	Magnet Temperature Resistance Grade	180℃
Motor Dimension	Φ110.6*119.8mm	Lead x Length	Enameled Wire 100mm
Stator Technology	150°C High Temperature-resisting Coatings	Temperature Resistance Of Enameled Wires	220℃
Configuration	24N28P	Coil Pressure-resistant	1000V/5s
Shaft Diameter	IN:15mm OUT:12mm	Dynamic Balance Requirements Standards	≤30mg
Bearings	6902/6202ZZ Bearings	Packing Size	246162139mm
KV	90	Idle Current (15V)	5.6A
Max. Continuous Power	8000W	Peak Current	135A
Rated Voltage (LiPo)	24S	Internal Resistance	7.2mΩ
Max Thrust	36kg	Weight (Incl.cable)	2600g

Type	Propeller	Throttle (%)	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N·m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT1050 KV90	29*12	40%	88.26	31.15	2749	4019	4.91	13740	5.00	101 (Ambient Temperature: 28℃)
		45%	88.15	37.89	3340	4312	5.68	15891	4.76
		50%	87.96	50.67	4457	4788	7.09	19742	4.43
		55%	87.79	61.63	5411	5114	8.22	22747	4.20
		60%	87.64	66.08	5791	5246	8.65	23965	4.14
		65%	87.50	72.19	6317	5406	9.26	25626	4.06
		70%	87.37	79.59	6954	5582	10.00	27428	3.94
		75%	87.24	88.25	7698	5771	10.78	29437	3.82
		80%	87.12	96.53	8409	5938	11.55	31189	3.71
		90%	86.87	112.39	9764	6238	12.93	33904	3.47
		100%	86.48	139.77	12087	6611	15.06	36666	3.03
	30*10	40%	88.31	30.17	2665	4033	4.69	13566	5.09	98 (Ambient Temperature: 28℃)
		45%	88.21	36.97	3261	4338	5.42	15772	4.84
		50%	88.02	49.28	4337	4798	6.77	19681	4.54
		55%	87.87	59.77	5251	5117	7.91	22660	4.31
		60%	87.84	64.14	5634	5247	8.33	23911	4.24
		65%	87.82	70.23	6167	5407	8.91	25465	4.13
		70%	87.77	77.66	6816	5588	9.63	27398	4.02
		75%	87.67	85.78	7521	5773	10.38	29314	3.90
		80%	87.62	93.25	8170	5941	11.02	30935	3.79
		90%	87.42	108.63	9496	6249	12.33	33235	3.50
		100%	87.12	134.45	11712	6600	14.37	36129	3.08
	30*12	40%	88.27	31.68	2797	3825	5.17	14293	5.11	HOT (Ambient Temperature: 28℃)
		45%	88.15	38.79	3419	4110	6.03	16566	4.85
		50%	88.04	46.74	4115	4397	6.96	19107	4.64
		55%	87.71	67.80	5947	4977	9.21	24808	4.17
		60%	87.62	73.17	6411	5112	9.74	26176	4.08
		65%	87.50	80.24	7022	5271	10.45	27885	3.97
		70%	87.37	88.34	7718	5444	11.20	29726	3.85
		75%	87.23	97.44	8499	5620	12.01	31725	3.73
		80%	87.08	107.11	9327	5792	12.85	33742	3.62
		90%	86.84	124.58	10819	6076	14.37	35865	3.31
		100%	86.40	152.27	13156	6414	16.59	38696	2.94
Notes: Motor temperature is the bell temperature after running at 100% for 3 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

t-motor-at1050-150cc-24s-fixed-wing-uav-motor-90kv-package-list

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " online@mepsking.com" in time.
