NewF405 8S 80A 4-in-1 Flight Controller & ESC FPV Stack | High-Performance Flight Stack

About F405 80A 8S Stack:

Upgrade your FPV drone with the F405 8S 80A 4-in-1 stack, featuring a high-performance STM32F405 flight controller with ICM42688P gyro, built-in OSD and barometer, BetaFlight pads, DJI Air Unit & GPS compatibility, and an 80A ESC with TVS protection, low-ESR capacitor, and easy M4 mounting—compact, lightweight, and perfect for racing, freestyle, or long-range FPV setups.

Limited LaunchBeginner FriendlyBest Value
Flash Sale
06:08:33
$ 87.00 $99.00
-12%
5.0 | 600+Sold
Options (1)

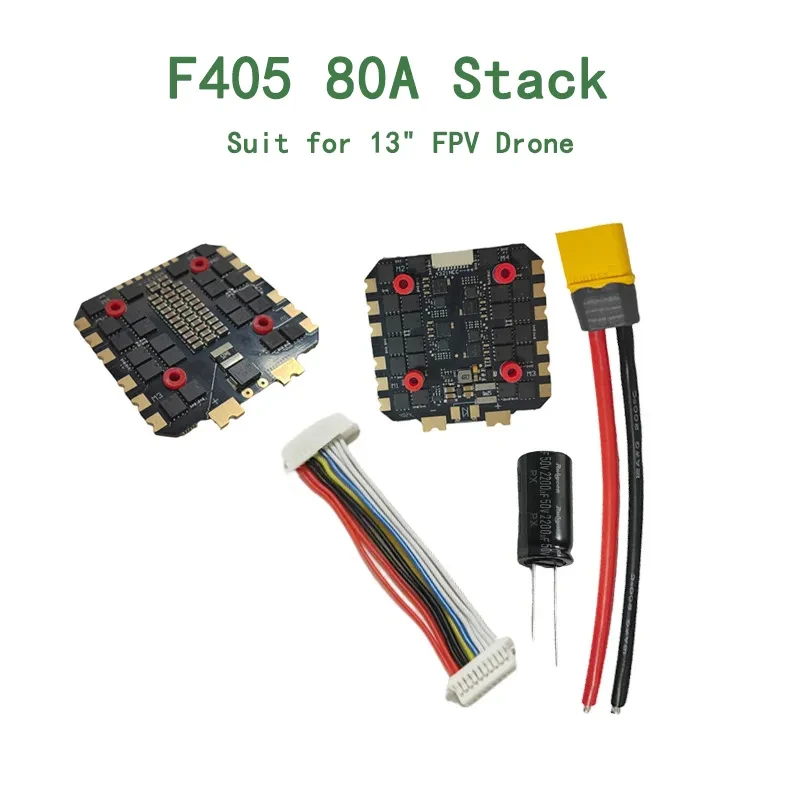

f405 80a stack for 13 inch fpv
F405 80A Stack
$6 Off Orders $169+
$10 Off Orders $269+
Get
Quantity
web upgrade love pc details
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● High-Performance 80A 4-in-1 ESC

● Integrated Flight Stack for Easy Building

● Durable Construction with Quality Components

● Stable Signal Transmission

● Excellent Compatibility

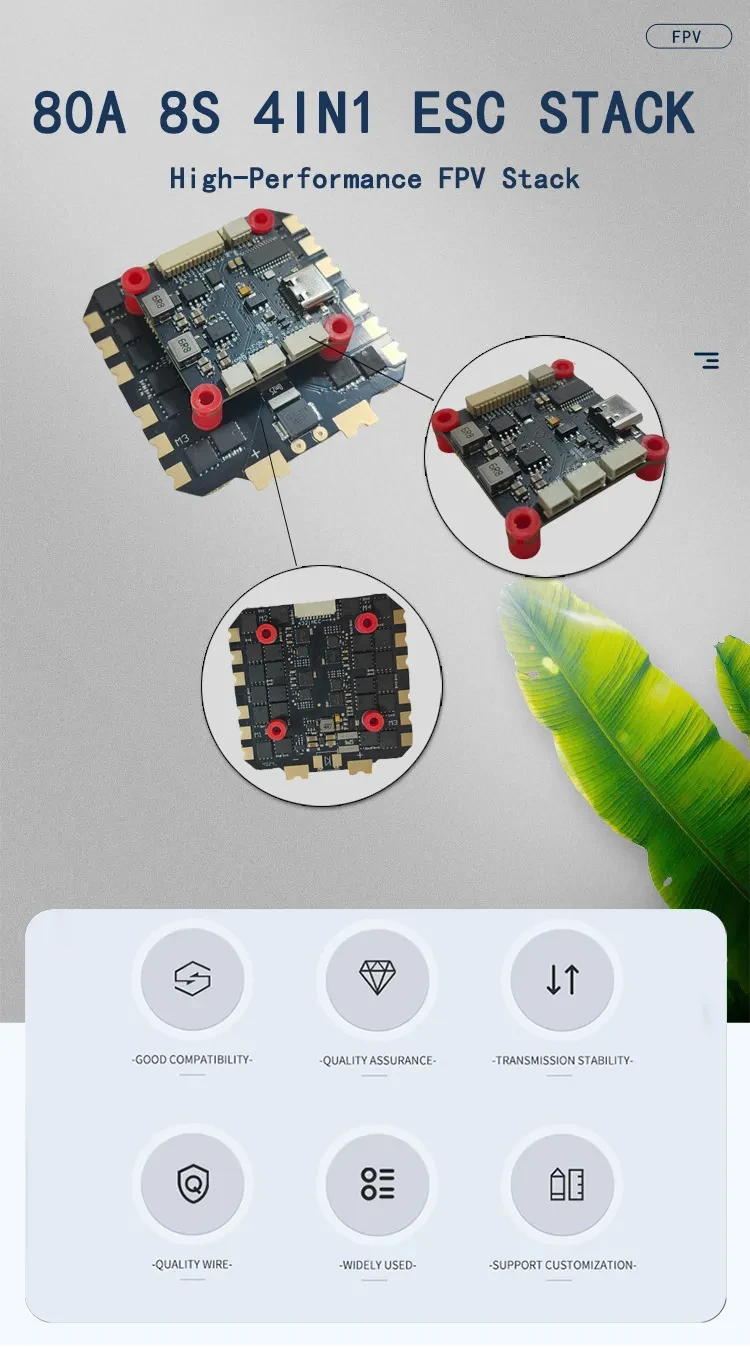

f405 80a 8s stack

Powerful and Stable

This stack features high-performance MOSFETs, delivering excellent current handling and long service life. It ensures stable power output under high loads, providing reliable and consistent performance for racing, freestyle, or long-range FPV flights.

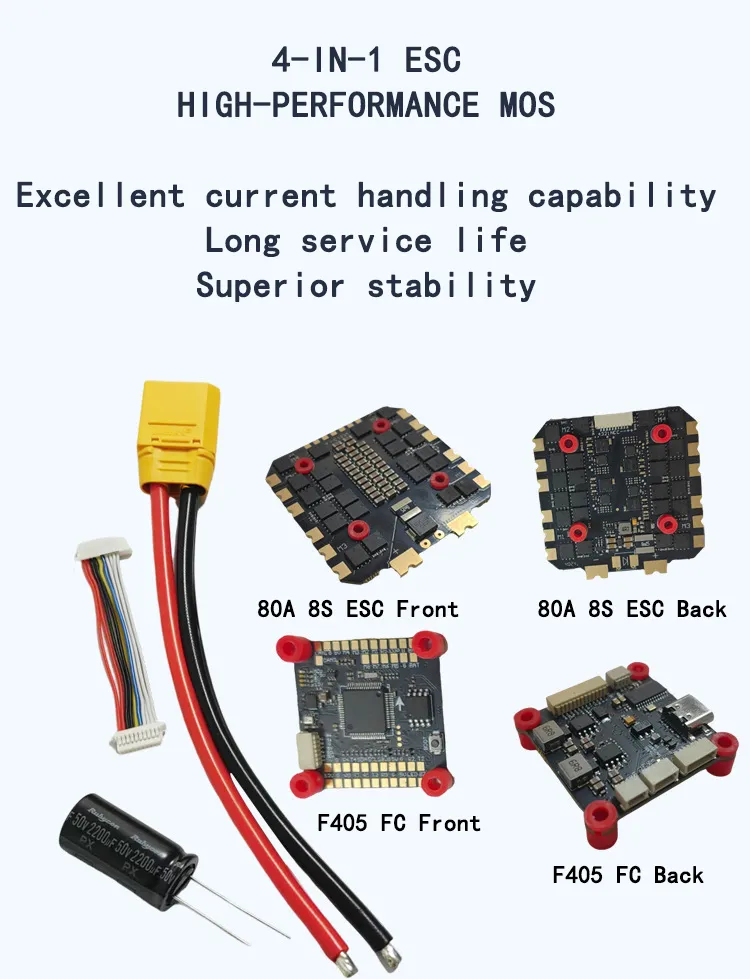

f405 80a 4 in 1 esc fc stack

Specifications



F405 4-8S Flight Controller (30.5x30.5mm)

MCUSTM32F405
GyroscopeICM42688P
USB TypeType-C
BarometerBuilt-in
OSD ChipAT7456E
DJI Air UnitSupports solder or 6PIN direct plug
GPS Connection6PIN direct plug or soldered
Black BoxBuilt-in 16MB
Current SensorSupported
BetaFlight Camera Adjust BoardSupported (3-pin plug or direct solder)
Input Voltage4-8S LiPo (via 10-pin or solder pads)
5V BEC Output8x5V outputs, total 2A
12V BEC Output2x12V outputs, total 2A
ESC SignalM1-M4, M5-M8 (supports 4-8 motors)
UART Ports4
Traditional Betaflight LED PadsSupported, 5V/GND/LED
Buzzer PadsSupported, 5V connection
BOOT ButtonSupports entering DFU mode
SmartPortSupported, any TX pin
Target NameSPEDIX F405
Mounting Hole30.5x30.5mm (4mm hole)
Dimensions36x36mm
Weight7g
80A 6S 4-in-1 ESC
FirmwareQ_H_40_24_v0.19.2.hex
Wireless TuningNot supported (via Betaflight cable)
Continuous Current80A x4
Max Current85A
Current SensingNot supported
TVS Diode ProtectionYes
External Capacitor35V 1000µF low ESR
Temperature ProtectionSupported
Input Voltage4S-6S LiPo
Output VoltageVBAT
Current SensorSupported
Mounting ScrewM4
Mounting Hole30.5x30.5mm (4mm hole)
Dimensions57x56mm
Weight28g

Wiring Diagram

other fpv stack f405 6s 60a wiring
