Q: What makes the MT12 different from traditional surface radios?

A: The MT12 is powered by EdgeTX, an open-source operating system. Please enjoy the unprecedented level of customization, mixing, and flight-controller-grade logic now available for cars and boats.

Q: Should I choose the ExpressLRS (ELRS) or the 4-in-1 version?

A: Please choose ELRS for ultra-low latency and extreme long-range performance. Choose the 4-in-1 version if you need to bind to existing receivers from brands like Futaba, Spektrum, or FrSky.

Q: How many channels does the MT12 support for complex models?

A: As standard, it supports 16 channels. Please note that the 4-in-1 version can be expanded up to 32 channels with an additional external module for heavy equipment or complex scale builds.

Q: How do I power the MT12, and are batteries included?

A: Batteries are not included. Please use either 2x 18650 Li-ion cells or a 2S 7.4V 5000mAh LiPo pack. The oversized battery compartment provides plenty of room for long sessions.

Q: Does the MT12 support fast charging for quick pit stops?

A: Yes, it supports QC3.0 fast charging via the USB-C port. Please find that it can pull up to 2.0A, allowing you to refill your power quickly between races.

Q: Is there an external module bay for different RF systems?

A: Yes, it features a Nano-size module bay. Please feel free to install a TBS Crossfire Nano or a RadioMaster Ranger Nano if you wish to expand your connectivity options.

Q: Can I customize the physical switches and joysticks?

A: Yes! The MT12 features customizable base switches and a 4-way joystick. Please tailor the ergonomics to suit your specific driving style or model requirements.

Q: What receiver is included with the ExpressLRS version?

A: It typically comes with the ER3C-i PWM receiver. Please note this receiver features a built-in ceramic antenna for a compact, clean installation in your vehicle.

Q: How do I update the firmware on the MT12?

A: You can update easily via the USB-C port or by using the SD card. Please keep your EdgeTX and RF firmware updated to access the latest features and model protocols.

Q: Does the MT12 provide telemetry data like battery voltage?

A: Yes, it does. Please enjoy real-time telemetry updates. For example, the included ER3C-i receiver can detect battery voltage ranging from 4.0V to 35V.

radiomaster mt12 surface radio controller view

radiomaster mt12 surface radio controller front

radiomaster mt12 surface radio controller screen

radiomaster mt12 surface radio controller right

radiomaster mt12 surface radio controller left

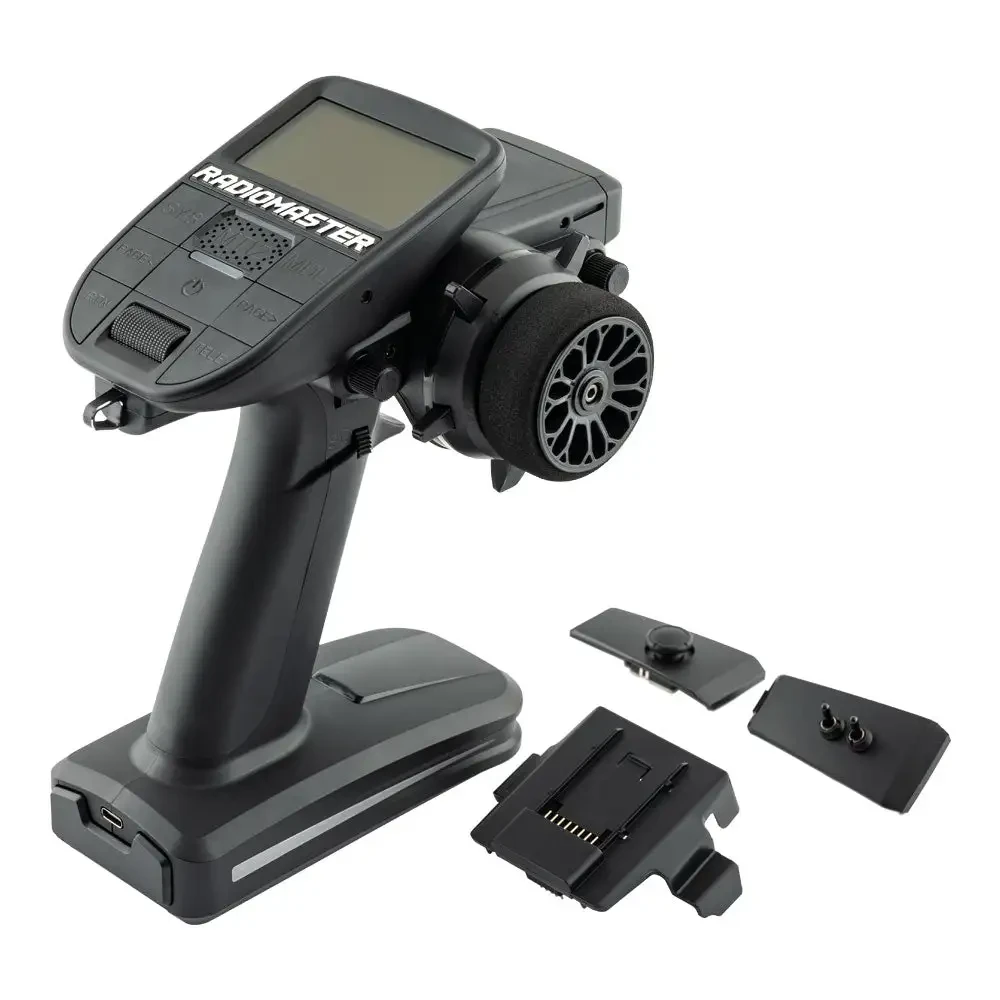

RadioMaster MT12 Surface Radio Controller

About RadioMaster MT12 Surface Radio:

Take full tactical control over your RC cars, trucks, and boats with the RadioMaster MT12 surface radio, a groundbreaking open-source surface transmitter engineered for precision, ergonomics, and extreme control. Driven by EdgeTX, the RadioMaster MT12 combines an intuitive user interface with highly customizable hardware, featuring Hall-effect sensor gimbals, customizable switch layouts, and a bright LCD screen for real-time telemetry.

Whether you choose the ultra-low latency, long-range ExpressLRS protocol with the RadioMaster MT12 ELRS version or opt for maximum multi-protocol compatibility across traditional RC vehicles with the RadioMaster MT12 4in1 edition, this controller offers unmatched versatility. Built for both competitive RC racers and scale builders, the MT12 redefines what a modern, high-performance surface radio system can achieve right out of the box.

Radiomaster

$8 Off Orders $129+

$30 Off Orders $469+

Collect

$ 145.99 ~~$160.99~~

-9%

5 | 100+Sold

Options (2)

ELRS / FCC

4IN1 / FCC

Quantity

Add-ons

RadioMaster 18650 3200mAh 1S 3.7V Battery (2pcs) for TX16S / Boxer / TX12/ Pocket / MT12 Radios

1S 3200mAh

$12.99 ~~$12.99~~

In Stock Expected ship within 5 days after order.

Free Shipping Over $99 | Save on Orders $99+

24-Month Warranty | 2 Years Full Protection

30-Day Returns From Shipment | 7-Day No-Reason Returns

24h Support Response | 24h Fast Support Guarantee

Top highlights

Available with Built-in ExpressLRS Backpack or 4in1 MPM RF Modules

QC3.0 Fast Charging, Supports up to 2.0A for Quick Power Refill

Oversized Battery Compartment for 2×18650 Cells or 2S 7.4V 5000mAh Pack (Not Included)

Customizable Base Switches or 4-Way Joystick with Compact Ergonomic Design

Payment | Every order you place with us is safe & secure

Copy

Specification ER3C-i (Included with ExpressLRS version)

● Item: ER3C-i 2.4GHz ELRS PWM Receiver

● Power supply: DC 4.5 - 8.4V

● Antenna type: Built-in high-sensitivity ceramic antenna

● Wireless protocol: ExpressLRS 3.3.0 pre-installed

● Output channel: 3CH PWM

● Telemetry power: 10mW

● Battery voltage detection range: DC 4.0 - 35V

● Weight: 4.2 grams

● Dimensions: 26.1*18.5*13.0 mm

● Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i

Reviews

w*********t
Verified

MT12 radio arrived in pristine condition. Double boxed and taped up well. Definitely trust mepsking with fpv gear.

Version：ELRSREGION：FCC
s*********o
Verified

Using the MT12 for my RC car. ELRS is so much better than the old tech. The ergonomics feel great.

Version：ELRSREGION：FCC
r************o
Verified

Finally switched to MT12 for my surface rigs. ELRS protocol is a game changer for range. Ergonomics feel way better than my old Futaba.

Version：ELRSREGION：FCC
b**********n
Verified

I’ve been using the RadioMaster MT12 Surface Radio Controller for several weeks now. Hall-effect steering wheel and trigger are incredibly smooth, precise, and consistent with zero dead zone or jitter, making every maneuver feel locked-in and responsive. The pre-installed EdgeTX system is fully cust

Version：ELRSREGION：FCC
s*********v
Verified

shipped fast. box was undamaged.support helped me set up my quad. very nice!!!!!

Version：ELRSREGION：FCC

RadioMaster MT12 Surface Radio Controller

EdgeTX Operating System

Available with ExpressLRS and 4in1 Version

ExpressLRS VERSION

4in1 VERSION

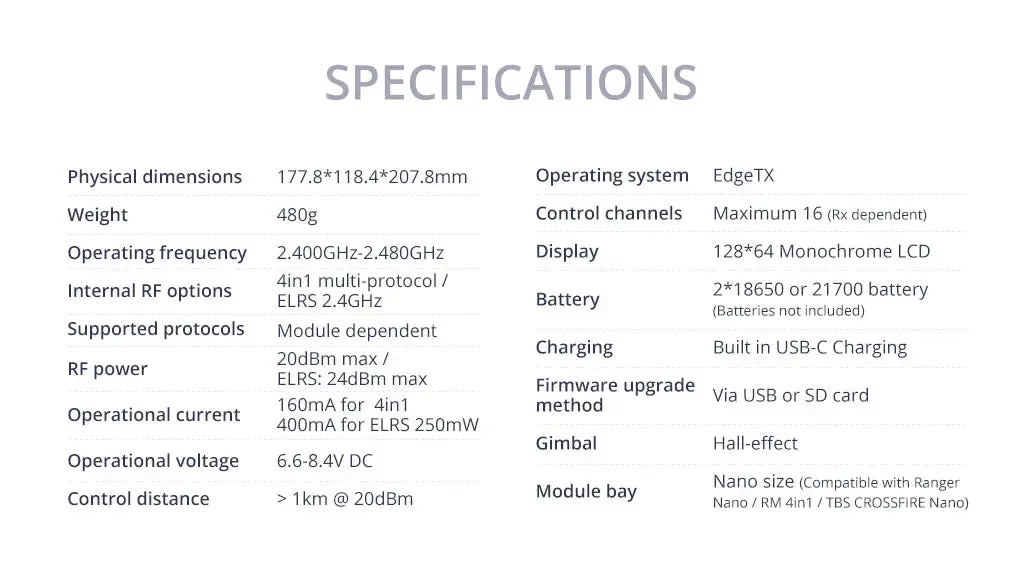

Specification MT12

Specification ER3C-i (Included with ExpressLRS version)

Specification R85C (Included with 4in1 version)
