Bandit BR1 ExpressLRS 915MHz Receiver

Radiomaster

Sales：6Pcs

$19.99

~~$24.98~~

-20%

$8 Off Orders $79+ Get

$15 Off Orders $149+ Get

● Built-in TCXO oscillato

● Utilizing 0402 components, superior resistance to vibration

● Lightweight and compact design

● High-sensitivity 915/868MHz T Antenna included

Learn more

Options (1)

Bandit Br1 Expresslrs Receiver

Quantity

In Stock Expected ship within 7 days after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

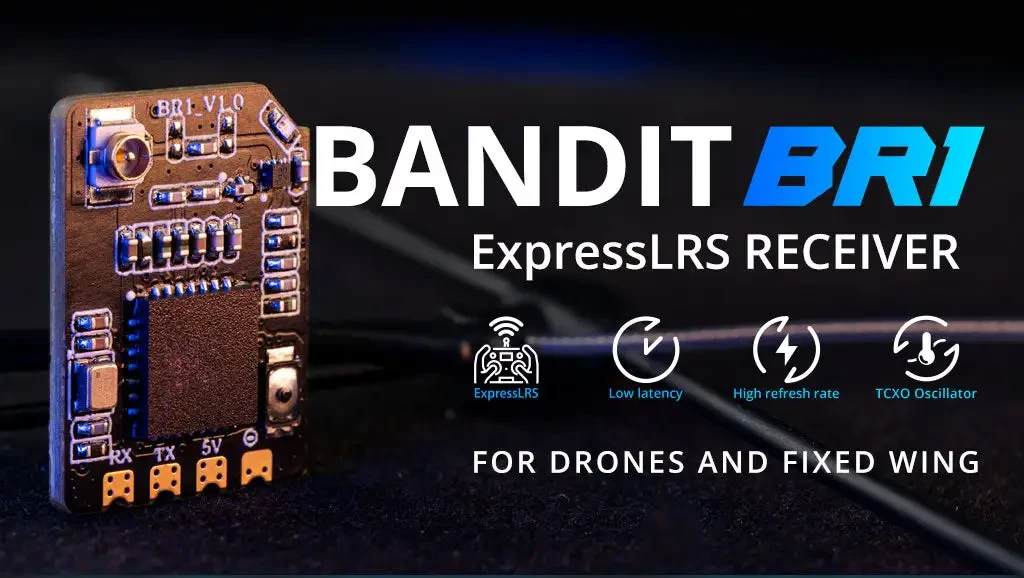

About The RadioMaster Bandit BR1 Expresslrs Receiver:

The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR1 Expresslrs Receiver incorporates an ESP8285 MCU and SX1276 RF chip, renowned for its low latency, high sensitivity and exceptional long-range performance. The included T Antenna designed with high-sensitivity are both lightweight and easy to install depending on your application.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR1 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Specifications

●Item: Bandit BR1 Expresslrs Receiver

●Regulatory Domain: FCC915

●MCU: ESP8285

●RF Chip: SEMTECH SX1276

●Telemetry RF Power: 50mw/17dbm

●Antenna: 915/868MHz T Antenna & Y Antenna

●Antenna Interface: IPEX1

●Bus Interface: CRSF

●Working Voltage: DC 5.0V

●Dimension: 18*13.8mm

●Weight: 2.9g (with T antenna)

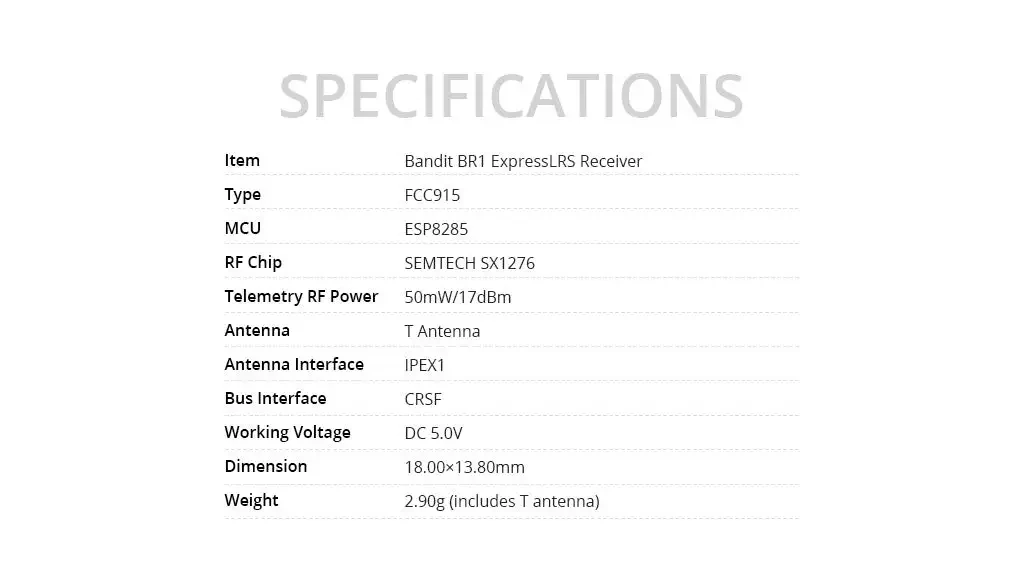

bandit br1 expresslrs 915mhz receiver data

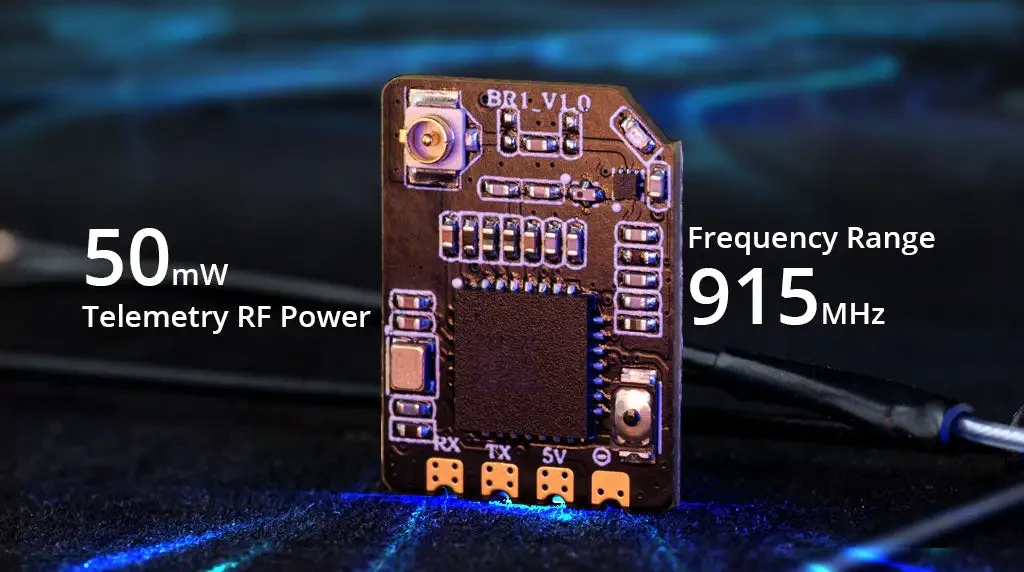

50mW strong RF power, 915MHz band, RX/TX/5V interfaces for plug-and-play use in wireless telemetry.

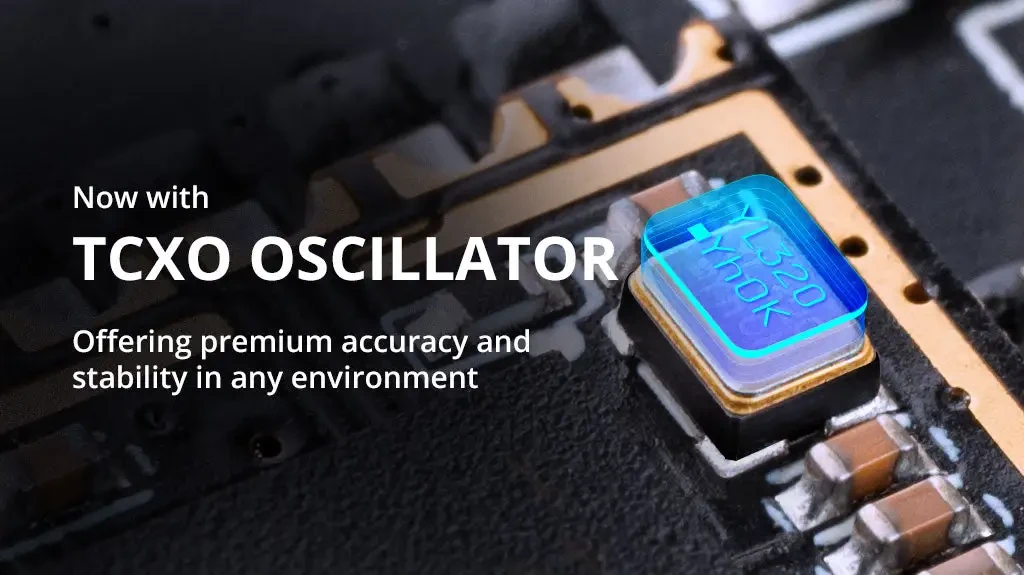

Features high-precision TCXO oscillator, delivering exceptional frequency stability and accuracy in all environments for industrial applications.

bandit br1 expresslrs 915mhz receiver tcxo

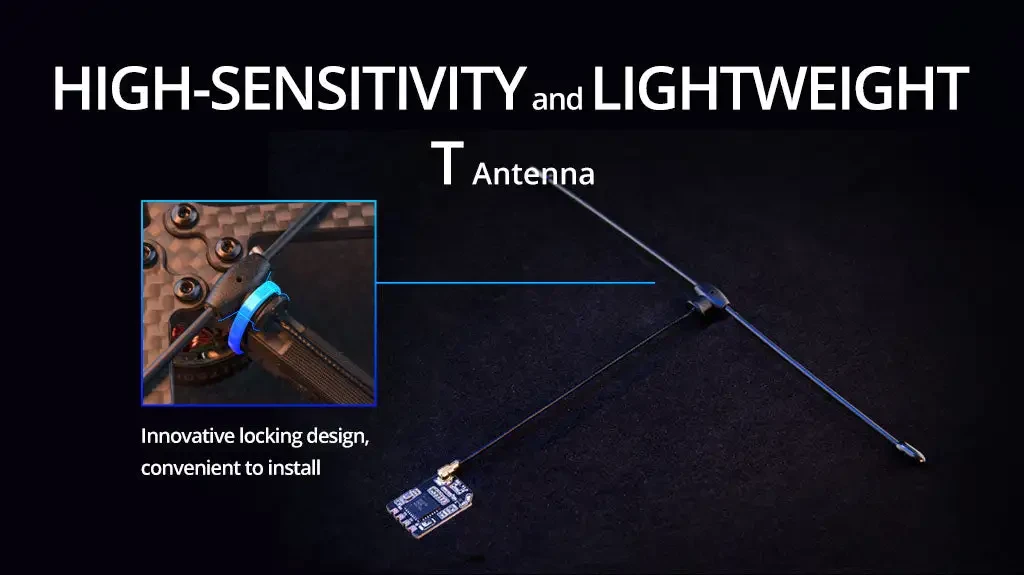

High-sensitivity and lightweight design, featuring an innovative locking mechanism for easy and secure installation, ensuring superior signal reception.

bandit br1 expresslrs 915mhz receiver lightweight

Breakthrough miniaturization design. This high-performance module is seamlessly integrated into compact earbuds, delivering powerful capabilities in a tiny form factor. Offers wearable device developers ultimate space optimization and premium audio experience. Small size, big innovation.

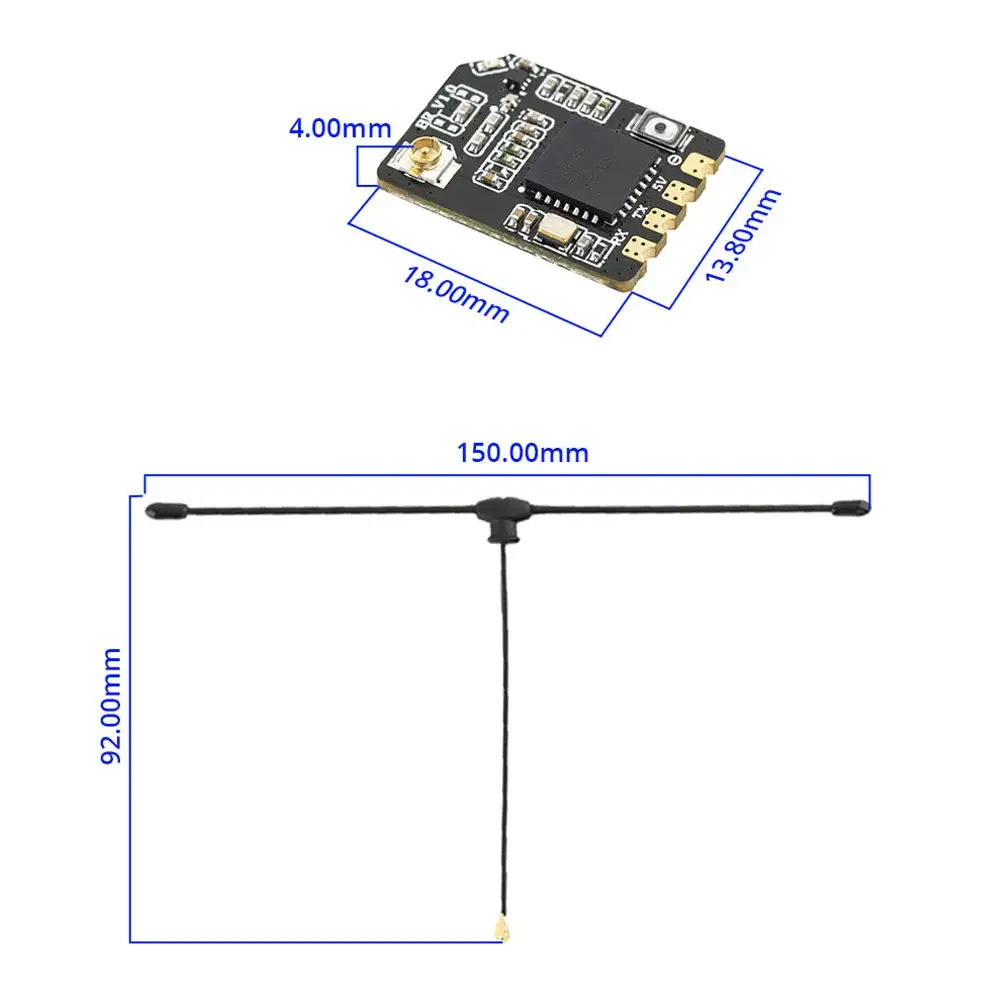

Size

Recommendations

Package Includes

2 * BETAFPV Moxon Antenna or 1 * BETAFPV Moxon Antenna V2

bandit br1 expresslrs 915mhz receiver package
