T-HOBBY F40 PRO IV 2306 Brushless Freestyle Racing Motor for 5-inch FPV Drone
About T-Hobby F40 PRO IV Drone Motor:
Unleash Extreme Power with F40 PRO IV 2306 Brushless Motors! Engineered for elite freestyle racing, these high-torque motors deliver explosive thrust and silky-smooth control. Optimized stator design reduces heat buildup, while CNC-machined components ensure bulletproof durability.
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 15-20 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
15-Day Easy Returns | 15-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
4S 1500KV Brushless Motors
600TVL HD FPV Camera + 5.8G 48CH VTX
Ultra-Light 75g Frame (3K Carbon Fiber)
Betaflight F4 Flight Controller
Modular Design for Easy Upgrades
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
2306 stator size generates 20% more torque than predecessors, with ultra-low ripple current for buttery-smooth throttle response. Balanced magnets eliminate vibrations even at 35,000 RPM—perfect for freestyle flips and precision cornering.
Hollow-core shaft + aviation-grade alloy housing dissipate heat 40% faster. Tested for 50+ consecutive flights without power drop—ideal for intense racing sessions in tropical climates.

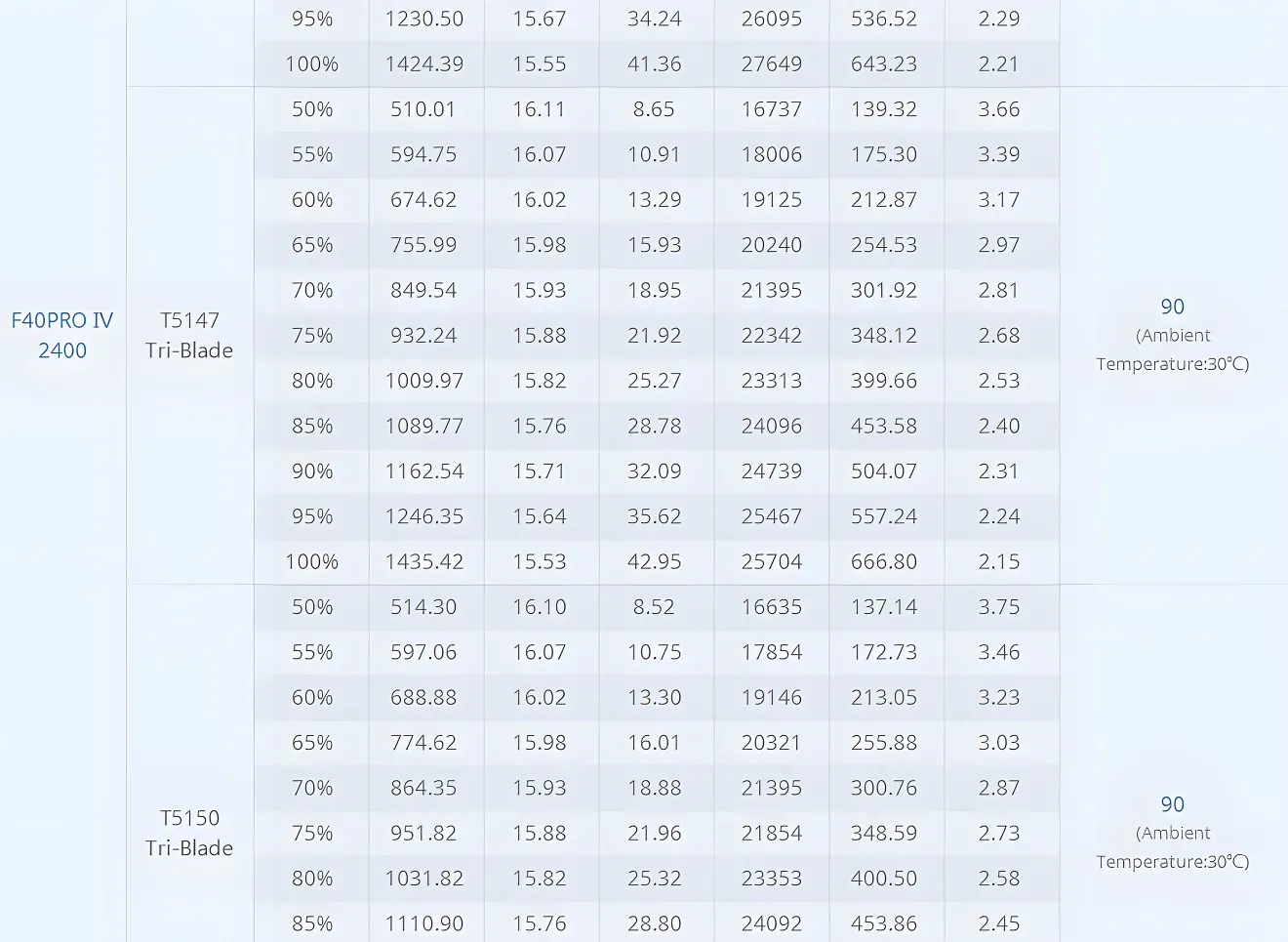

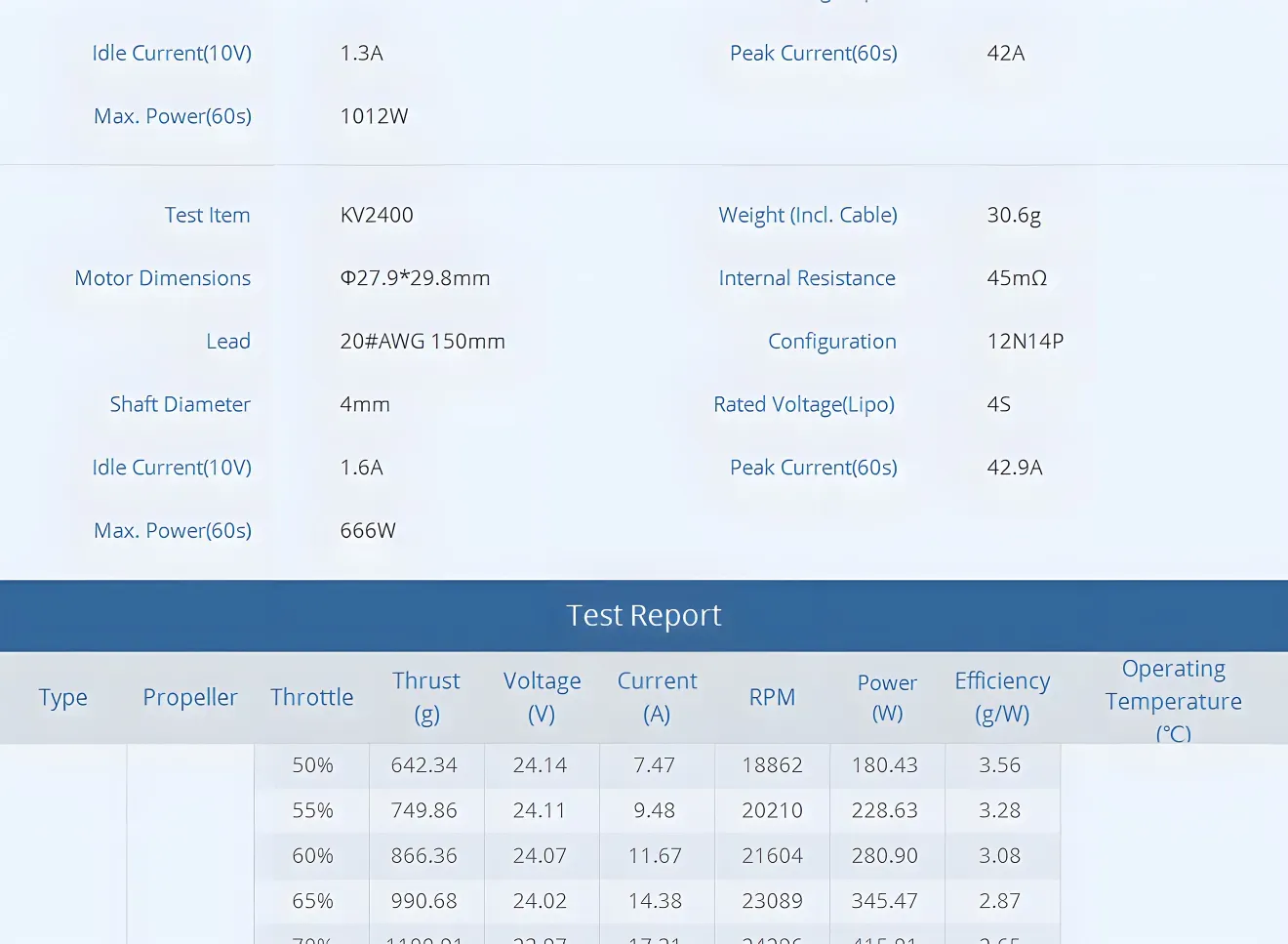

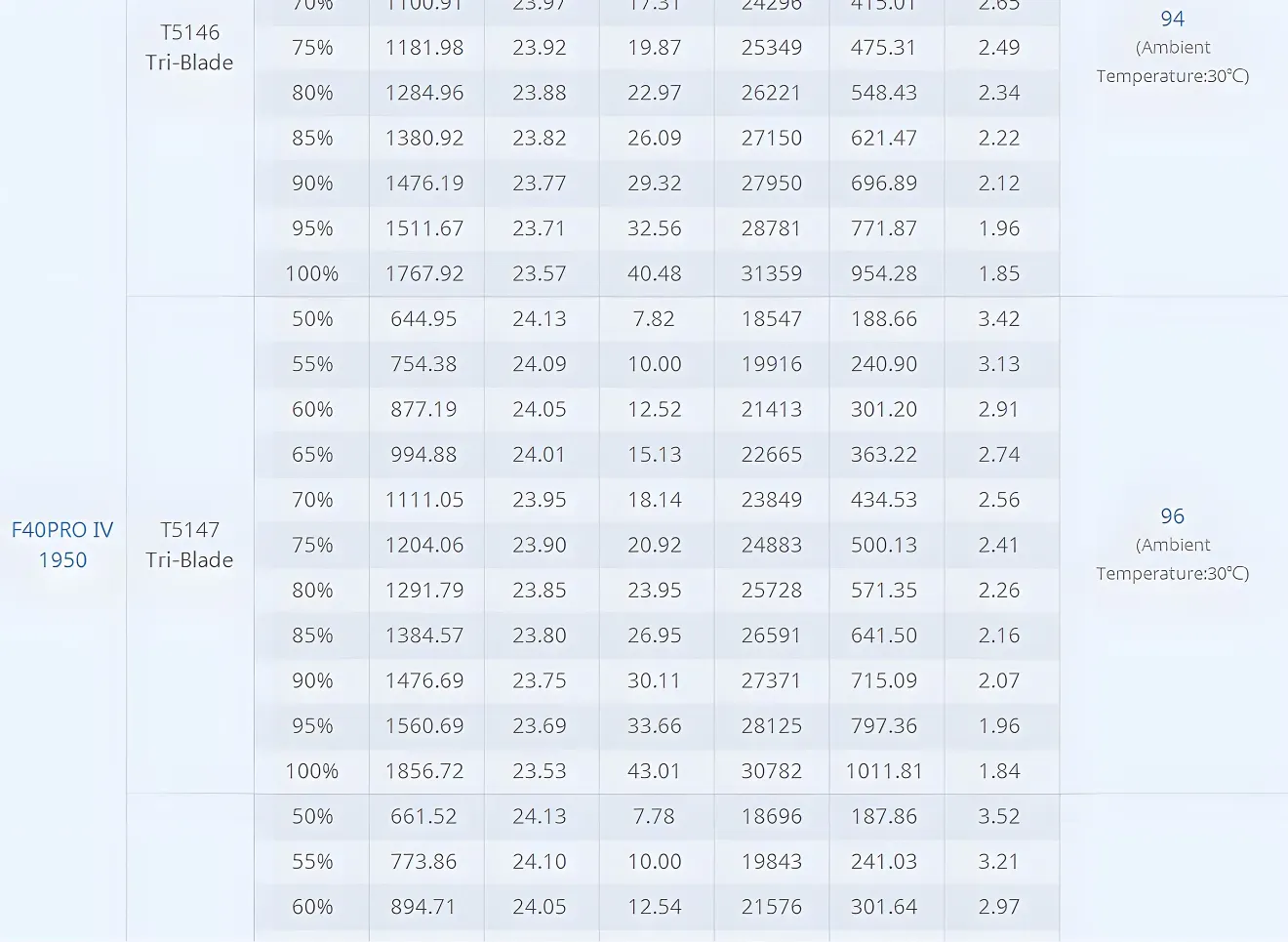

Data
Recommendations
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What are the recommended application scenarios for this motor?
A: This motor is ideal for racing and freestyle flying. The motor provides excellent responsiveness and flight handling, with stable temperatures during extended operation.
Q: What should be noted when using this motor?
A: Before installation, ensure the propeller size is correct, including the mounting and hole dimensions. Use compatible propellers for proper operation.
