T-HOBBY F1204 Micro FPV Motor For 2.5-3‘’ Toothpicks and Whoops
Ultralight Power for 2.5–3" Sub-250g Builds
The T-HOBBY F1204 is an ultralight micro motor specifically engineered for high-performance toothpicks and heavy-duty whoops. Weighing only 6.1g, it provides the perfect thrust-to-weight ratio for agile 2.5 to 3-inch drones, ensuring your sub-250g builds stay fast and responsive.
Trusted PerformanceHigh Repurchase RateBuilt to Last
$12 Off Orders $199+
$6 Off Orders $109+
Collect
$15.90
$19.90
-20%
5|200+Sold
Options (2)
Sold Out
5000KV
6500KV
Quantity
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
Top highlights

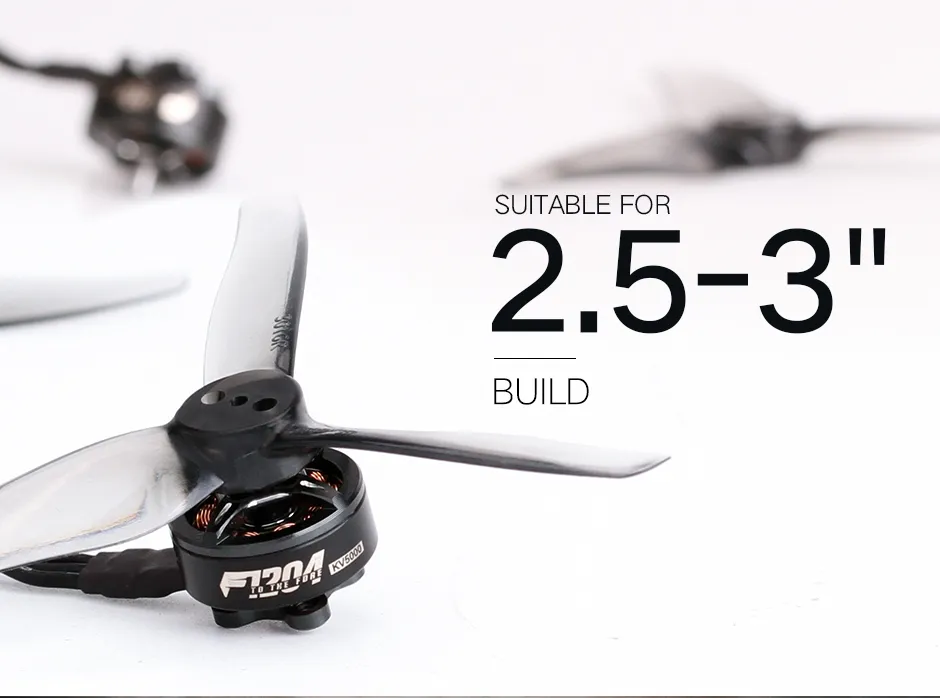

Suitable for 2.5-3" toothpick and whoops.
1.5mm shaft, fit more power.

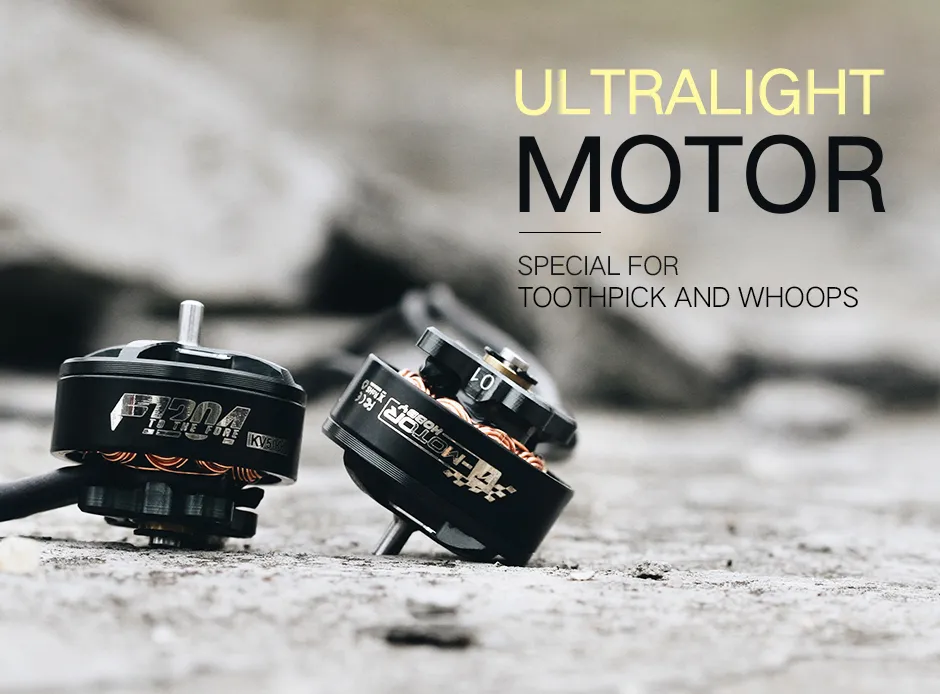

Ultralight motor.

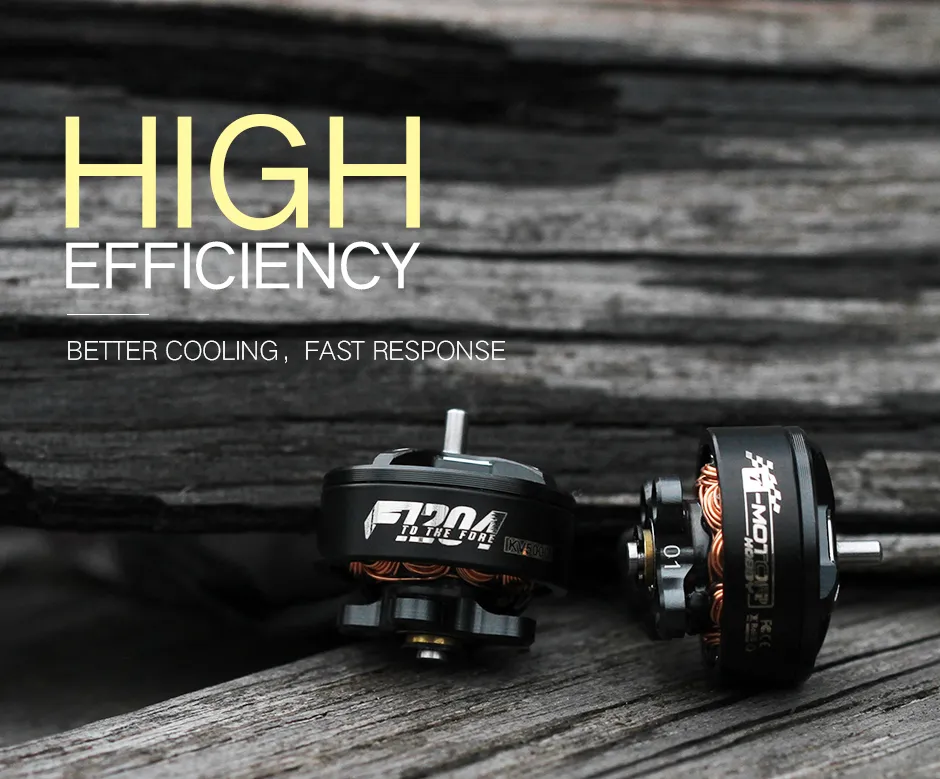

High efficiency, better cooling.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

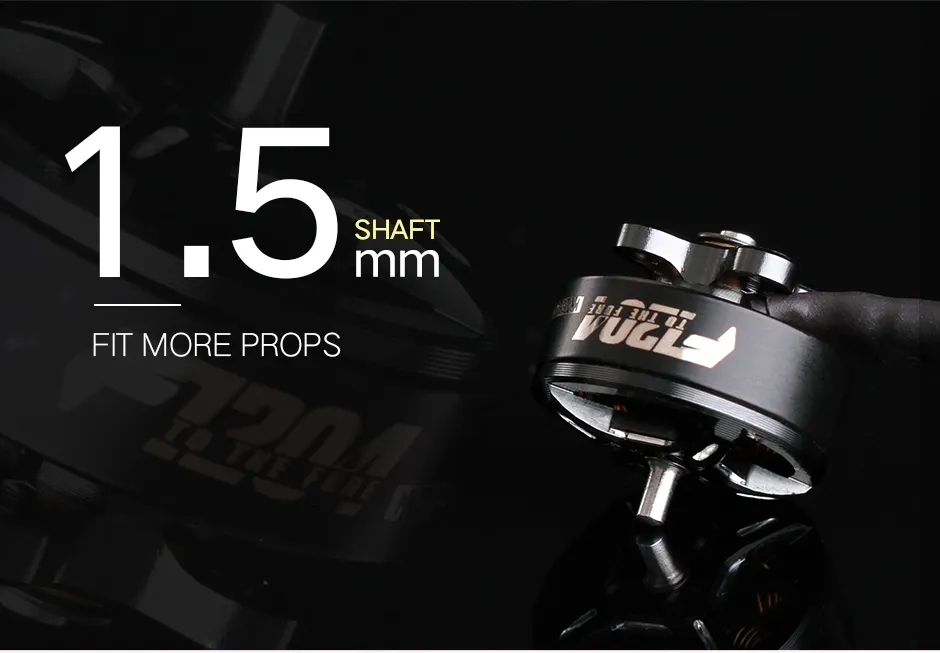

Universal 1.5mm Shaft for Maximum Prop Choice
Featuring a standard 1.5mm shaft diameter, the F1204 is compatible with the most popular micro props on the market. The reinforced shaft design ensures durability during hard landings while maintaining a low rotational inertia.
User Value: Easy to find replacement props; better protection against bent shafts in crashes.
Dual KV Options: 6500KV vs. 11000KV
Choose the 6500KV version for efficient 3S toothpick setups with longer flight times, or push the limits with the 11000KV version on 2S for explosive indoor whoop racing.
User Value: Customize your flight feel—choose "Efficient & Smooth" for outdoor freestyle or "High RPM & Aggressive" for tight racing tracks.
9N12P Configuration & Open-Base Cooling
The optimized 9N12P magnetic circuit ensures high torque even at low throttle. The open-base design allows maximum airflow to the windings, keeping the motor cool during back-to-back packs.
User Value: No more "hot motors" after a flight; maintains peak power without thermal throttling.
Quality Wires & Precision Manufacturing
Equipped with 100mm 24#AWG high-temperature silicone wires, the F1204 is ready for any micro AIO flight controller. Every motor is precision-balanced to reduce vibrations and mid-throttle oscillations.
User Value: Cleaner gyro traces, easier PID tuning, and a "locked-in" flight experience.
Perfect for 85mm–120mm Micro Frames
Whether you’re building a 2-inch Cinewhoop or a 3-inch ultralight toothpick, the 1204 stator size provides the torque needed for technical maneuvers without the weight of larger motors.
User Value: The go-to upgrade motor for 85mm whoops and 120mm toothpick frames.
Specifications:
● Model: T-HOBBY F1204 FPV drone motor
● Motor DimensionS: Φ15.5*15.6mm
● Lead: 24#AWG 100mm
● Shaft Diameter: 1.5mm
● Idle Current: 0.9A
● Max.Power (the 60s): 60W
● Weight (Excl. Cable): 6.1g
● Internal Resistance: 140mΩ
● Configuration: 9N12P
● Rated Voltage (Lipo): 3-3S
● Peak Current (60s): 7A
Package Included:
● 1* T-Motor F1204 FPV drone motor
Reviews
R***m
Verified
Vine Voice
MEPSKING Vine Customer Review of Free Product
Muy buenos motores de calidad funciona perfectamente para drones de 2" a 3" o 4" va con tornillo y pegatinas muy completos me encantan.
KV：6500KV
Replied by MEPSKING:¡Muchas gracias por tu comentario! Nos alegra saber que estás satisfecho con el motor y esperamos que cumpla tus necesidades. ¡Disfruta volando!
s********r
Verified
these F1204s are perfect for my 3 inch toothpick. super light and the bearings feel high quality. definitely worth the price if u want a silent build.
KV：5000KV
p*******k
Verified
Excellent build quality and balance. The flight feels stable and precise, with no vibrations at all. Definitely one of the best micro motors I’ve tried.
KV：5000KV
d*********8
Verified
I was surprised by how much punch these little F1204 motors deliver. Great throttle control and very quiet operation. Ideal for indoor and backyard flying.
KV：5000KV
s*********2
Verified
These motors are super smooth and responsive. Perfect for my 2.5-inch toothpick build — lightweight yet powerful. Great performance and efficiency!
KV：5000KV
s********r
Verified
F1204s are perfect for my 3 inch toothpick. Super light and the bearings feel high quality. Silent build!
KV：5000KV
m********t
Verified
packaging overkill for small motors but i like it. no issues. flies my 2.5" toothpick perfectly
KV：6500KV
FAQFeel free to ask us any questions
ASK A QUESTION
Q1: What type of drone is the T-Hobby F1204 motor best suited for?
A1: The T-Hobby F1204 motor is designed for lightweight 2–3 inch toothpick and whoop-style drones. Its compact size and smooth throttle response make it ideal for indoor flying, freestyle micro builds, and precise control in tight spaces.
Q2: What battery and propeller setup works best with the F1204 motor?
A2: For optimal performance, we recommend using a 2S–3S LiPo battery with 2.5 to 3-inch propellers. This combination provides excellent balance between power and efficiency, ensuring responsive flight and extended battery life.
