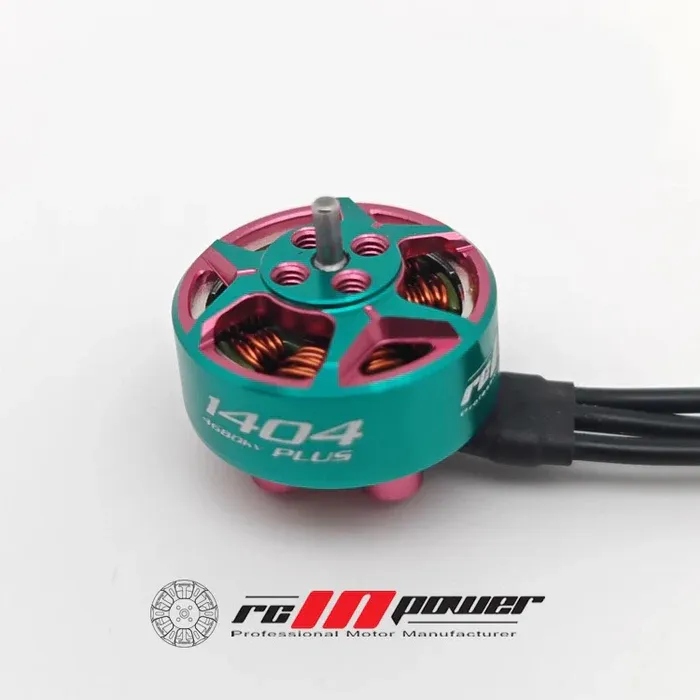

RCINPOWER GTS V3 1404 Plus FPV Drone Motor

About RCINPOWER GTS V3 1404 Plus Motor:

The RCINPOWER GTS V3 1404 Plus series is purpose-built for high-performance 3-inch FPV racing and freestyle drones. Featuring a lightweight 9g design, 12mm stator diameter, and aerospace-grade CNC structure, this motor delivers an outstanding thrust-to-weight ratio and thermal stability. Available in 2850KV, 3850KV, and 4680KV variants, it supports 3S to 6S LiPo and adapts seamlessly to both low-end efficiency builds and high-thrust aggressive setups.

Check out our 3 inch FPV motors, all FPV Motors Collection and the rest of our RCINPOWER Products!

Extra 6% Off
Collect
$ 15.99 $25.99
-38%
5.0 | 8Sold
Options (6)
Add-ons
Bundle and save up to $6.57 on gear — upgrade your setup for less.
  • MEPS SZ3046 PROPELLER GREY
    MEPS SZ3046 Cinewhoop Propeller for 3 inch FPV Lightweight
    Clear Grey / 8PCS
    $3.23 Save $0.57
  • aikon f7 aio board
    Aikon F7 AIO Board - F7 FC + 60A 3-6S BLHeli_S ESC
    F7 FC + 60A
    $105.59 Save $4.40
  • cnhl black series v2.0 1300mah 22.2v 6s 130c lipo battery with xt60 plug
    CNHL Black Series V2 1300mAh 6S 130C LiPo Battery XT60 for FPV
    6S1P 1300mAh XT60
    $30.39 Save $1.60
mid summer fpv deal pc gift
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • Ultra-Lightweight 9g Design
  • Optimized for 3-Inch FPV Drones
  • Available in 2850KV, 3850KV & 4680KV
  • Efficient Cooling & Durable CNC Build
  • High Thrust for Freestyle & Racing
Payment | Every order you place with us is safe & secure
Share

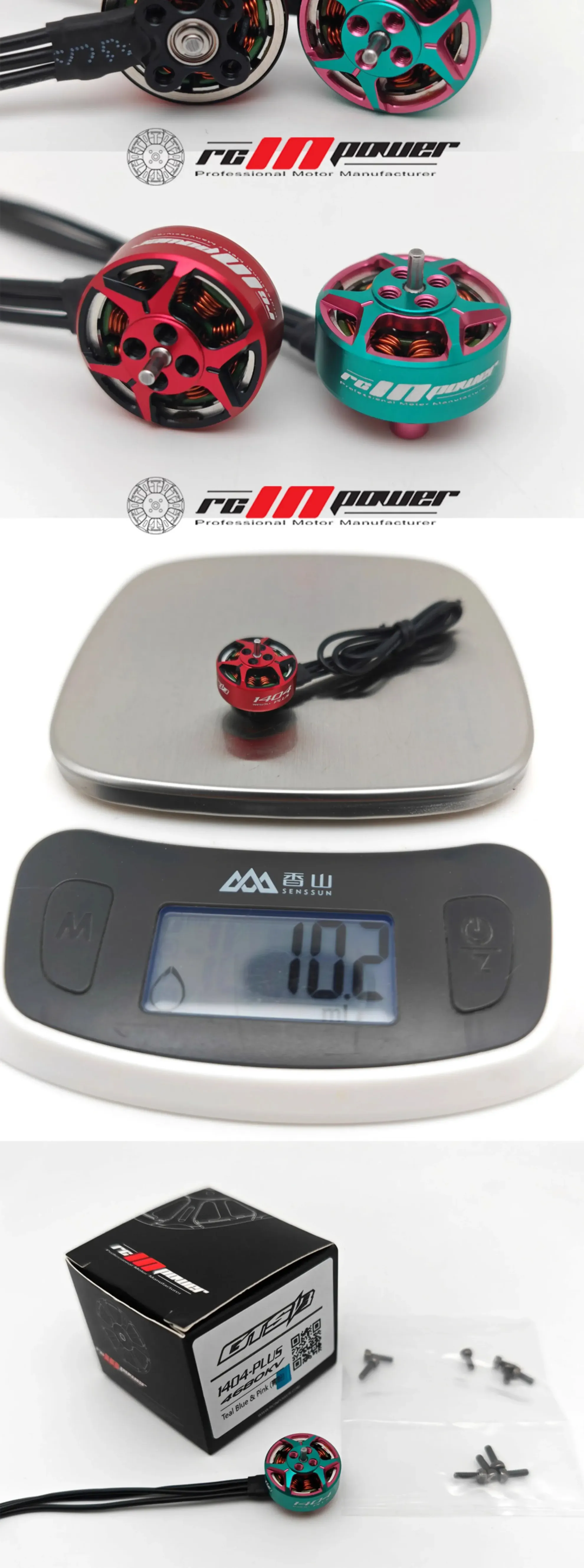

motor weight and package list

Features

● High-grade 9N12P configuration for optimal torque and responsiveness

● Ideal for 3-inch FPV drones in freestyle, racing, or cinematic configurations

● Efficient thermal control with aluminum alloy casing – peak temps between 65–85°C

● Optimized for Gemfan, HQProp, and GF 3-inch propellers

● Ultra-lightweight at just 9g – perfect for sub-250g builds

● Durable design with high-load thrust capability and extended flight reliability

Performance Test Highlights

GF D63*3 Props (3-Inch)

● 4680KV: Max thrust 467g, power 305.6W, efficiency 1.528g/W @100%

● 3850KV: Max thrust 421g, power 273.6W, efficiency 1.539g/W @100%

● 2850KV: Max thrust 498g, power 338.4W, efficiency 1.472g/W @100%


HQ T333 Props

● 4680KV: Max thrust 575g, power 428.8W, efficiency 1.341g/W @100%

● 3850KV: Max thrust 492g, power 328.0W, efficiency 1.5g/W @100%

● 2850KV: Max thrust 610g, power 460.8W, efficiency 1.324g/W @100

Recommended Applications

● 3-Inch FPV Racing Drones

● Toothpick-Class Freestyle Builds

● Lightweight Cinematic Drones

● Compatible with GF D63, GF 3016, HQ T333, GF 4024 props

Key Specifications

Model2850KV3850KV4680KV
Voltage4S–6S3S–4S3S–4S
Max Power461W330W429W
Max Current19.2A (3S)20.6A (3S)26.8A (3S)
Idle Current0.42A @10V0.7A @10V0.85A @10V
Internal Resistance280mΩ170mΩ133mΩ
Weight9g (with 3cm wire)9g9g
Shaft Dia.1.5mm (2mm internal)1.5mm (2mm internal)1.5mm (2mm internal)
DimensionsΦ18.2 × 13.1mmΦ18.2 × 13.1mmΦ18.2 × 13.1mm

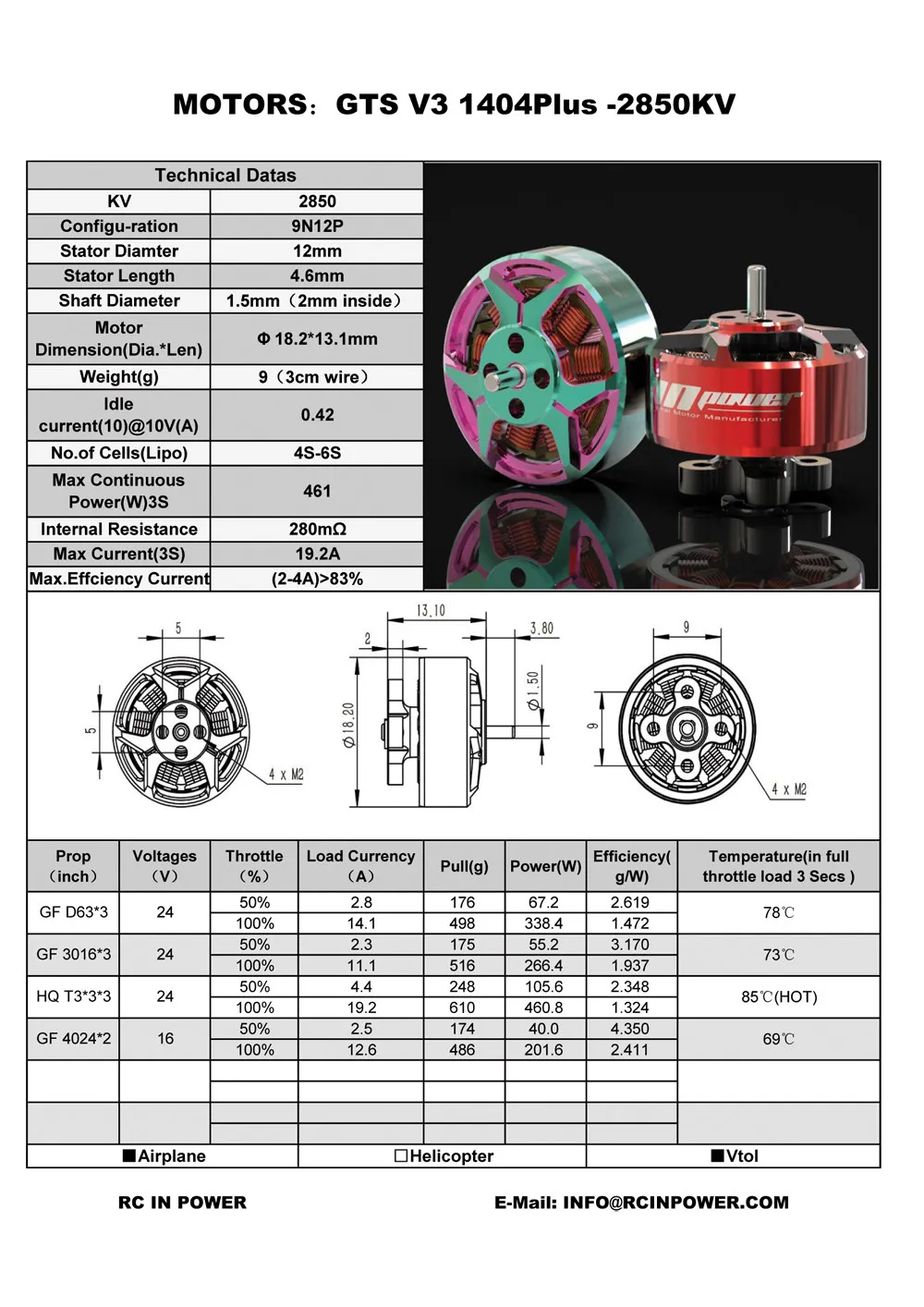

gts v3 1404 motor 2850kv specs

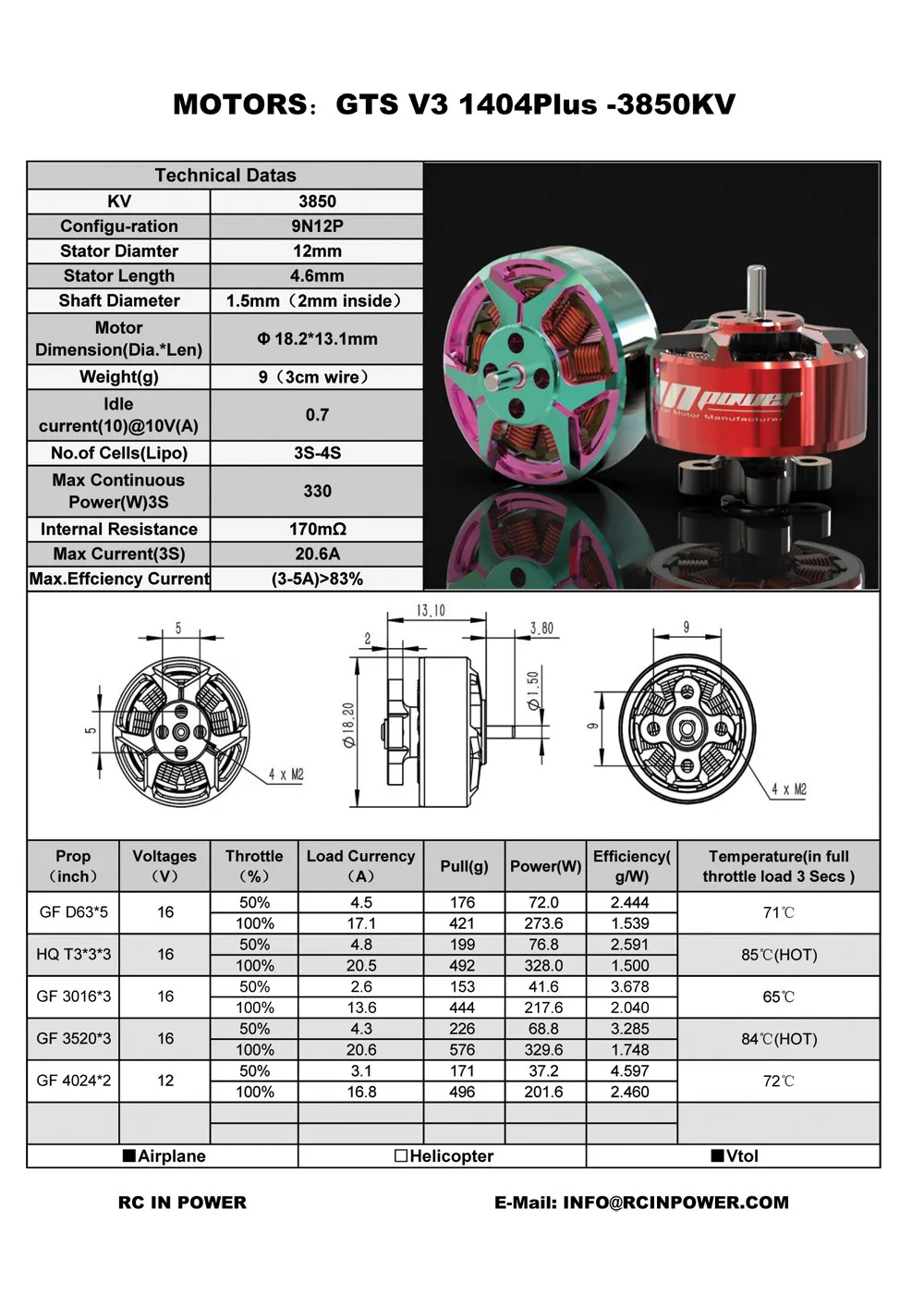

gts v3 1404 motor 3850kv specs
gts v3 1404 motor 4680kv specs

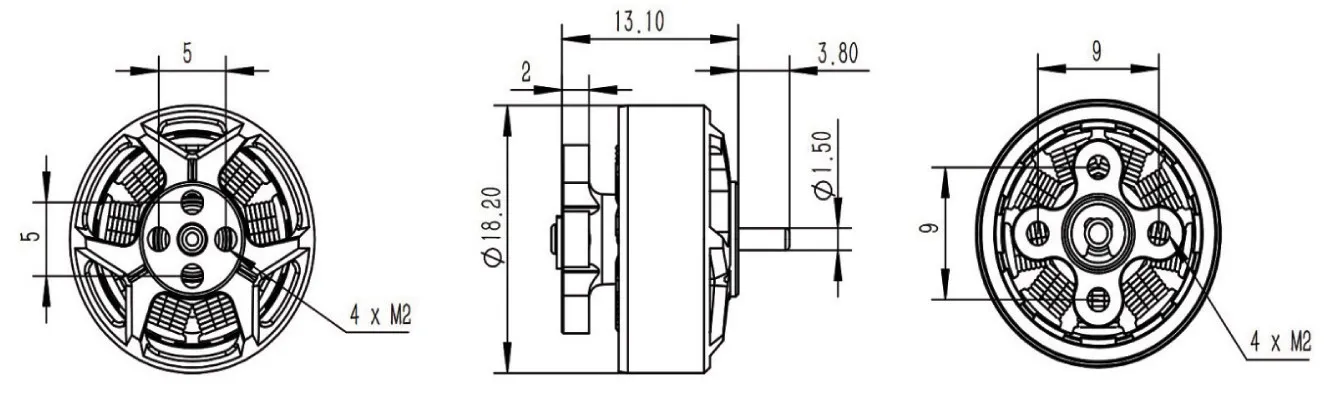

Wiring Diagram

1404 motor wiring diagram
