Lumenier LUX HD Solderless AIO Buying Guide

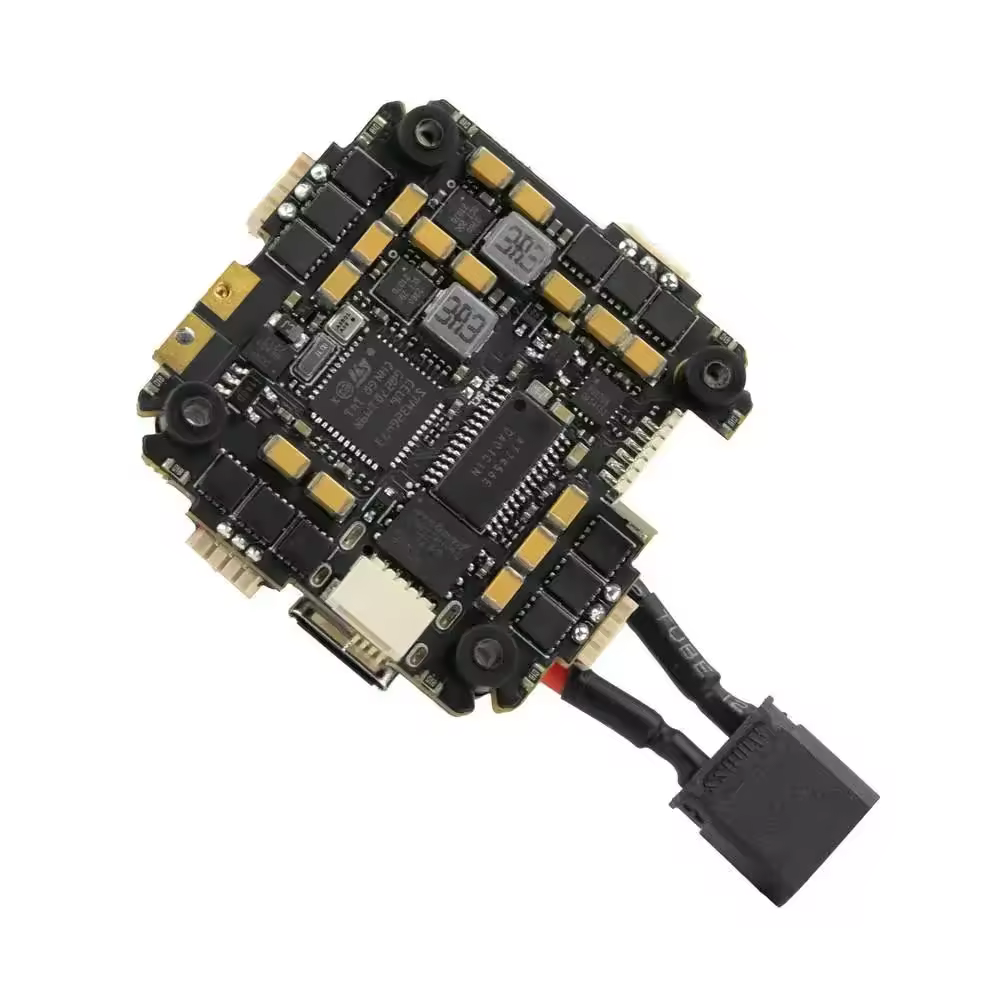

The Lumenier LUX HD Solderless AIO combines a 170MHz STM32G473 flight controller, ICM42688 gyro, 16MB Blackbox and 35A AM32 4-in-1 ESC. Its pre-installed motor connectors and XT30 lead make it especially attractive to pilots who want a clean 3–6S build with less wiring and faster component replacement.
MEPSKING Expert Integration Assessment

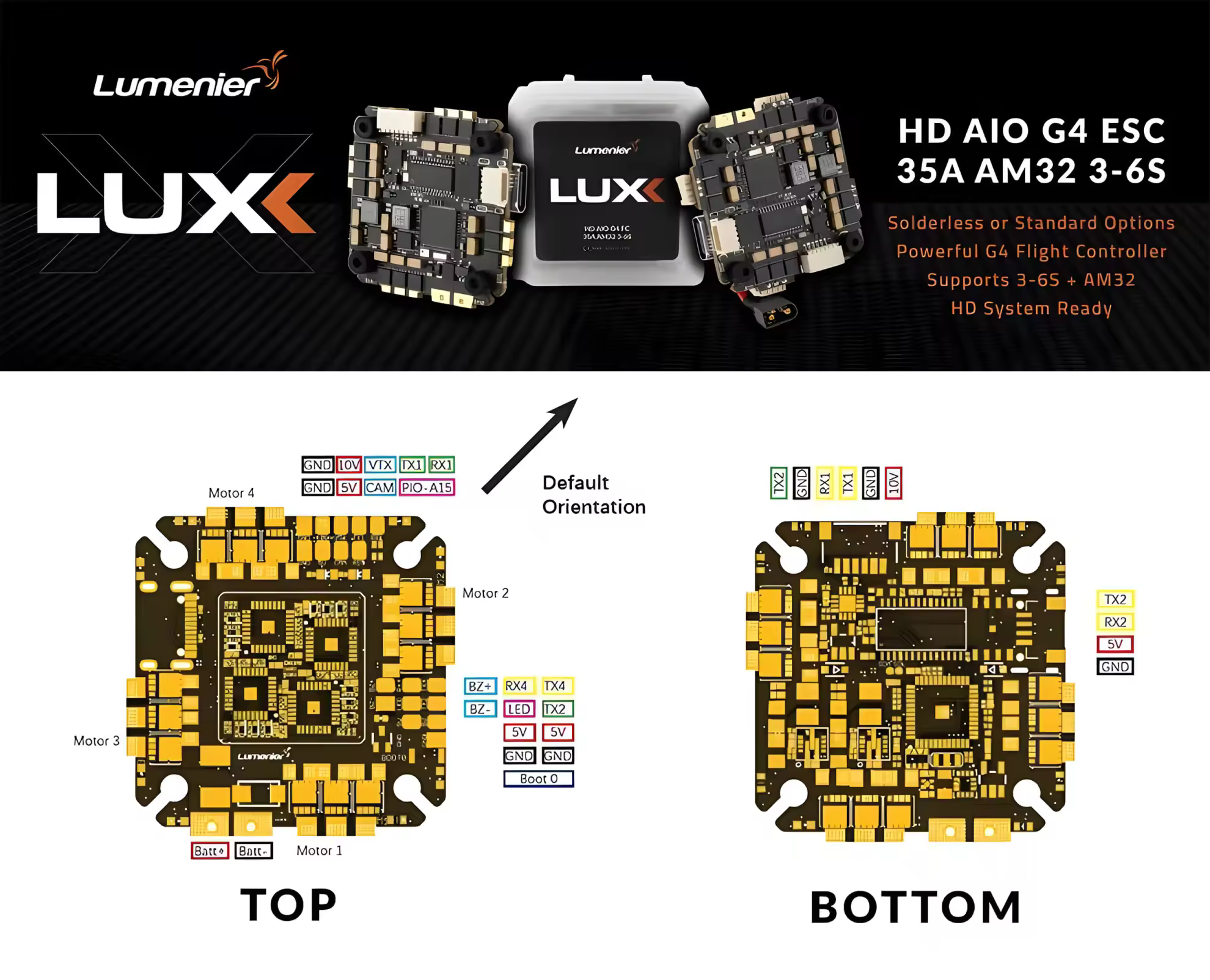

From our MEPSKING technical assessment, the strongest advantage is integration rather than maximum amperage. The motor sockets and pre-soldered XT30 lead simplify assembly, while four UARTs, 5V and 10V BEC outputs and a dedicated digital connection leave useful flexibility for a compact build. The G473 processor and AM32 ESC also provide the responsive motor control expected from a modern racing or freestyle setup.
However, “solderless” does not mean every motor is automatically plug-compatible. Check the supplied motor connectors before ordering, secure every cable against propeller contact and vibration, and inspect the plugs after a hard crash.
Who Should Buy This AIO?
We recommend it primarily for 3-inch, 3.5-inch and lightweight 4-inch builds using motors and propellers that remain safely below the 35A continuous limit. A lightweight 5-inch build is possible only after checking actual motor test data. For aggressive 5-inch racing motors or high-pitch props, a higher-current ESC offers safer electrical headroom.
Lumenier LUX HD 35A vs iFlight BLITZ Whoop F7 55A
| Feature | Lumenier LUX HD G4 | iFlight BLITZ Whoop F7 |
|---|
| FC Processor | STM32G473, 170MHz | STM32F745, 216MHz |
| ESC | 35A AM32 | 55A Bluejay, 65A peak |
| Battery Support | 3–6S | 2–6S |
| Main Advantage | Motor plugs, XT30 lead and simplified servicing | Greater current headroom and onboard barometer |
| Best For | Clean, serviceable 3–4 inch builds | Higher-current 3.5–5 inch builds |
Choose the Lumenier board when solderless installation and fast servicing matter most. Choose the iFlight BLITZ Whoop F7 55A AIO when your motor and propeller combination needs substantially more current headroom.
Installation and Current-Limit Notes
Confirm the 25.5×25.5mm mounting pattern, motor-plug type and battery voltage before purchase. Use the LUXHDAIO-G4 Betaflight target, verify board orientation and motor order with the propellers removed, and complete the first power-up through a smoke stopper. After a short test flight, check motor and ESC temperature before increasing propeller pitch or motor output.
Final Purchase Recommendation
Buy the Lumenier LUX HD G4 if you want a premium, compact AIO that reduces assembly work and keeps future motor replacement simple. It is best matched with a controlled-current 3–4 inch power system, such as the T-Hobby F2203.5 motor. If maximum 5-inch power is the priority, select a higher-amperage AIO instead.
