Question 1

Q: Who are the Eachine EV800D FPV goggles best designed for?

Accepted Answer

A: They are the ultimate budget-friendly choice for beginners and analog FPV pilots, offering premium features like DVR and diversity at an entry-level price.

Question 2

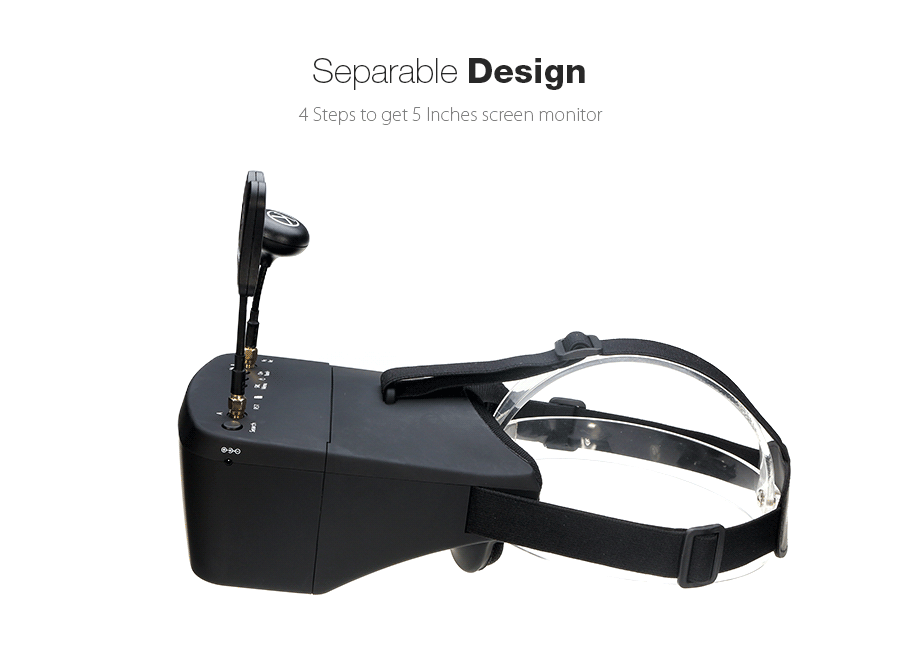

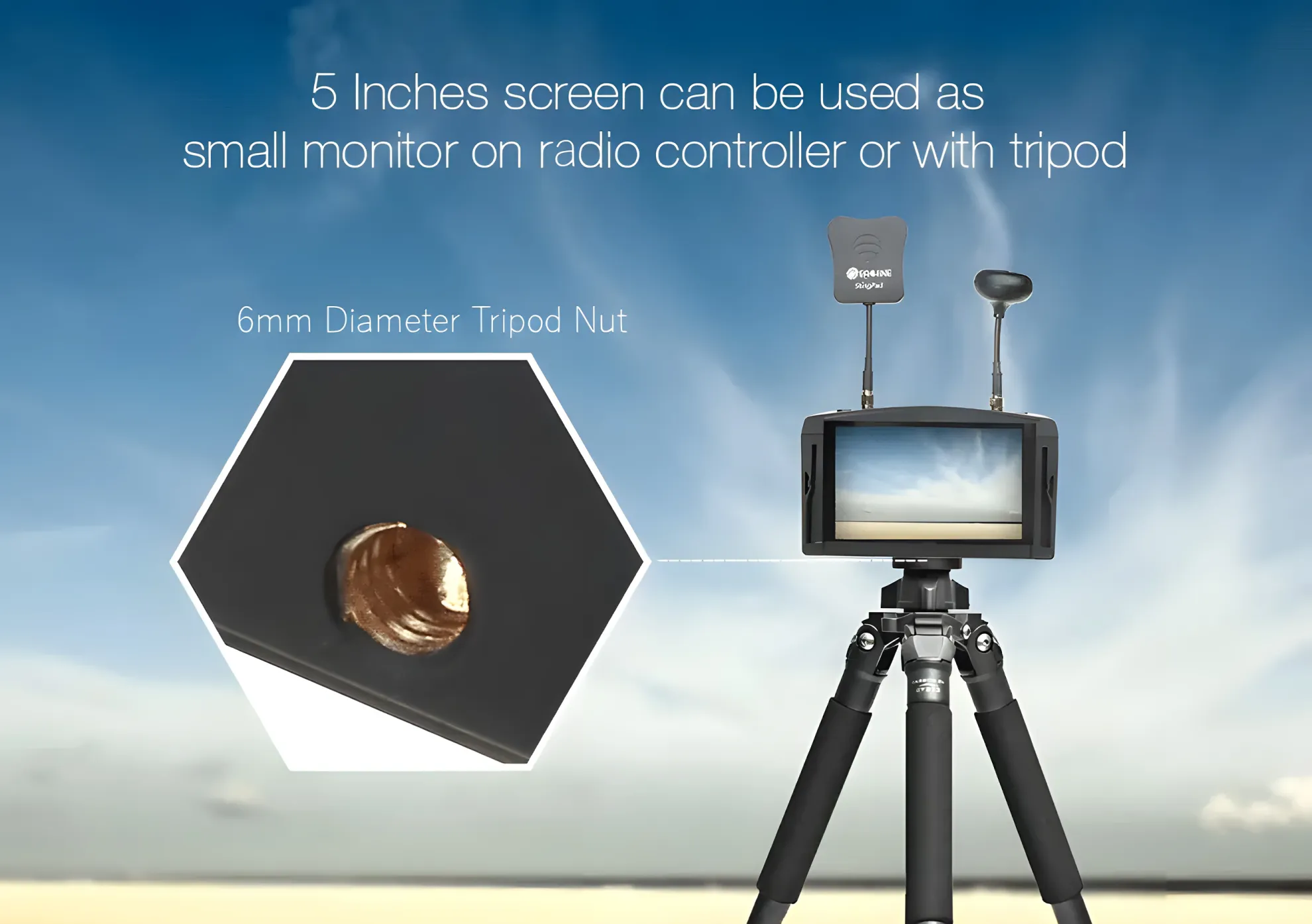

Q: Does this goggle feature a detachable screen design?

Accepted Answer

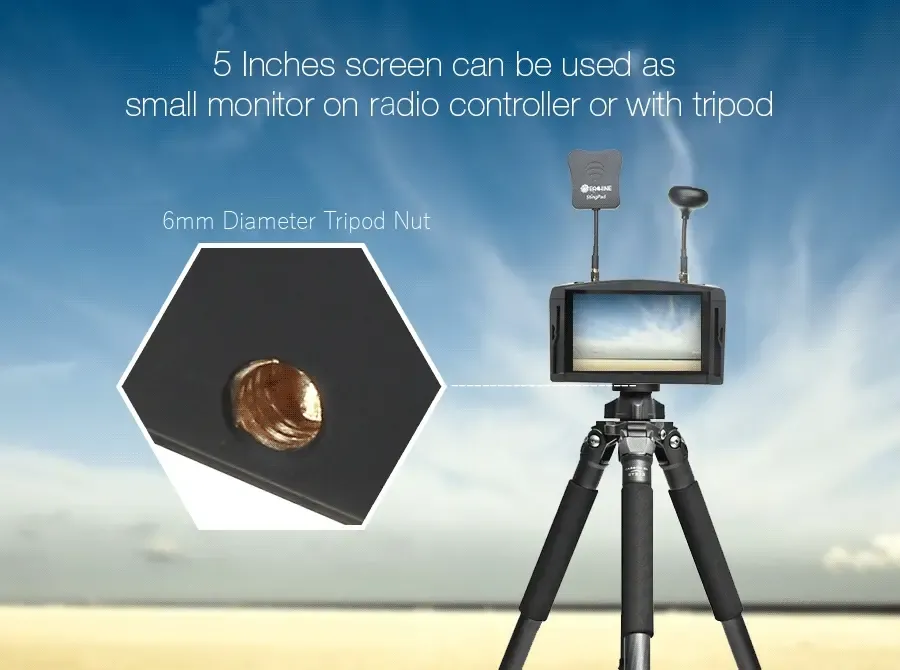

A: Yes, the front screen can be detached and used as a standalone 5-inch FPV monitor on a tripod or radio transmitter, making it highly versatile.

Question 3

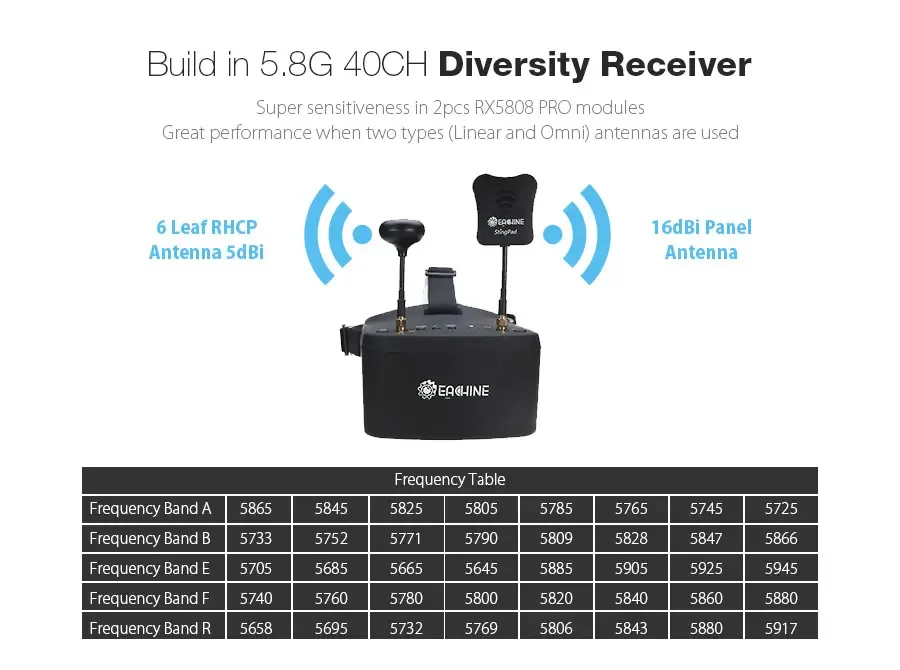

Q: What does "True Diversity" mean for my flight signal?

Accepted Answer

A: It features two independent 5.8GHz receiver modules. The system automatically switches to the strongest signal between the Patch and Omni antennas, reducing video dropouts.

Question 4

Q: Is the EV800D compatible with digital HD systems like DJI or Walksnail?

Accepted Answer

A: No, it is a pure 5.8GHz analog goggle. It will only work with traditional analog VTX systems commonly found on micro whoops and standard freestyle quads.

Question 5

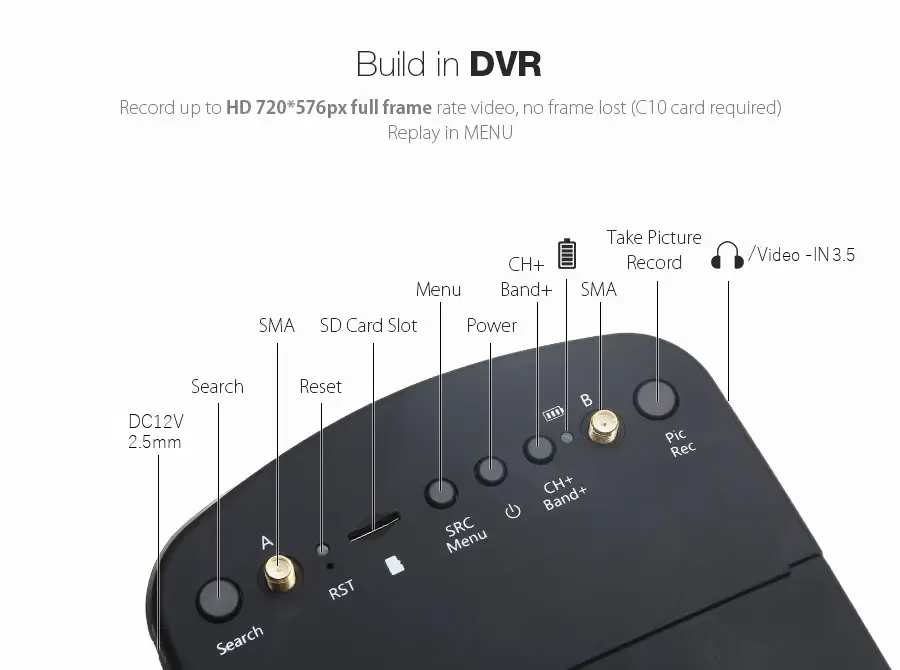

Q: Does it have a built-in DVR to record my FPV flights?

Accepted Answer

A: Yes, it includes a built-in DVR that records up to 720x576 resolution. You will need a Class 10 high-speed MicroSD card (not included) to save your footage.

Question 6

Q: What is the battery life, and how do I charge it?

Accepted Answer

A: The built-in 2000mAh 3.7V battery provides about 3 hours of runtime. It can be charged using the included wall adapter or an external 2S/3S LiPo via the backup power cable.

Question 7

Q: Can I wear my prescription glasses while using the EV800D?

Accepted Answer

A: Yes, the faceplate is spacious enough to accommodate most small to medium-sized prescription glasses without feeling overly cramped.

Question 8

Q: What are the clear risks or limitations I should know before buying?

Accepted Answer

A: As a box goggle, it is bulkier than binocular styles. Also, it lacks an HDMI-in port, so it cannot be used with PC drone simulators.

Question 9

Q: How do I correctly format the SD card for the DVR?

Accepted Answer

A: Always format your MicroSD card to FAT32 or exFAT using your PC before inserting it, otherwise the DVR might not recognize it or fail to save files.

Question 10

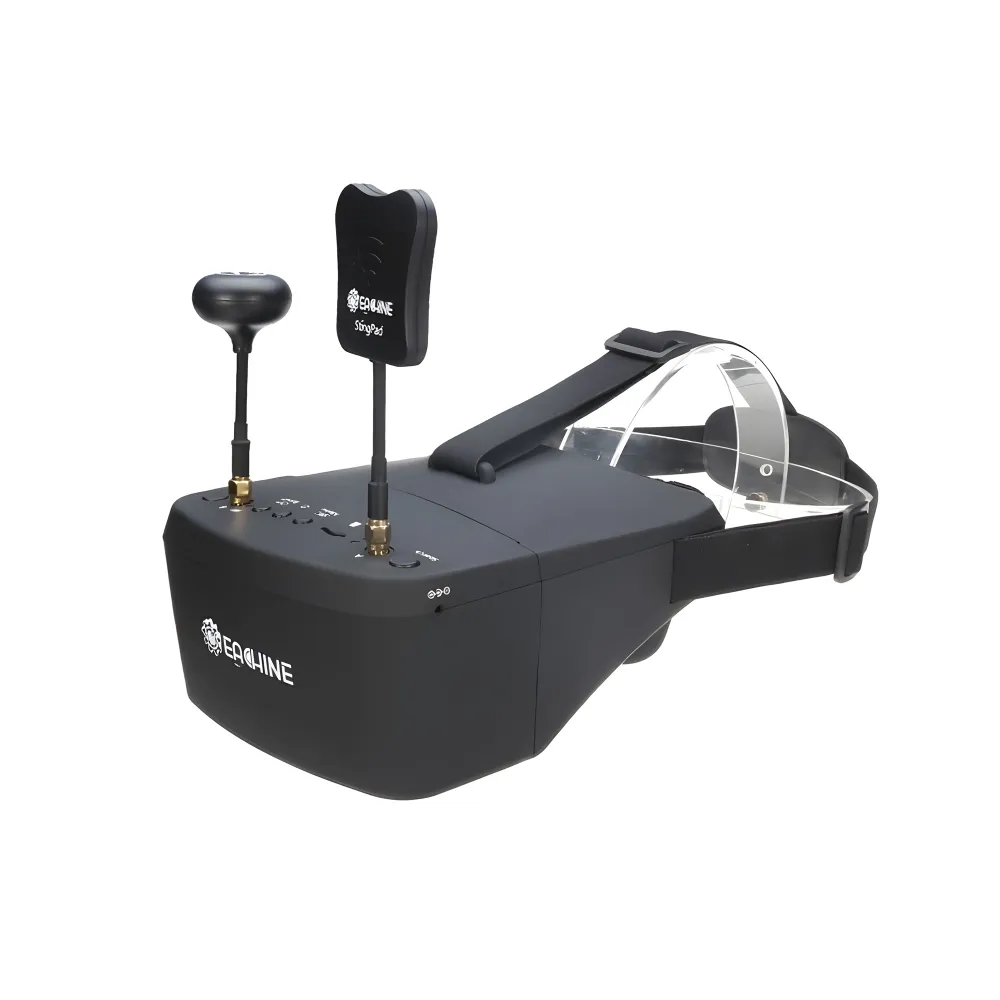

Q: How should I position the two included antennas?

Accepted Answer

A: Mount the flat Patch antenna facing forward for long-range directional penetration, and the Cloverleaf (Omni) antenna pointing straight up for 360-degree coverage.

Question 11

Q: What should I do if the DVR records a black screen or skips frames?

Accepted Answer

A: Ensure you are using a high-quality Class 10 SD card. Slow SD cards will cause dropped frames or black screen recordings during high-speed maneuvers.

Question 12

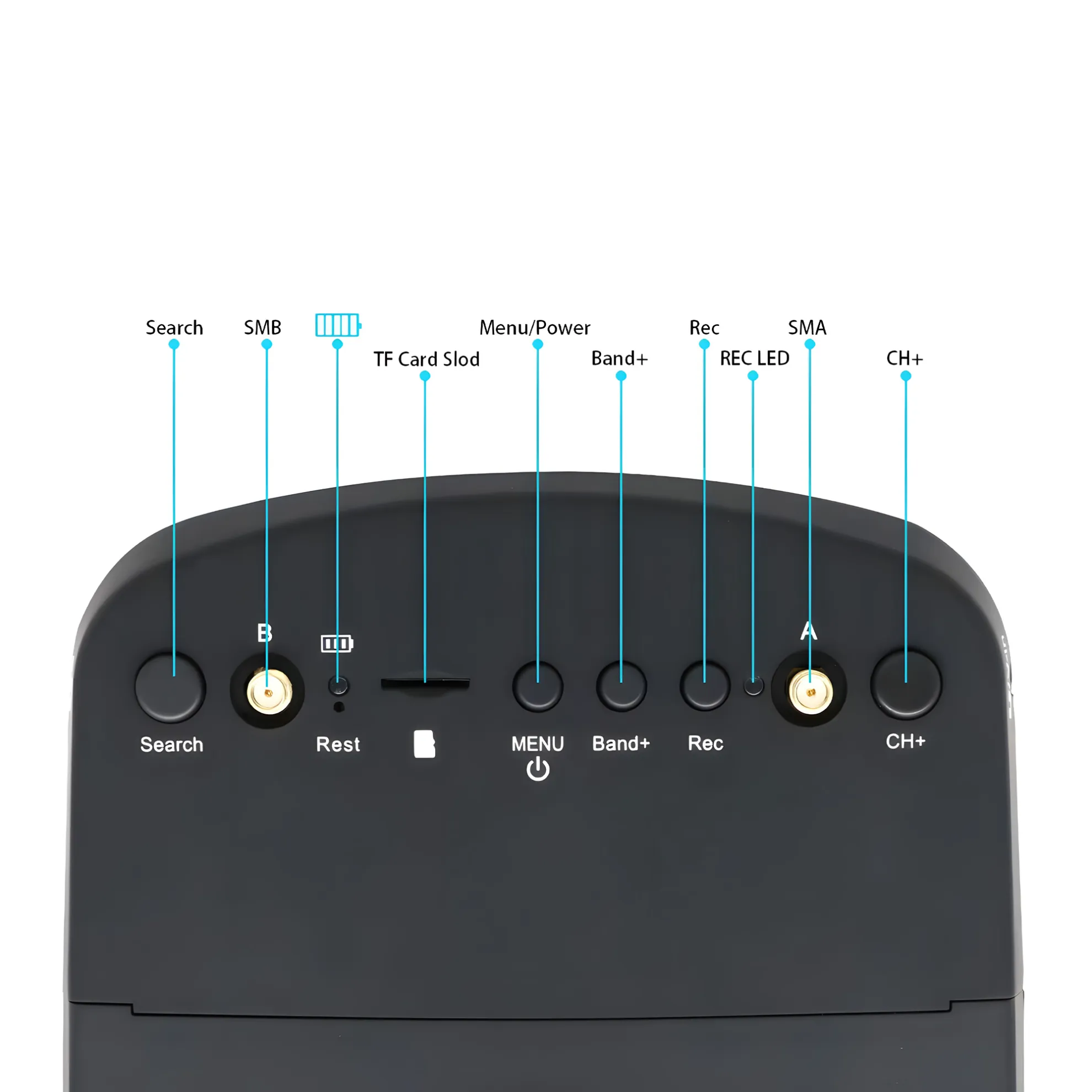

Q: How do I quickly find my drone's video channel?

Accepted Answer

A: Use the one-click Auto-Search button. However, for the best connection, we recommend manually setting the band and channel to match your VTX perfectly.

Question 13

Q: Can I power the goggles continuously during a long session?

Accepted Answer

A: Yes, you can plug a 2S or 3S LiPo battery into the external power port to keep the goggles running seamlessly after the internal battery depletes.

Question 14

Q: How do I clean the screen or the internal magnifying lens?

Accepted Answer

A: Use a dry, soft microfiber cloth. Never use alcohol or liquid glass cleaners, as they can damage the anti-glare coating on the internal optics.

Question 15

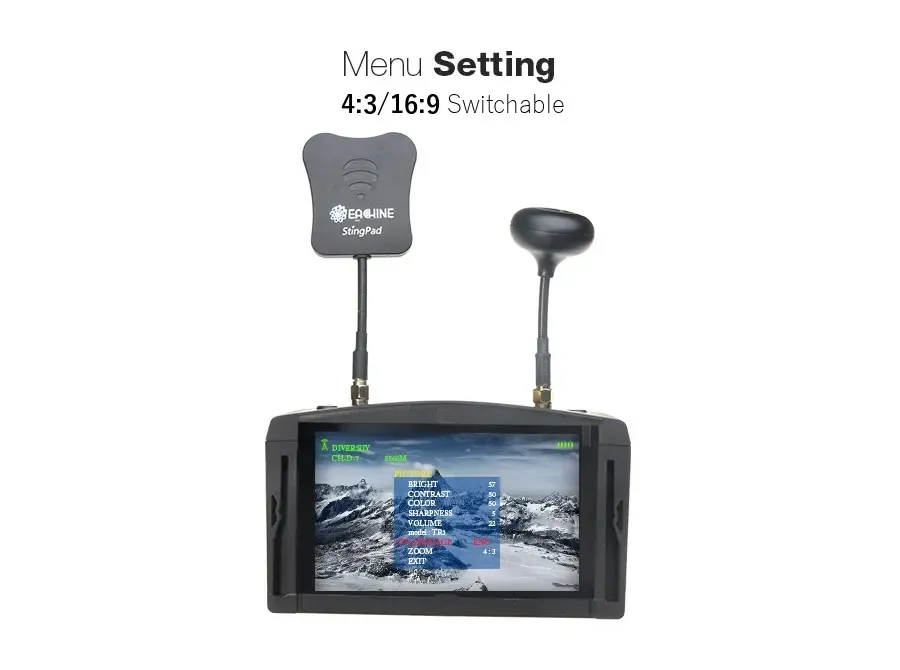

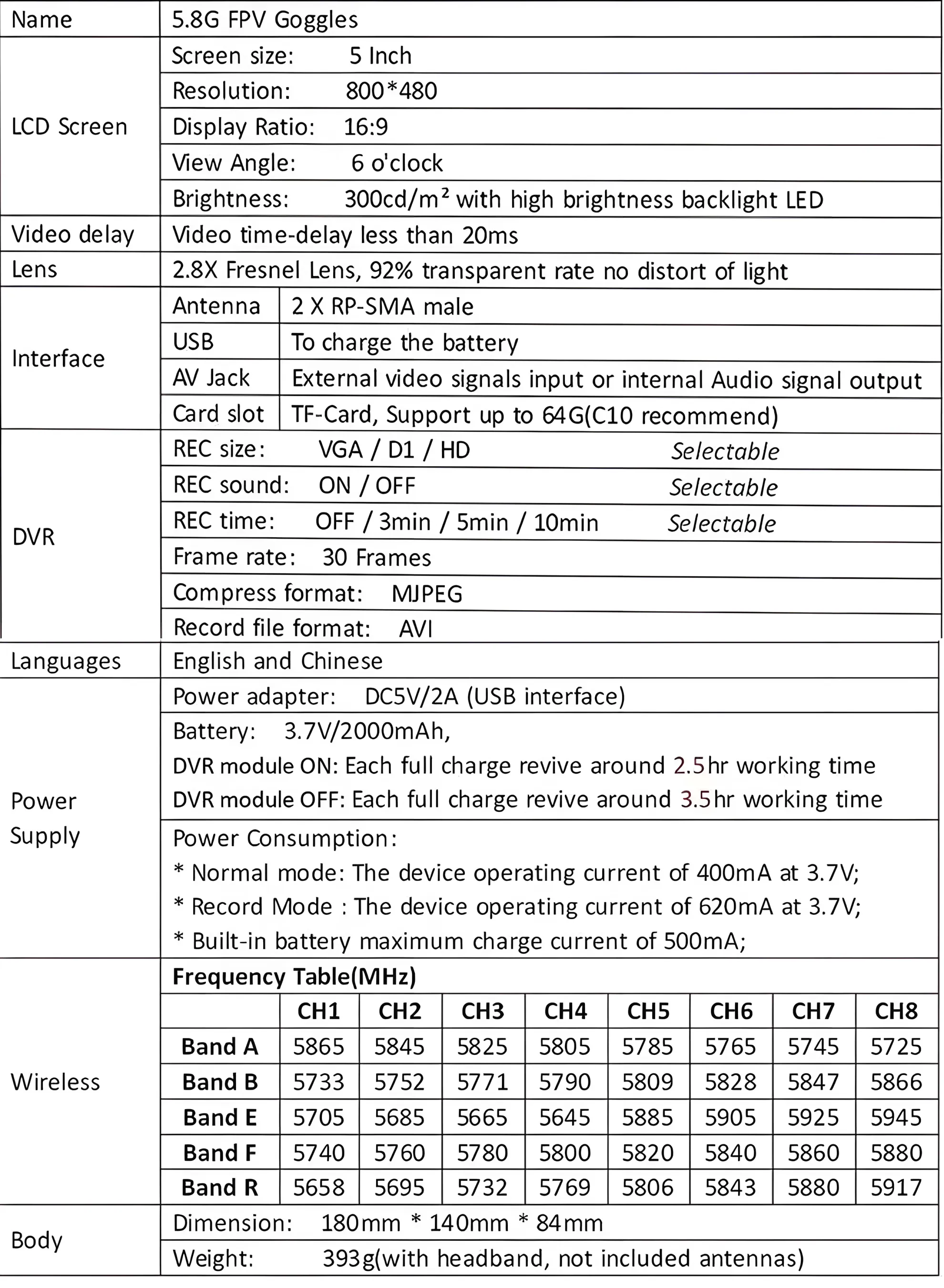

Q: What is the screen resolution and viewing angle?

Accepted Answer

A: It uses a 5-inch 800x480px HD LCD screen with a special 3x magnifying lens, providing an incredibly wide 82-degree Field of View (FOV) for maximum immersion.

Question 16

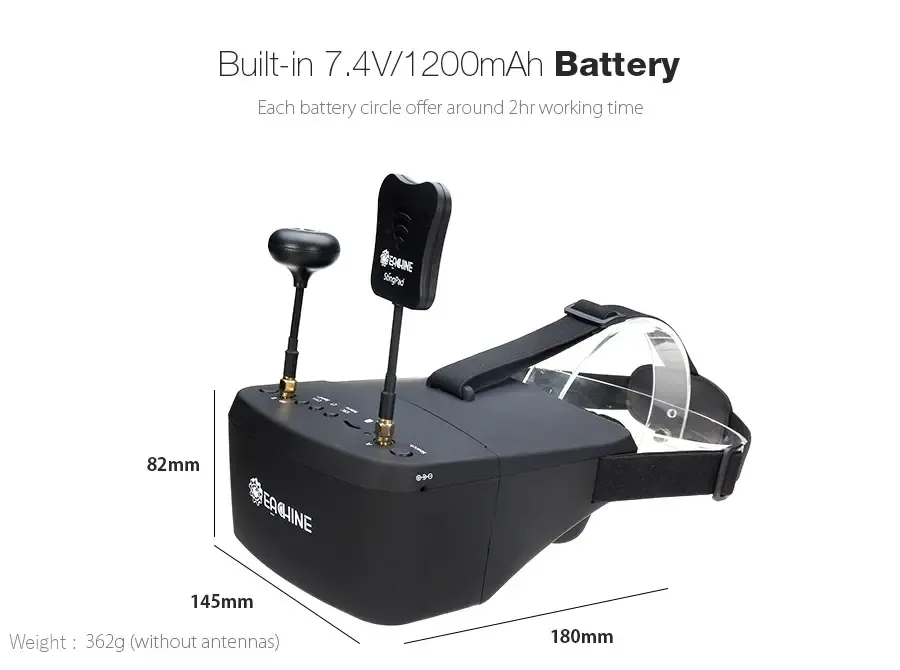

Q: Is the headset too heavy for comfortable use?

Accepted Answer

A: It weighs about 362g without antennas. While heavier than slim goggles, the adjustable 3-point head strap effectively balances the weight to prevent neck strain.

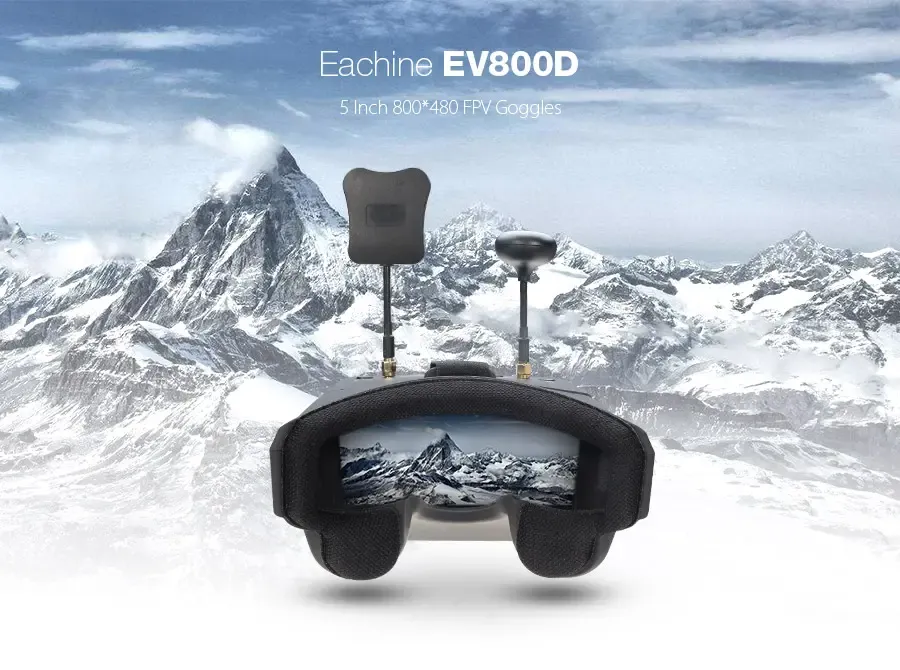

NewEachine EV800D 5.8GHz 40CH Diversity FPV 800*480 Goggles with DVR
