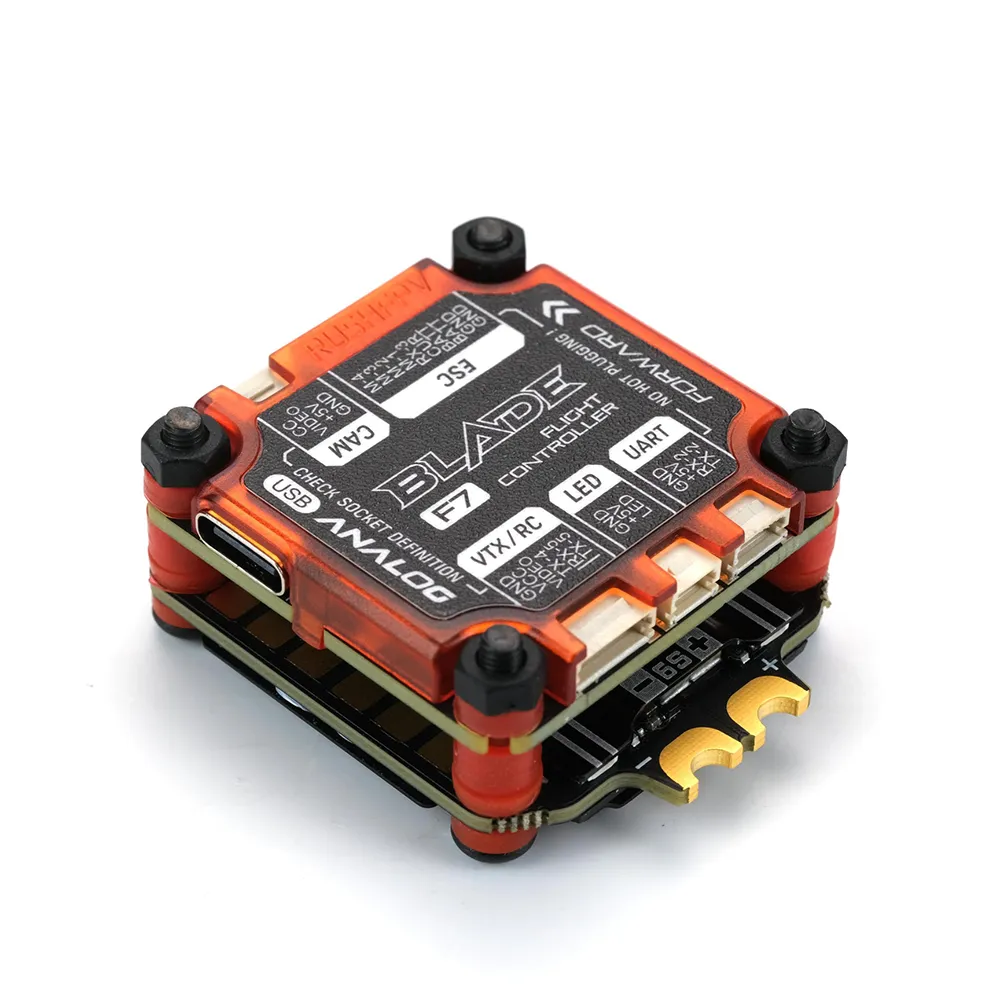

RUSHFPV Rush Blade F722 Analog Stack for FPV Racing

About RUSHFPV BLADE F722 Stack for analog FPV System:

The RUSH BLADE F722 Stack for analog FPV System by RUSHFPV features the RUSH BLADE F722 Analog Flight Controller and RUSH BLADE 60A 3-6S 128kHz 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.


Tip: ESC factory firmware updated to AM32 firmware

RushFPV
Pro Pilot’s ChoiceRace-TestedLow Stock
Extra 6% Off
Collect
$ 139.90
5 | 100+Sold
Options (1)
rushfpv blade f722 stack analog v2 show
BLADE F722 Stack Analog V2
Quantity
In Stock Expected ship within 7 days after order.
Estimated Transit Time: 15-20 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
Powerful F7 processor ensures fast loop times and stable flight performance.
High-frequency PWM delivers smoother throttle response and better efficiency.
Reliable video transmission with stable signal for racing and freestyle flying.
Handles high-performance motors and demanding freestyle builds.
Easy installation for most 5-inch FPV racing and freestyle frames.
Payment | Every order you place with us is safe & secure
Share
Copy

RUSHFPV RUSH BLADE F722 ANALOG FLIGHT CONTROLLER

● MCU：STM32F722RET6

● GYRO：ICM42688P

● BEC： INPUT 7-36V / 3-6S LIPO，OUTPUT 5V 3A

● OSD ：AT7456E CVBS OSD

● BLACKBOX ：16MB FLASH

● TARGET： RUSH_BLADE_F7

● PORT ：8×PWM 5×UART 1×I2C

● ADC： V-BATT / CURR-ESC

● LED：WS2812 LED STRIP

● BARO：BMP280

● MOUNTING HOLES： 30.5*30.5mm

● SIZE ：36.5mm*37mm*5.2mm

● WEIGHT： 11g(without cable)

RUSHFPV RUSH BLADE 60A 128KHZ 3-6S 4-IN-1 ESC - EXTREME EDITION

● Rated Current: 60A

● Peak Current: 80A

● Input Voltage: 3-6S Lipo

● MCU: F4 @ 200MHz

● PWM FREQ: 24-128KHz

● LED Color: Orange

● Weight：16.5g

● Dimension: 45*36.5*7.5mm

● BL32 FW: RUSH_BLADE_EXTREME

PACKAGE INCLUDES:

● 1 x RUSHFPV RUSH BLADE F722 Analog Flight Controller V2 Version

● 1 x RUSHFPV RUSH BLADE 60A 3-6S 128kHz 4-in-1 ESC - Extreme Edition

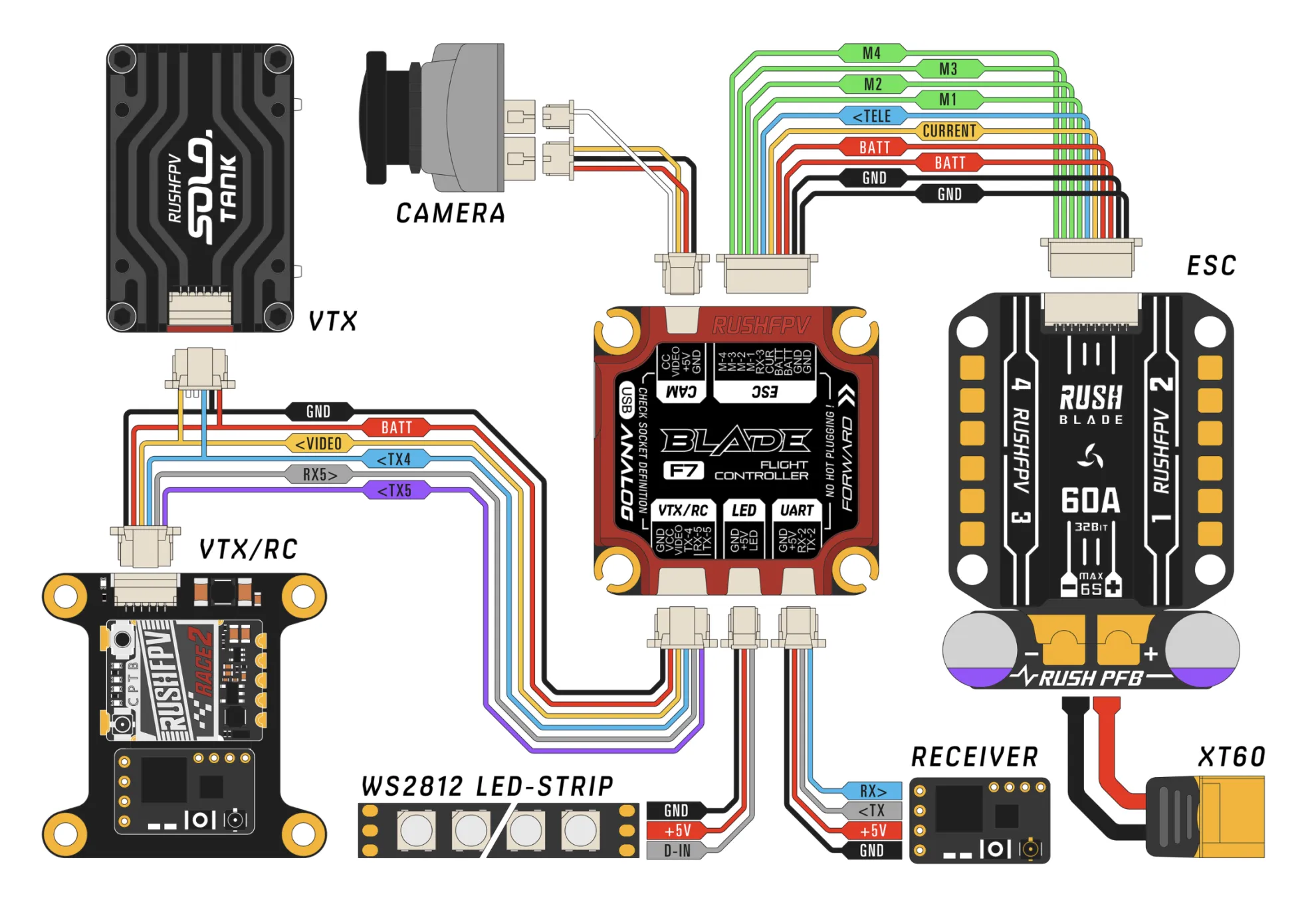

rushfpv blade f722 stack analog v2 wiring diagram

Recommendation

Reviews
  • T********k
    Verified
    Very reliable analog stack for racing builds. Setup was straightforward and performance is consistent even under heavy throttle use.
    Options：BLADE F722 Stack Analog V2
FAQ Feel free to ask us any questions
ASK A QUESTION
Q: What size drones is this stack designed for?
Q: What makes the 128kHz ESC special?
Q: Can this handle 6S power without issues?
Q: Will this stack feel smoother?
Q: How many UARTs are available for expansion?
