iFlight BLITZ H7 Pro Flight Controller for FPV Drone 4-12S H743 FC

About BLITZ H7 Pro Flight Controller:

The BLITZ H7 Pro Flight Controller is a high-performance FPV drone controller designed for demanding builds and high-voltage systems. Powered by the advanced STM32H743 processor, it delivers exceptional computing performance, fast response times, and stable flight control.

Supporting 4-12S LiPo input, the BLITZ H7 Pro is ideal for powerful FPV racing drones, freestyle builds, and long-range platforms. The onboard SD card Blackbox allows pilots to record detailed flight data for tuning and diagnostics, while multiple UART ports provide flexible connectivity for GPS modules, receivers, VTX systems, and telemetry devices.

With its reliable hardware design and strong processing capability, the BLITZ H7 Pro Flight Controller is an excellent choice for pilots looking to build high-performance FPV drone systems.


iFlight
Trusted PerformanceHigh Repurchase RateBest Value
$ 68.99 $79.99
-14%
5.0 | 0Sold
Options (1)
iflight blitz h7 pro flight controller for fpv drone 4 12s h743 fc
H7 PRO FC
Quantity
Estimated Transit Time: 15-20 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● High-Performance STM32H743. Processor

● Wide Voltage Input (4S-12S LiPo).

● Onboard SD Card Blackbox.

● Multiple UART Ports.

● Optimized EMI Protection Design.

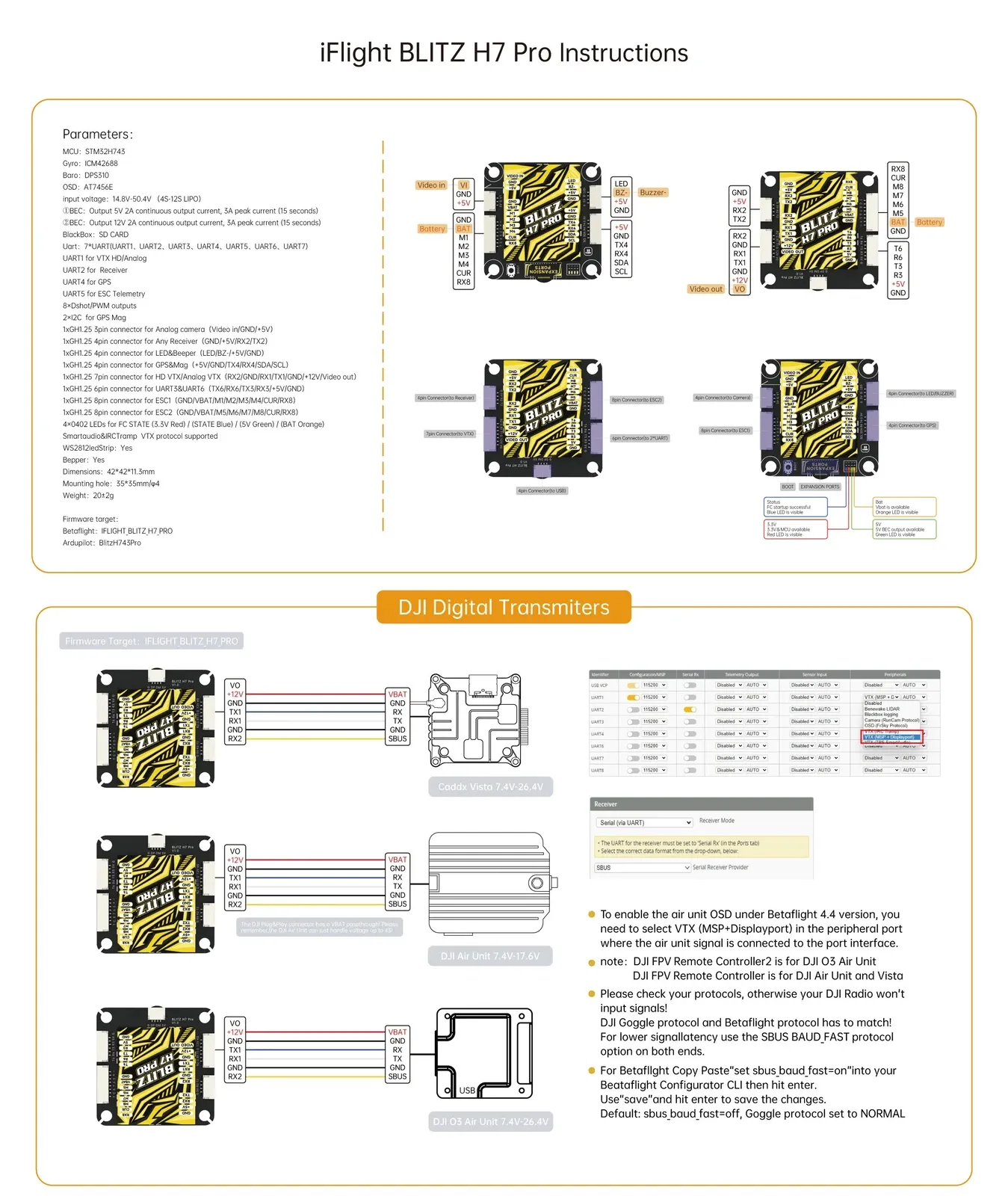

iflight blitz h7 pro flight controller for fpv drone 4 12s h743 fc instructions
iflight blitz h7 pro flight controller for fpv drone 4 12s h743 fc vtx
iflight blitz h7 pro flight controller for fpv drone 4 12s h743 fc esc
iflight blitz h7 pro flight controller for fpv drone 4 12s h743 fc gps

Features:

● Features 35x35mm mounting holes, providing a larger size for optimized flight controller PCB wiring.

● GH1.25 connector design enhances terminal connection reliability and ensures easy assembly.

● Utilizes an SD card for the flight controller's black box, offering increased capacity to record more flight data.

● Dual-sided shielding design offers interference protection and safeguards the flight controller from foreign object malfunctions.

● Removable expansion soldering pad board enables advanced users to easily connect additional peripherals.

● Incorporates a high-voltage DC-DC buck converter with a chip voltage endurance of up to 100V, delivering stable and reliable voltage for the flight controller and video transmission.

● Supports Betaflight and Ardupilot firmware.

Sepcification:

● Product Name: BLITZ H7 Pro Flight Controller

● MCU: STM32H743

● Gyro: ICM42688

● Baro: DPS310

● OSD: AT7456E

● Input Voltage: 14.8V-50.4V (4S-12S LIPO)

● Blackbox: SD Card

● UARTS: 7

● Smartaudio / IRC Tramp VTX protocol supported

● LED controller: Yes

● Beeper pad: Yes

● Mount pattern: 35*35mm/φ4

● Dimensions: 42*42*11.3mm

● Weight: 20g

● BEC: 5V 3A,12V 2.5A

● BF Firmware target: IFLIGHT_BLITZ_H7_PRO

● INAV Firmware: IFLIGHT_BLITZ_H7_PRO

● Ardupilot Firmware: BlitzH743Pro

Wiring Suggestion:

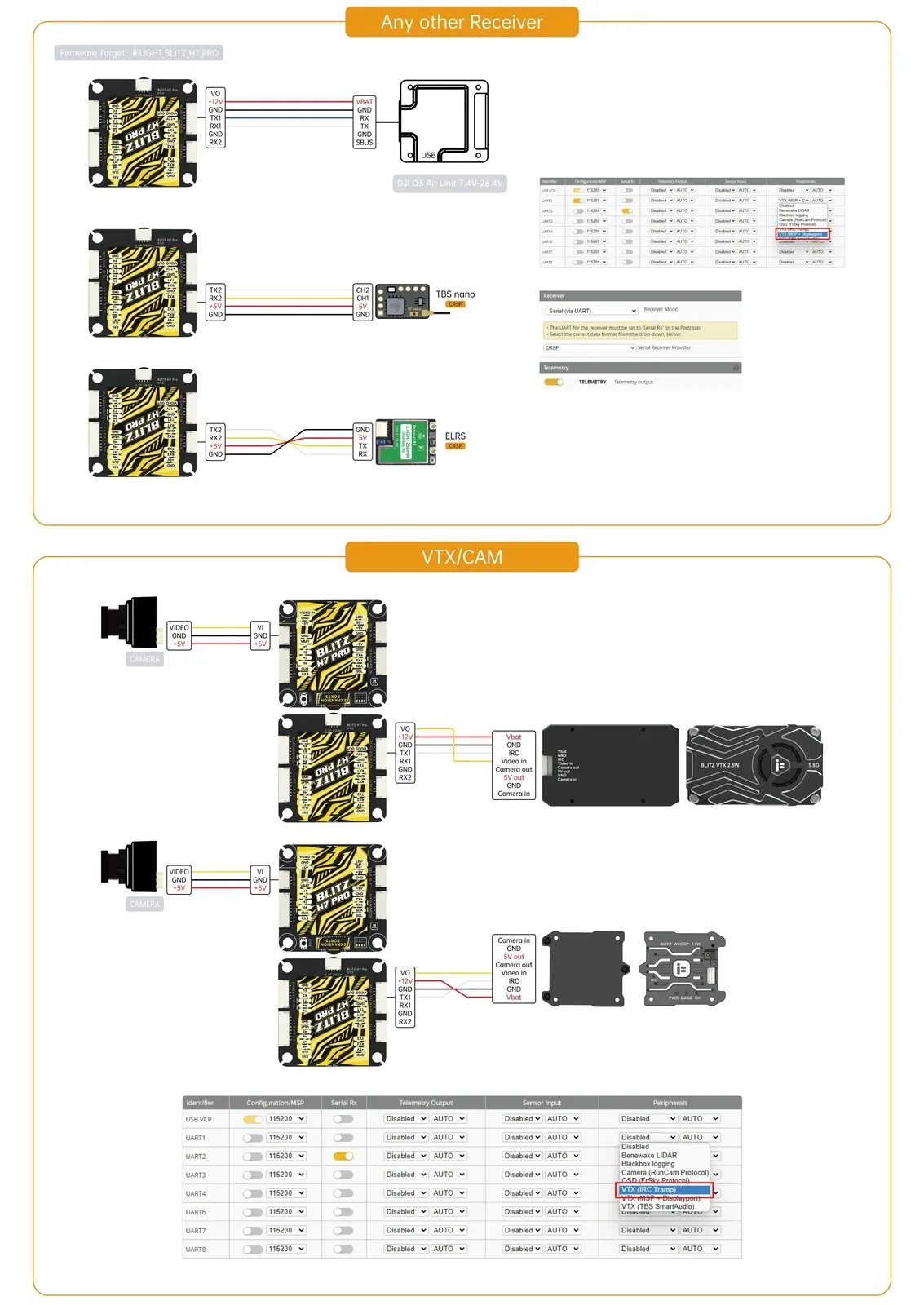

● UART1 for VTX HD/Analog

● UART2 for  Receiver

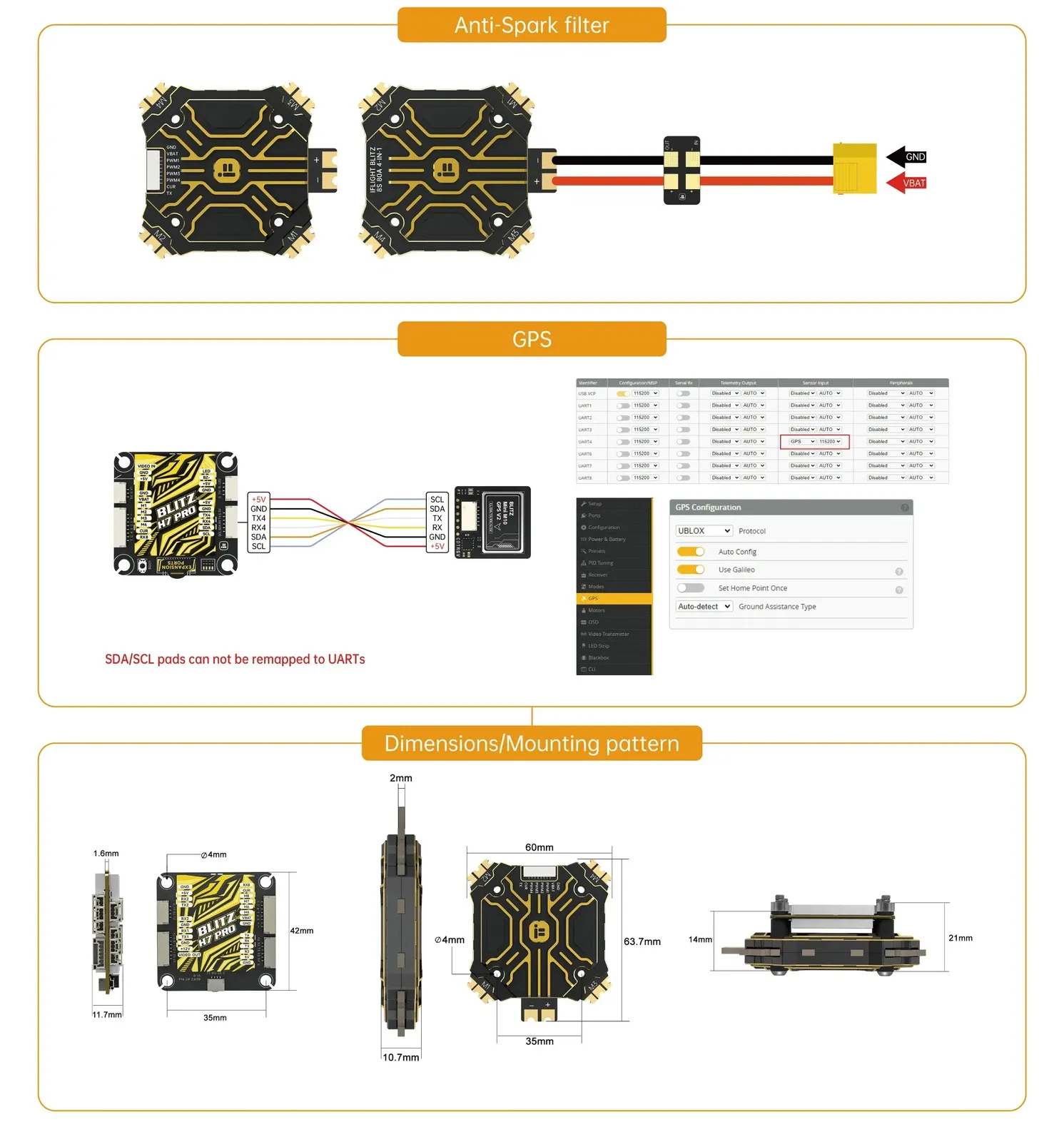

● UART4 for GPS

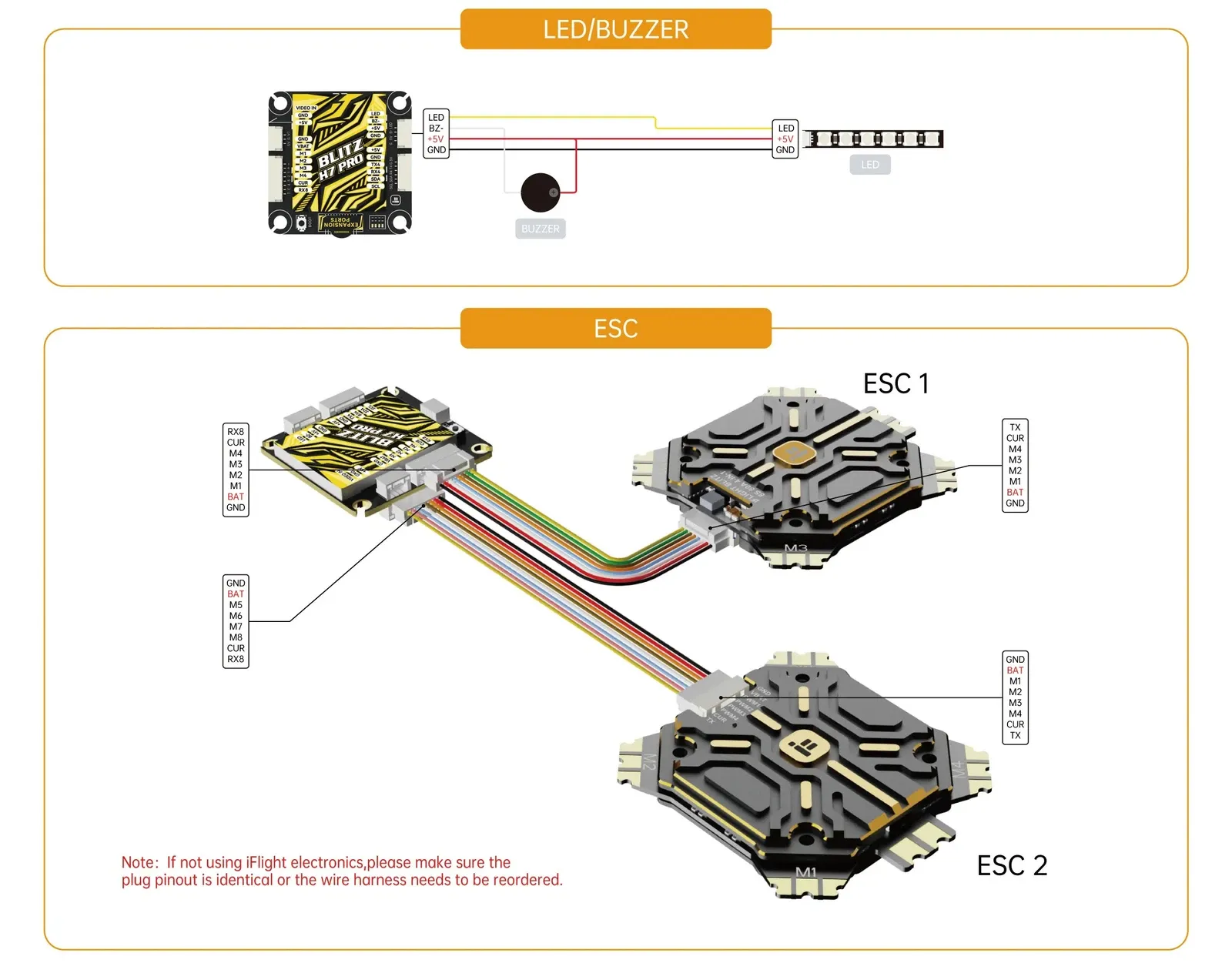

● UART5 for ESC Telemetry

● 8×Dshot/PWM outputs

● 2×I2C  for GPS Mag

Recommendation

FAQ Feel free to ask us any questions
ASK A QUESTION
Q1: What battery voltage does the BLITZ H7 Pro support?
Q2: Does this flight controller support Blackbox logging?
Q3: Which firmware is compatible with the BLITZ H7 Pro?
Q4: Can I connect GPS and other peripherals?
Q5: What type of drones is this flight controller suitable for?
