High-Performance Flight Control: Features STM32F745 with Cortex-M7 at 216MHz, dual gyros (MPU6000 + ICM42688-P) for precise racing and freestyle flyling.
Extended Compatibility & Outputs: Supports 8 motor outputs for X8 configurations and works with Betaflight, INAV, and Ardupilot firmware.
Dual Independent BEC: Provides 5V@3A + 12V@2.5A outputs for stable power to peripherals and FPV systems.
Wireless Tuning & Logging: Built-in Bluetooth for parameter adjustment and 512MB blackbox for detailed flight data analysis.
Integrated & Ready-to-Fly: Includes barometer, 7 UARTs, and pairs with the TAKER H60_BLS 60A 4-in-1 ESC for smooth, plug-and-play power delivery.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Summary

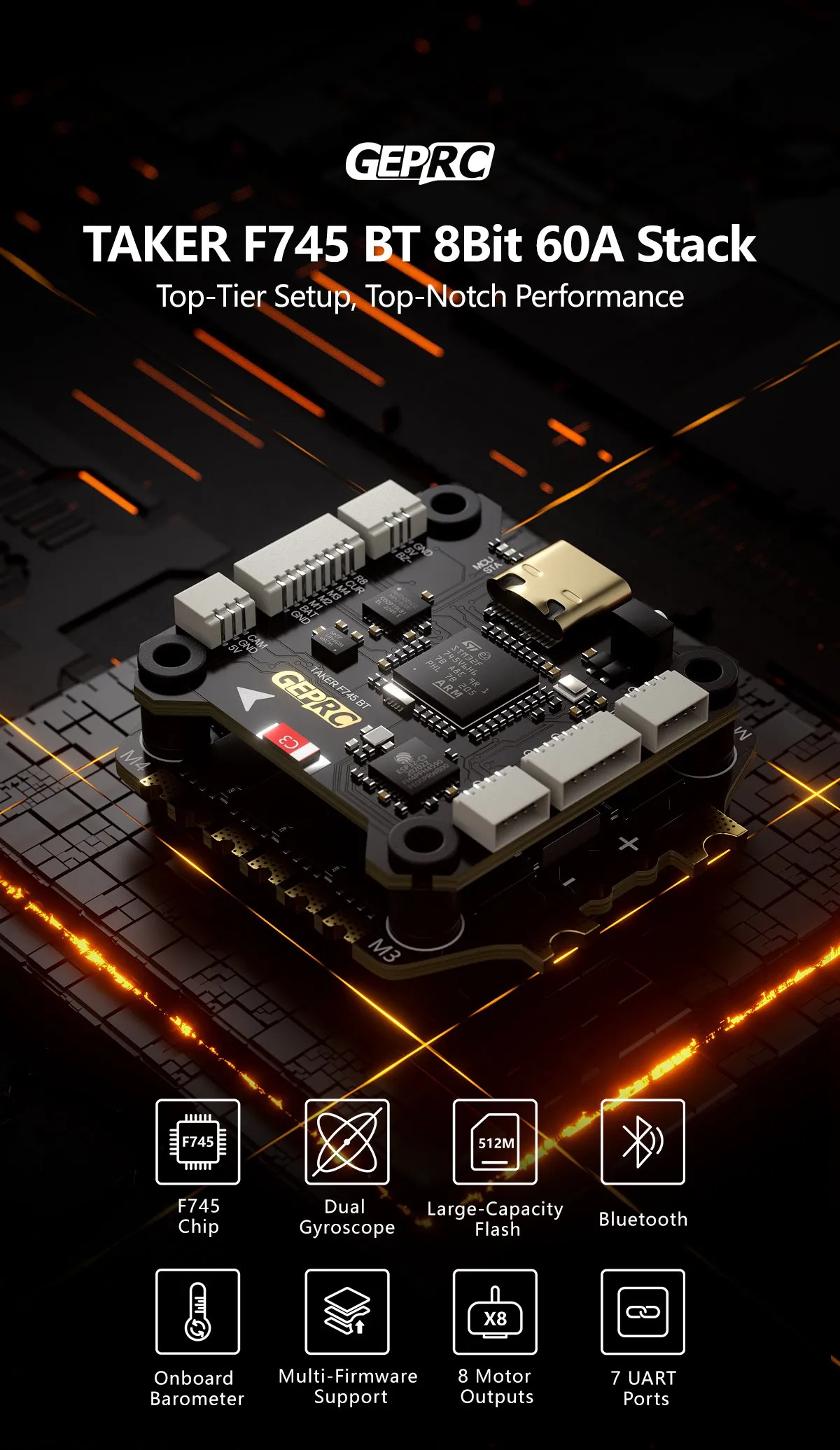

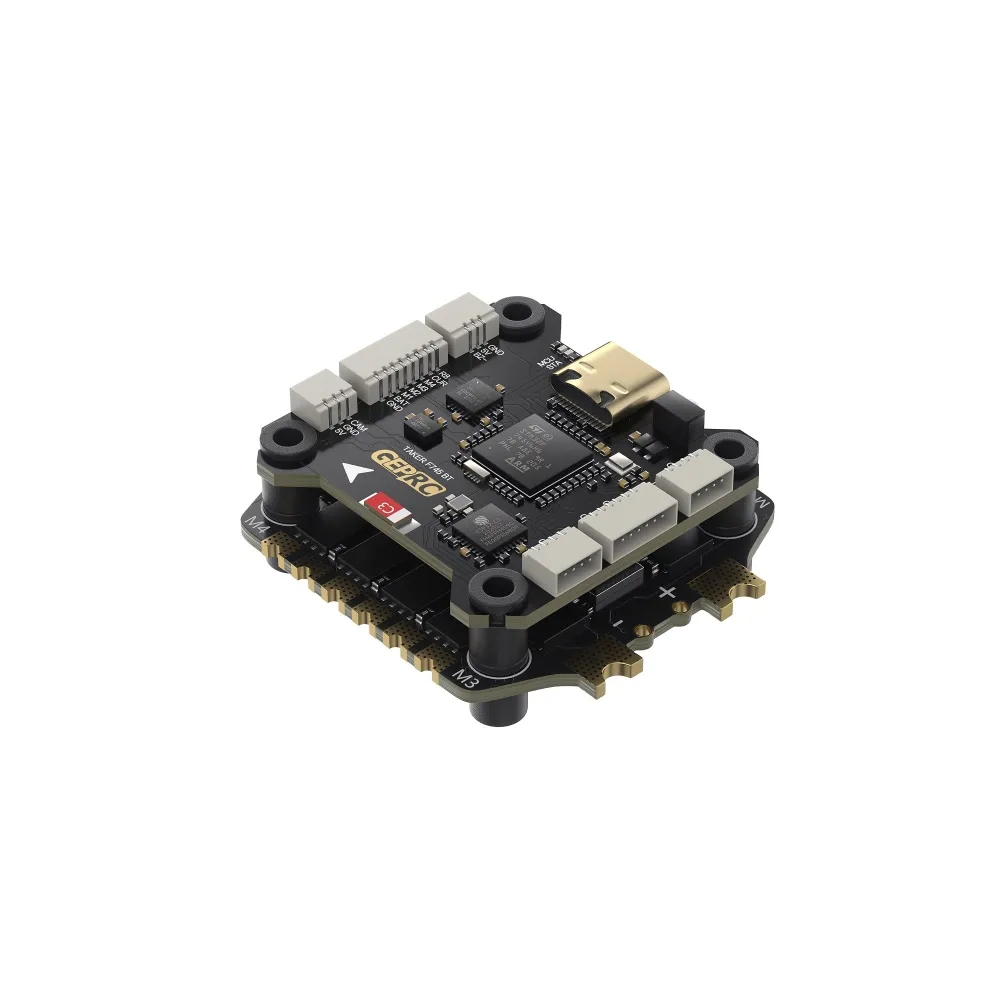

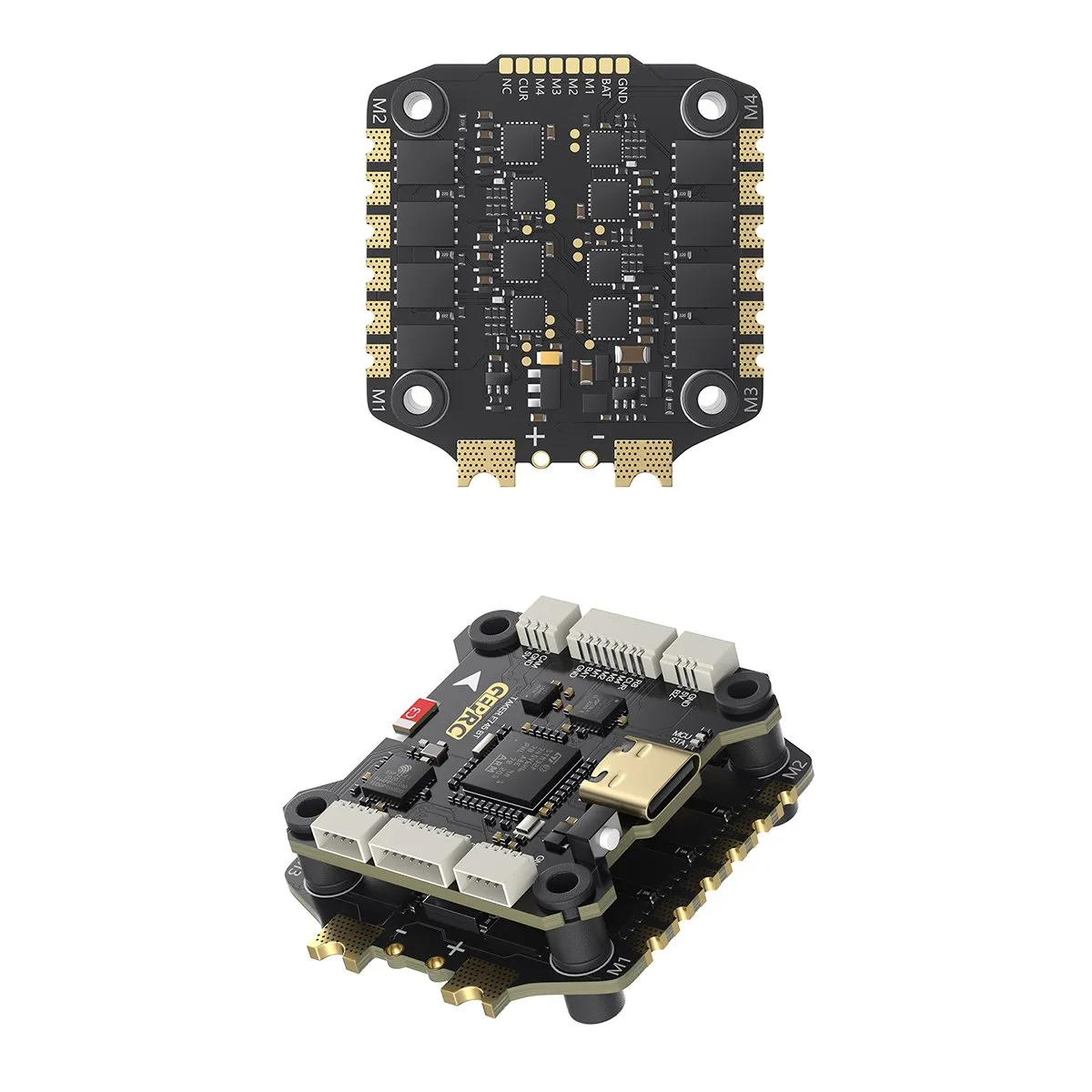

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it's well-equipped. It also offers eight motor output ports and is compatible with X8 models.

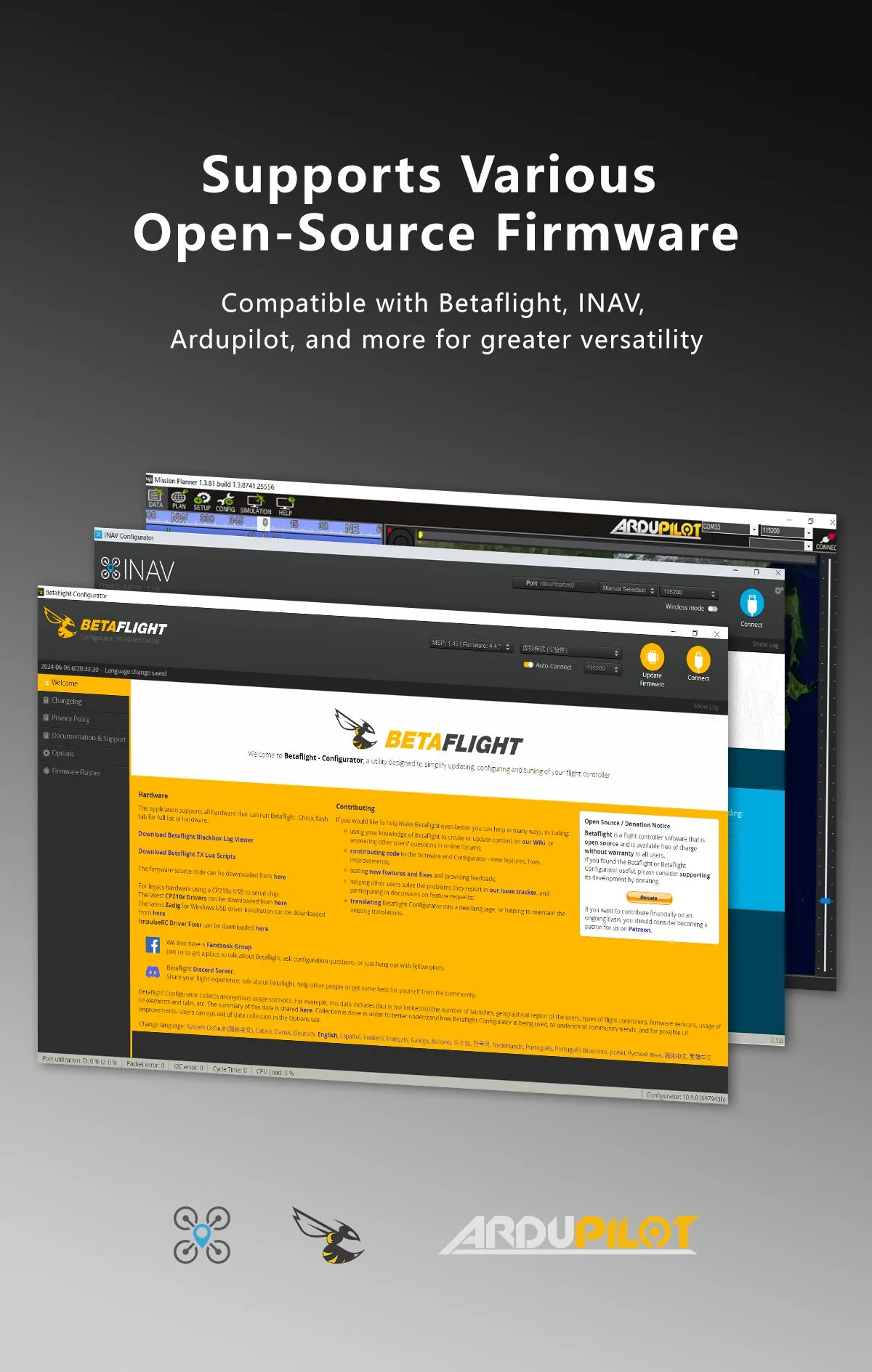

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features

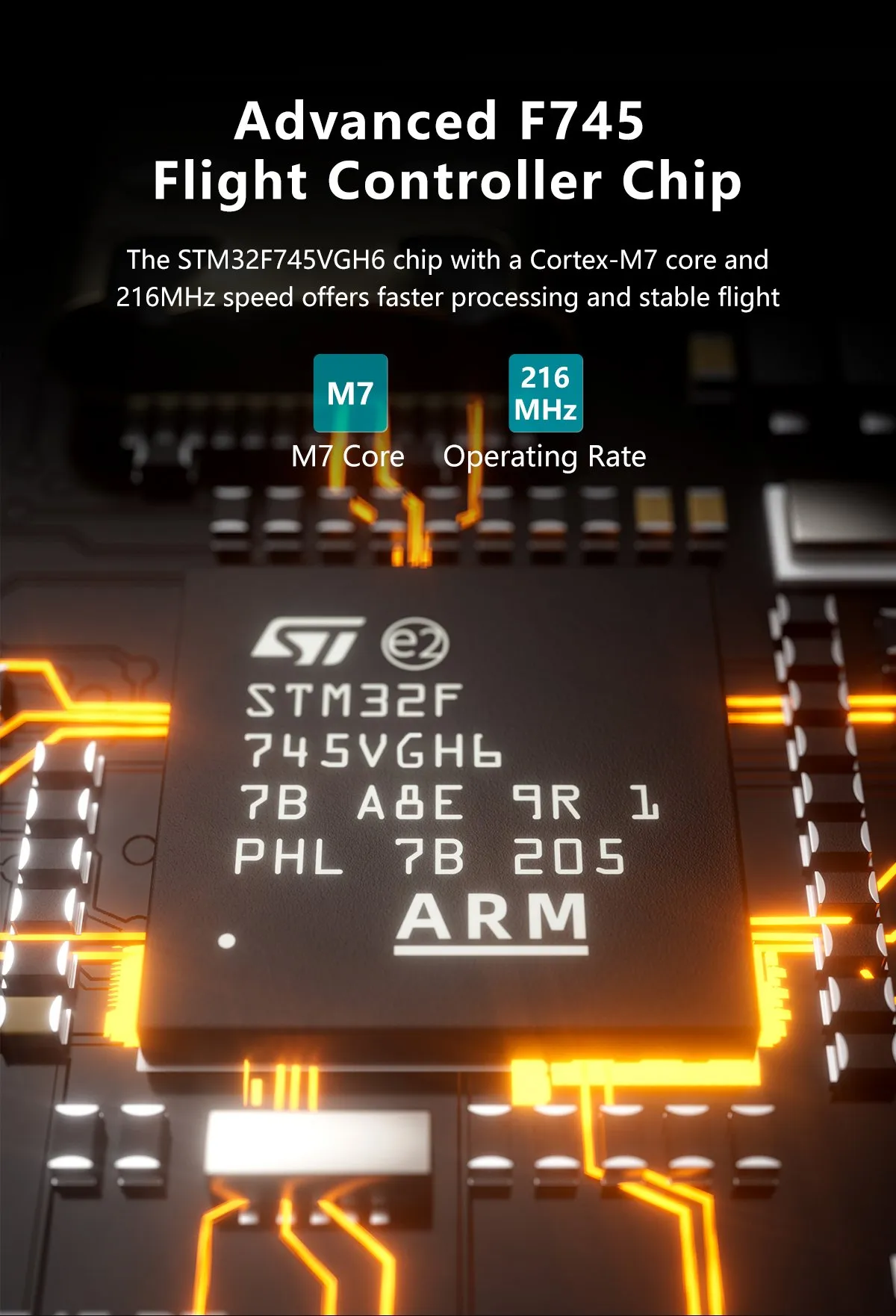

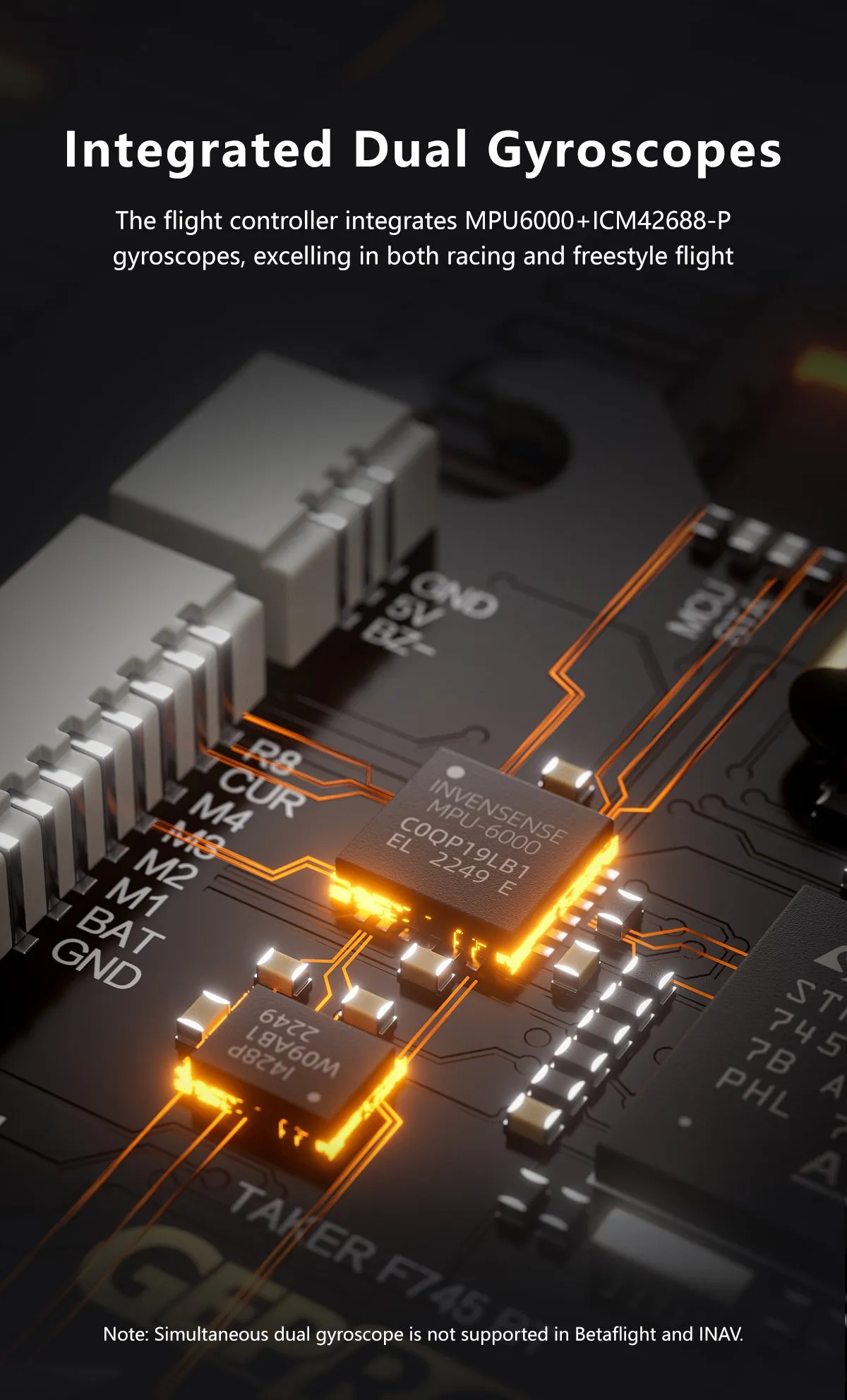

1. Adopts the high-performance STM32F745 as the main controller 2. Equipped with MPU6000 and 42688-P dual gyroscopes

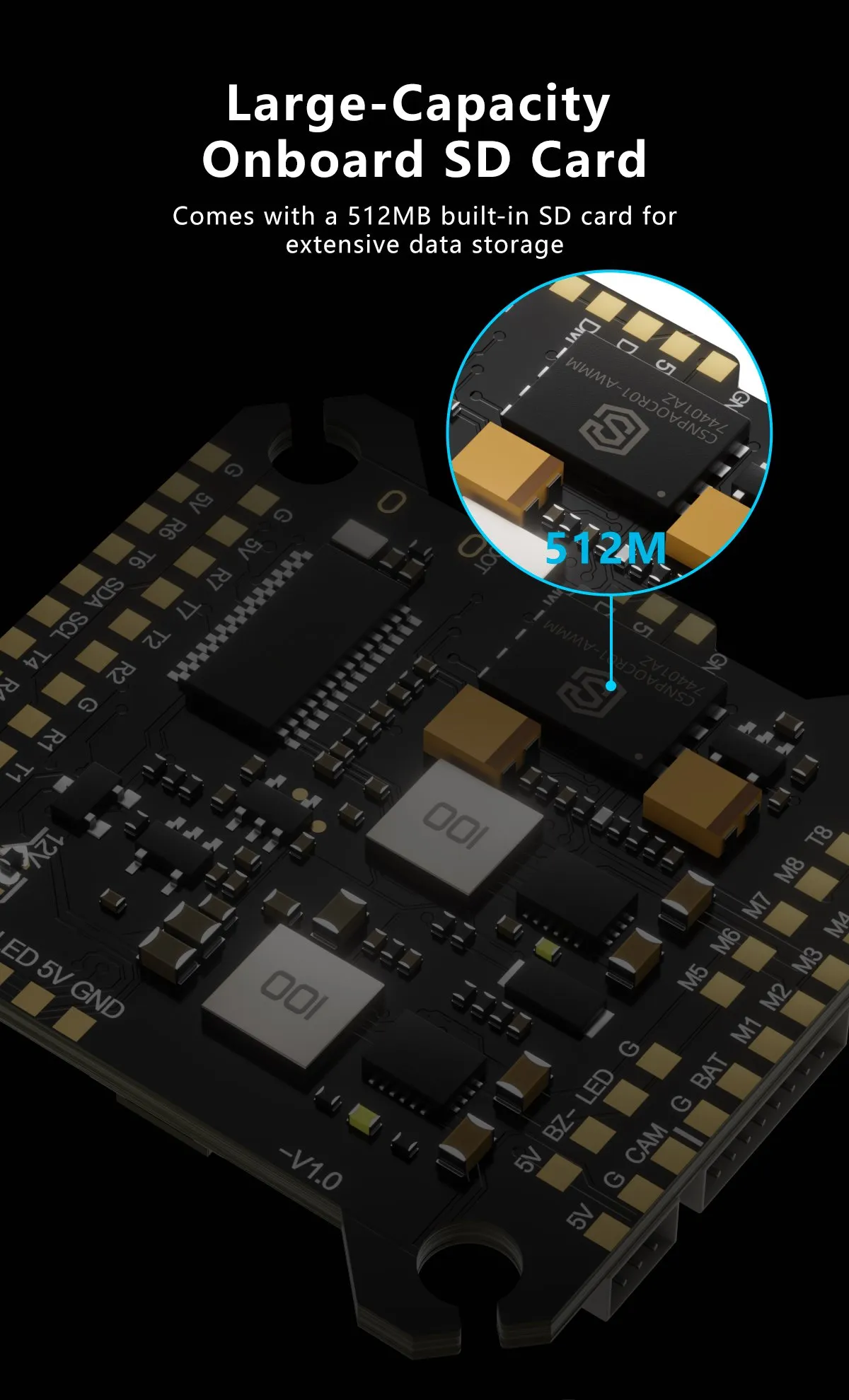

3. 512MB high-capacity black box storage

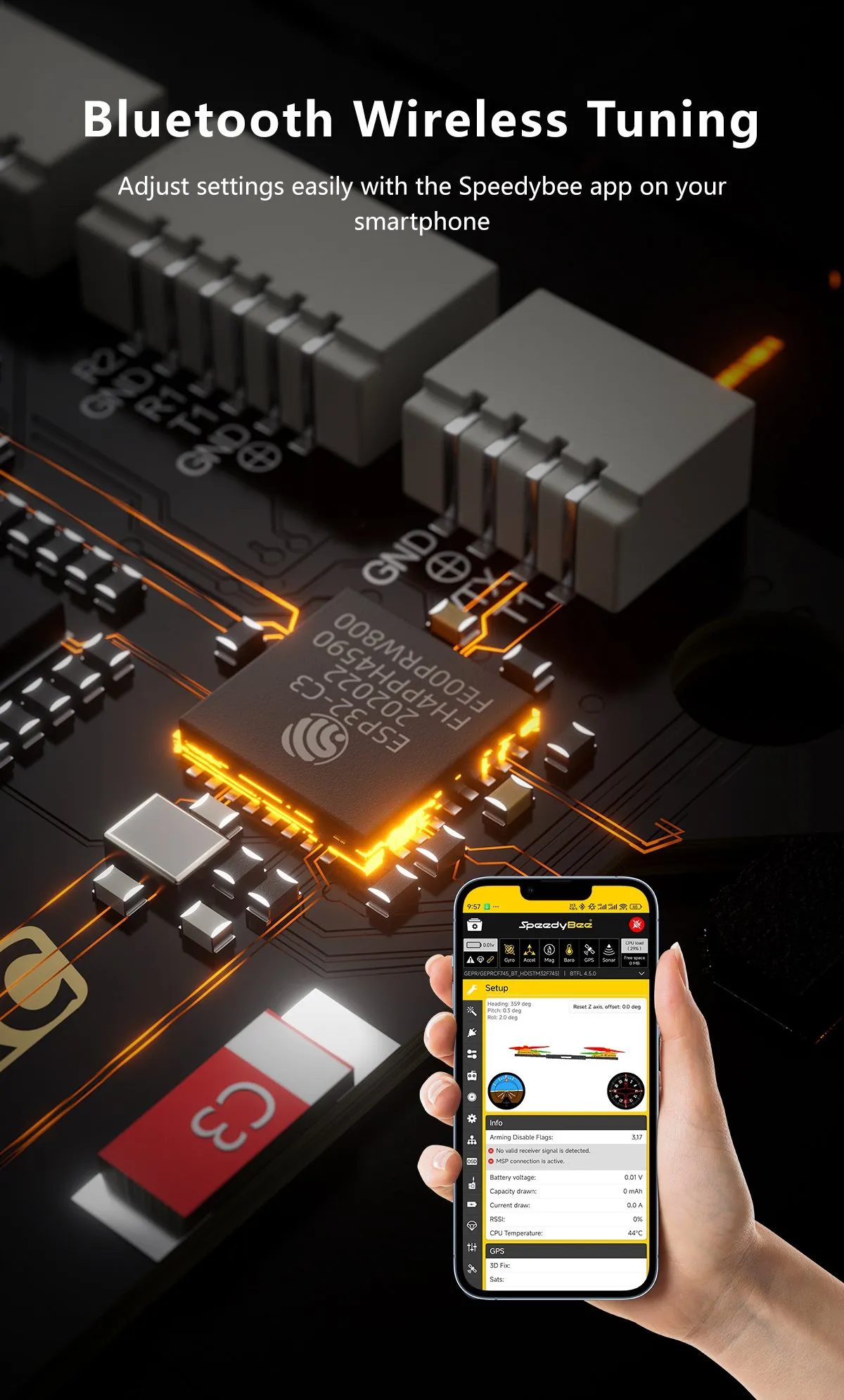

4. Bluetooth parameter tuning
5. Upgraded Type-C USB interface

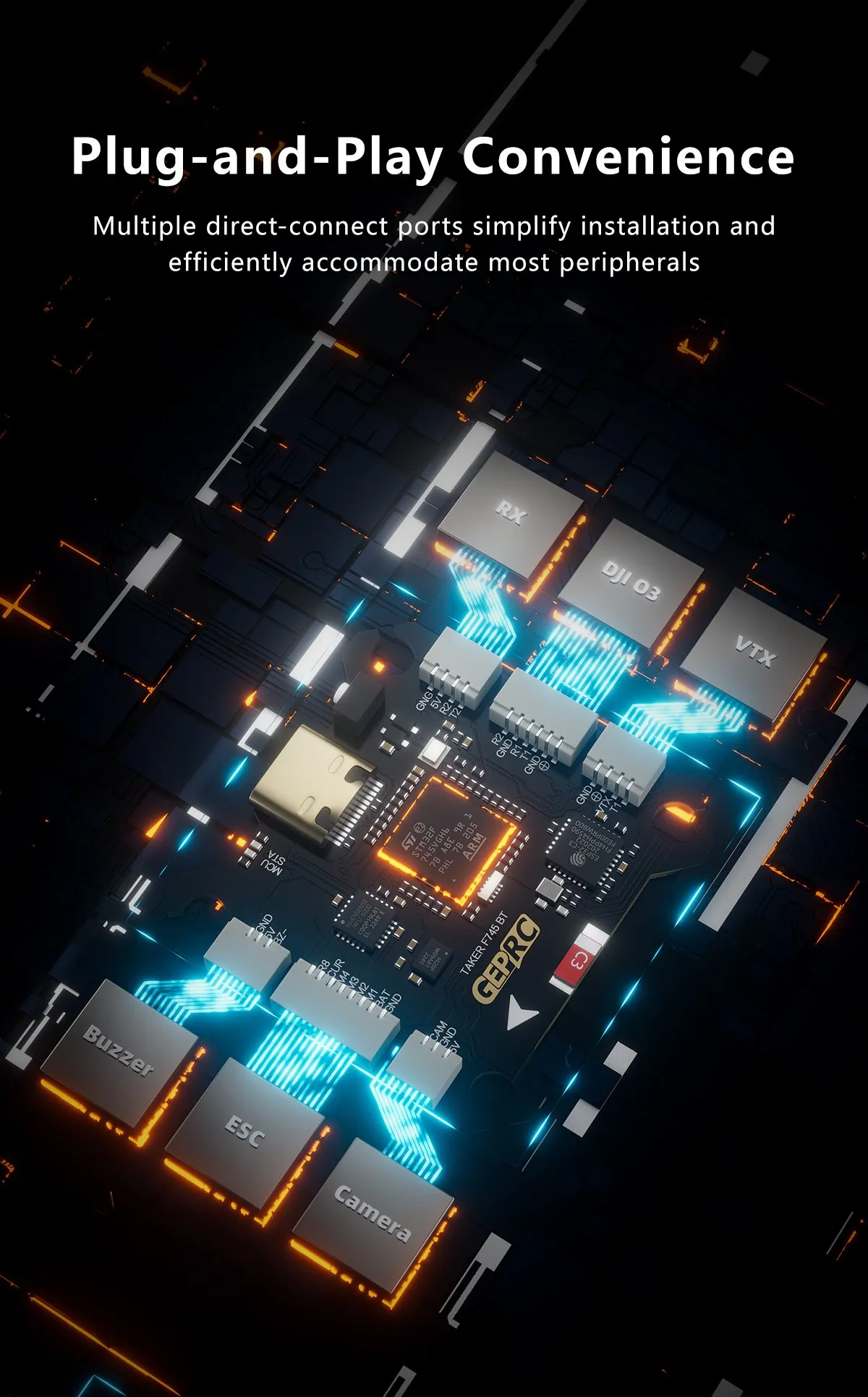

6. Plug-and-play, no soldering required.
7. Integrated barometer
8. Features 7 UART ports

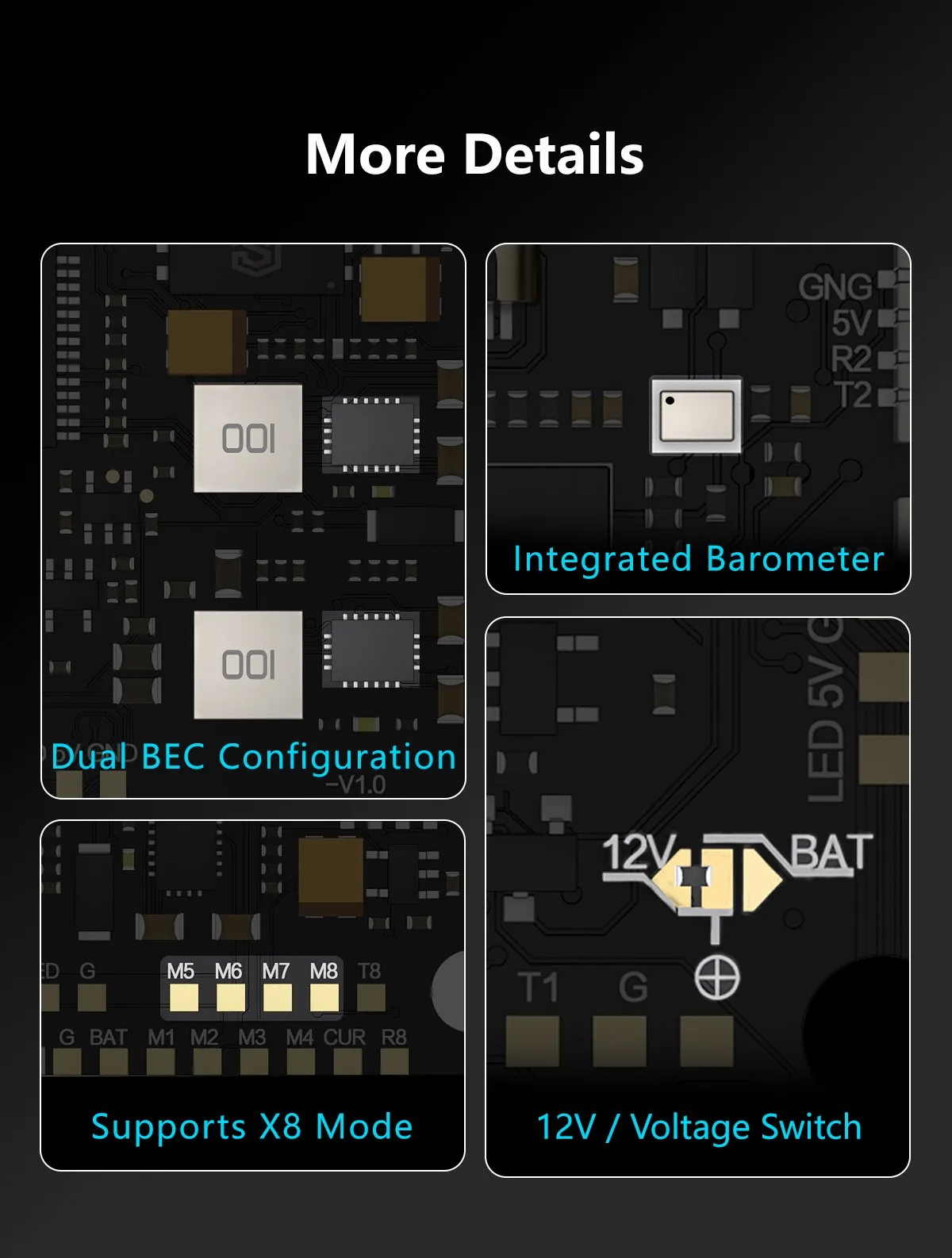

9. Independent BEC with 12V@2.5A and 5V@3A outputs

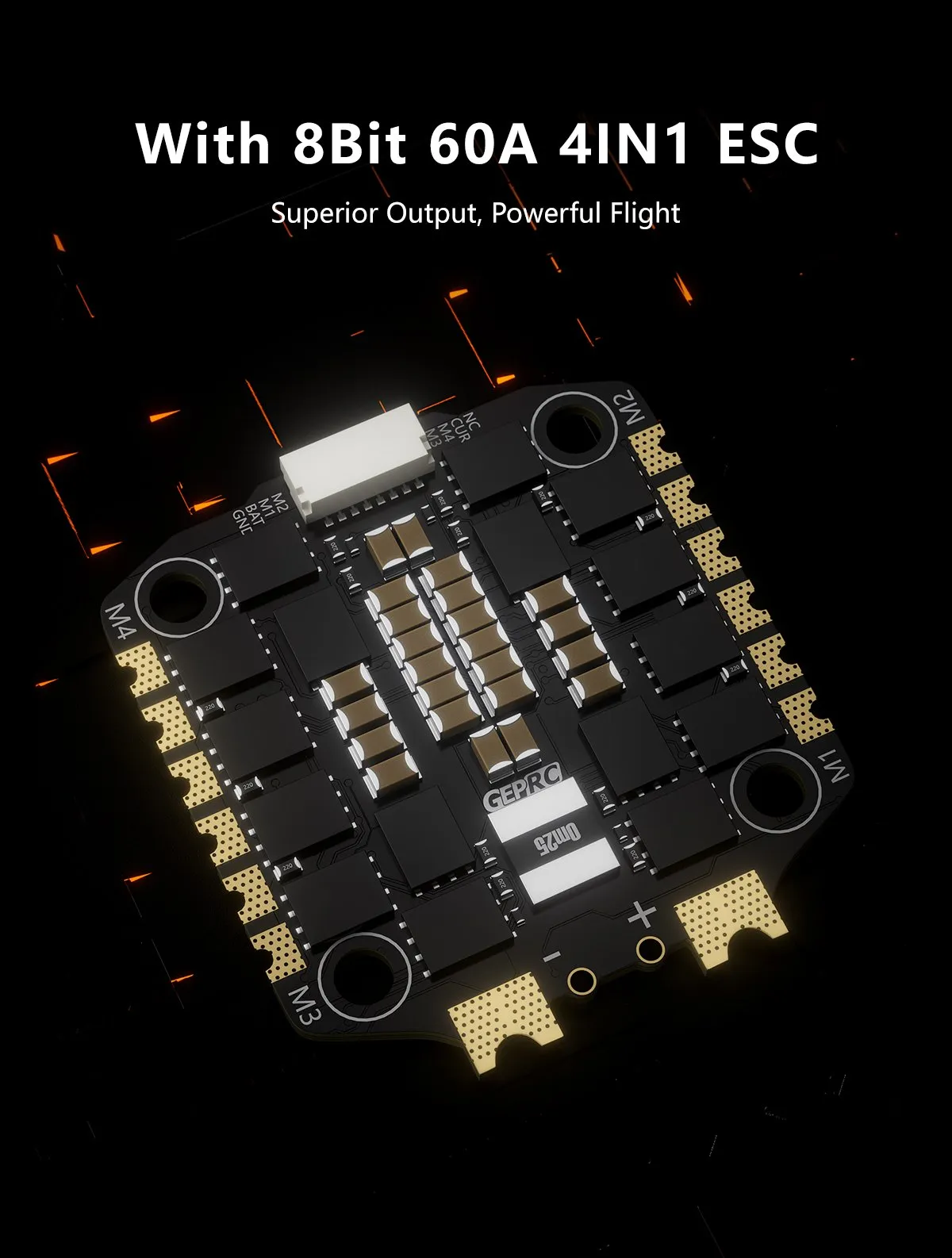

10. Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Installato su un 5”, montaggio pulito e senza problemi. In volo è stabile e reattivo, ESC gestisce bene il carico. Tutto arrivato veloce e ben imballato.

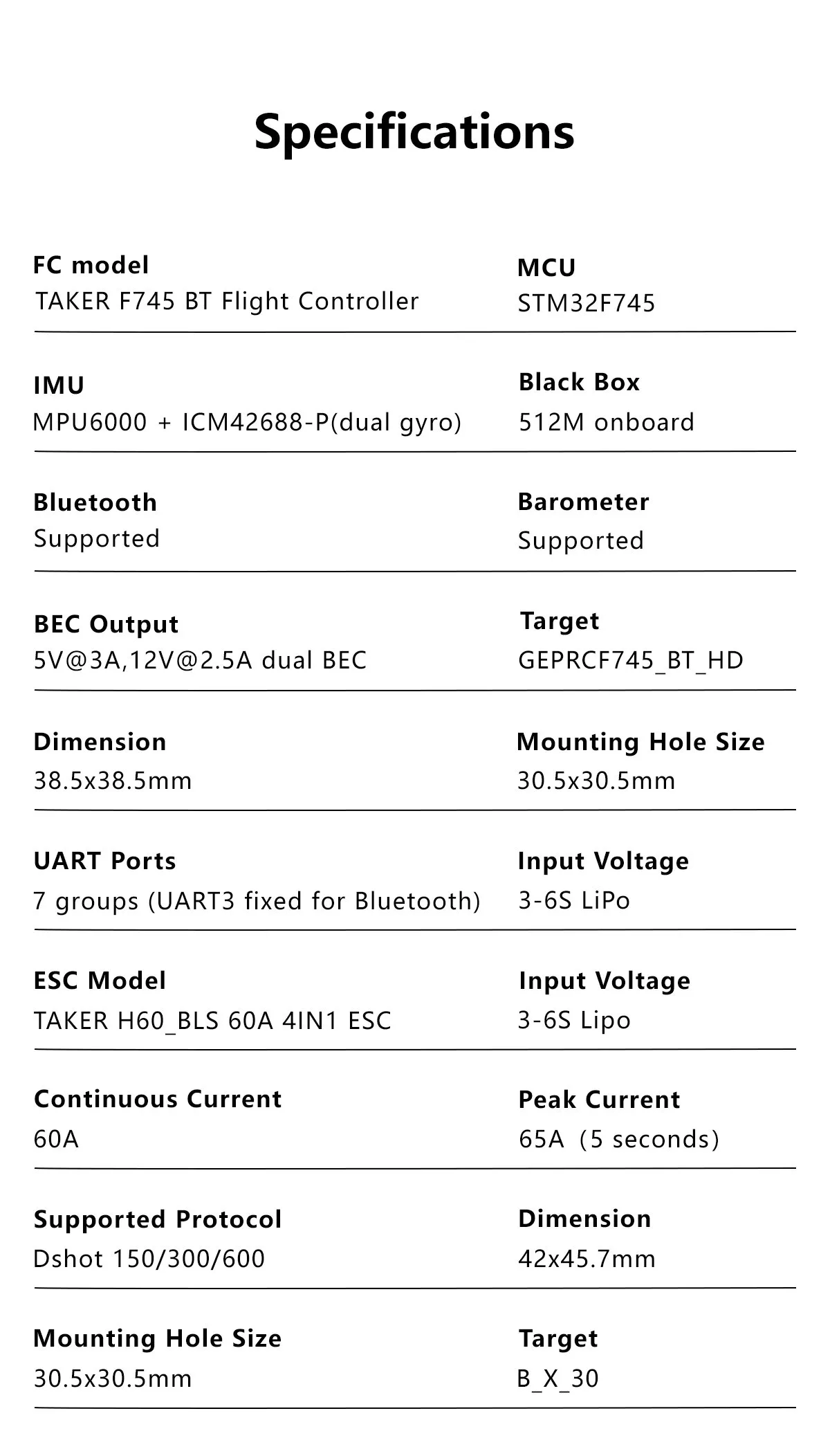

Specification：TAKER F745 BT 8Bit 60A
E***********e
Verified
Installed on a 5" freestyle build. The stack layout is clean and soldering was straightforward. In flight, it feels responsive with stable signal and no noticeable desync. Bluetooth tuning is a nice bonus for quick adjustments. Overall very solid setup.
Specification：TAKER F745 BT 8Bit 60A
E*********k
Verified
Clean install on my 5" quad, stack runs stable with no issues so far. Good overall experience ordering.
Specification：TAKER F745 BT 8Bit 60A
T**********n
Verified
Stable performance so far with no desync issues. Bluetooth tuning is convenient, though initial setup took a bit longer than expected.
Specification：TAKER F745 BT 8Bit 60A
Additional reviews after 39
days
Everything was dialed in now, it's been running smoothly. No issues during flights.
M*********i
Verified
In volo è stabile e reattivo. Buona esperienza generale.
Specification：TAKER F745 BT 8Bit 60A
C**********h
Verified
ESC handles load well. Mepsking delivery was reliable, no delays on my order.
Specification：TAKER F745 BT 8Bit 60A
FAQFeel free to ask us any questions
ASK A QUESTION
What mounting pattern does the stack use?
It uses a standard 30.5×30.5mm mounting pattern, compatible with most 5-inch FPV frames.
What flight controller is included?
It features the GEPRC TAKER F745 flight controller with STM32F745 MCU.
