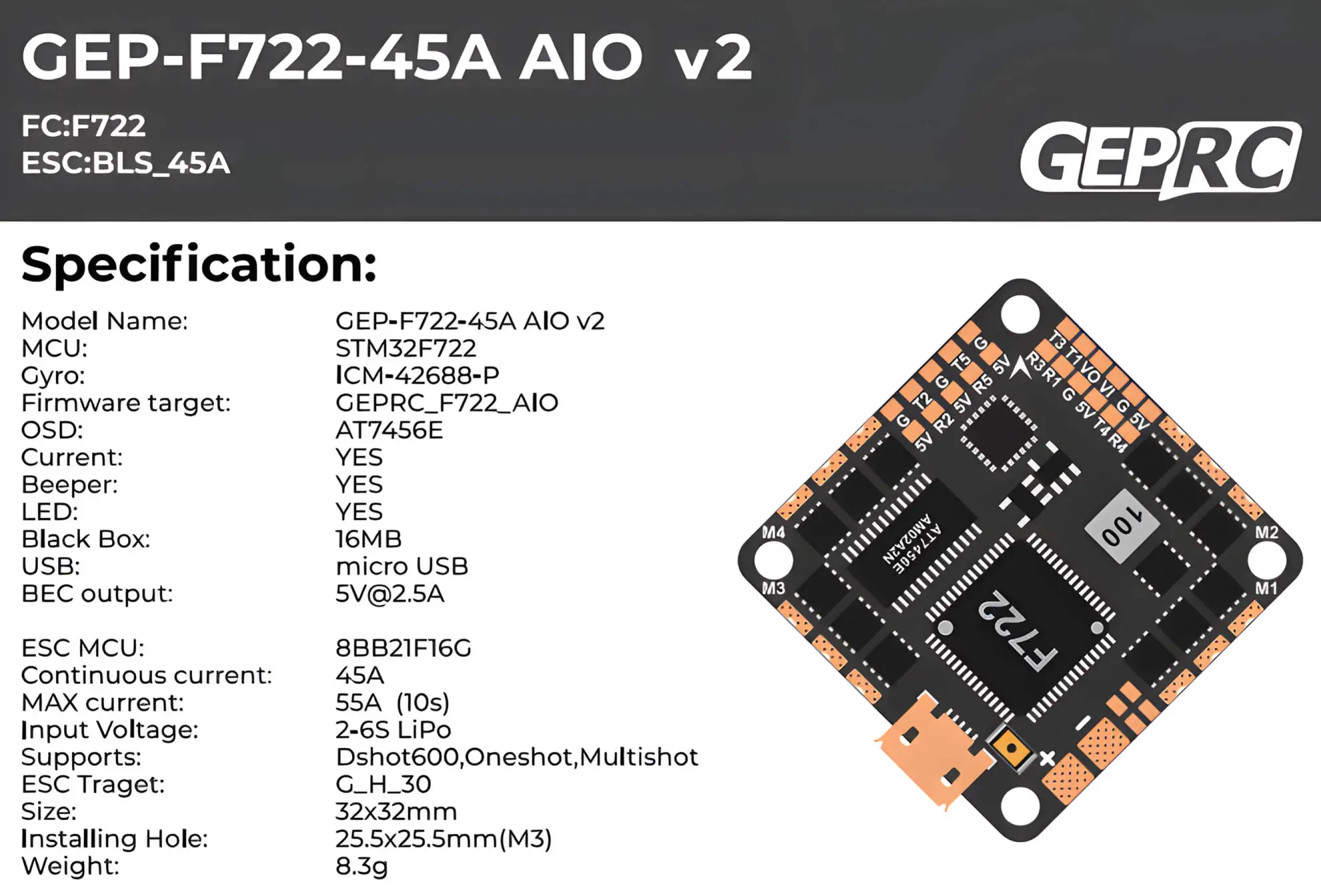

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.
We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.
We pursue lighter weight, smaller volume, more functions and better performance Flight controller.
● MCU:STM32F722,with strong performance and higher computing speed.
● It has 5 full UART ports, which can connect more external devices

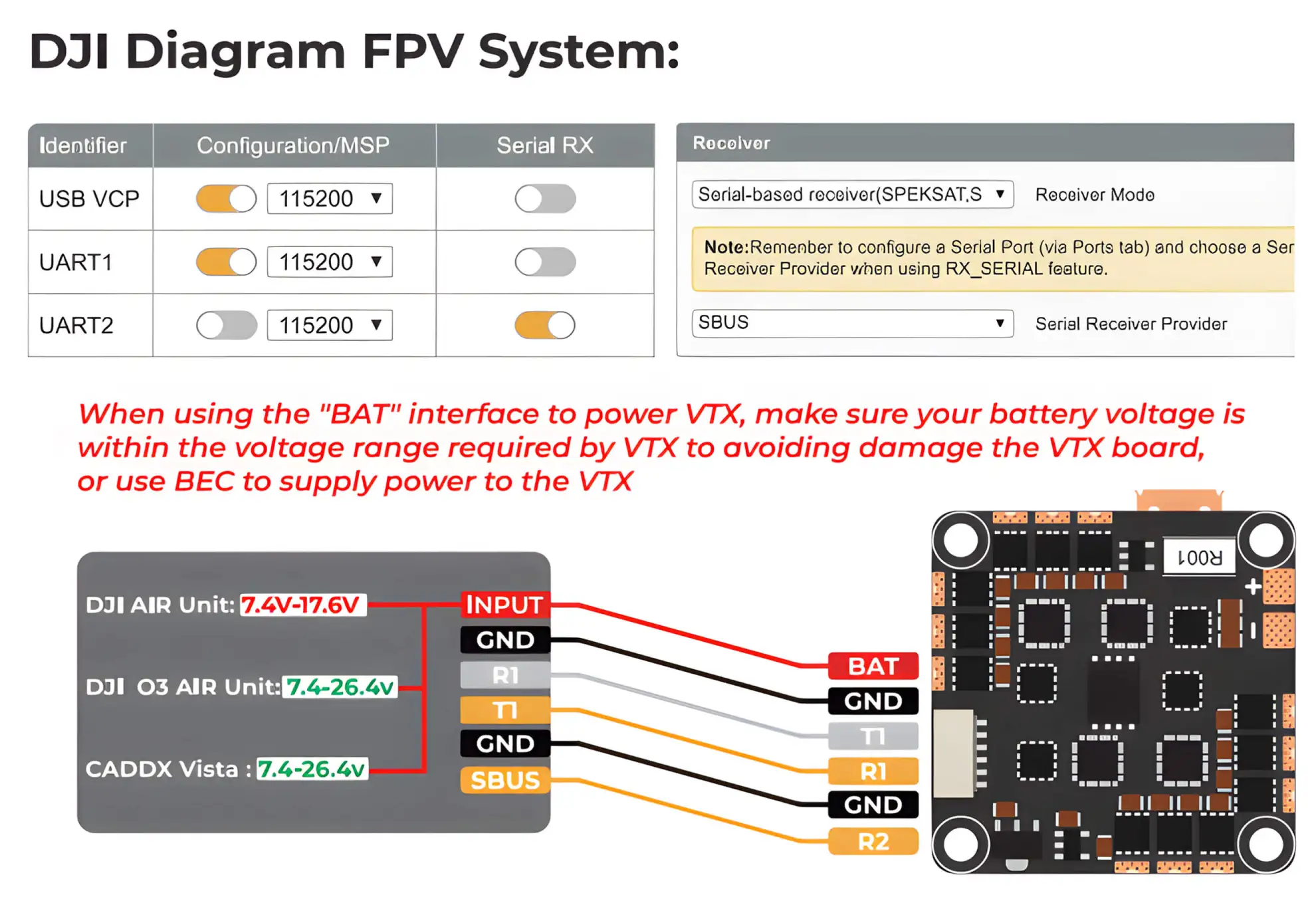

● Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
● The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.

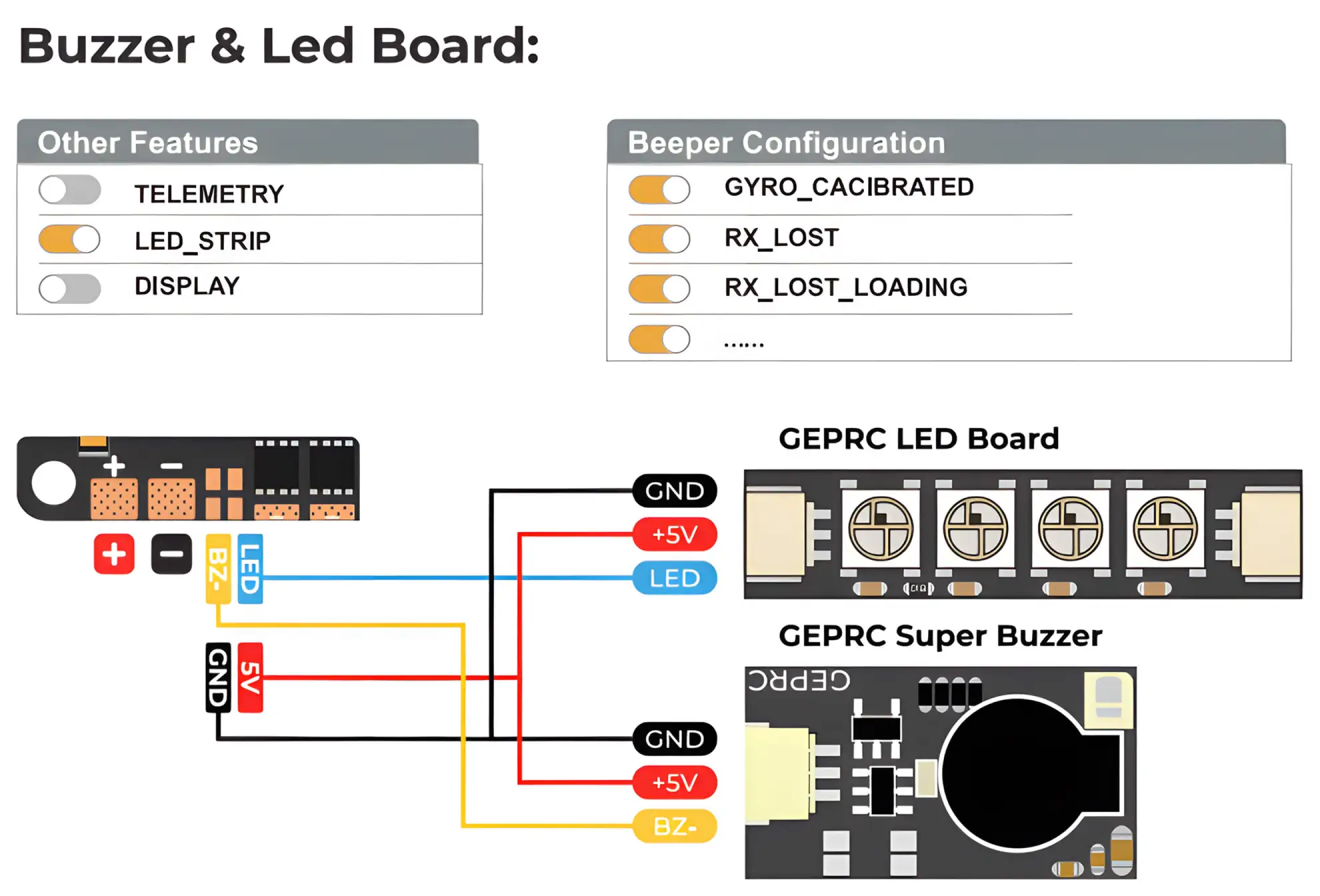

● Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight
● 5mm * 25.5mm mounting hole, suitable for most frames
Diagram
Recommendations:
Includes:
1 x GEP-F722-45A AIO V2
1 x XT30-7CM-18AWG Power cables
1 x 35V220UF capacitor
1 x SH1.0-6Pin to GH1.25-8Pin cables
8 x M2*6.5mm Damping rings
Reviews
j***s
Verified
Highly satisfied with the product, the buyers gave it a 5-star rating.
Optins：GEP-F722-45A AIO V2
F********V
Verified
Très bon produit. The F722 chip is snappy and handles Betaflight 4.5 with no issues. I’m using it on a Cinewhoop and the stability is rock solid. Had a few questions and support replied pretty fast.
Optins：GEP-F722-45A AIO V2
F**********k
Verified
Got this for a 3.5” build. Board layout is clean and soldering was easier than expected. Feels solid overall.
Optins：GEP-F722-45A AIO V2
Additional reviews after 8
days
after a few packs everything still runs smooth, no issues so far.
C**********n
Verified
very clean AIO design. fits perfectly in my cinewhoop frame and keeps the build lightweight.
Optins：GEP-F722-45A AIO V2
F********V
Verified
Très bon produit. The F722 chip is snappy and handles Betaflight 4.5 with no issues. I’m using it on a Cinewhoop and the stability is rock solid. Had a few questions about the peripheral ports and support replied pretty fast.
Optins：GEP-F722-45A AIO V2
F******a
Verified
Bon produit overall. Works well but wiring space is a bit tight for my frame.
Optins：GEP-F722-45A AIO V2
Additional reviews after 7
days
support helped confirm compatibility before purchase.
r*********e
Verified
arrived fast and packaging was good. plugged in with Bluejay and it worked out of the box.
Optins：GEP-F722-45A AIO V2
C**********V
Verified
really clean build experience. ESC feels responsive and smooth even during aggressive maneuvers.
Optins：GEP-F722-45A AIO V2
Additional reviews after 9
days
no issues after multiple flights, pretty reliable so far.
1
2
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What drones is the GEPRC GEP F722 45A AIO V2 suitable for?
A: The 45A AIO is ideal for 3–5 inch FPV drones, including freestyle, cinewhoop, and lightweight builds.
Q: Does the GEPRC GEP-F722-45A AIO V2 support DJI Air Unit or DJI O3?
A: Yes, it features a 6-pin plug-and-play connector, making it easy to connect DJI Air Unit or O3 without complex wiring.
Q: Is this AIO good for beginners?
A: Yes, the AIO design reduces wiring complexity, making it easier for beginners to build and set up.
Q: What battery does the FPV 45A AIosupport?
A: This AIO supports 2S to 6S LiPo batteries, suitable for both beginner and high-performance setups.
Q: How many UART ports are available?
A: The GEPRC GEP-F722-45A AIO V2 provides 5 full UART ports for flexible expansion.
