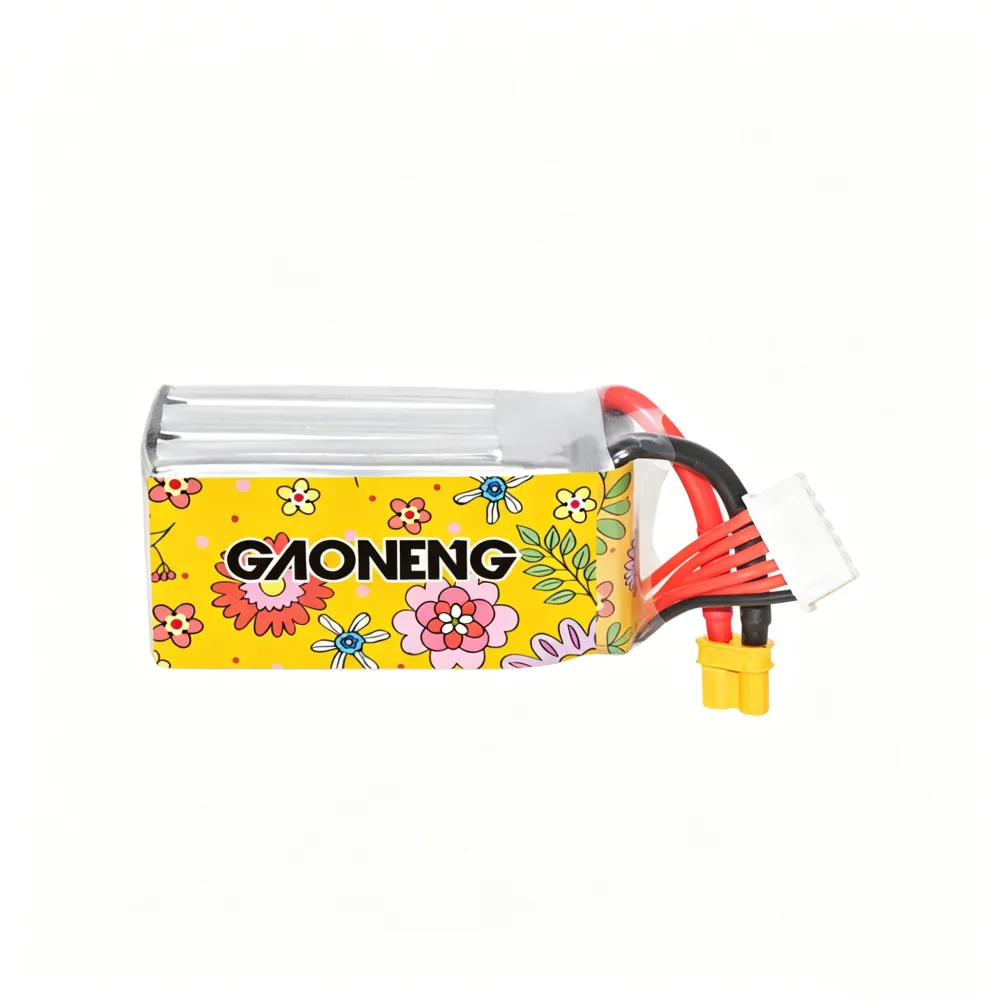

NewGaoneng GNB 850mAh 5S HV LiPo Battery 19V 120C FPV Drone Batteries with XT30 Plug for 3 Inch Tiny Whoop Cinewhoop
About Gaoneng GNB 850mAh 5S HV LiPo Battery
The new GNB high volt packs have high output 120C discharge rate and suitable for Racing or Freestyle or cinematic flight. The extra voltage increases the capacity of the battery while saving weight compared to an equivalently sized non high volt battery.
Extra 6% Off
Collect
$27.99
$35.99
-22%
5.0|0Sold
Options (1)
850mAh 120C 5S 19V XT30
Quantity
Add-ons
Bundle and save up to $3.57 on gear — upgrade your setup for less.
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
High-Voltage 5S Platform: Operates at a 19V HV plateau, delivering raw, consistent power and higher top-end speed compared to standard 4S packs.
Explosive 120C Discharge Rate: Engineered with a continuous 120C rating to eliminate voltage sag during aggressive punches and technical freestyle splits.
Lightweight XT30 Form Factor: Formulated specifically to minimize overall footprint, bringing massive 5S output into nimble 3-inch cinewhoops.
Premium LiHV Cell Chemistry: Advanced high-voltage cell compounding allows charging up to 4.35V per cell for extended flight times and peak output.
Low Resistance Structural Leads: Built with heavy-duty discharge silicone wire and a genuine XT30 connector to ensure lossless current delivery.
Payment | Every order you place with us is safe & secure
Li-Po and Li-Ion batteries must be cared for properly when stored, and NEVER charged, balanced, or discharged unattended.
ALWAYS be in the same room within line of sight of charging or discharging batteries.
NEVER charge or discharge batteries on a flammable surface.
Failure to follow these instructions may result in fire, personal injury, and/or property damage.
By purchasing this battery, you agree that MEPSKING and the battery manufacturer are in no way responsible for consumer battery charging and care, or any of the risks associated with Li-Pos or Li-Ions.
Recommendations
FAQFeel free to ask us any questions
ASK A QUESTION
Q: Can I charge this battery on a standard LiPo charger profile?
A: No, to fully utilize this 5S HV LiPo battery, you must select the LiHV (Lithium High Voltage) program on your balance charger. Standard LiPo profiles stop charging at 4.20V per cell, whereas this premium high-voltage chemistry allows each cell to safely reach 4.35V, giving you the full power plateau and extended flight duration.
Q: Will my 3-inch micro drone or cinewhoop burn out running a 5S voltage platform?
A: Before upgrading, please verify that your micro drone's Flight Controller (FC) and Electronic Speed Controller (ESC) support a 5S input voltage (up to 21.75V fully charged). Most modern 3-inch setups and brushless motors are rated for 4S-6S, but checking your hardware specifications beforehand prevents over-voltage damage.
Q: Is the pre-soldered XT30 plug a bottleneck for the 120C high discharge rate?
A: Not at all. This battery is precision-engineered with a genuine, low-resistance XT30 plug and flexible 14AWG silicone leads specifically optimized for micro platforms. It delivers optimal conductivity for high-amp burst requirements without the excessive physical weight and size penalties of an XT60 system.
Q: What is the recommended storage voltage to maximize the lifespan of these GNB packs?
A: For optimal longevity, if you do not plan to fly within 48 hours, discharge or balance charge your Gaoneng GNB packs down to a stable storage voltage of 3.80V - 3.85V per cell. Storing high-voltage cells at full 4.35V capacity for extended periods can accelerate internal resistance buildup and lead to premature cell puffing.
Q: Can I use this 850mAh 5S battery on lightweight long-range FPV drones?
A: Yes, this configuration is highly sought after for sub-250g long-range or cruiser builds. The advanced LiHV chemistry yields an exceptional energy-to-weight ratio, providing a lightweight blueprint that delivers the reliable cruising efficiency and throttle safety margins needed for extended long-range missions.
