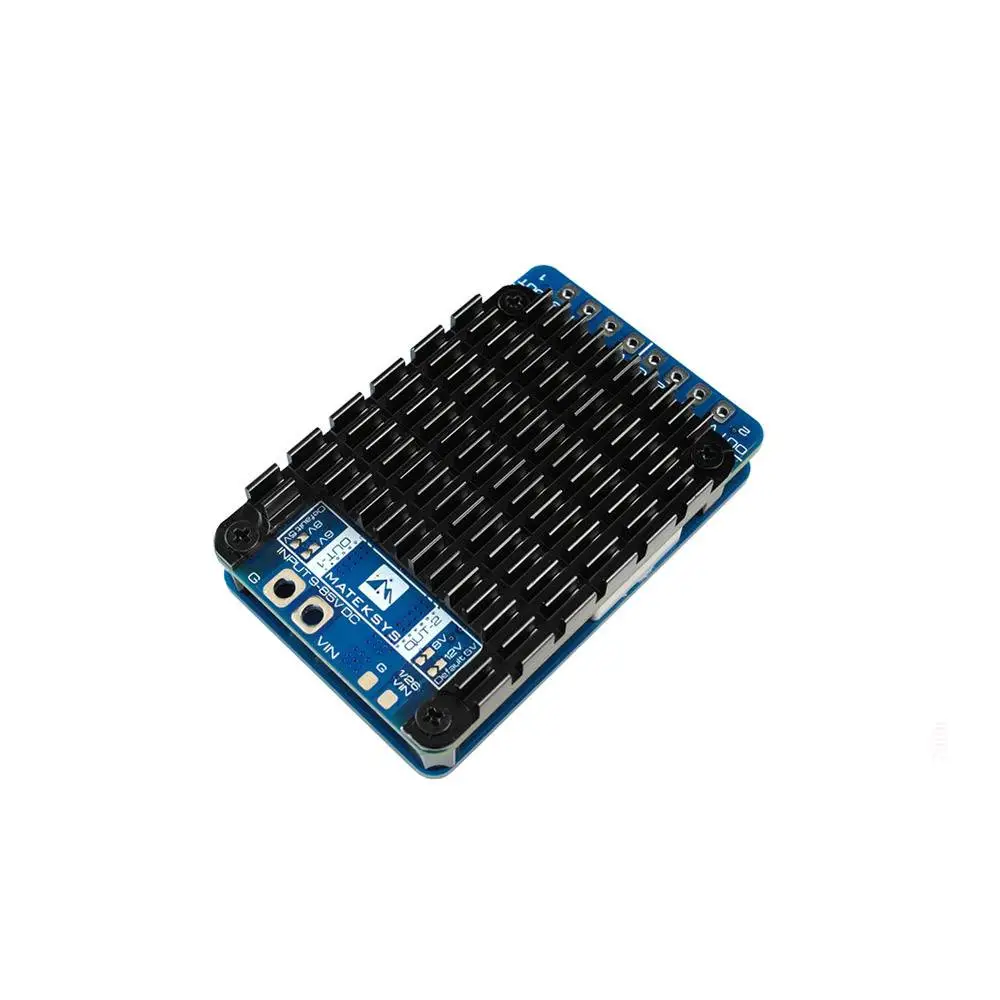

The MATEKSYS PM20S-2 Power Module is designed to deliver consistent and efficient power distribution for your systems. Equipped with 100V DC components, it supports an input voltage range of 9V to 85V DC with built-in 85V TVS protection, ensuring durability and performance. Featuring two independent step-down voltage regulators, the module offers flexible output options with continuous current support up to 15A and peak currents of up to 22A. Compact and lightweight, the PM20S-2 is ideal for advanced projects requiring robust and adaptable power solutions.
MEPS SZ F7 HD Flight Controller for DJI Air Unit | Plug & Play FPV FC
Options (1)
F7 HD
F7 HD
$40.99
$59.90
In Stock
Expected ship within 7 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Dual Step-Down Voltage Regulators
Compact and Lightweight
Wide Input Voltage Range
High Voltage Capacity
High Current Support
Durable Design
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Feathers:
● Dual Step-Down Voltage Regulators
● Compact and Lightweight
● Wide Input Voltage Range
● High Voltage Capacity
● High Current Support
● Durable Design
Specifications:
● Input Voltage Range: Supports 9V to 85V DC with 85V TVS protection
● 2x Independent Step-Down Voltage Regulators
● Regulator 1: 5.3V / 6.1V / 8.1V output options
● Supports continuous output current: up to 15A
● Regulator 2: 5.3V / 8.1V / 12.2V output options
● Peak current of up to 22A
● Supports continuous output current of up to 15A
●1K: 25K voltage divider built-in for 3.3V-based voltage ADC
● Made with: 100V DC components

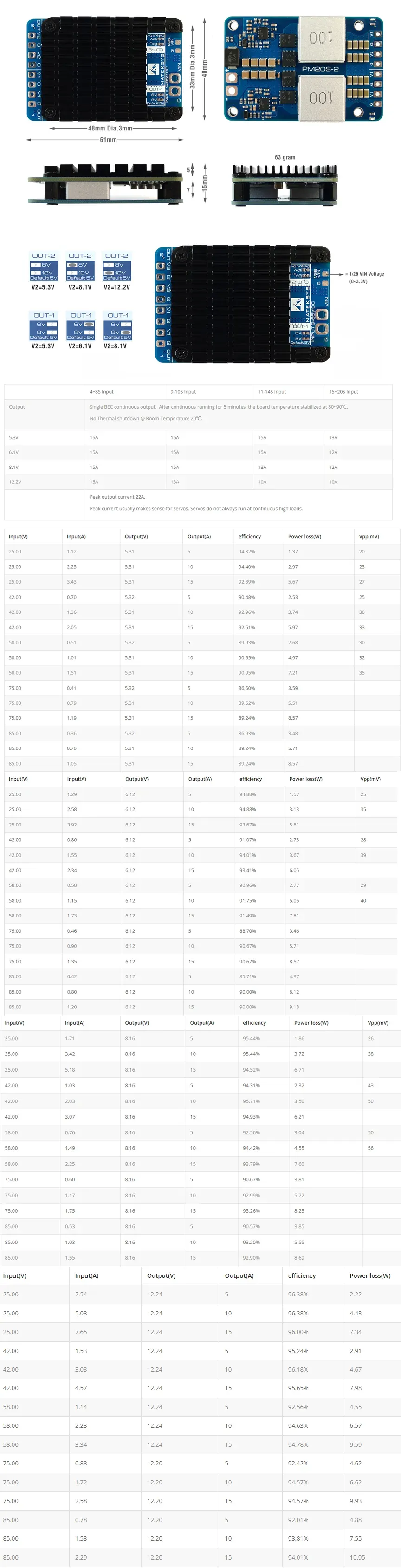

● Size & Weight: 61x40x15mm, 63g
● Peak current: up to 22A
Package Includes
1x Matek PM20S-2 Power Module
Size
FAQFeel free to ask us any questions
ASK A QUESTION
Q1: What is the input voltage range of the PM20S-2?
A: The PM20S-2 supports a wide input range of 9V–85V (4–20S LiPo). It also includes 85V TVS surge protection, making it suitable for high-voltage FPV and industrial setups.
Q2: How many power outputs does it have?
A: It features dual independent BEC outputs, allowing you to power multiple devices simultaneously, such as flight controllers, VTX systems, and cameras.
Q3: Are the output voltages adjustable?
A: Yes.
Regulator 1: 5.3V / 6.1V / 8.1V
Regulator 2: 5.3V / 8.1V / 12.2V
This provides flexible power options for different onboard electronics.
Q4: What is the maximum output current?
A: Each channel supports up to 15A continuous output, with peak capability up to 22A, suitable for high-power FPV builds and heavy electronic loads.
Q6: Does it support voltage monitoring?
A: Yes. It includes a built-in 1K:25K voltage divider, enabling direct battery voltage feedback to the flight controller for real-time monitoring and low-voltage warnings.
