Analog Receiver Module Adapter V3.0 PLUS for DJI Digital FPV Goggles
About this product
Get ultimate versatility with your DJI FPV Goggles. The V3.0 PLUS Fat Shark receiver module adapter fits on the side of the DJI Digital FPV Goggles to give you the ability to use 3rd party analog video receiver modules! It is compatible with Fat Shark style modules.
This analog module can be enjoyed by people who owe analog and digital FPV equipment! This item can be used with the aluminum analog cover.
$30 Off Orders $469+
$16 Off Orders $269+
Collect
$15.99
5|13Sold
Options (3)
V3.0 PLUS
Module Aluminum Cover
V3.0 PLUS ＋ Module Aluminum Cover
Quantity
In Stock
Expected ship within 5 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Works with DJI digital FPV goggles, enabling support for analog receiver modules.
Compatible with Fat Shark-style modules and popular receivers like RapidFire and Furious.
Supports 2S–4S input with 5V 3A output, real-time voltage display, and low-voltage alarm.
Built-in DVR interface supports analog video recording with improved AV IN performance.
Supports Betaflight OSD customization and optimized analog signal transmission.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Updates*
● Adds a power switch and adds a standard DVR interface (the interface of the recording module). The 2.0 version can now record DVR, but cannot record sound. We have reserved a standard DVR interface to record images and sound.
● Support AV IN analog video transmitter recording. Users need to restore the factory settings to ensure the normal use of the AV IN interface functions.
● Fixed the boundary display problem of AV IN analog video transmitter.
● Optimize the AV IN analog video transmitter to improve the real-time performance of the transmission.
● Support user-defined selection of the OSD display content of FPV Goggles, support 24 OSD information definition displays of Betaflight.
● When the video transmission distance is greater than 1km, the video transmitter can adjust the frame rate and code rate adaptively according to the distance and channel bandwidth.
● Support remote control to connect to PC via USD cable and control the simulator.
● 5.8G RX PORT3.0-PLUS has added a digital tube, which can display the battery voltage in real-time and can set the low voltage alarm
Specifications
● Model: 5.8G RX Port3.0-PLUS
● Dimension: 55 * 28 * 12mm
● Weight: 13g (without extension cable)
● Power input: 2S-4S (DC5.5 * 2.1)
● Internal voltage: 5V 3A (with pad output)
● Power output: 2S-4S (DC5.5 * 2.1)
● Signal Input: Standard Fat Shark Receiver Port
● Including third-party receivers: Reaxacc Furious, Rapid Fire, etc.
● Signal output: standard audio/video
● Support DVR Port
● With voltage display, voltage alarm

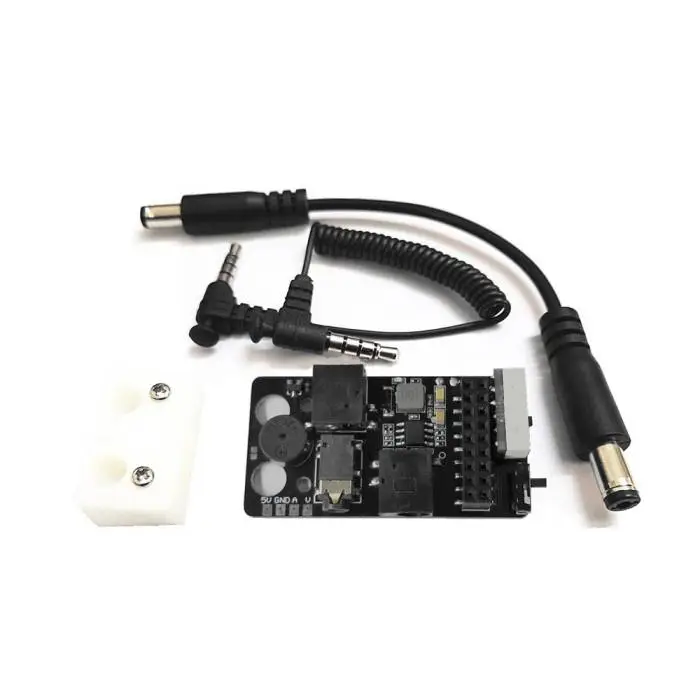

Includes
● 1 x Adapter mounting block and screws
● 1 x Audio and video cable
● 1 x Power cable
● 1 x 5.8G RX PORT 3.0-PLUS Receiver Board
Recommendation
Reviews
Q*******t
Verified
No issues after months of use. Very reliable for analog whoops and freestyle quads.
Specification：V3.0 PLUS
S******t
Verified
Works perfectly with DJI goggles V2. Clean installation and stable analog signal input. Very useful upgrade.
Specification：V3.0 PLUS
R********r
Verified
Good product, but not fully plug-and-play for beginners. Experienced users will like it more.
Specification：V3.0 PLUS
R******n
Verified
Signal quality is stable and latency is acceptable for analog flying through DJI goggles.
Specification：V3.0 PLUS
F********r
Verified
Good adapter overall, but mounting requires careful alignment. Once installed, performance is solid.
Specification：V3.0 PLUS
F******d
Verified
Great solution for mixing analog and digital FPV systems. Easy plug-and-play setup.
Specification：V3.0 PLUS
D********r
Verified
Build quality is decent, aluminum case feels durable. Works well with RapidFire module.
Specification：V3.0 PLUS
F*****h
Verified
Very solid upgrade for DJI goggles. Makes analog flying much more flexible.
Specification：V3.0 PLUS
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What is the Analog Receiver Module Adapter V3.0 PLUS used for?
A: It allows DJI Digital FPV Goggles to support external 5.8GHz analog video receiver modules, enabling users to fly both digital and analog FPV systems with one goggle setup.
Q: Which goggles is it compatible with?
A: It is designed for DJI Digital FPV Goggles, using an external mounting adapter and AV signal input interface.
Q: Which analog receiver modules are supported?
A: It supports standard Fat Shark-style receiver modules such as ImmersionRC RapidFire, TBS Fusion, and other compatible 5.8GHz VRX modules.
Q: Does it require external power?
A: Yes, it typically uses 2S–4S input power and provides internal 5V regulation for the receiver module.
Q: Does it support DVR recording?
A: Yes, it supports DVR functionality through a dedicated interface, allowing analog video recording on compatible DJI goggles.
