About Flywoo GOKU GN 745 45A AIO 32bit (MPU6000 ) V3:
The Flywoo GOKU GN 745 45A AIO V3 is a premium FPV Flight Controller integrated with a 45A BLHELI_32 ESC, specifically designed for 3-5 inch cinewhoops, toothpick drones, and ultralight builds. Featuring the stable MPU6000 gyro, STM32F745 MCU, and 7 UARTs, this 25.5x25.5mm AIO supports 2-6S Lipo for maximum power and DJI O3 compatibility.
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.

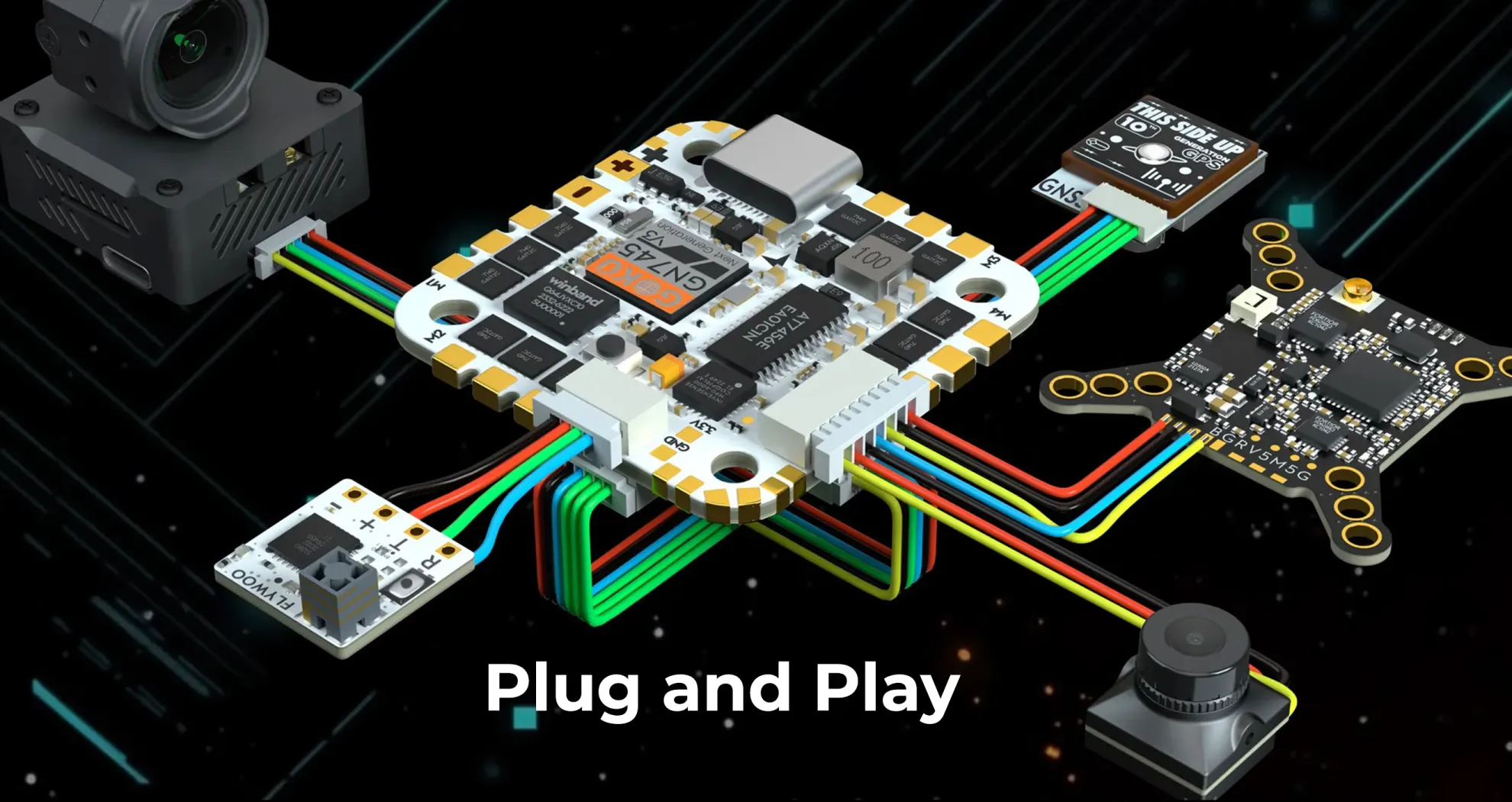

Plug and Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
Compatibility: Supports BF, INAV, and Ardupilot platforms.
New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
Better Protection: Larger motor pad area with improved overcurrent protection.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Stability with MPU6000 Gyro
Equipped with the industry-standard MPU6000 gyroscope, the GOKU GN 745 V3 offers superior vibration resistance. Unlike more sensitive modern gyros, the MPU6000 ensures your flight controller receives clean data, resulting in "locked-in" flight feel and buttery-smooth cinematic shots straight out of the box.
Dual BEC Output for Simplified Wiring
Setting up your VTX has never been easier. The GN 745 V3 features built-in dual BECs: a 5V/2A output for your receiver and LEDs, and a dedicated 10V/2A output specifically designed to power high-voltage digital systems like the DJI O3 or Walksnail Avatar.

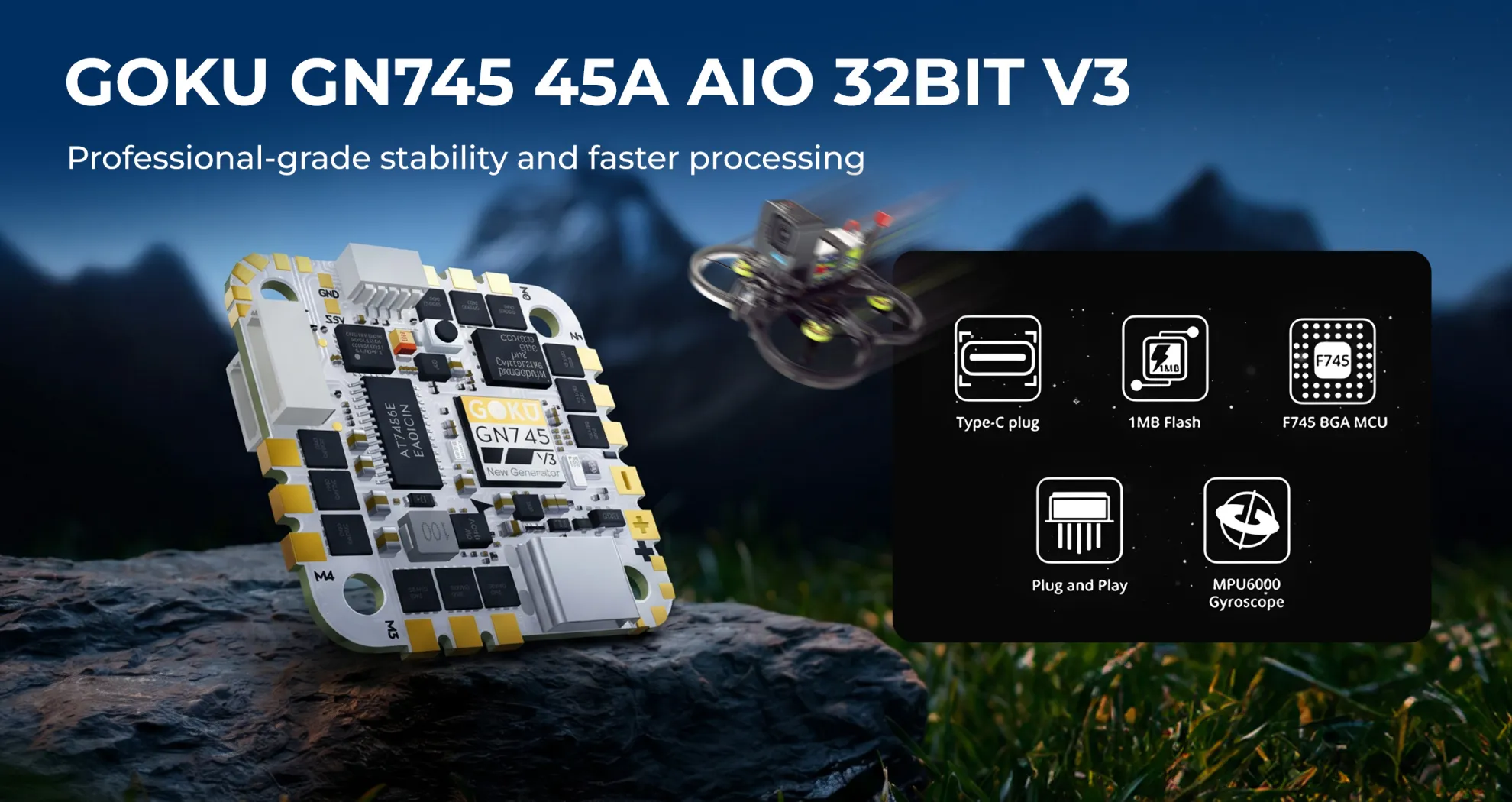

BF745 Processor + 32-bit ESC for Serious Performance
Powered by an STM32F745 MCU and a high-performance 32-bit 45A ESC with bidirectional DShot support, the GOKU GN745 V3 delivers faster processing, cleaner signals, and reliable power for demanding FPV builds.
Built for Cleaner Wiring & Tougher High-Current Flights

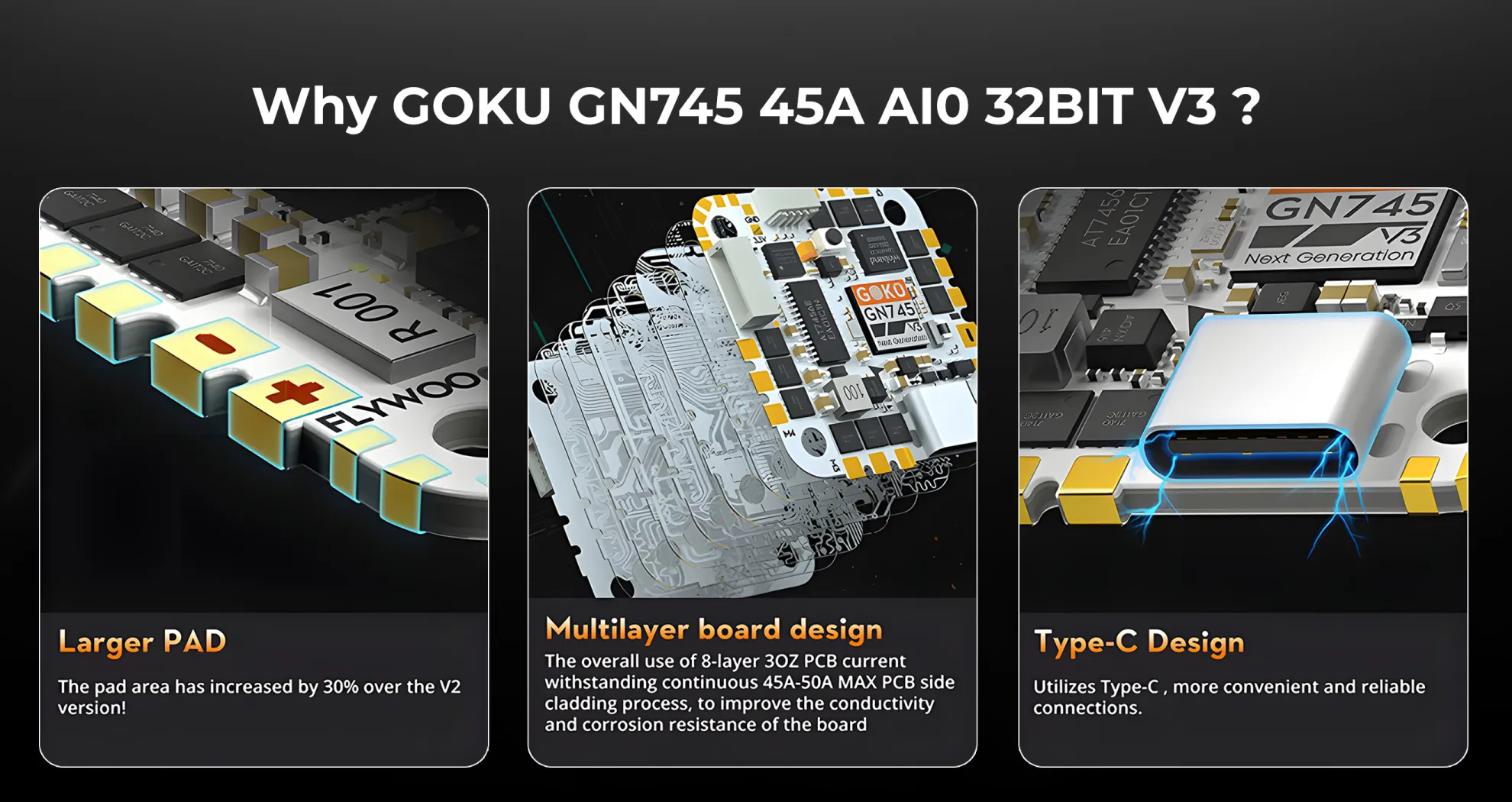

Flywoo GOKU GN745 45A AIO V3 features larger solder pads, an 8-layer PCB for improved conductivity, and a Type-C port for more convenient and stable connections.

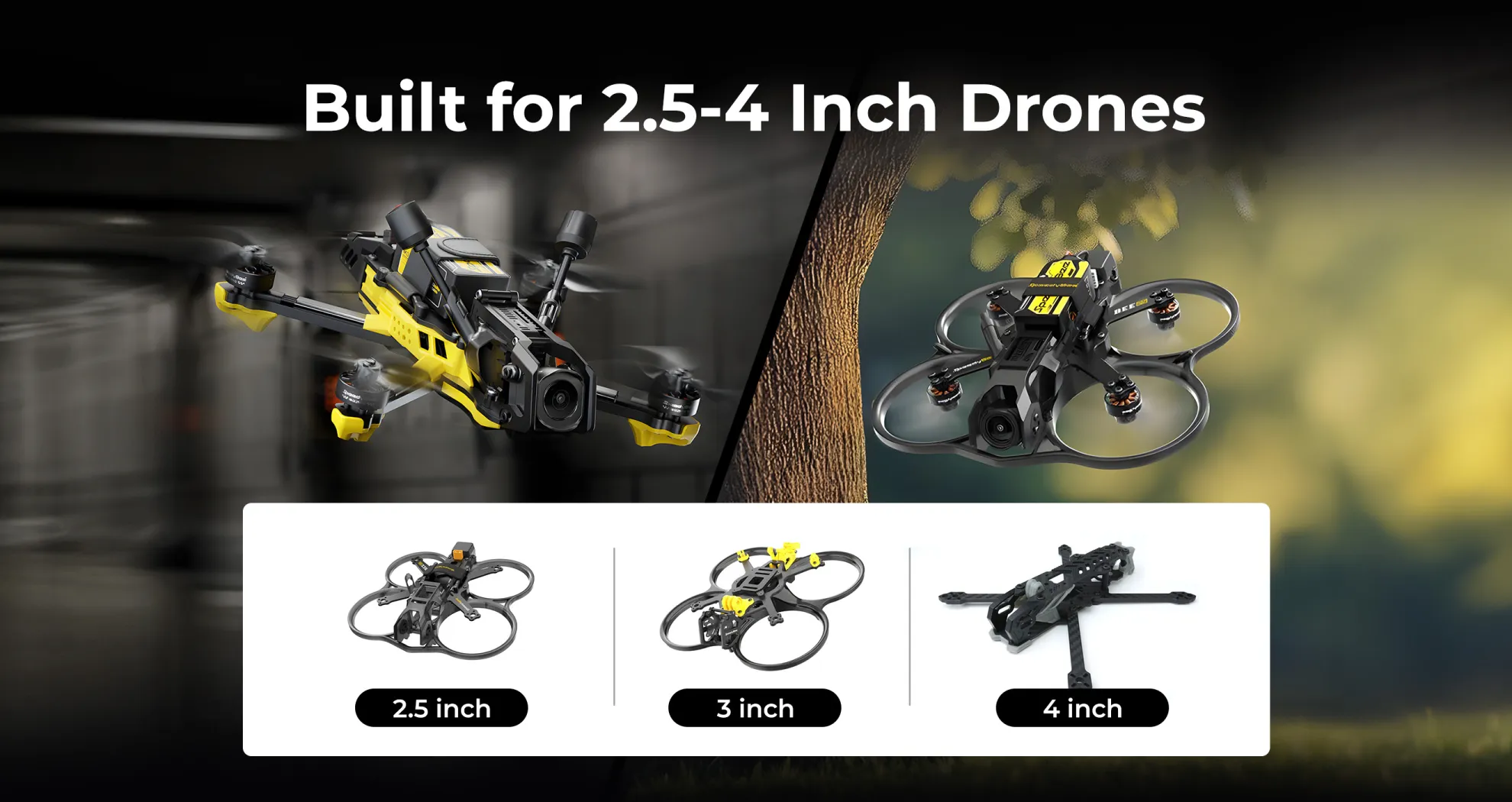

From Toothpicks to Long Range
The compact 25.5x25.5mm mounting pattern makes this AIO compatible with a vast array of frames. It is the perfect choice for:
● 2.5-3 Inch Cinewhoops: Reliable power for high-payload cinematic flying.
● 3-4 Inch Ultralight Toothpicks: Maximum weight savings for agility.
● Sub-250g Long Range: Efficient power management for extended flight times.
Highlights：
1.Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
2. Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
3. Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
4. Compatibility: Supports BF, INAV, and Ardupilot platforms.
5. New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
6. Better Protection: Larger motor pad area with improved overcurrent protection.
Specifications
Onboard 4in1 ESC
● Support AM32
● Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
● Input Voltage: 2-6S Lipo
● Continuous Current: 45A
● Firmware: GOKU_F4A32_PRO

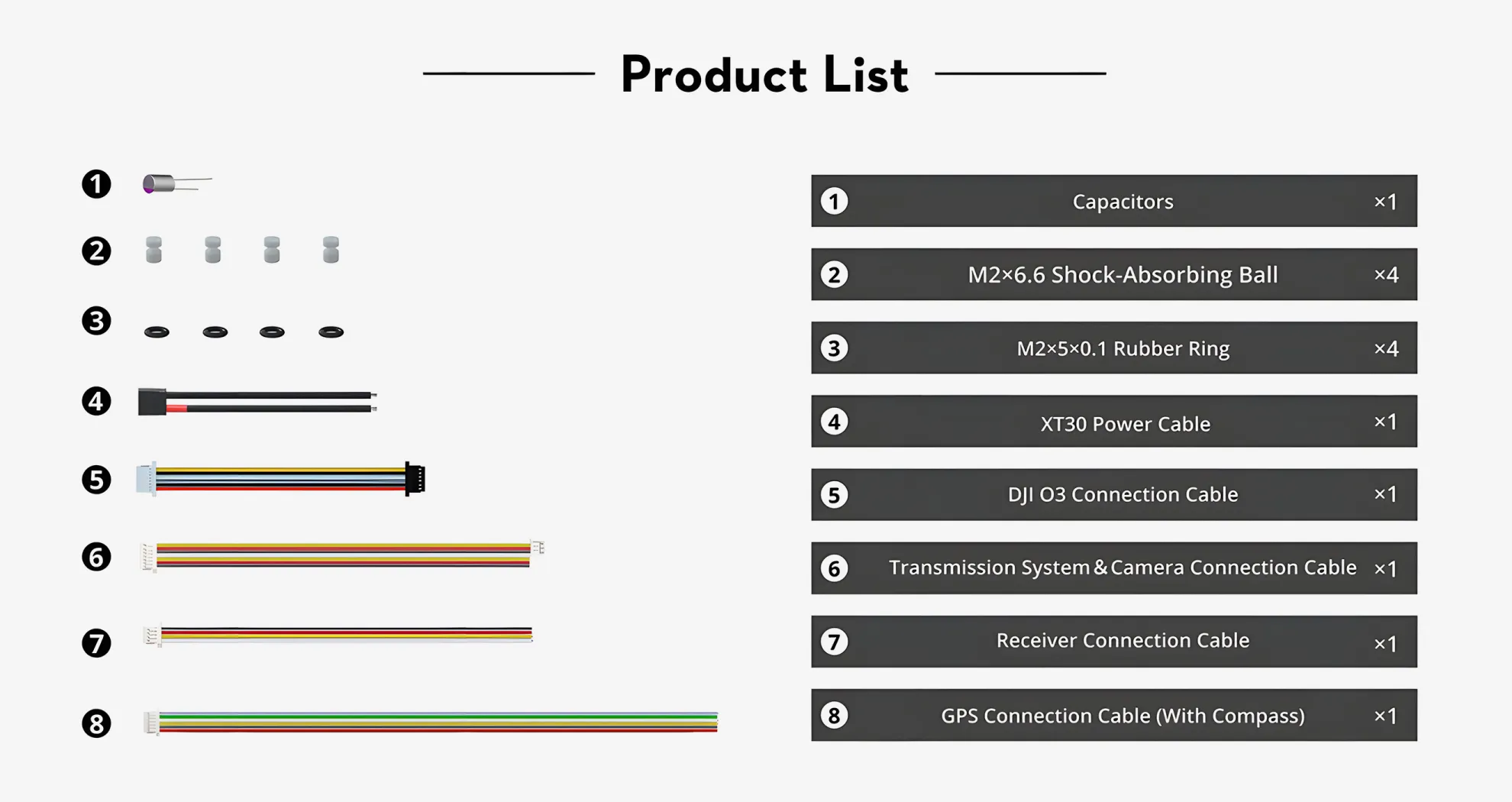

Package
Recommendation
Reviews
L**m
Verified
Pads are nicely laid out,happy so far.
KV：45A AIO 32bit (MPU6000 ) V3
E**a
Verified
Easy to install and seems well made.
KV：45A AIO 32bit (MPU6000 ) V3
Z********t
Verified
Sehr gutes Stack-Layout, läuft ruhig und die ESC werden nicht heiß.
KV：45A AIO 32bit (MPU6000 ) V3
P***o
Verified
fast shipping, happy with the purchase.
KV：45A AIO 32bit (MPU6000 ) V3
D*****n
Verified
Sehr guter AIO.
KV：45A AIO 32bit (MPU6000 ) V3
J**k
Verified
This stack just “feels right”
KV：45A AIO 32bit (MPU6000 ) V3
E**********w
Verified
This stack is rock solid. Flashed Betaflight quick and flight performance is super smooth with MPU6000.
KV：45A AIO 32bit (MPU6000 ) V3
R**f
Verified
Arrivé bien emballé. Très bon contrôleur
KV：45A AIO 32bit (MPU6000 ) V3
1
2
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What type of build is the Flywoo GOKU GN 745 V3 designed for?
A: It’s an AIO flight controller + 45A ESC combo optimized for 5" freestyle, racing, and cinematic FPV drones — great for both smooth cruising and aggressive flight styles.
Q: Why should I choose the MPU6000 V3 version?
A: The V3 uses an MPU6000 gyro for consistent gyro data and smooth flight feel, reducing jitter compared to older IMUs — perfect for Betaflight races and freestyle.
Q: Is this flight controller beginner-friendly?
A: Yes. Pre-installed firmware and clear UART/ESC pads make installation easy for beginners and intermediate builders, while advanced pilots get tuning flexibility.
Q: What makes Flywoo GOKU better than standard FC + ESC stacks?
A: The integrated design reduces wiring complexity, lowers weight, and improves power efficiency — less clutter means better signal integrity and cleaner performance.
Q: Is the GN 745 V3 good for high-performance 5″ freestyle?
A: Yes. With 45A continuous ESC rating and robust MOSFETs, it supports aggressive throttle punch and big props up to 5″ without thermal issues.
