NewSkyzone SKY04X PRO 52° OLED 5.8GHz FPV Goggles for RC & Drone Racing

About Skyzone SKY04X PRO FPV Goggles:

Skyzone SKY04X PRO FPV goggles feature a 52° OLED display, 1920×1080 resolution, built-in SteadyView receiver, DVR, adjustable focus and IPD for immersive drone racing and RC flying.

Skyzone
Extra 6% Off
Collect
$ 599.00 $769.99
-$171
4.8 | 100+Sold
Options (4)
SKYZONEFPV SKY04X black
Black Matte
SKYZONEFPV SKY04X white 1
White Matte
SKYZONEFPV SKY04X red 1
Red Matte
SKYZONEFPV SKY04X grey 3
Gray Matte
Quantity
pc gift t
In Stock Expected ship within 5 days after order.
Estimated Transit Time: 5-15 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
52° Immersive OLED Display — High-resolution 1920×1080 OLED screen delivers rich colors & clarity.
SteadyView 5.8GHz Receiver — Built-in 48CH V3.3 analog module for stable FPV signal.
Adjustable Optics & IPD — Focus (-6 to +2) and IPD (58–71 mm) customization for comfort.
DVR & HDMI Input — Record flights at 60 fps and HDMI support for 720p @100 fps.
Head Tracker & Universal Power — Built-in 6-axis sensor + wide voltage input 2–6S LiPo.
Payment | Every order you place with us is safe & secure
Share
Copy

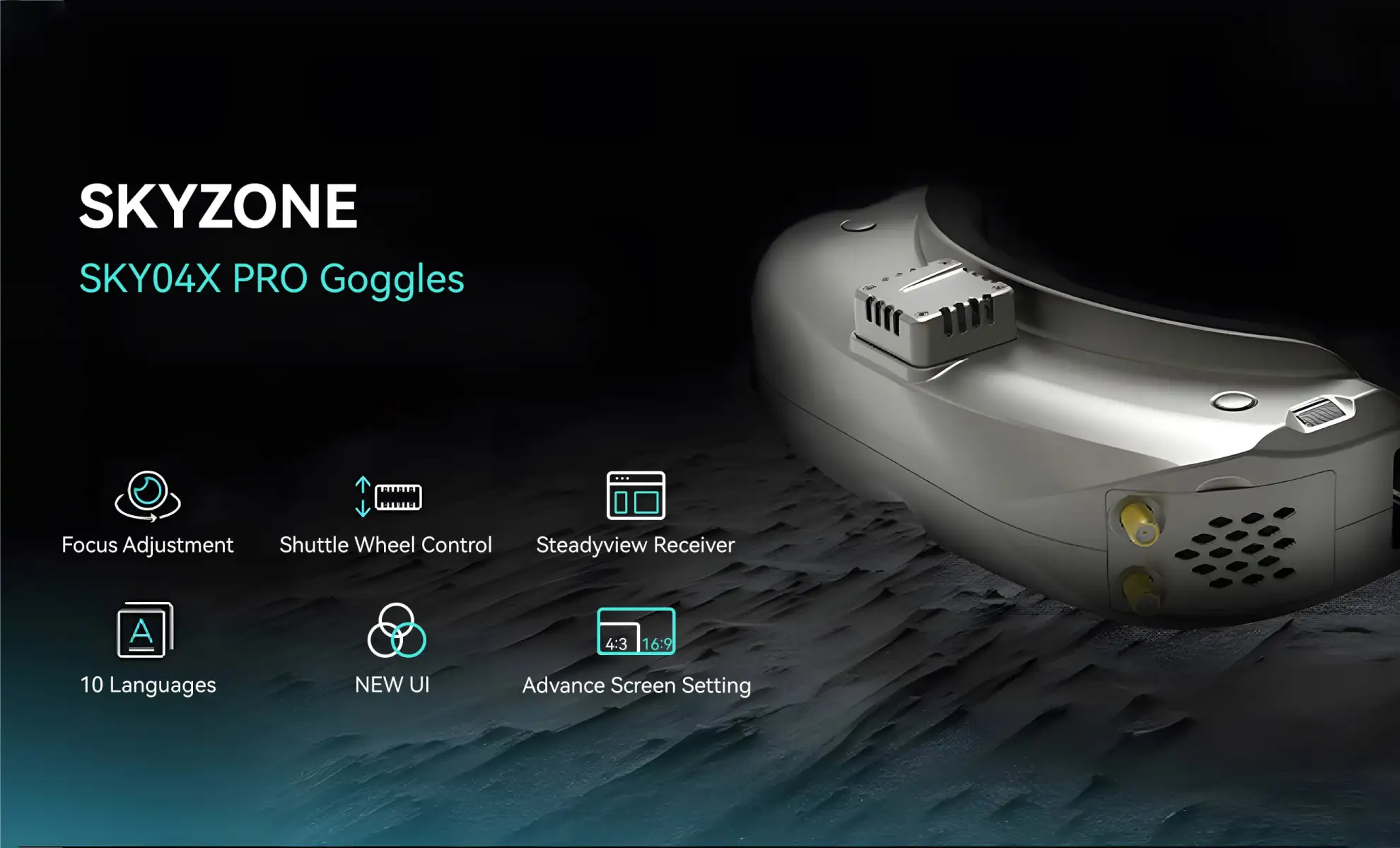

skyzone sky04x pro 52 oled 58ghz fpv goggles 1

Immersive OLED Display for Clear FPV Viewing

Experience high clarity and contrast with the 1920×1080 OLED display that brings out rich colors and detail in every flight scene.

skyzone sky04x pro 52 oled 58ghz fpv goggles 2

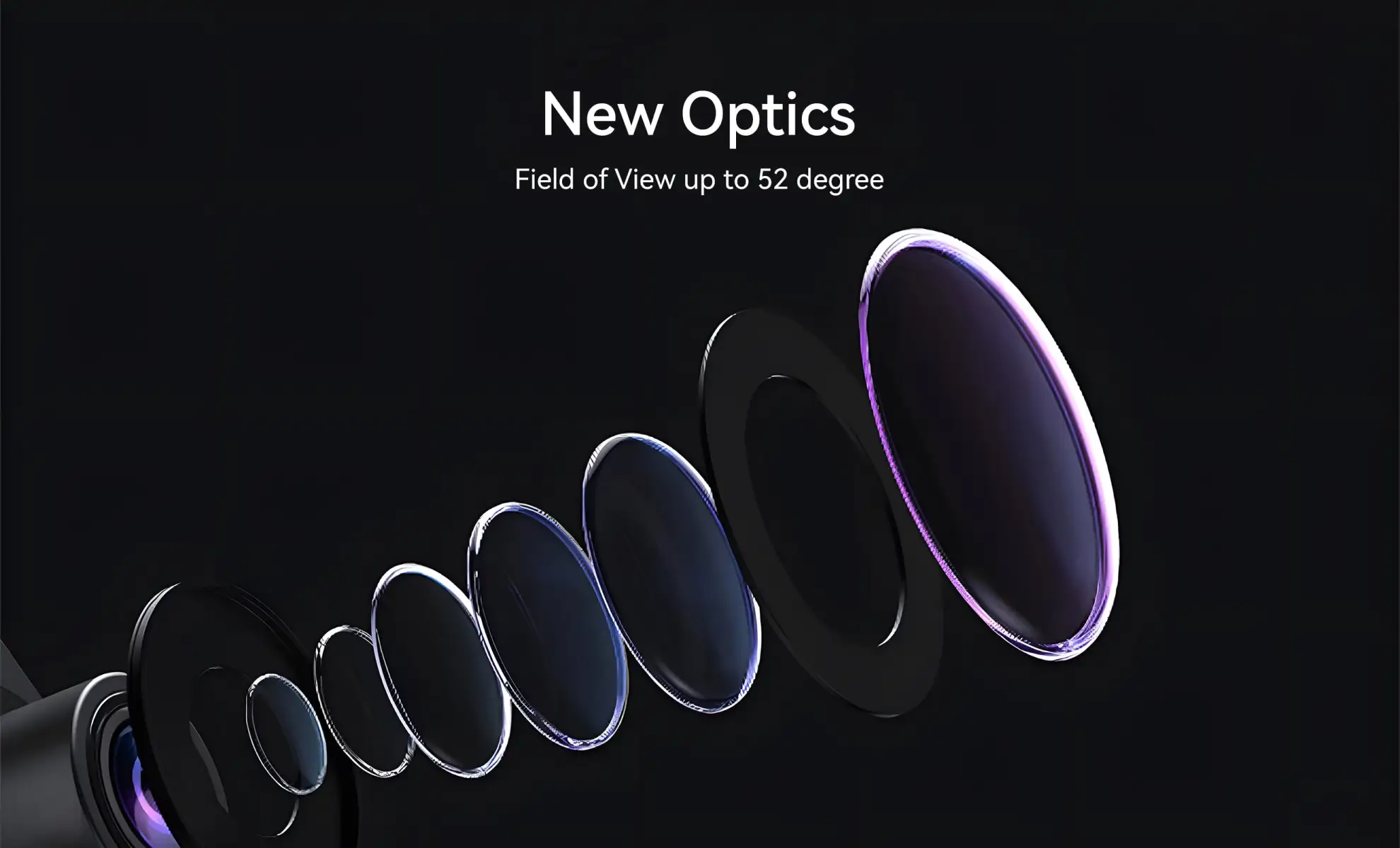

Wide 52° Field of View for Maximum Situational Awareness

The expansive 52° diagonal FOV lets you see more of your flight world, creating a deeper and more immersive FPV experience.

skyzone sky04x pro 52 oled 58ghz fpv goggles 3

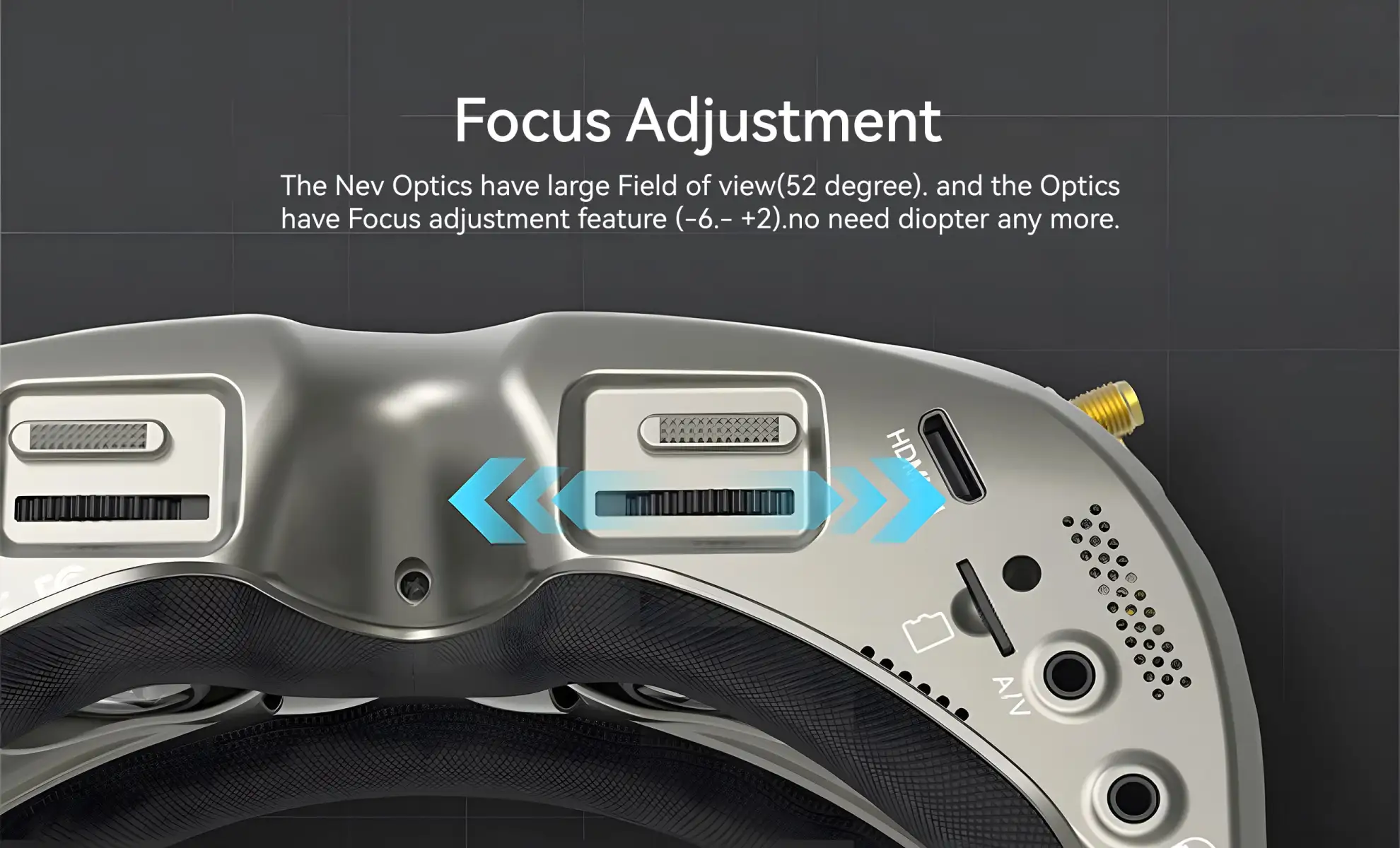

Adjustable Optics for Personalized Comfort

Fine-tune your visuals with adjustable focus range (-6 to +2) and IPD from 58–71 mm, supporting extended flying sessions with less eye fatigue.

skyzone sky04x pro 52 oled 58ghz fpv goggles 4

Flight Recording & HDMI Support

Built-in 60 fps DVR captures your flights in detail, while the HDMI input supports up to 720p @ 100 fps for external video sources.

skyzone sky04x pro 52 oled 58ghz fpv goggles 5

Note: To cool the high-performance OLED panel, the right side bay is installed with a cooling fan, so SKY04 X PRO didn't support quadversity mode.

Specifications:

● Screen: OLED
● Resolution: 1920*1080
● FOV (Diagonal): 52°
● Aspect Ratio: 4:3/16:9
● Focus: -6~+2 adjustable
● Interpupillary distance(IPD): 58-71mm
● Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
● DVR: H264, 60fps
● Voltage Input: 2~6SLiPo
● HDMI IN: 720P 100FPS
● Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
● Dimensions: 185*75*67mm
● Weight: 267g

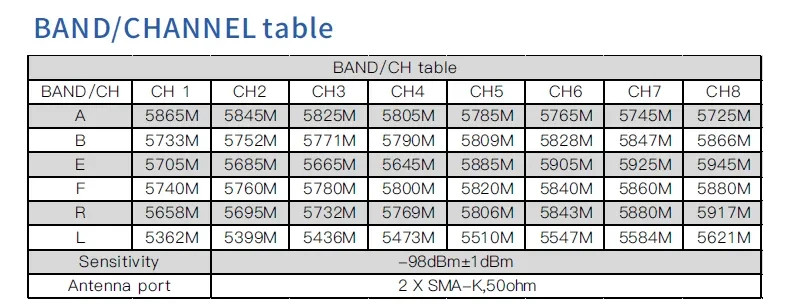

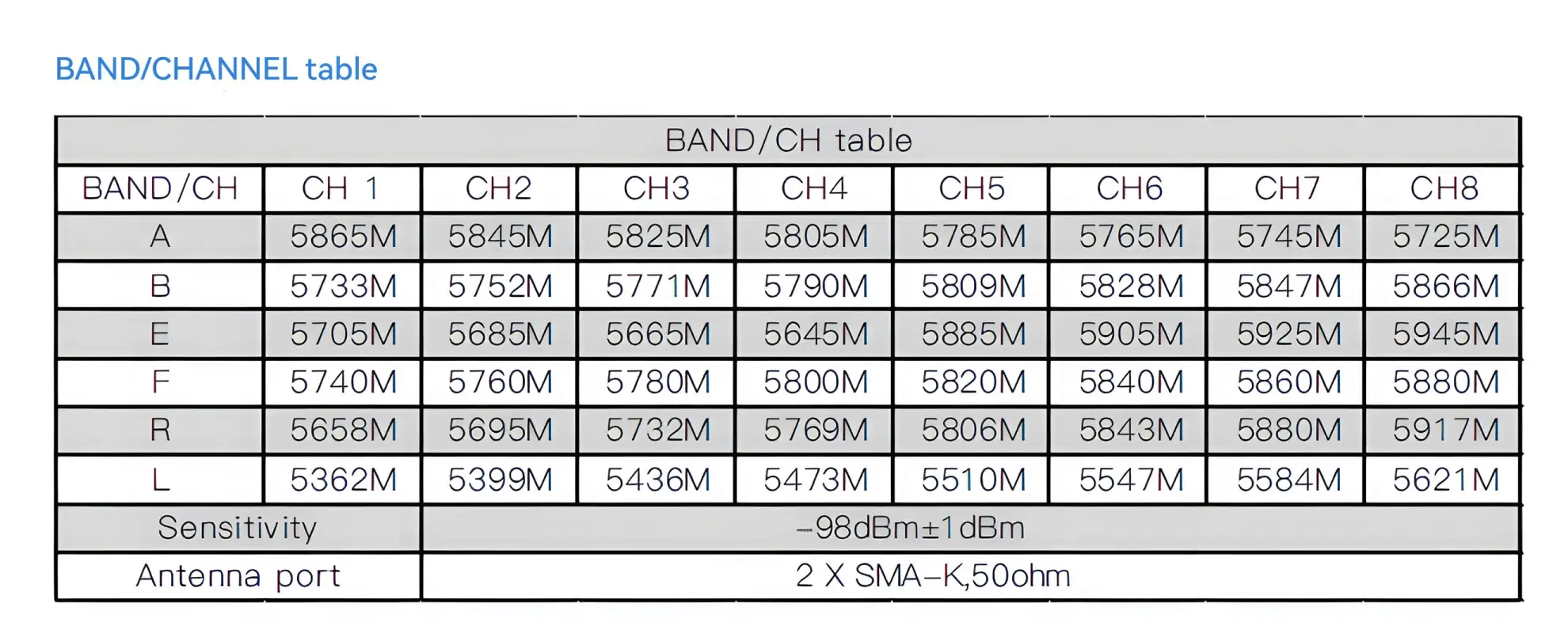

skyzone sky04x pro 52 oled 58ghz fpv goggles pc 6

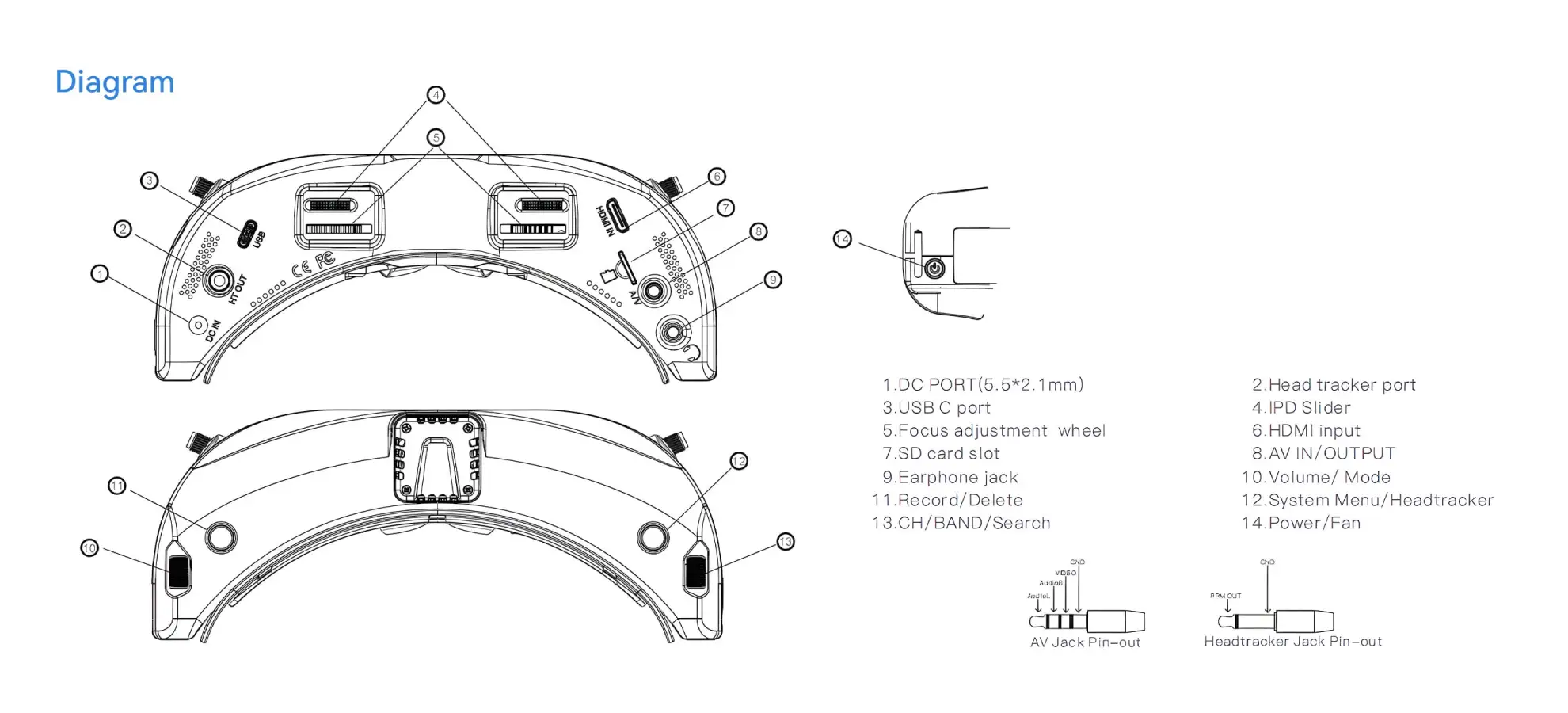

skyzone sky04x pro 52 oled 58ghz fpv goggles pc 7

Recommendations:

Package Included:

● 1x SKY04X Pro Goggles
● 1x Steadyview V3.3 Receiver Module
● 2x Faceplate (wide and narrow)
● 1x Sponge with Velcro
● 1x Zipper case
● 1x Power cable
● 1x Headtracker cable
● 2x 5.8GHz 2dB antennas
● 1x Video/Audio Cable
● 1x USB-C Cable
● 1x SKY04x Pro User Manual
