Question 1

Q: What type of drones are the RCINPOWER 1203 motors best suited for?

Accepted Answer

A: They are perfectly optimized for 2-inch to 3-inch ultra-light toothpicks and micro cinewhoops, providing an exceptional power-to-weight ratio for agile flying.

Question 2

Q: Which KV option should I choose for my FPV build?

Accepted Answer

A: Choose 11500KV for 1S-2S builds, 8000KV for 2S-3S setups, and 6000KV if you are running a 3S-4S setup for maximum efficiency and smooth control.

Question 3

Q: What is the weight of the motor and why does it matter?

Accepted Answer

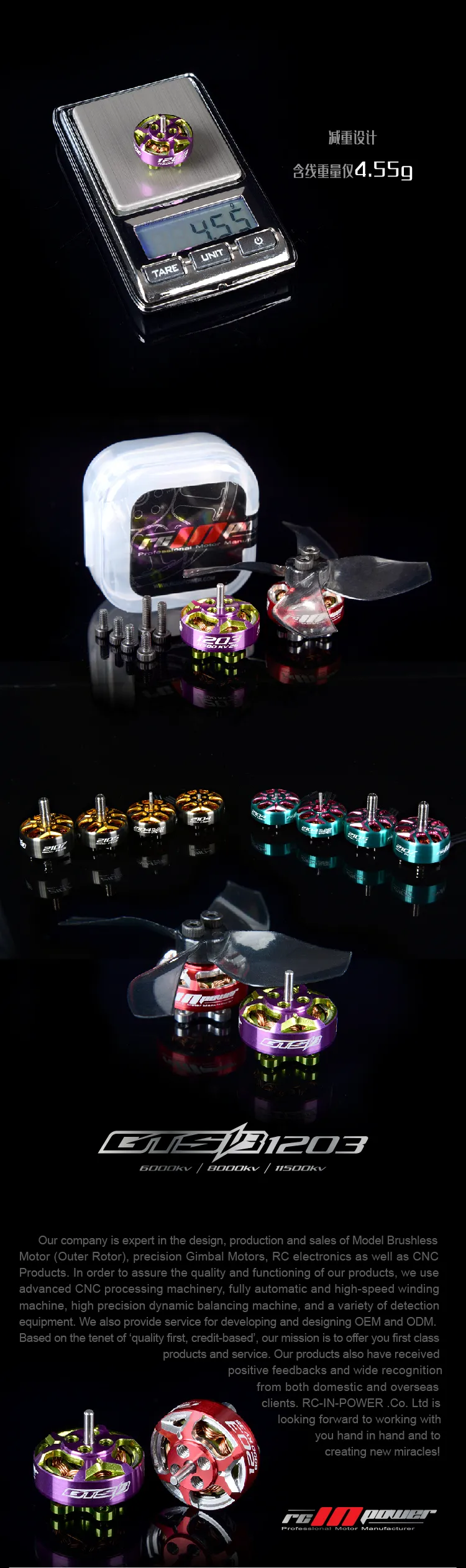

A: Each motor weighs only 4.5g. This ultra-lightweight design significantly reduces the overall dry weight of your micro quad, leading to longer flight times.

Question 4

Q: Are these motors durable enough to withstand freestyle crashes?

Accepted Answer

A: Yes, they feature a high-strength Unibell design that prevents the motor bell from deforming or popping off during hard crashes, ensuring long-lasting durability.

Question 5

Q: Can I use these motors to upgrade my standard 2-inch cinewhoop?

Accepted Answer

A: Absolutely! Upgrading to the 1203 stators will provide more torque and better handling, especially when carrying an action camera or flying in windy conditions.

Question 6

Q: What battery voltage is supported by the 8000KV version?

Accepted Answer

A: The 8000KV version is ideally tuned for 2S to 3S LiPo batteries. Using a 4S battery on this KV will cause overheating and potentially burn the motor coils.

Question 7

Q: What makes the stator design of the GTS V3 special?

Accepted Answer

A: It utilizes high-quality curved magnets and a minimal air gap design, which maximizes magnetic flux efficiency, delivering a buttery smooth flight experience.

Question 8

Q: Do these motors come with the necessary mounting screws?

Accepted Answer

A: Yes, the package includes a set of M2 mounting screws tailored for standard micro carbon fiber frames, ensuring you have the right hardware out of the box.

Question 9

Q: Are these motors plug-and-play or do they require soldering?

Accepted Answer

A: They come with pre-tinned, high-quality silicone wires that require direct soldering to your AIO (All-In-One) flight controller or individual ESC pads.

Question 10

Q: What are the specific mounting hole dimensions for the frame?

Accepted Answer

A: The base features a standard 9x9mm M2 mounting pattern, making it universally compatible with almost all modern 2-inch and 3-inch micro drone frames.

Question 11

Q: What ESC amperage rating is recommended for these motors?

Accepted Answer

A: We highly recommend pairing them with a 12A to 20A AIO ESC. This provides plenty of headroom to prevent ESC burnouts during full-throttle punch-outs.

Question 12

Q: How should I manage the motor wires during installation?

Accepted Answer

A: Cut the wires to the exact length needed. Avoid leaving excess wire loops, and secure them to the drone arms with tape to prevent prop strikes.

Question 13

Q: Do these motors support RPM filtering via Bi-directional DShot?

Accepted Answer

A: Yes, they have a standard 9N12P configuration. Once configured in Betaflight, they work flawlessly with Bi-directional DShot for advanced RPM filtering.

Question 14

Q: What should I check if a motor gets excessively hot after a flight?

Accepted Answer

A: Check if your D-term filtering is set too low in Betaflight, ensure mounting screws aren't touching the stator coils, and inspect the bell for dirt.

Question 15

Q: How do I maintain the motor bearings for a longer lifespan?

Accepted Answer

A: Keep them clean from sand using compressed air. Avoid applying liquid lubricants, as they attract dust; replace the bearings if they get gritty after a crash.

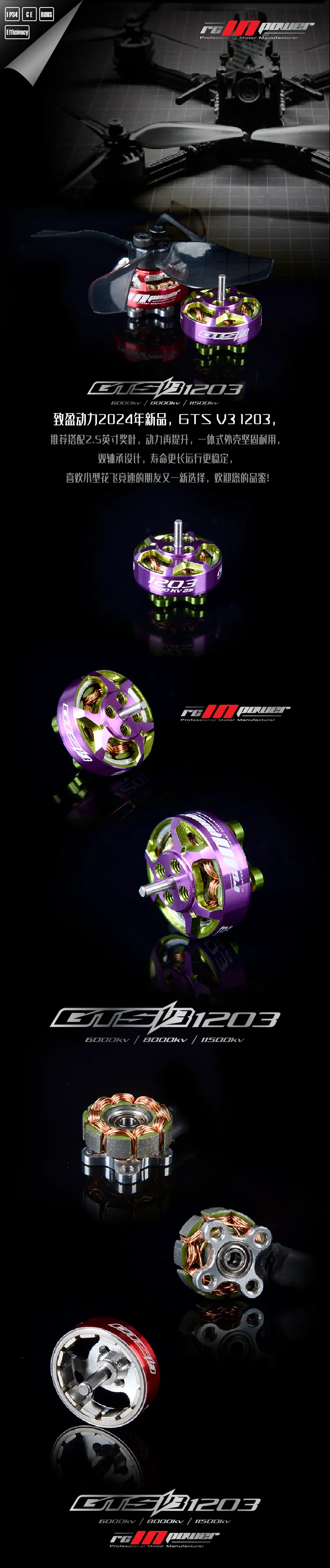

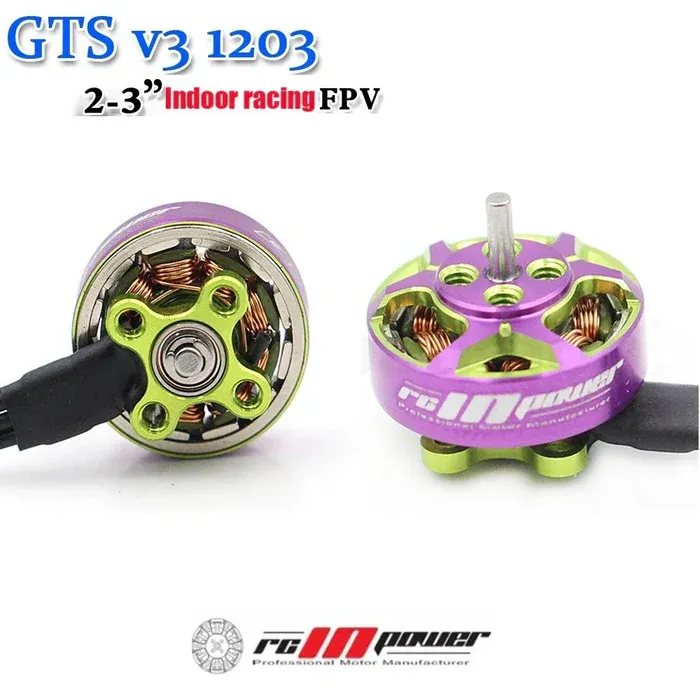

RCINPOWER GTS V3 1203 2-3 inch Cinewhoop Micro Motor

About The RCINPOWER GTS V3 1203 Motor:

Includes:
