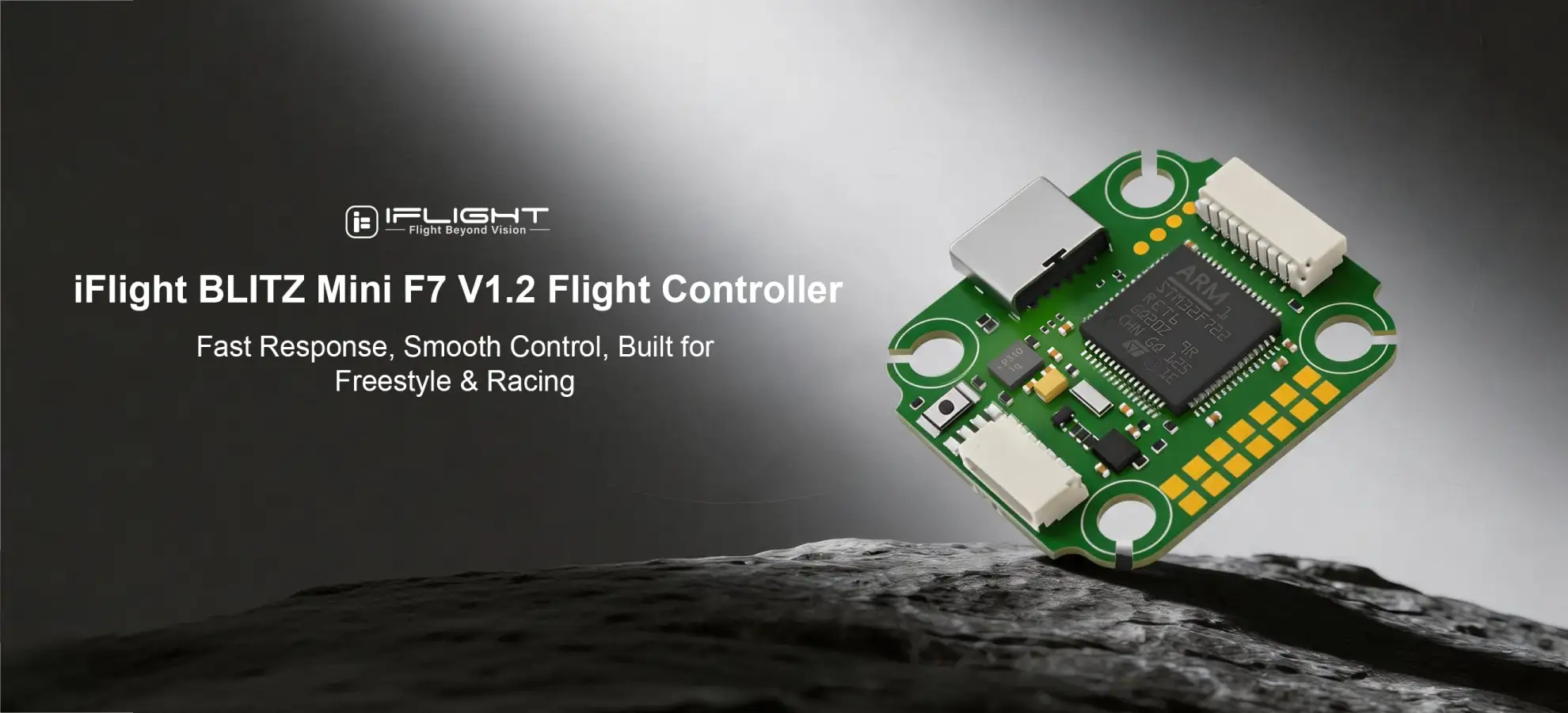

iFlight BLITZ Mini F7 V1.2 Flight Controller Plug-and-Play / No soldering required for FPV
About iFlight BLITZ Mini Flight Controller:
The iFlight BLITZ Mini F7 Flight Controller is a high-performance 20×20 F7 FC designed for demanding FPV pilots. Powered by an STM32 F722 processor and equipped with the latest ICM42688 gyro and DPS310 barometer, it delivers ultra-smooth flight response and precise stability control. With six UART ports, DJI HD VTX plug-and-play support, and wide peripheral compatibility, this compact flight controller is ideal for mini freestyle, racing, and cinematic builds. Lightweight yet powerful, it provides the reliability and flexibility required for advanced FPV setups.
Bundle and save up to $4.15 on gear — upgrade your setup for less.
iFlight BLITZ Mini E55 4-IN-1 ESC 2-6S 55A for FPV
Options (1)
Mini E55 ESC
Mini E55 ESC
$78.84
Save $4.15
In Stock
Expected ship within 5 days after order.
Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
STM32 F722 High-Performance Processor for Faster Response and Smoother Flight Control
ICM42688 Gyro & DPS310 Barometer for Precision Stability and Accurate Altitude Data
DJI HD VTX Plug-and-Play Connector for Clean and Easy Installation
Six UART Ports with Full Peripheral Expansion Support
20×20mm Mini Mounting Layout – Perfect for Lightweight FPV Builds
Payment | Every order you place with us is safe & secure
Share
Check out our Mini Flight Controller, all Flight ControllerCollection and the rest of ourIflightProducts!
Specifications:
MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA/SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g
Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry
Packing List
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x FC connectors
1 x Silicon grommets
Reviews
W*******r
Verified
Bought this after a recommendation from their live chat. Good suggestion! The quality is way better than my old one. Very happy with the purchase.
Specification：Mini F7 V1.2
F*******t
Verified
Just finished the clean build. This F7 is so easy to tune. Arrived earlier than the tracking said. Definitely buying from mepsking again.
Specification：Mini F7 V1.2
A*****V
Verified
High quality stuff. The board looks premium and the gyro is super stable. mepsking did a great job on shipping. Recommended.
Specification：Mini F7 V1.2
Replied by MEPSKING:Appreciate the recommendation, Thanks! Enjoy your flight!
J****y
Verified
Easy to use and the soldering pads are well placed. Arrived early and well packed. Overall experience with mepsking was very good.
Specification：Mini F7 V1.2
Replied by MEPSKING:Thanks for your feedback! Good luck with your flights!
P********r
Verified
mepsking support was super quick response. They helped me choose this F7 over the others and it was a good suggestion. Fits perfectly in tight frames.
Specification：Mini F7 V1.2
Replied by MEPSKING:Happy to help you choose the right gear! Happy Flying!
S**********e
Verified
Arrived earlier than expected! The packaging from mepsking was solid feel. Everything inside was safe. Can't wait to put this in my new build.
Specification：Mini F7 V1.2
Replied by MEPSKING:Thanks for your suopport and feedback! We're glad everything is safe! Enjoy your build and Happy flying!
F********8
Verified
Unboxing this was a blast! The FC looks premium and the build is super clean. It was well packed and arrived with no damage at all. You can really feel the quality when you hold it.
Specification：Mini F7 V1.2
Additional reviews after 10
days
Still flying strong after flying many times! Best mini F7 I've used so far.
Replied by MEPSKING:Thanks for the support! Glad you like the quality. Happy Flying!
K***n
Verified
Plug-and-play was easy, flight feels stable and responsive.
support team replied fast，website loads fast even on mobile.
Specification：Mini F7 V1.2
Replied by MEPSKING:Thanks for your feedback! Glad everything is working smoothly for you. Happy flying!
1
2
FAQFeel free to ask us any questions
Q: Is the iFlight BLITZ Mini F7 V1.2 Flight Controller beginner-friendly and easy to install?
A: Yes. The iFlight BLITZ Mini F7 V1.2 Flight Controller features a plug-and-play design with no soldering required, making it easy for beginners to install and build FPV drones quickly.
Q: What devices are compatible with the iFlight BLITZ Mini F7 V1.2 Flight Controller?
A: It supports DShot ESCs, ELRS, Crossfire, SBUS receivers, and DJI O3 digital FPV systems, offering wide compatibility for modern FPV setups.
Q: What type of drones is the iFlight BLITZ Mini F7 V1.2 Flight Controller best for?
A: It is ideal for 3–5 inch FPV drones, including freestyle, racing, and lightweight cinematic builds.
Q: What are the advantages of the F7 processor in the iFlight BLITZ Mini F7 V1.2 Flight Controller?
A: The F7 processor provides faster loop times, smoother flight response, and better support for advanced Betaflight features like RPM filtering.
Q: Does the iFlight BLITZ Mini F7 V1.2 Flight Controller reduce build time?
A: Yes. With plug connectors and a clean layout, it significantly reduces installation time compared to traditional soldered flight controllers.
