Q1. What type of drones is 35A AIO best for?

A: It is best suited for Cinewhoop, Toothpick, and other compact FPV drones where space and weight are critical.

Q2. Is GEP-F722-35A AIO suitable for beginners?

A: Yes, the integrated design reduces wiring complexity, making it much easier for beginners to build and set up.

Q3. What battery range does the GEPRC F722 35A AIO support?

A: It supports 2S to 6S LiPo batteries, offering flexibility for different performance needs.

Q4. Does the 35A FPV AIO support digital FPV systems like DJI?

A: It can support digital systems depending on UART availability, but it is more optimized for lightweight and moderate-power setups rather than high-power VTX configurations.

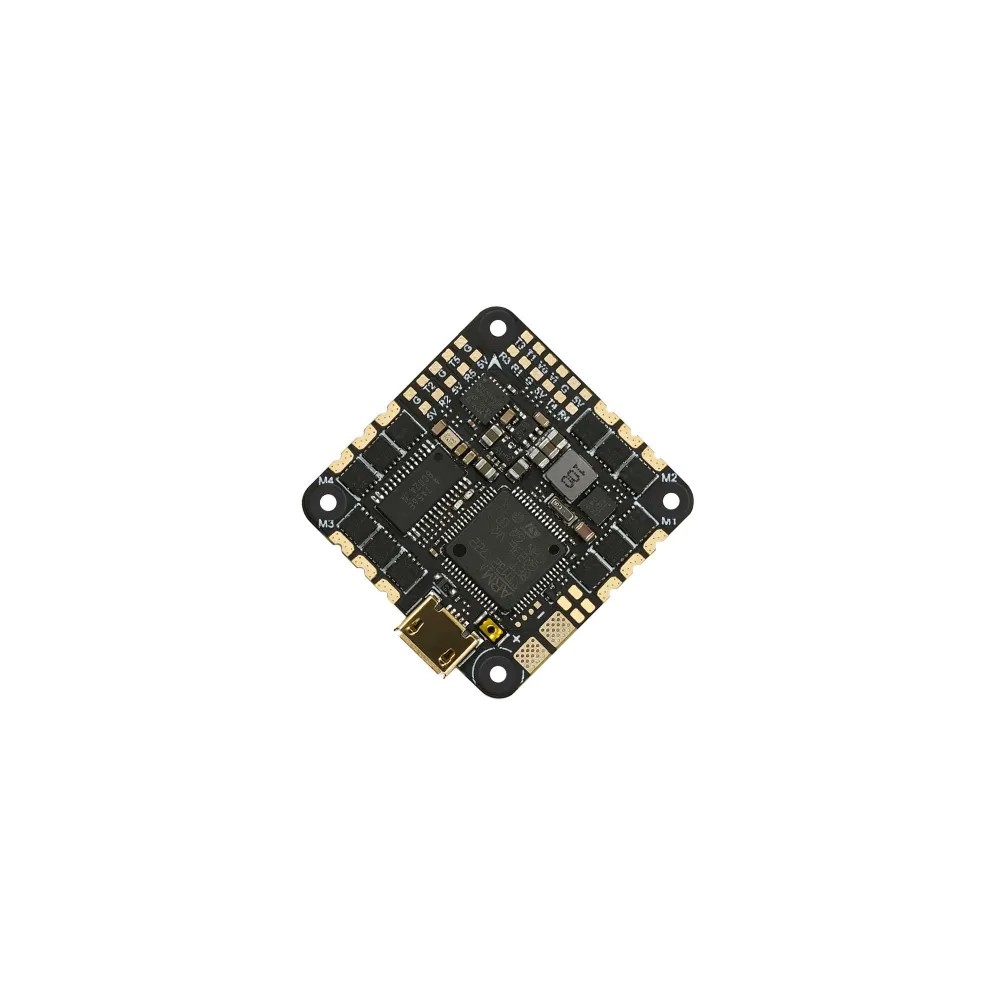

NewGEPRC GEP-F722-35A 2-6S AIO for Cinewhoop & Toothpick FPV Build for Pilots

About GEP-F722-35A AIO:

GEP-F7-35A adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

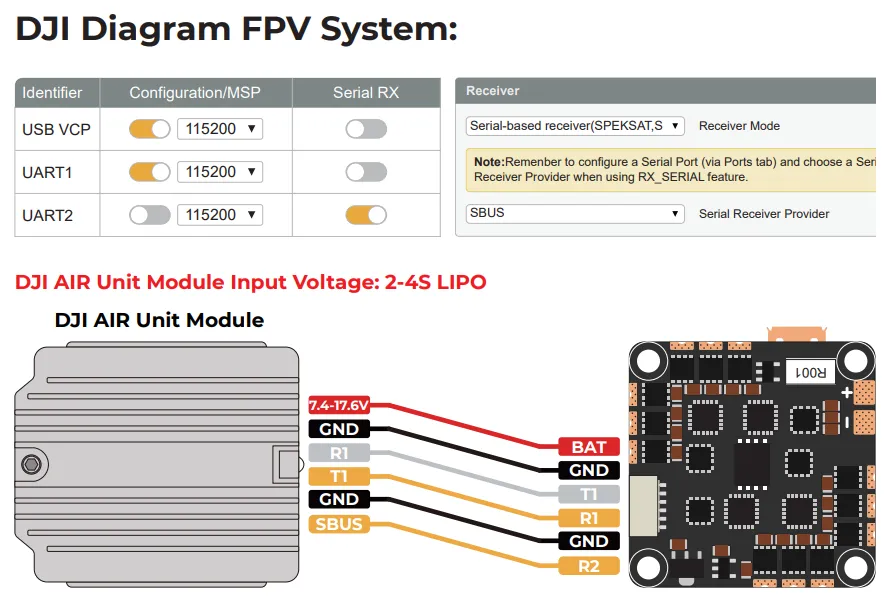

We designed a 6-pin connector for DJI AIR UNIT MODULE,just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance of FC.

GEPRC

Best SellerTop RatedBest Value

Extra 5% Off

Collect

$ 92.99 ~~$102.99~~

-10%

5.0 | 0Sold

Options (1)

GEP / F722 / 35A AIO

Quantity

In Stock Expected ship within 7 days after order.

Estimated Transit Time: 15-20 Days.

MEPSKING FPV store with YunExpress shipping

Free Shipping Over $99 | Save on Orders $99+

24-Month Warranty | 2 Years Full Protection

15-Day Easy Returns | 15-Day No-Risk Return

24h Support Response | 24h Fast Support Guarantee

Delivers fast response, smooth control, and stable performance with a high-performance F722 processor.

Combines a 35A ESC with 2–6S support in an all-in-one design for efficient and balanced power output.

Simplifies installation with less soldering, fewer errors, and faster, cleaner builds.

Ensures a reliable flight experience with stable ESC output, reduced noise, and better control feel.

Features a compact and lightweight design that saves space and improves thrust-to-weight for small drones.

Payment | Every order you place with us is safe & secure

Copy

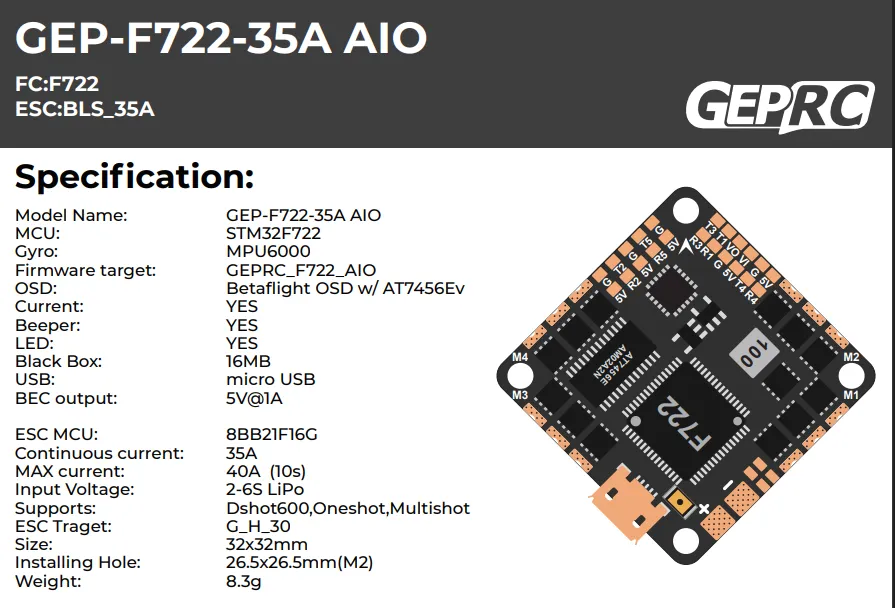

Specifications:

● Model Name:GEP-F722-35A AIO

● MCU:STM32F722

● IMU:BMI270/42688 gyro/accelerometer(SPI)

● Firmware target:GEPRC_F722_AIO

● OSD:Betaflight OSD w/ AT7456Ev

● UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

● Beeper:YES

● LED:YES

● USB:Micro USB

● BEC output:5V@1A

● Intergrated LC Filter

● ESC MCU:8BB21F16G

● Continuous current:35A

● MAX current:40A (10s)

● Input:2~6S

● Supports:Dshot600,Oneshot,Multishot

● BlackBox: 16Mb

● Traget:G_H_30

● Size:32x32mm Board

● Mounting Hole:25.5×25.5mm

● Weight:8.8g

Features:

● MCU:STM32F722,with strong performance and higher computing speed.

● It has 5 full UART ports, which connect more external devices

● 3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

● The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.

● Support OSD parameter adjustment, buzzer, led and other functions.

● 8.8g ultra light weight

● 25.5mm * 25.5mm mounting hole, suitable for most frames

NewGEPRC GEP-F722-35A 2-6S AIO for Cinewhoop & Toothpick FPV Build for Pilots

About GEP-F722-35A AIO:

Specifications:

Features:

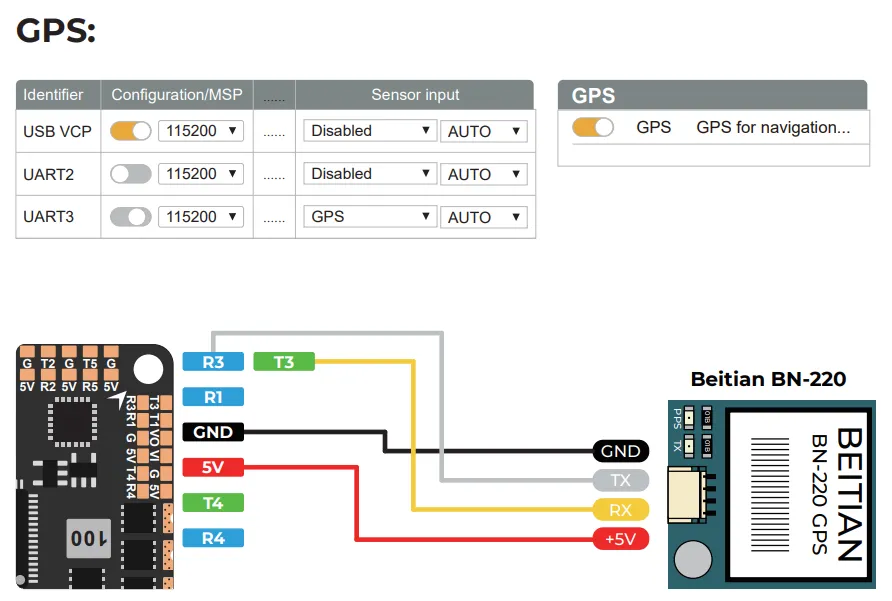

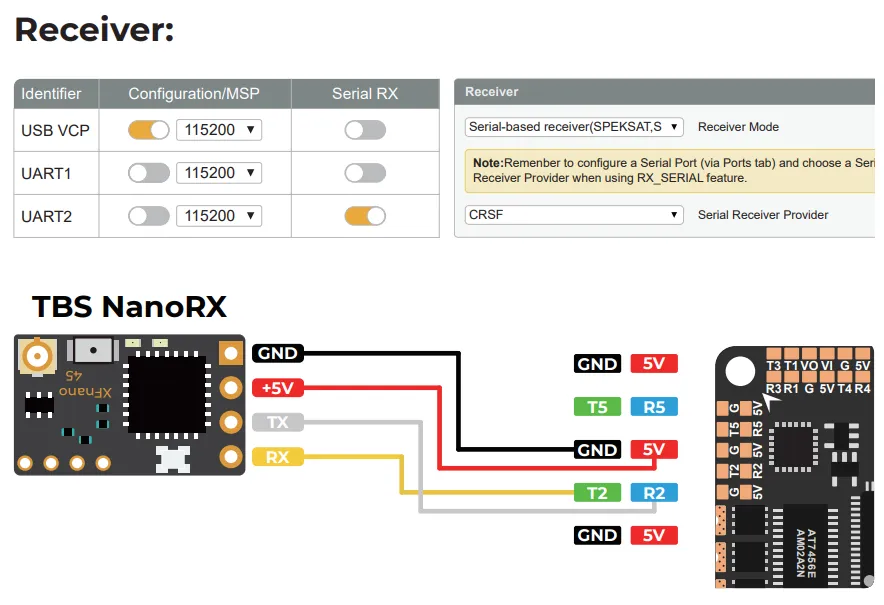

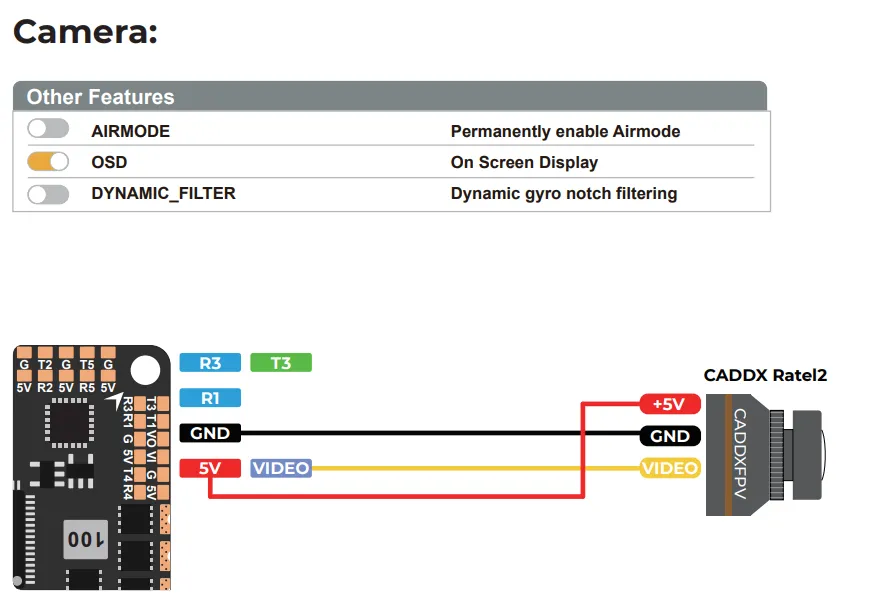

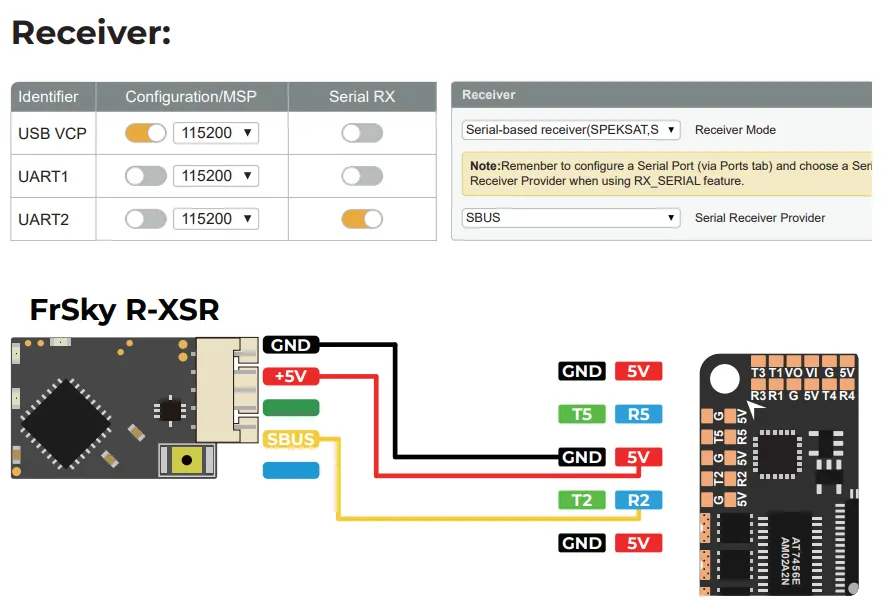

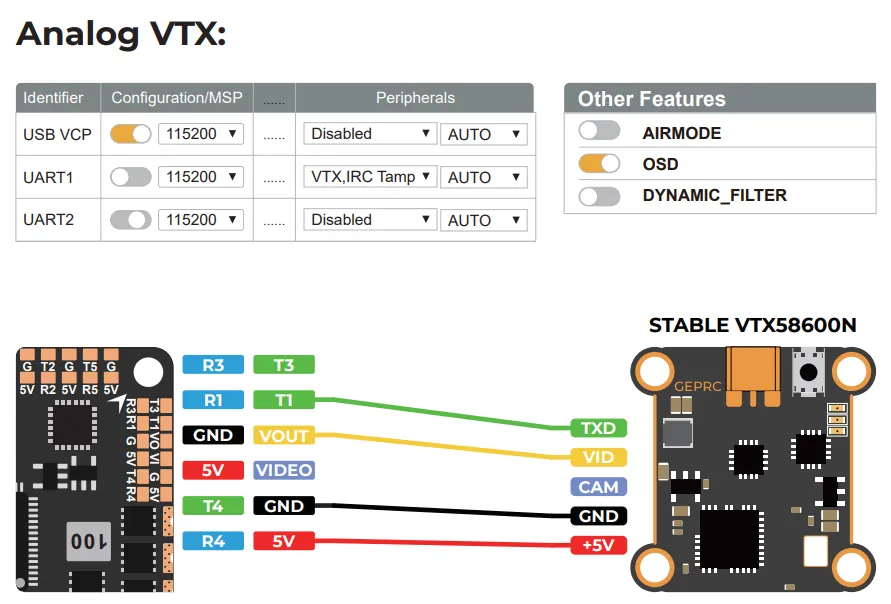

Diagram

Recommendations:

Includes:
