BrotherHobby Tornado T5 3115 Pro Motor for 8-12 inch FPV drone
About BrotherHobby Tornado T5 3115 Pro Motor

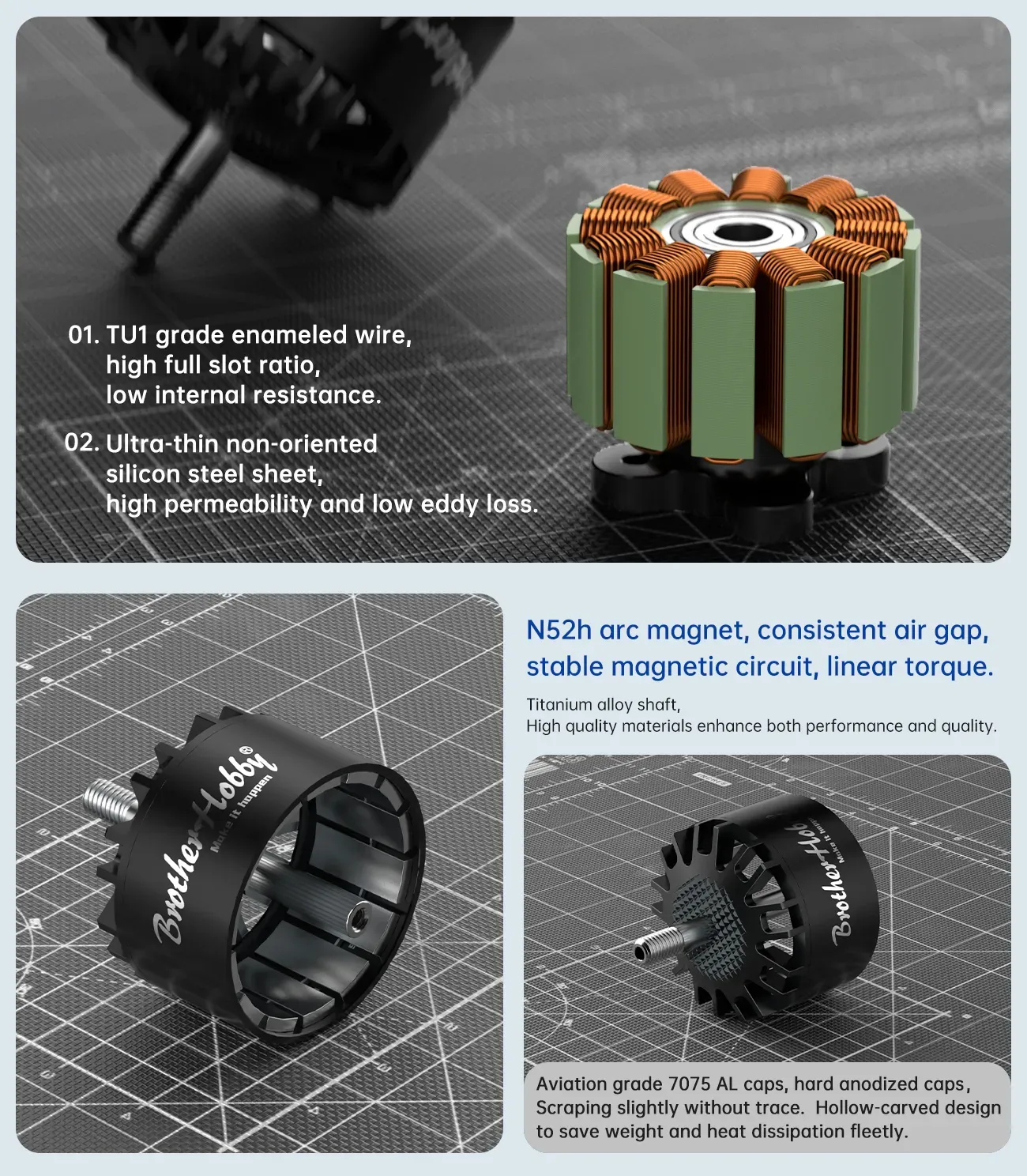

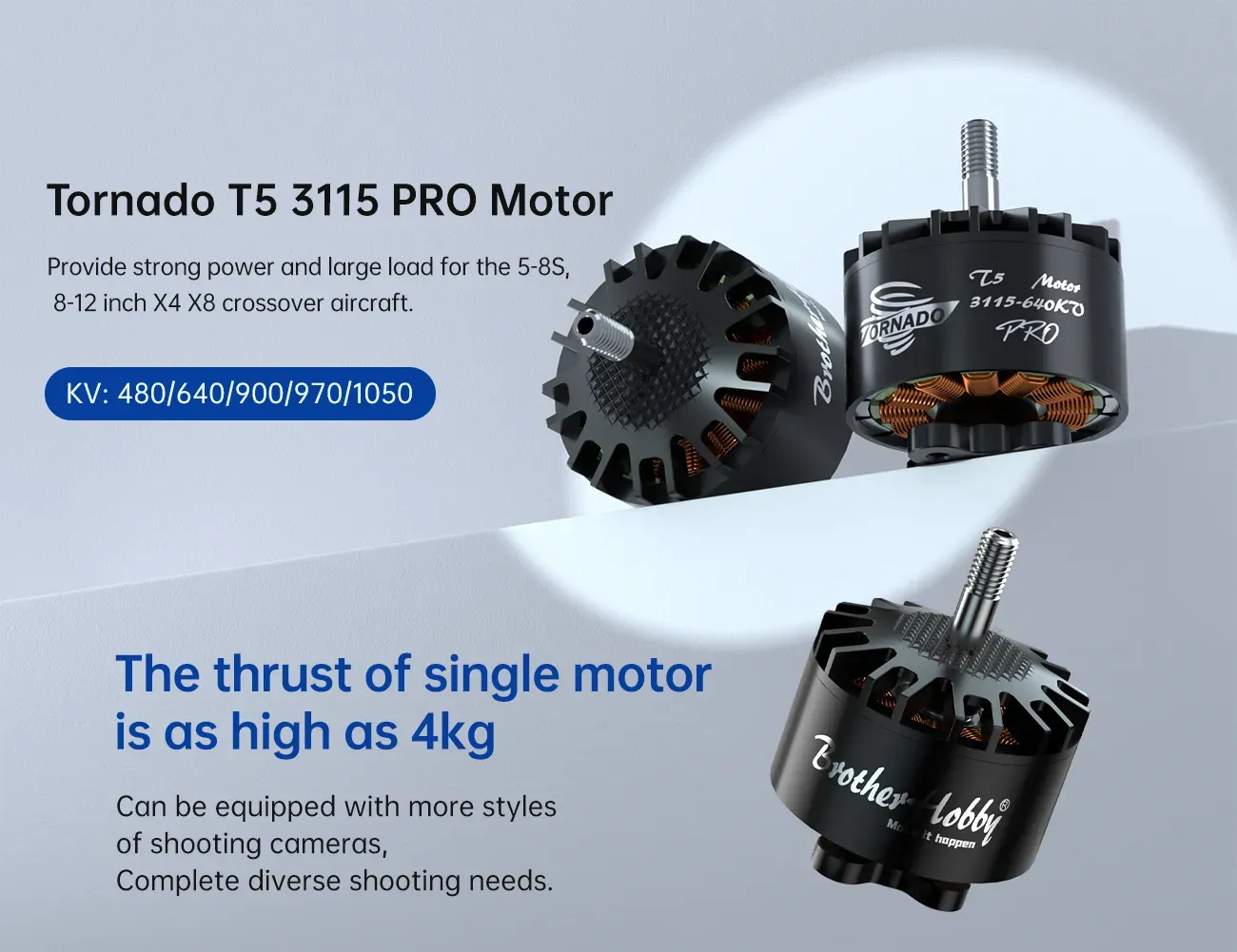

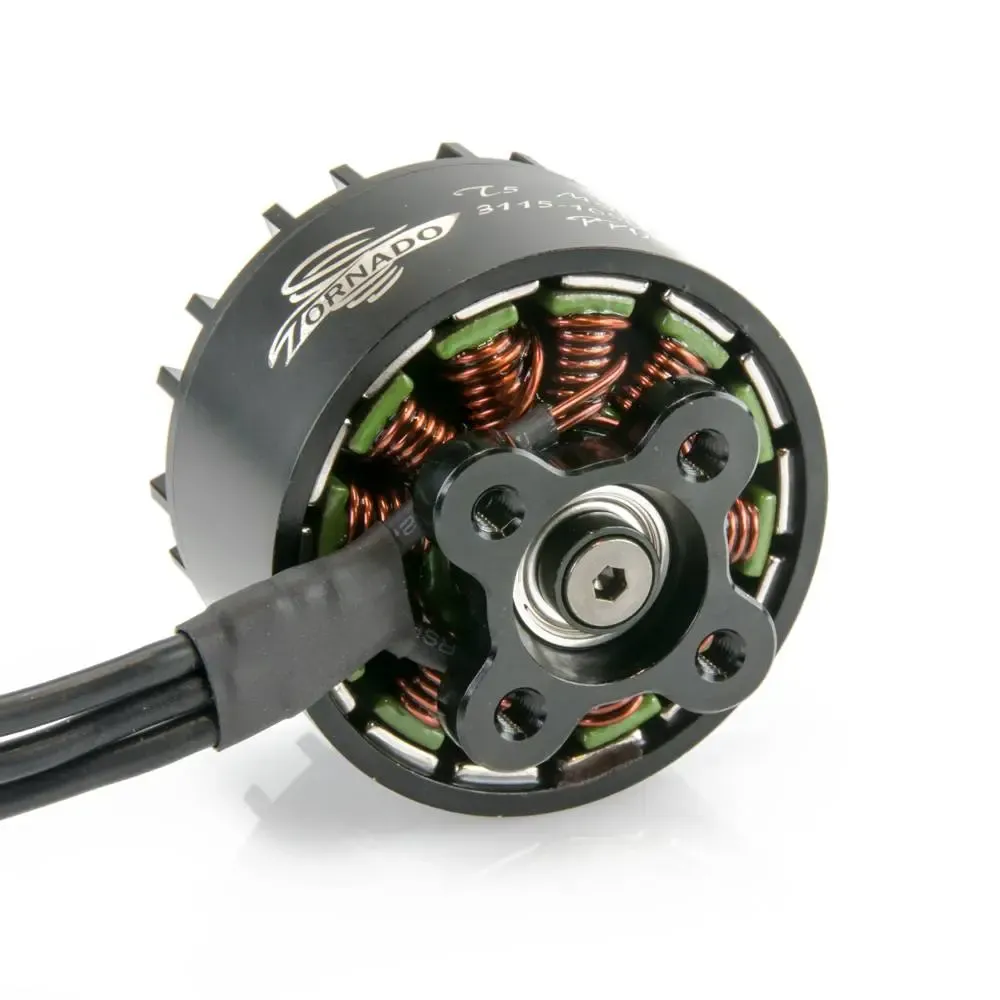

Crafted with precision engineering, the BrotherHobby Tornado T5 Pro 3115 1050KV Motor features N52H Arc Magnet, TU1 Grade Enameled wire, Japanese NMB Bearings, and a Titanium Alloy Shaft. The motor is designed with Aviation Grade 7075 Al Caps to ensure optimal performance and durability.
Bundle and save up to $3.72 on gear — upgrade your setup for less.
Flycolor X-Cross HV3 ESC 60A/80A/120A/160A 5-12S BLHeli_32 | High Voltage Power for Heavy Lift & Cinematic Drones
Options (4)
60A
80A
120A
160A
160A
$89.27
Save $3.72
In Stock
Expected ship within 5 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Premium 7075 aluminum construction provides excellent strength and impact resistance.
Titanium hollow shaft design reduces weight while maintaining structural rigidity.
Equipped with N52H arc magnets for strong magnetic performance and smooth power delivery.

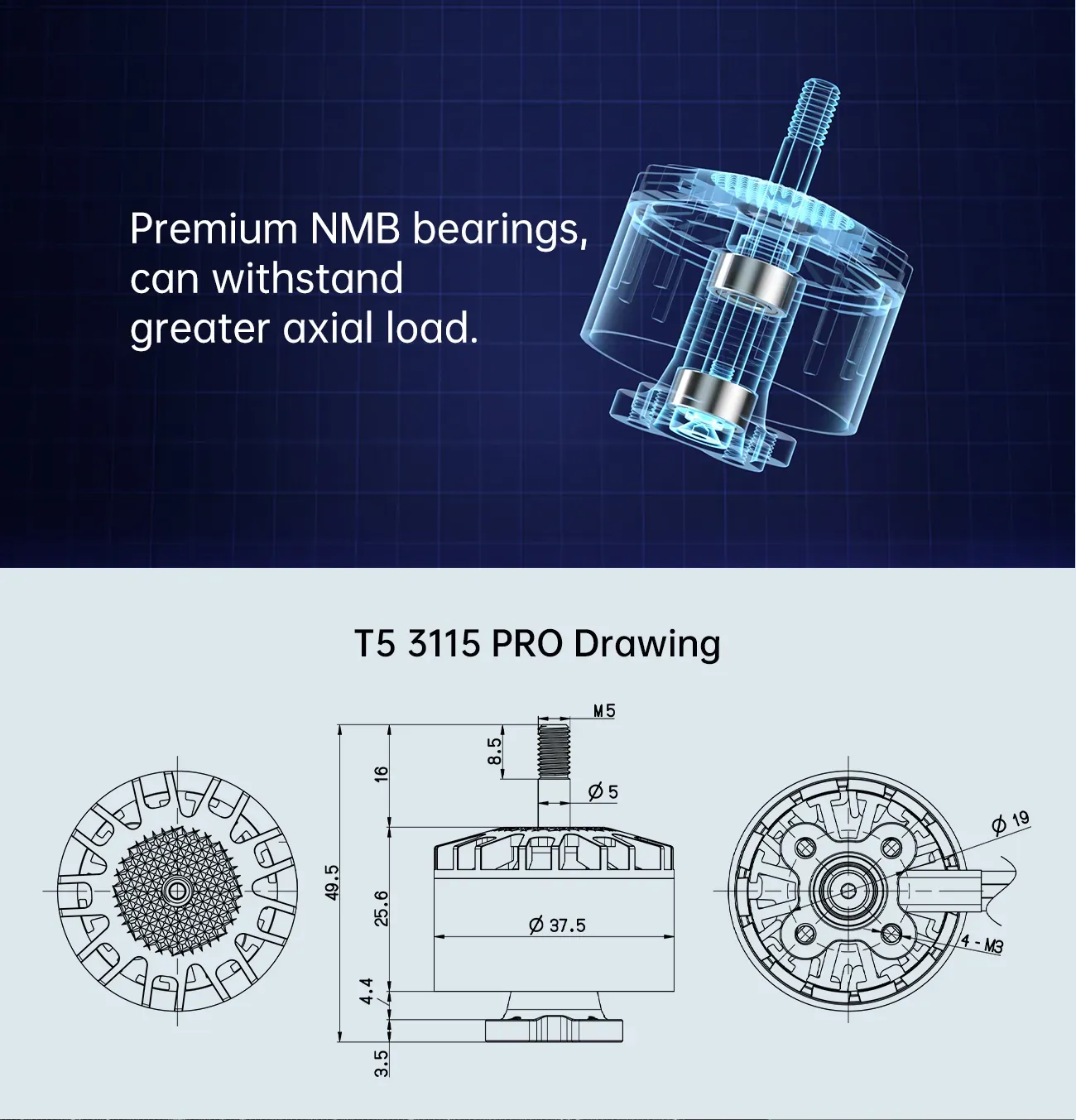

High-quality Japanese NMB bearings ensure reliable performance and reduced vibration.
Designed to support 5–8S setups and large propeller applications requiring high torque output.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Specifications

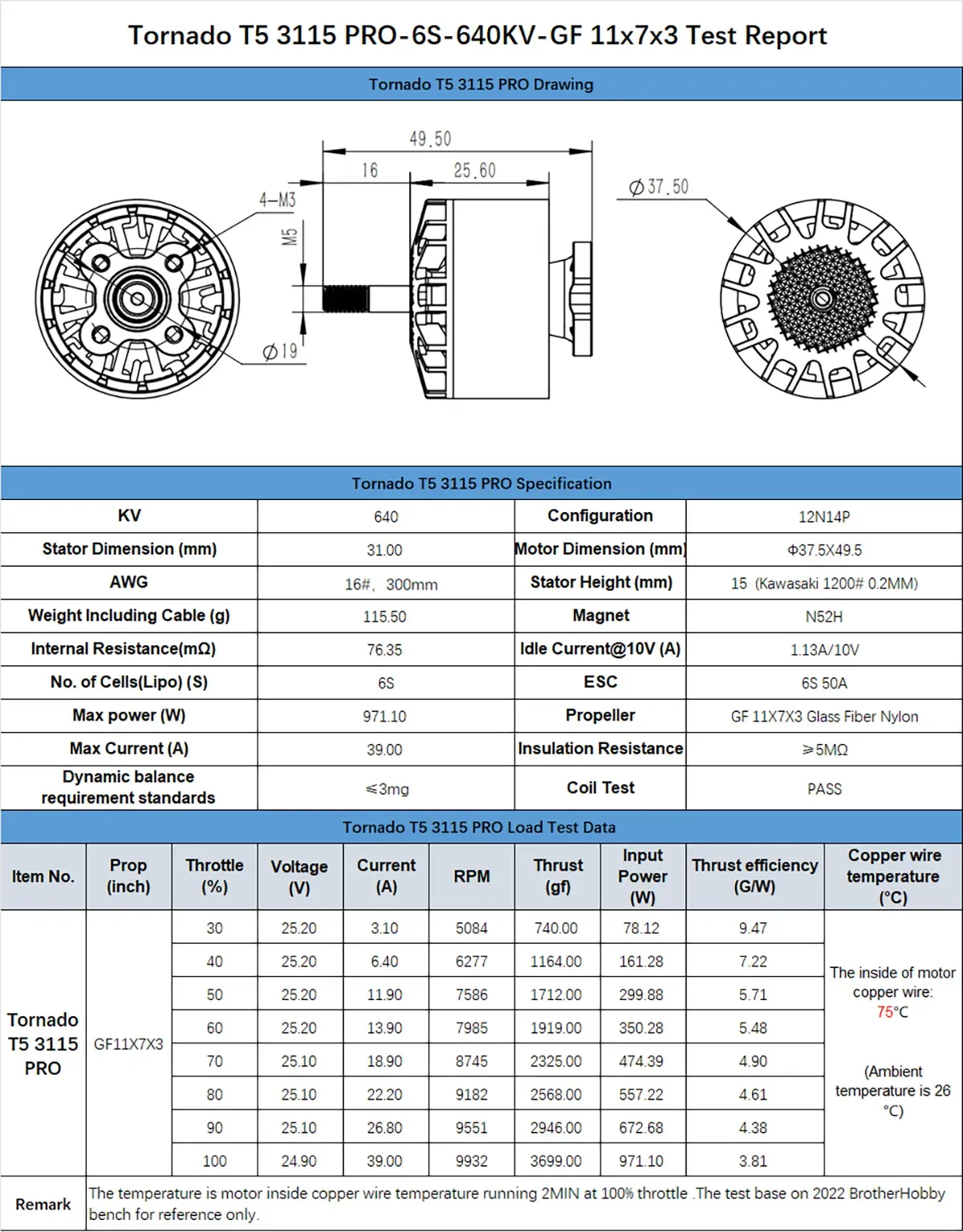

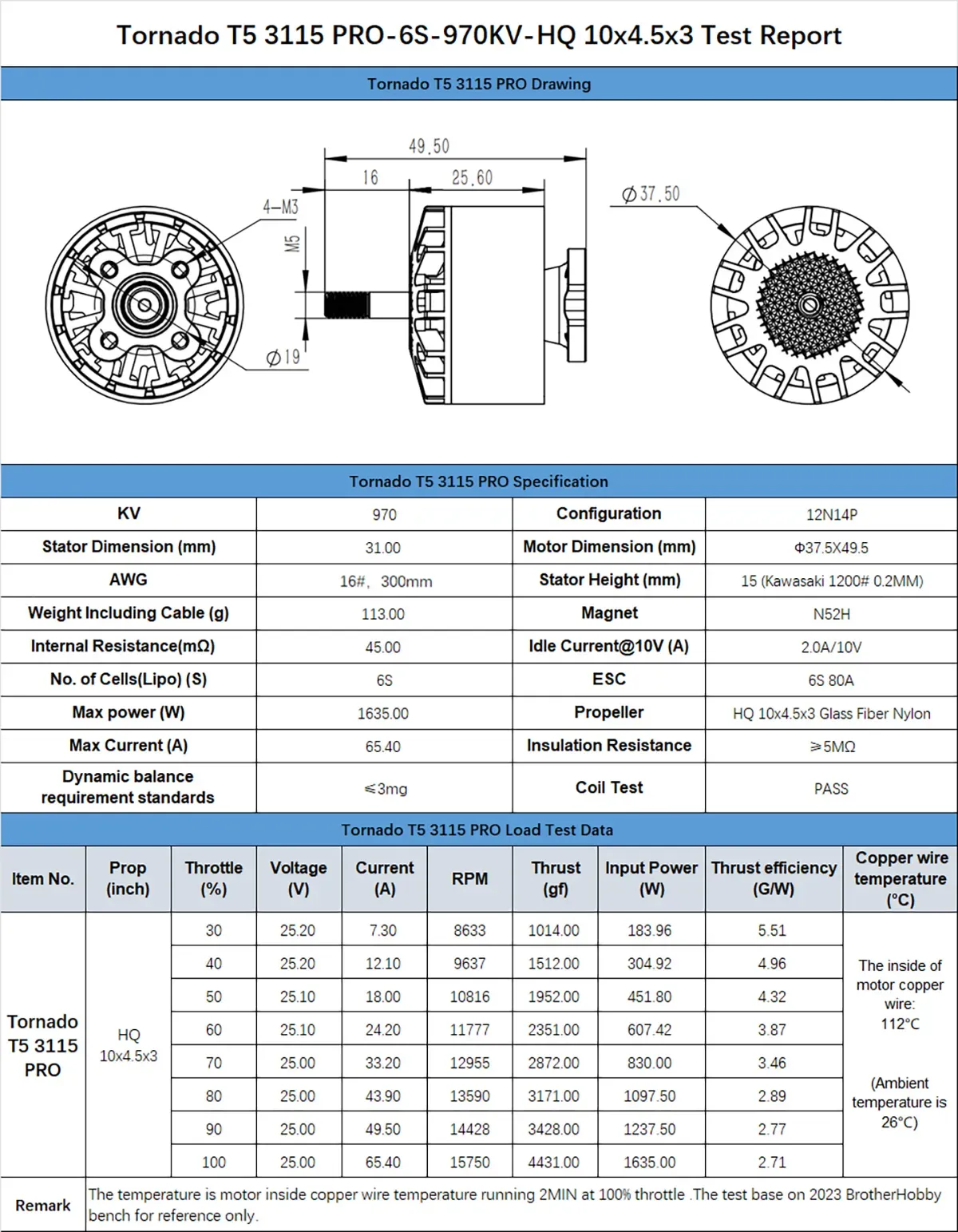

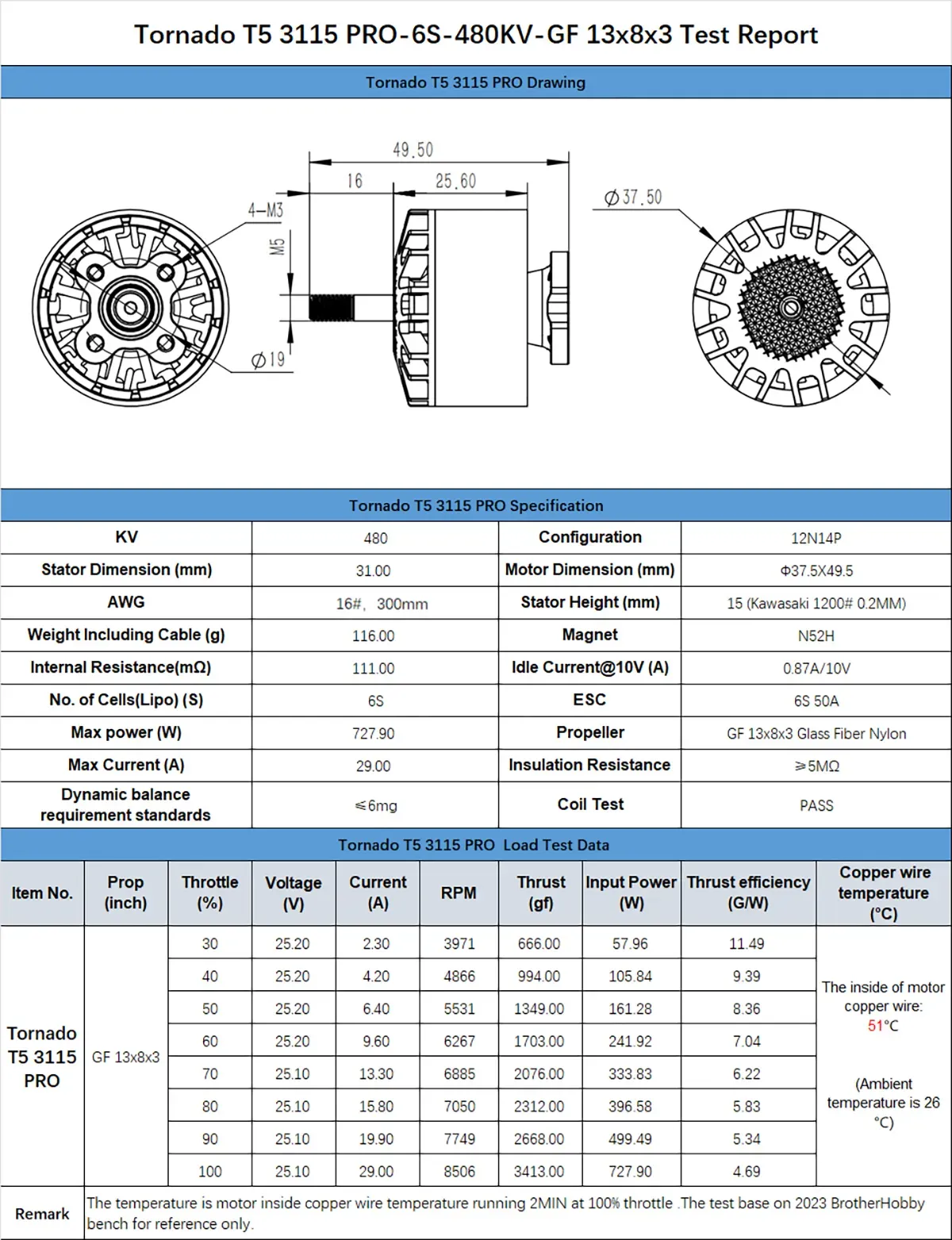

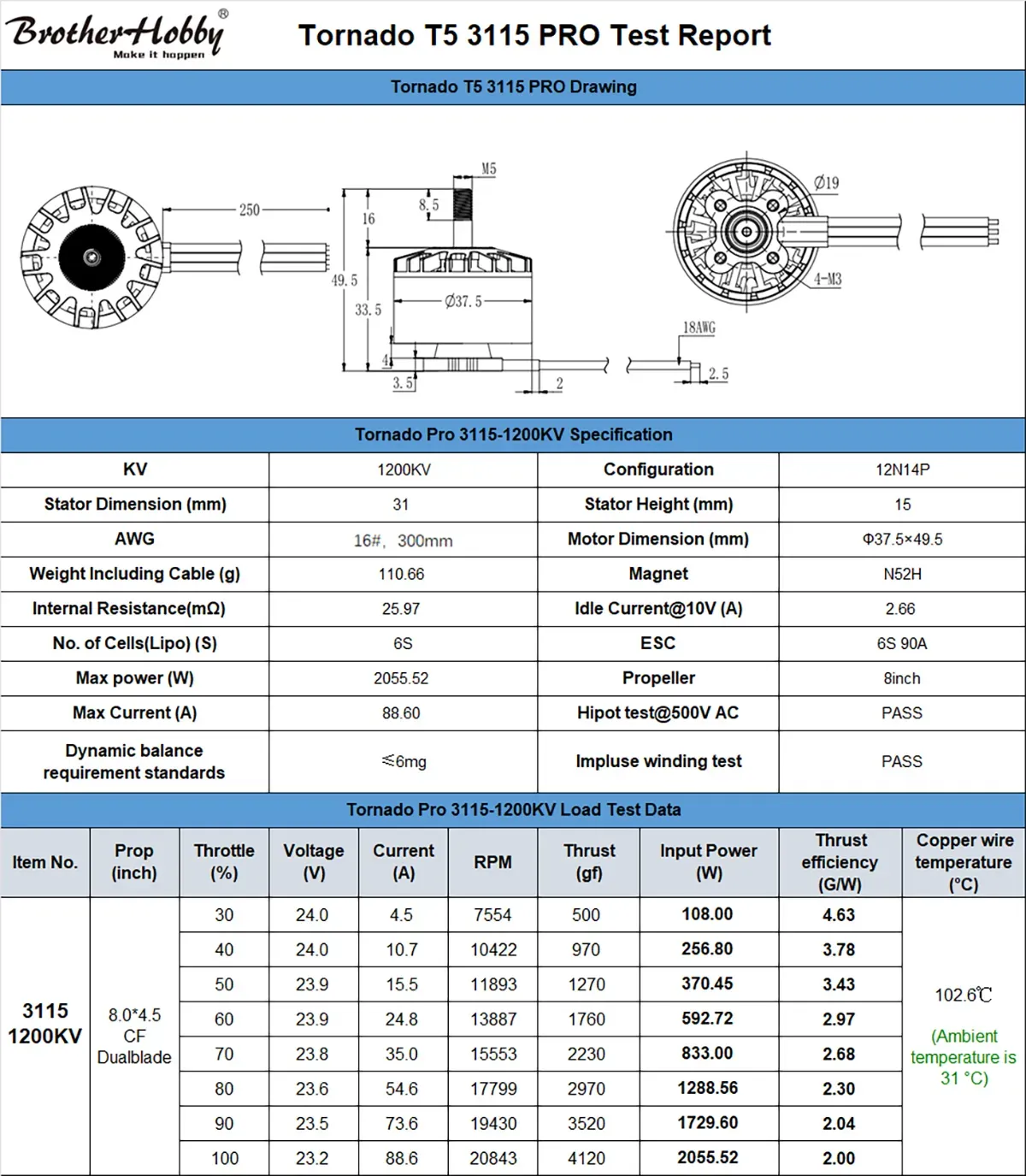

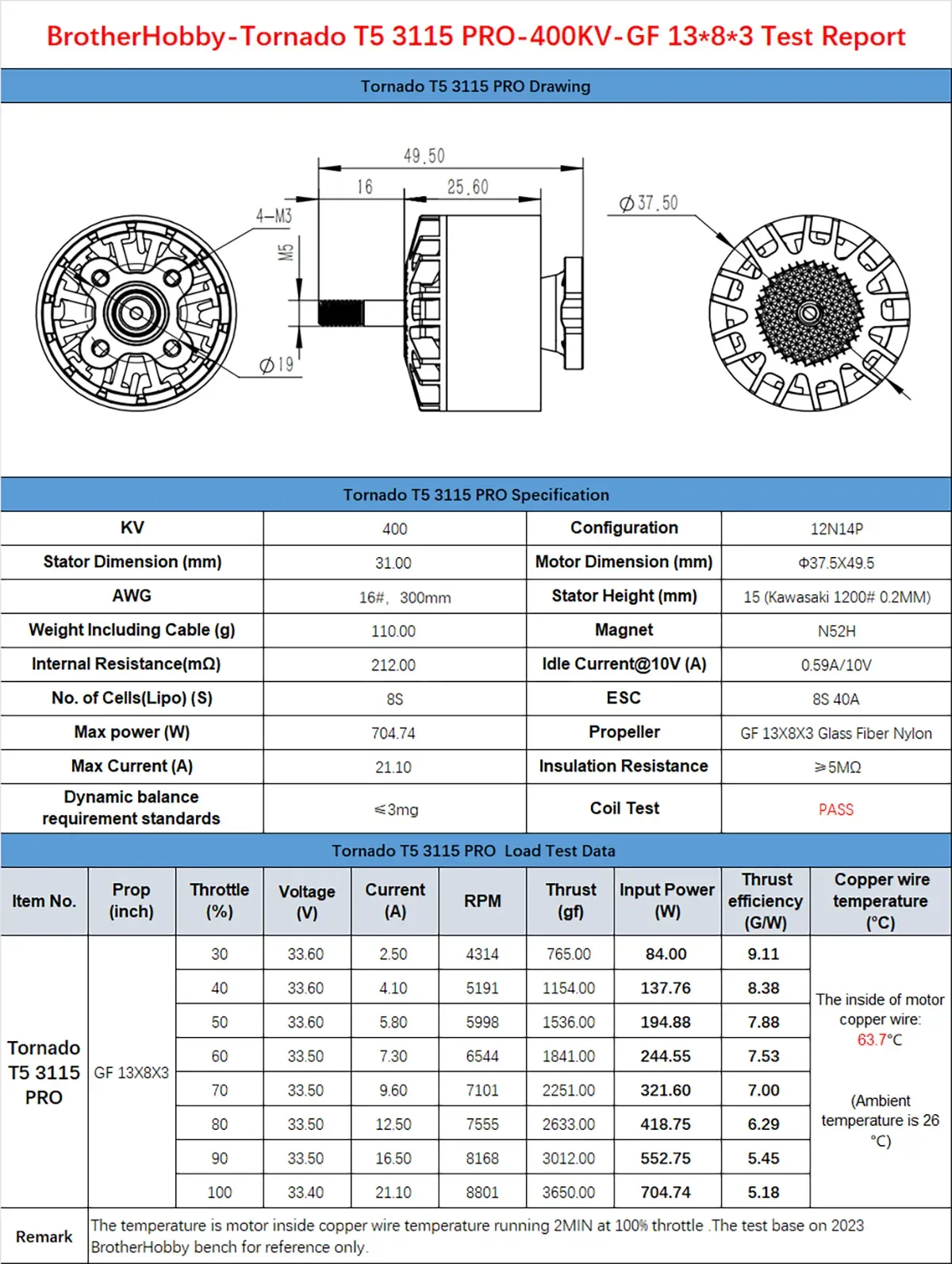

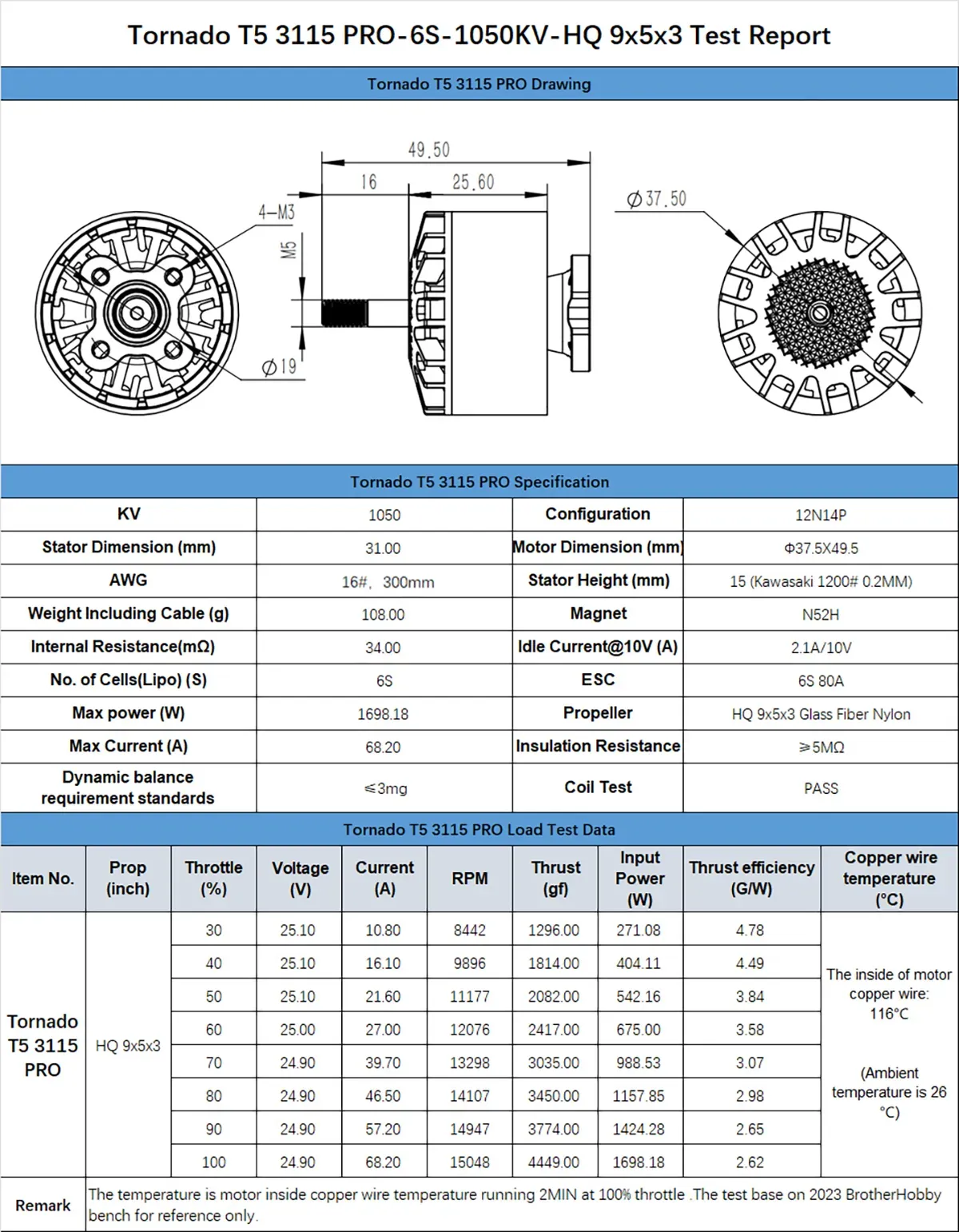

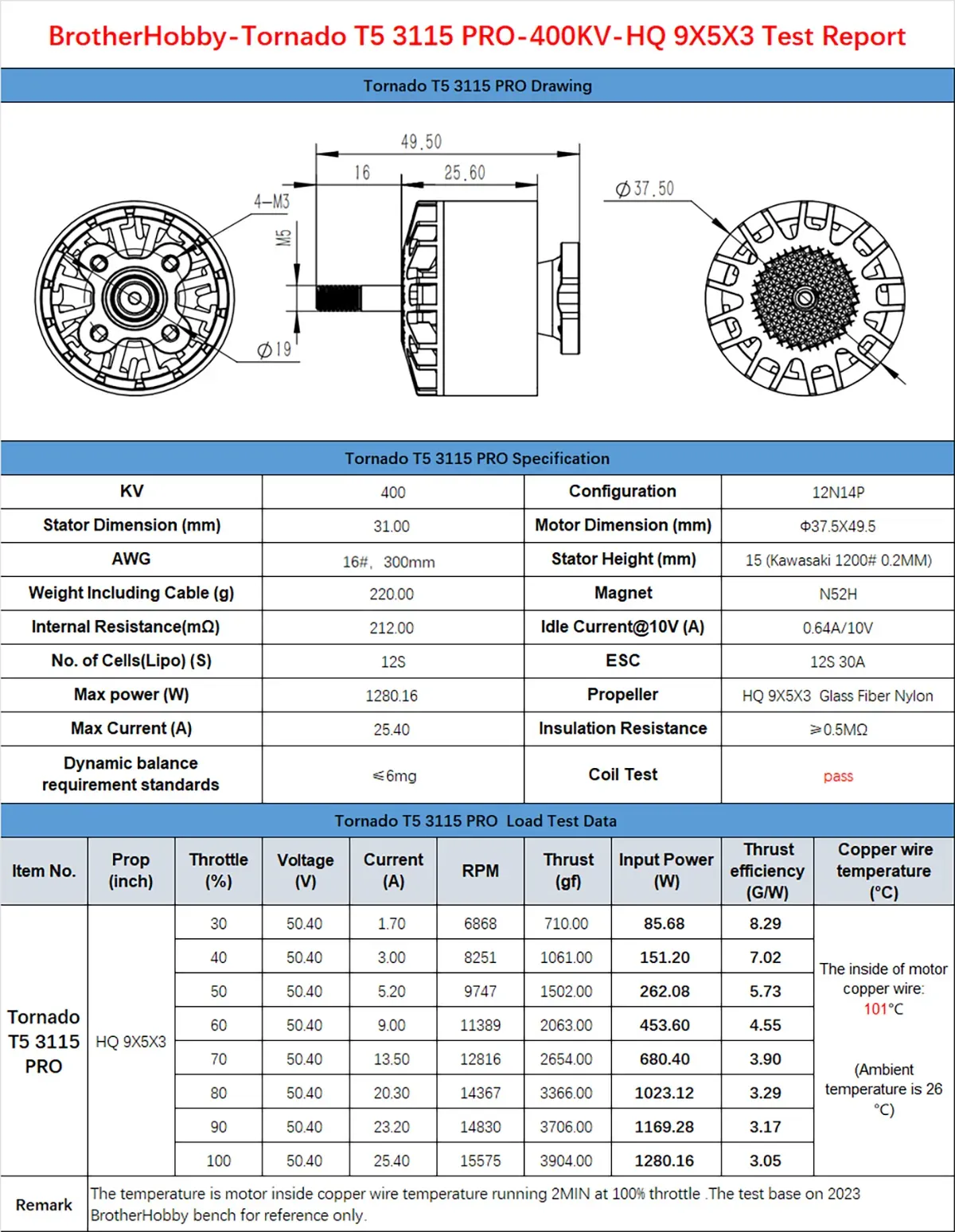

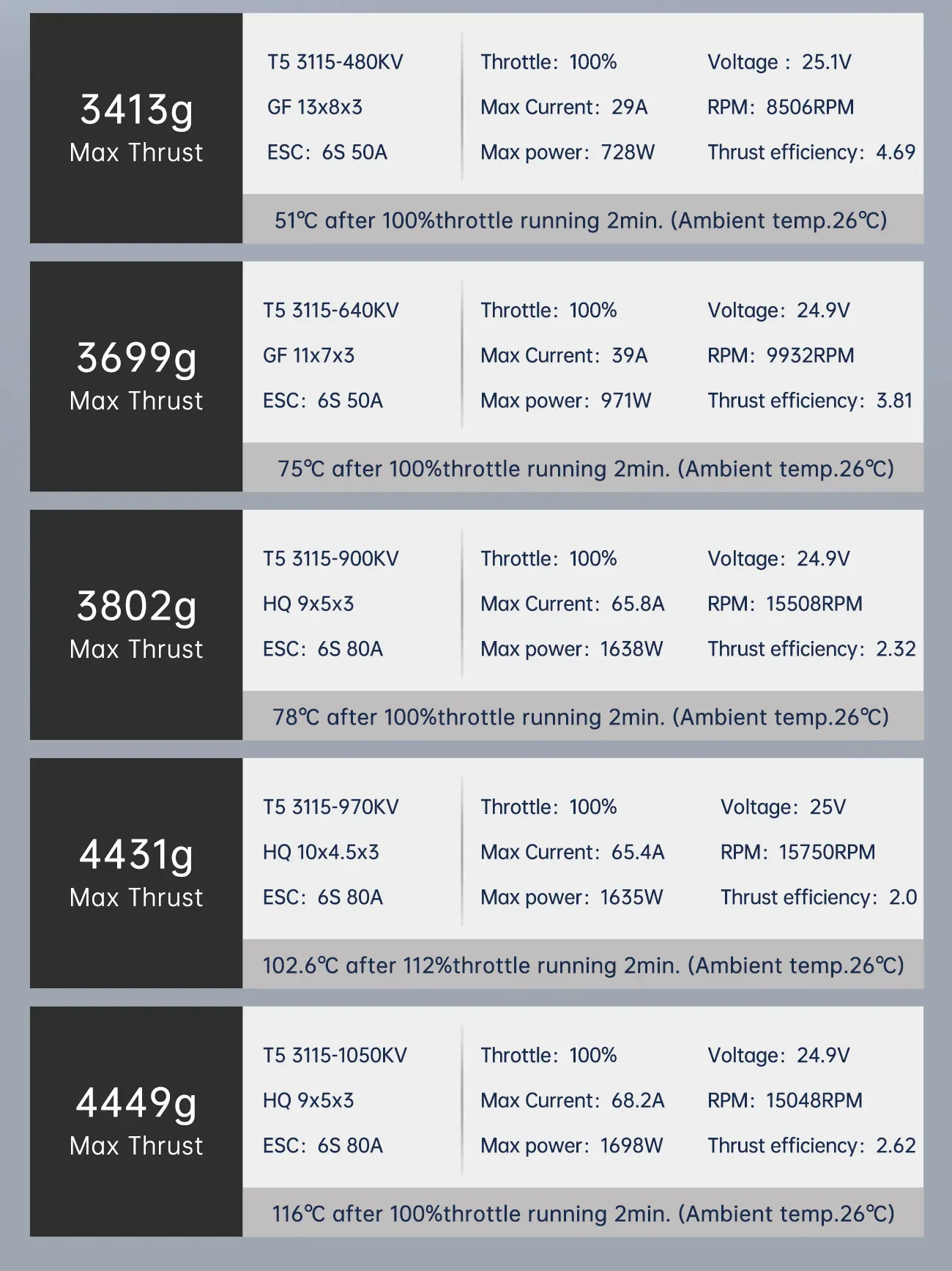

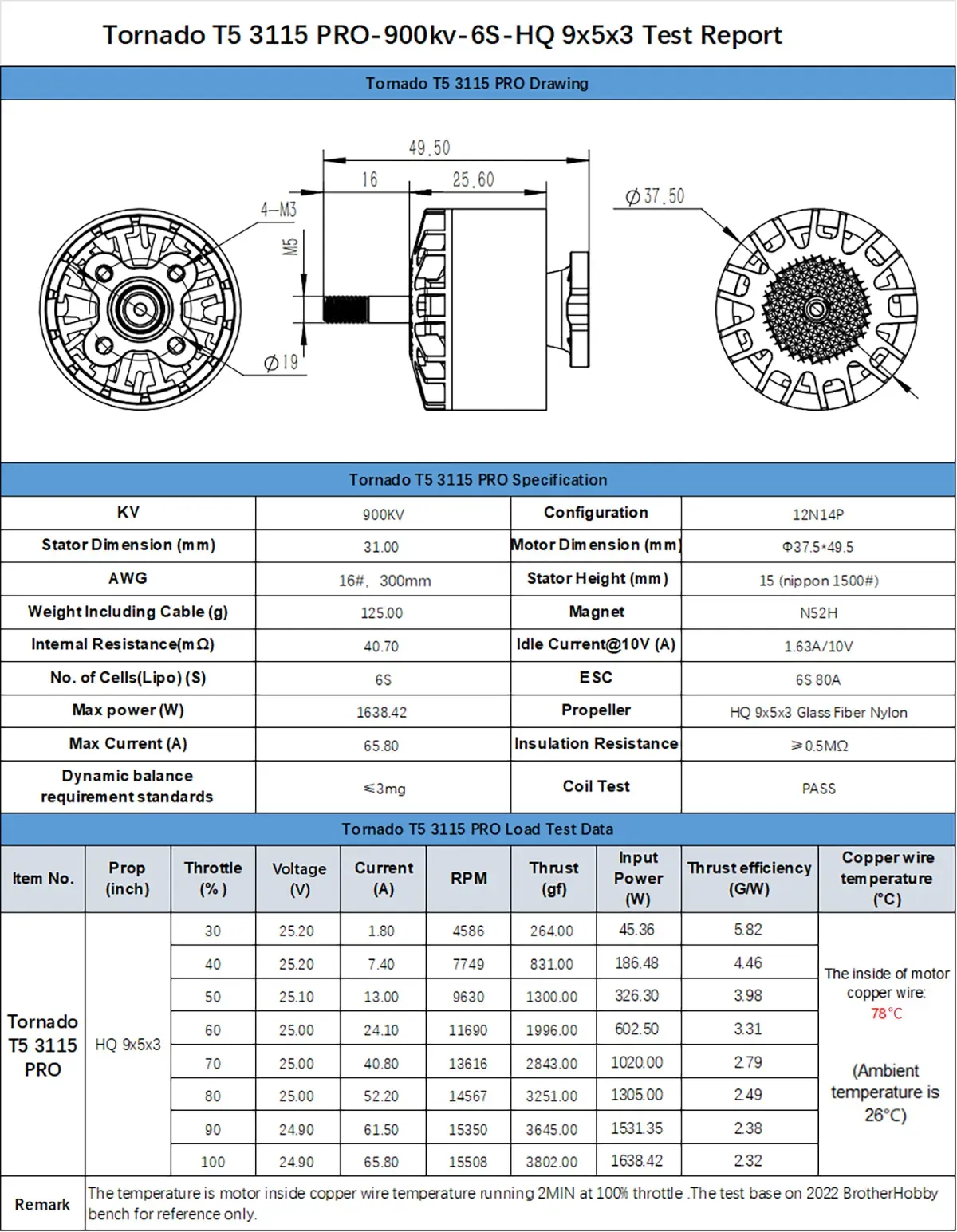

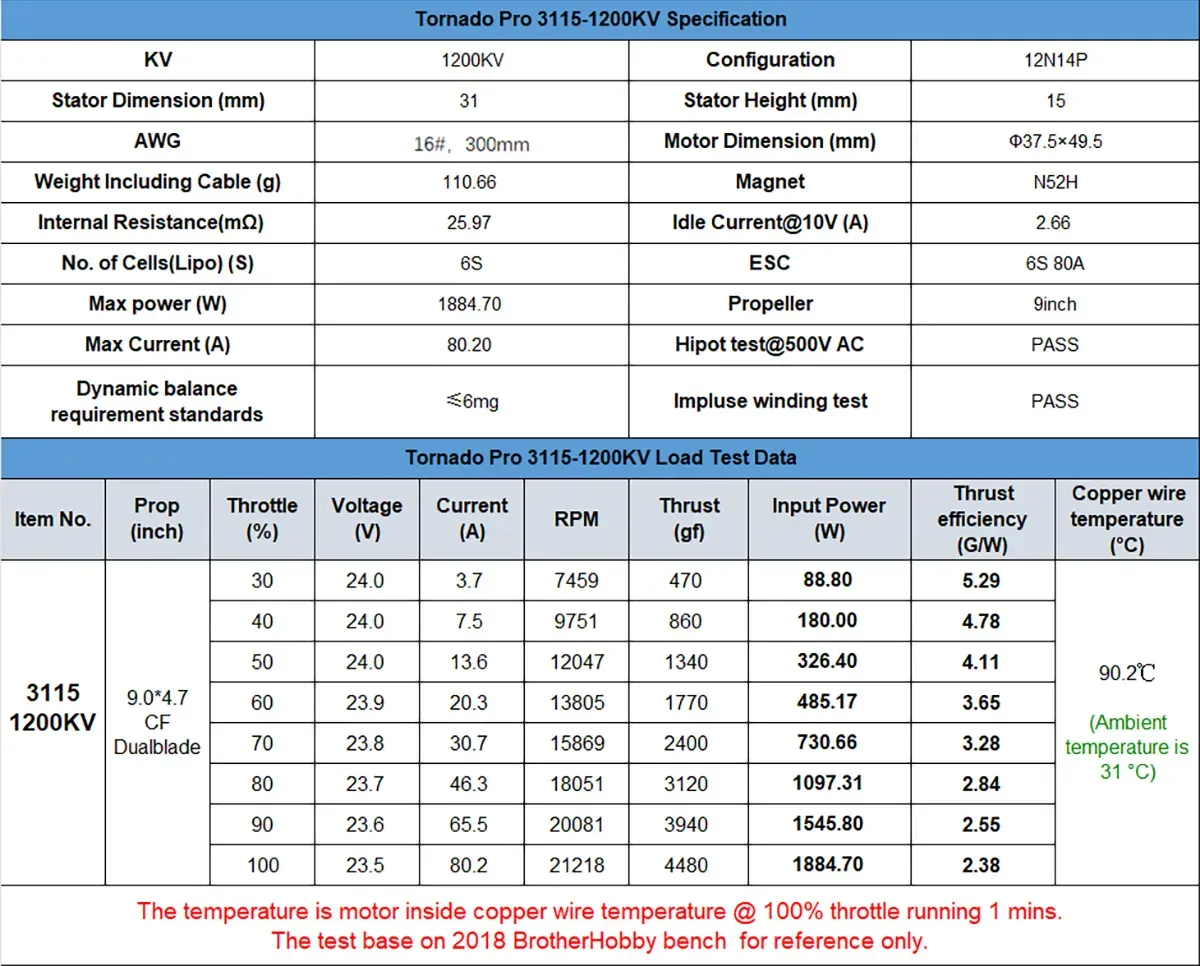

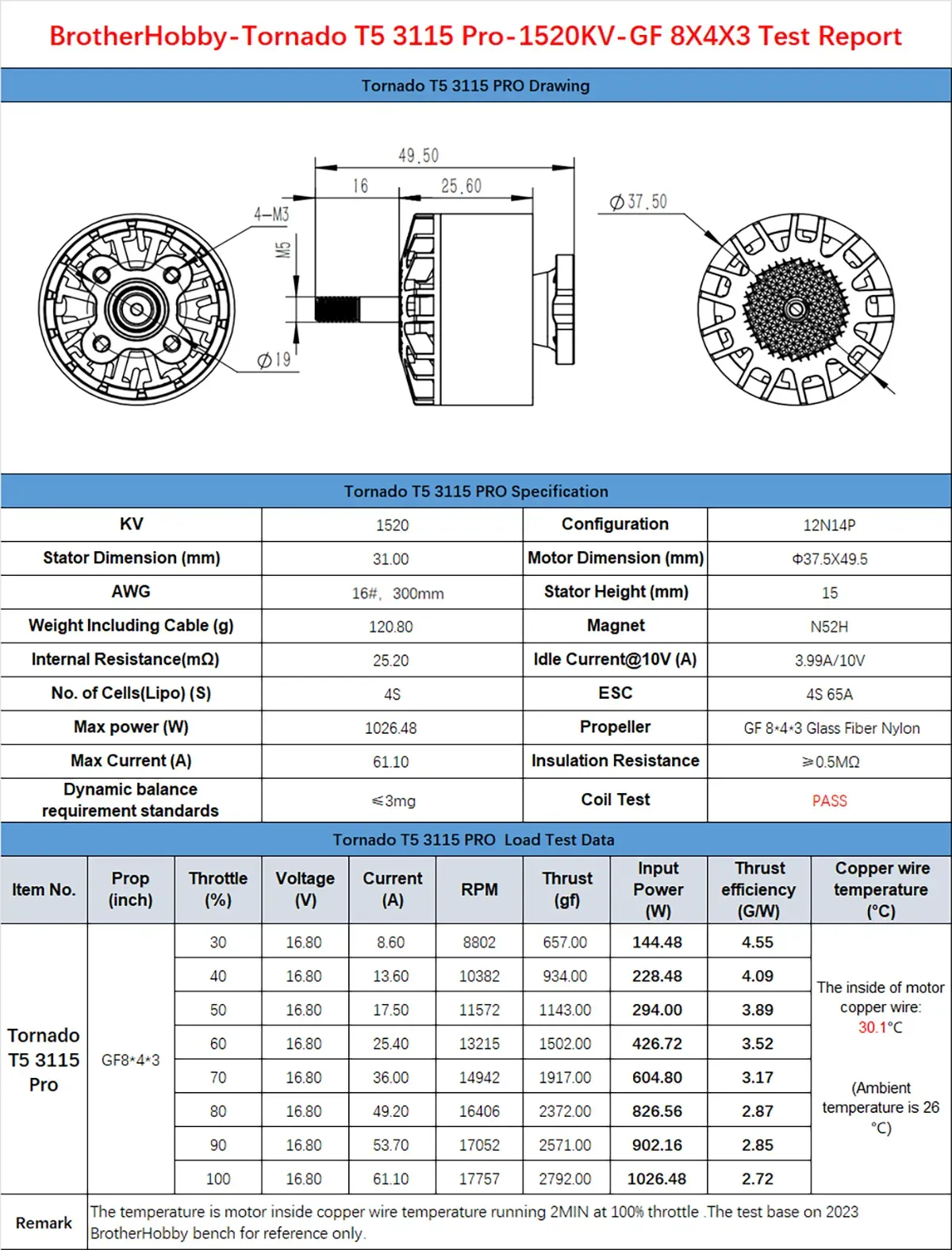

KV: 480KV / 640KV / 900KV / 1050KV
Base casing: Al 7075
Stator: 0.2mm Kawasaki silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No.of Cells(Lipo): 5-8S
Bolt Pattern: M3 (19X19mm)
Bearings: Japanese NMB 11mm X 5mm X 5 mm
Rotor: N52H arc magnets
Weight: 116g with 30cm SR wires
Wire AWG: 16AWG 30cm length
Bell cap: Al 7075
Recommendation
Reviews
F******m
Verified
Outstanding motor for demanding FPV pilots. Strong acceleration, stable output, and premium construction make it well worth the investment.
options：1520KV* 4Pcs
A*******n
Verified
Great combination of responsiveness and efficiency. After multiple flights the bearings still feel incredibly smooth and quiet.
options：1200KV* 4Pcs
Q********r
Verified
These 1200KV motors provide fast throttle response while remaining cool after multiple battery packs. Great value considering the overall build quality.
options：1200KV* 4Pcs
D********s
Verified
High-quality machining and excellent balance right out of the box. The 1050KV version feels powerful without becoming overly hot.
options：1050KV* 4Pcs
A******d
Verified
Very impressed with the 1050KV motors. Lightweight, responsive, and they maintain consistent power even during aggressive flying sessions.
options：1050KV* 4Pcs
F********e
Verified
Installation was straightforward and the motors fit my frame perfectly. They deliver smooth performance from low to full throttle.
options：970KV* 4Pcs
D*******e
Verified
I've flown several BrotherHobby motors and these 970KV models are among the best. Stable performance, premium finish, and excellent efficiency throughout the flight.
options：970KV* 4Pcs
Q******h
Verified
Plenty of power for fast climbs while still maintaining precise throttle control. Everything arrived well packaged and in perfect condition.
options：900KV* 4Pcs
1
2
FAQFeel free to ask us any questions
ASK A QUESTION
What size FPV drones is the BrotherHobby Tornado T5 3115 Pro motor designed for?
The BrotherHobby Tornado T5 3115 Pro is designed for large FPV drones using approximately 8-12 inch propellers. Its high-torque 3115 stator makes it ideal for long-range, heavy-lift, cinematic, and X-Class style builds.
Which LiPo batteries are compatible with this motor?
This motor supports 5S to 8S LiPo batteries. Choosing the appropriate KV version together with your battery voltage and propeller size will provide the best balance of thrust, efficiency, and flight performance.
What makes the Tornado T5 3115 Pro durable?
The motor features a CNC-machined 7075 aluminum housing, a lightweight titanium hollow shaft, Japanese NMB bearings, and high-grade N52H arc magnets for excellent durability, smooth operation, and long service life.
Can I use this motor for long-range or heavy payload FPV builds?
Yes. The high-torque 3115 stator is well suited for long-range aircraft, heavy camera platforms, mapping drones, and other applications that require large propellers and stable power delivery.
What mounting pattern does this motor use?
The Tornado T5 3115 Pro uses a standard 19×19 mm M3 mounting pattern with an M5 propeller shaft thread, making it compatible with many large FPV drone frames and propellers.
