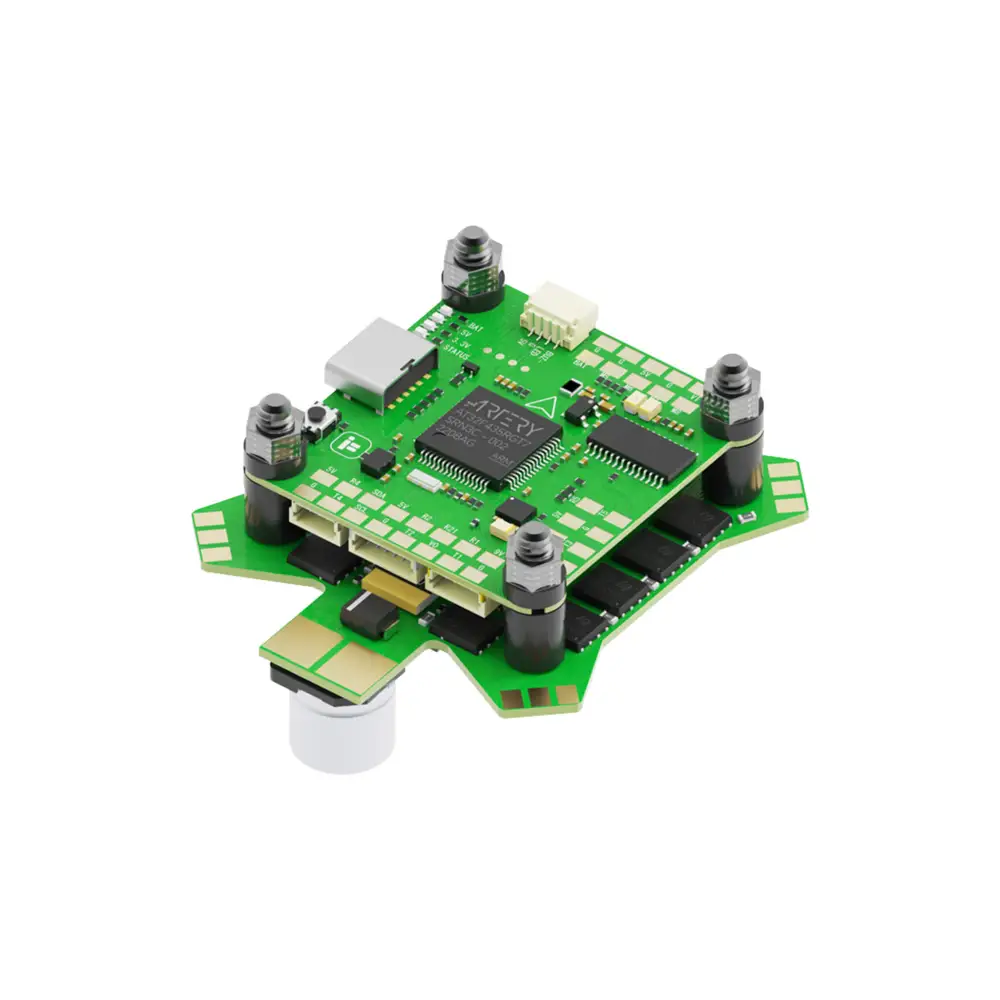

Introducing the iFlight BLITZ ATF435 Flight Controller paired with the BLITZ E55S 4-IN-1 2-6S ESC and BLITZ 1.6W VTX for RC FPV drones. This versatile setup includes the iFlight BLITZ Mini ATF435 Flight Controller with the BLITZ Mini E55S 4-IN-1 2-6S ESC and a powerful 5.8GHz 600mW VTX. The iFlight BLITZ ATF435 E55S 4-IN-1 ESC & FC Stack is designed for optimal performance and features an adjustable VTX, making it perfect for FPV enthusiasts. With a compact 30.5x30.5mm FPV stack design, this ESC FC stack is an excellent choice for building high-performance drones.
$20 Off Orders $299+
$10 Off Orders $189+
Collect
$53.99
$79.99
-33%
5|100+Sold
Options (1)
ATF435 E55S 4 IN 1 ESC&FC Stack
Quantity
In Stock
Expected ship within 5 days after order.
Estimated Transit Time: 15-20 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
Integrated Flight Controller and ESC.
Versatile 4-in-1 ESC.
Powerful VTX.
Compact Design.
Enhanced Flight Performance.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Features:
● Efficient connection
● Powerful flight
● Huge capacity
● Type-c interface
● Type-c interface
FC Specifications:
● MCU: AT32F435CGU7
● Gyro: ICM42688
● Barometer: DPS310
● OSD Chip: AT7456E
● Flash: 32MB (Blackbox flash)
● UARTS: 6
● Motor outputs: 4x (SH1.0 connector)
● I2C serial: SDA / SLA pads
● Smartaudio / IRC Tramp VTX protocol supported
● LED controller: Yes
● Beeper pad: Yes
● Firmware target: IFLIGHT_BLITZ_ATF435
● Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
● Dimensions: 36.5*35 mm
● Weight: 7.8g
● BEC: 5V 2.5A / 9V 2A
ESC Specifications:
● Mounting Holes: 30.5*30.5mm/Φ4mm
● Weight: 14.7g
● Supports 2-6S lipo input
● MCU: BB21
● Constant: 55 Amps
● Burst: 65 Amps
● Current sensor: Yes
● BEC: No
● Current rate: 200
● Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
What products are recommended to pair with the FPV Stack?
The iFlight flight controller is recommended to be paired with:

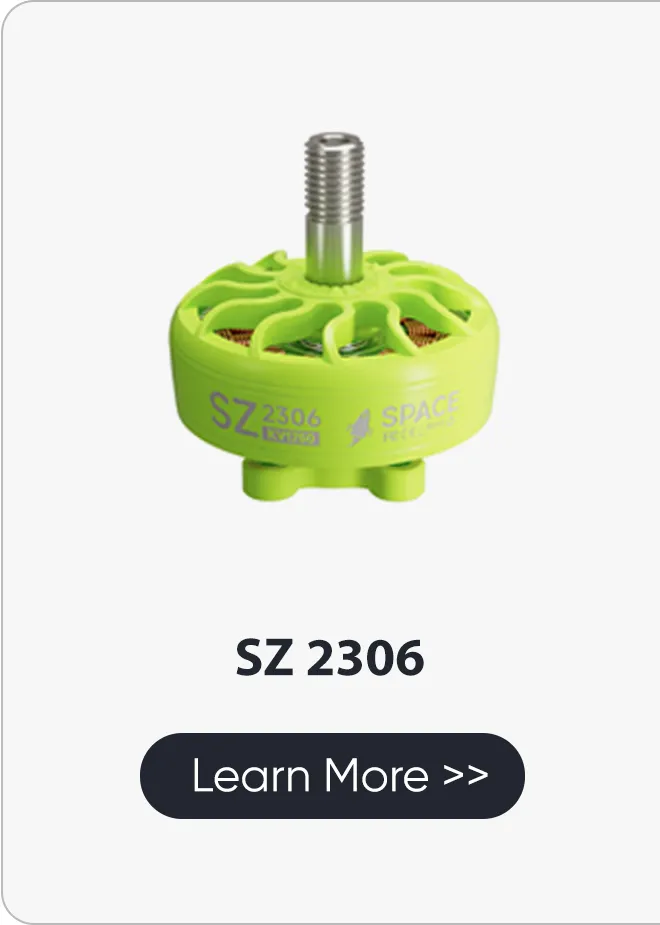

Motor: MEPS SZ2306 Motor for 1750KV/1950KV/2450KV

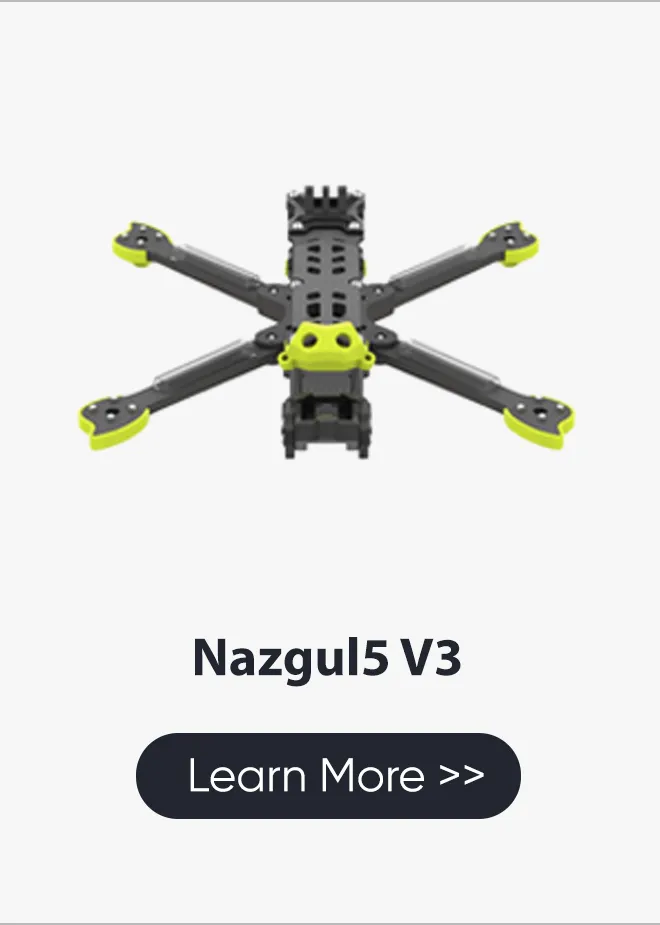

Frame: iFlight Nazgul5 V3 5-inch Frame

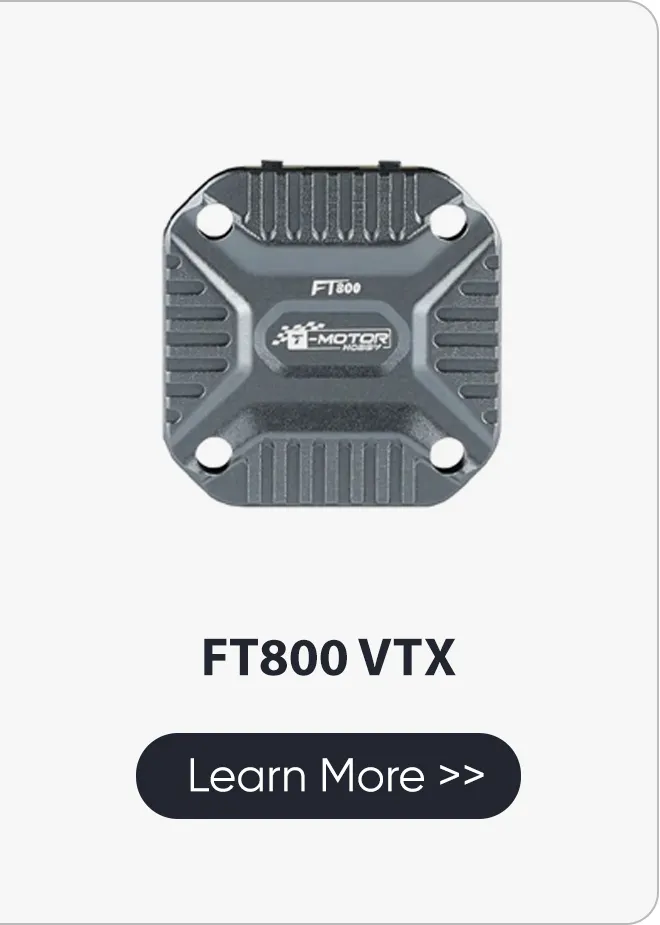

Video Transmitter: TMOTOR FT800 25-800mW 5.8GHz VTX
Receiver: BETAFPV ExpressLRS ELRS Nano Receiver
What are the features of the ATF435 E55S stack?
The drone stack is plug-and-play, no soldering required, and features a high-quality ESC for powerful flight.
What application scenarios is the ESC&FC FPV stack suitable for?
The 4 in 1 drone stack is recommended for 5-inch freestyle drones.
What should be noted during the use of the FPV drone stack?
When soldering, be careful to avoid short circuits. It is recommended to use a multimeter to check for continuity after soldering.
