NewLocal warehouseMEPS 16Pcs SZ2306 V2 FPV Motors FPV Bundle Sale

Paired with the SZ5145 3-blade propellers, which feature a 5.1-inch diameter and 4.5-inch pitch, this combination delivers exceptional thrust and control, making your drone more responsive, faster, and agile. Weighing just 3.7g per propeller, the SZ5145 blades are lightweight yet highly durable, tested for high-impact resistance and longevity during intense racing or freestyle sessions. Their precise design ensures optimal performance, especially when combined with the power of the SZ2306 motors, providing a balanced, efficient, and exhilarating flight experience.

Together, these components form the perfect match for FPV enthusiasts looking for the ideal blend of performance, style, and durability. Whether you're pushing the limits of freestyle flying or aiming for faster lap times in racing, this bundle has you covered with a combination of speed, control, and reliability.

About SZ2306 V2 Brushless Motors:

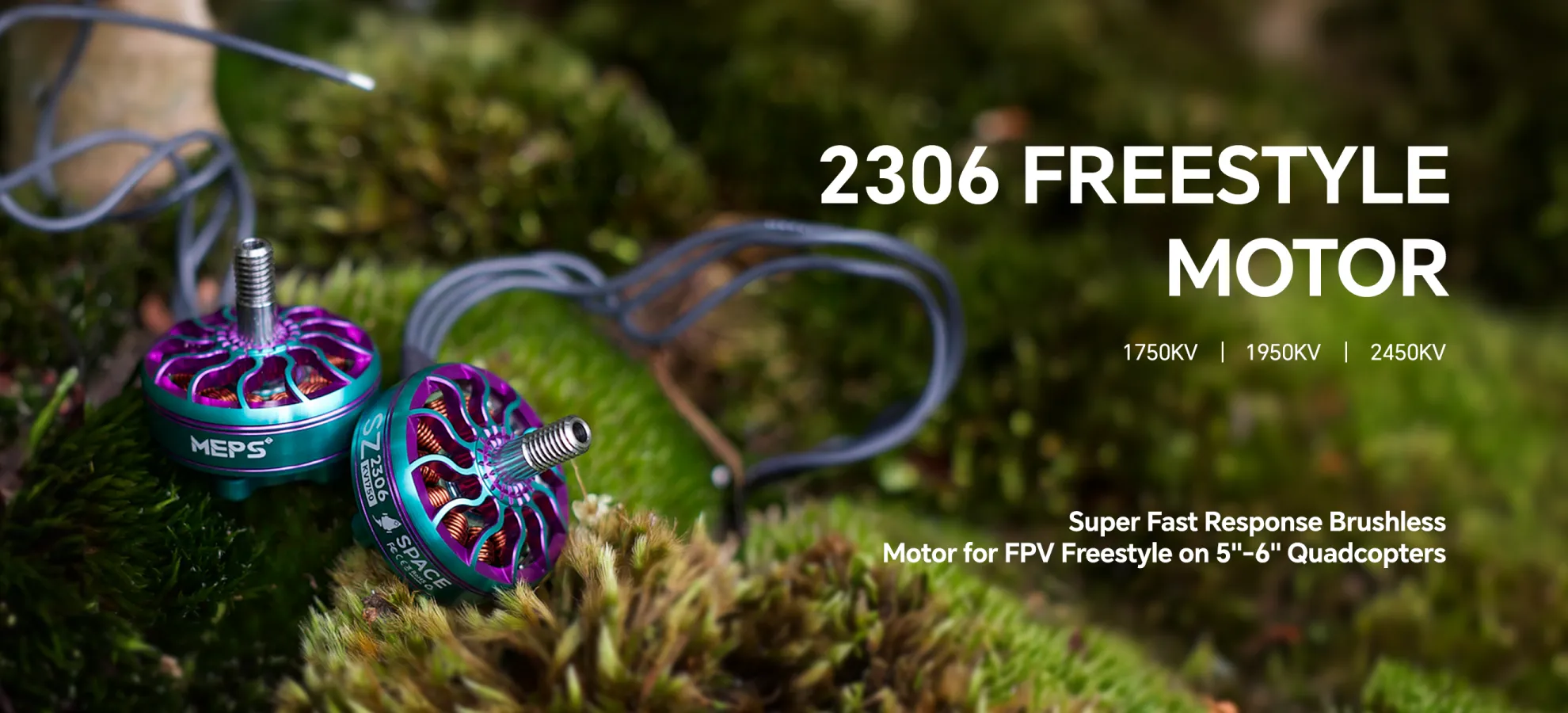

MEPS SZ2306 V2, renowned for its exceptional quality, boasts a Uni-Bell design with a sunflower appearance, setting it apart with an industry-first fluorescent green color scheme. This robust 6S brushless motor is specifically engineered for FPV racing and freestyle on 5"-6" quadcopters.

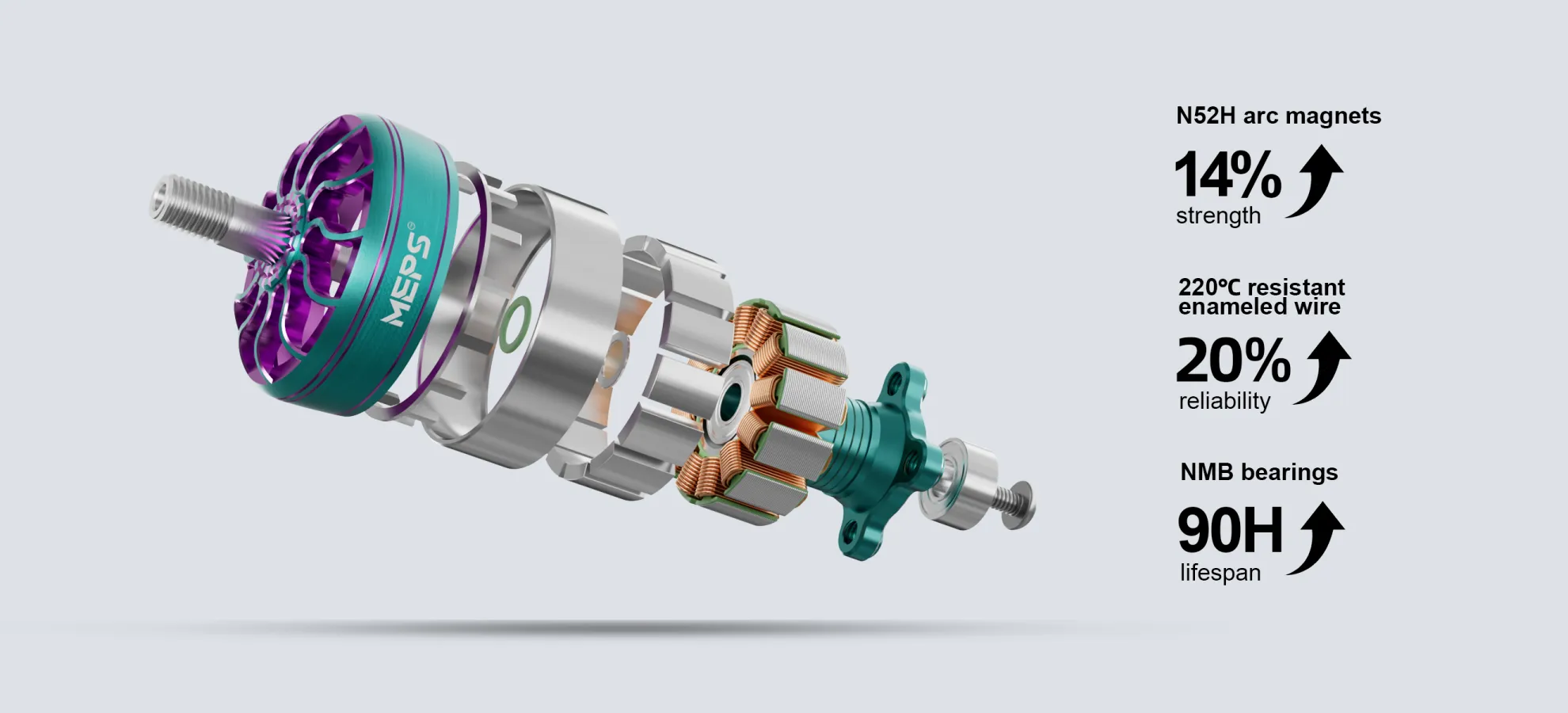

To optimize its efficiency, we've integrated N52H arc magnets, surpassing the performance of its predecessor, the N45 magnets, resulting in top-level thrust. The 2306 brushless motor features 220℃ high-temperature resistant military-grade pure copper wire to elevate both the power limit and reliability. Additionally, NMB bearings are strategically employed to extend the lifespan of this exceptional 6S brushless drone motor.

Whether you require a 1750KV, 1950KV brushless motor for your freestyle drone, the MEPS 2306 brushless motor stands out as an excellent choice. Elevate your flight experience with the smooth and powerful performance of the MEPS 2306 6S brushless drone motor!

Features:

● Application: Perfect suited for 5 inch FPV freestyle drone.

● Unique design: Remarkable durability with a uni-bell covering, and super low cogging torque, achieves the perfect combination of performance and aesthetics.

● Top Material: TC4 reinforced titanium alloy shaft and N52H arc magnets increase efficiency and shorten motor response time, allowing the motor to run as smoothly as silk.

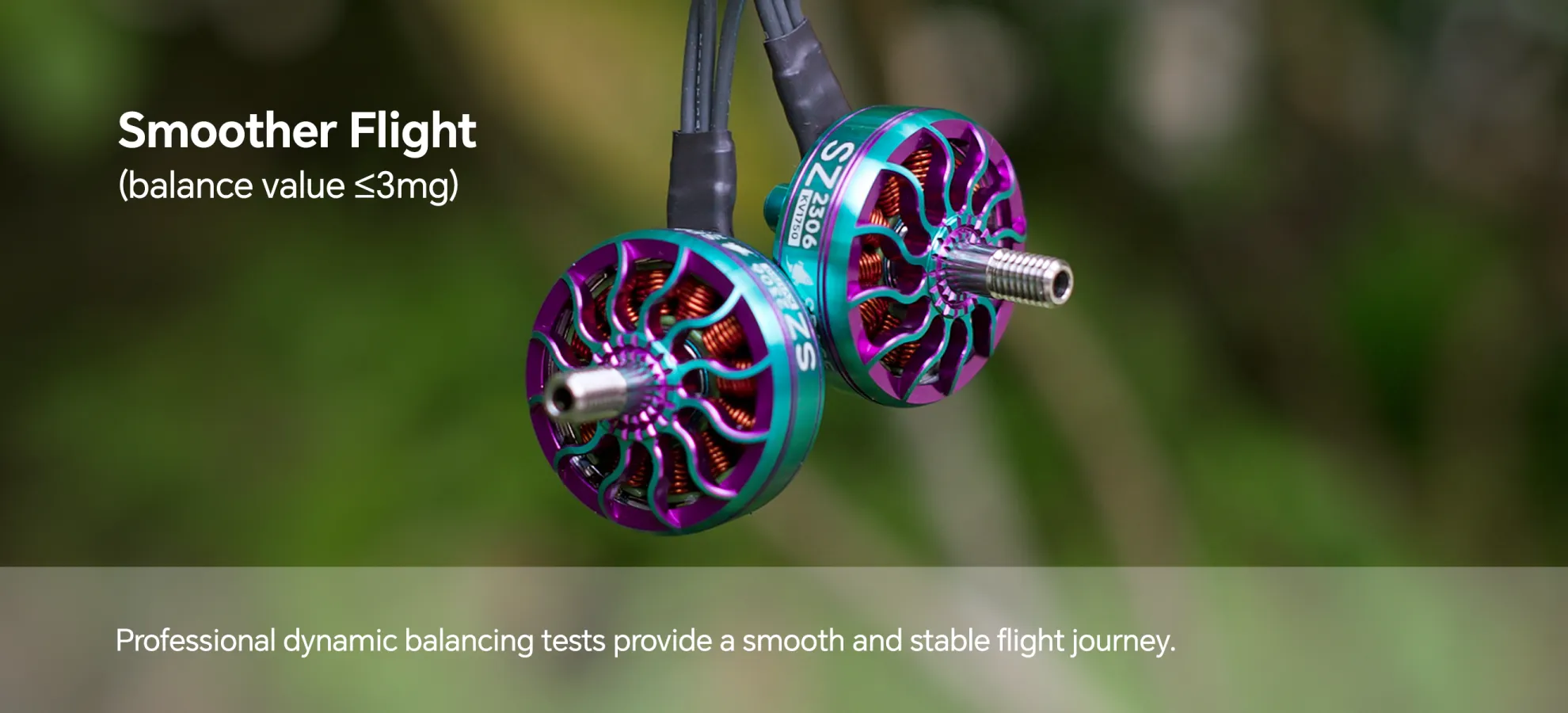

● Freestyle Specialist: Super dynamic balance control (balance value ≤ 3mg) that provides a smooth and responsive flying experience.

●  KV options available (1750,1950): Different kvs match different batteries and propellers for different flying styles.

Specification:

● Model: MEPS 2306 freestyle motor

● Color: Cyan/Green (optional)

● KV: 1750kv/1950kv (optional)

● Materials: 6082 aluminum bell, TC4 reinforced titanium alloy shaft, N52H arc magnets, military-grade high-temperature enameled wire,12.9-grade hexagon socket screws.

● Lead: 20#160mm

● Weight(including cable): 32g

● Motor Diameter: 28.93*31.5mm

● Shaft Diameter: 5mm

● Rated Voltage(Lipo): 6S(1750KV/1950KV)

● Configuration: 12N14P

● Internal Resistance: 72mΩ(1750KV), 68mΩ(1950KV)

● Idle Current(10V): 1.3A(1750KV), 1.5A(1950KV)

● Max Power: 910.9W(1750KV), 1081.9W(1950KV)

● Model: MEPS SZ5145 propeller

● Color: Yellow

● Application: Perfect matching with SZ2207 motors for 5" FPV freestyle drones and racing drones..

● Dimension: Pitch 4.5 inch, Moungting holes M5.

● Materials:  PC

● Blade: 3

● Weight: 3.7g each

Recommendation:

Package Included:

● 4pcs SZ2306 Motors

● 2Pairs SZ5145 Propellers
