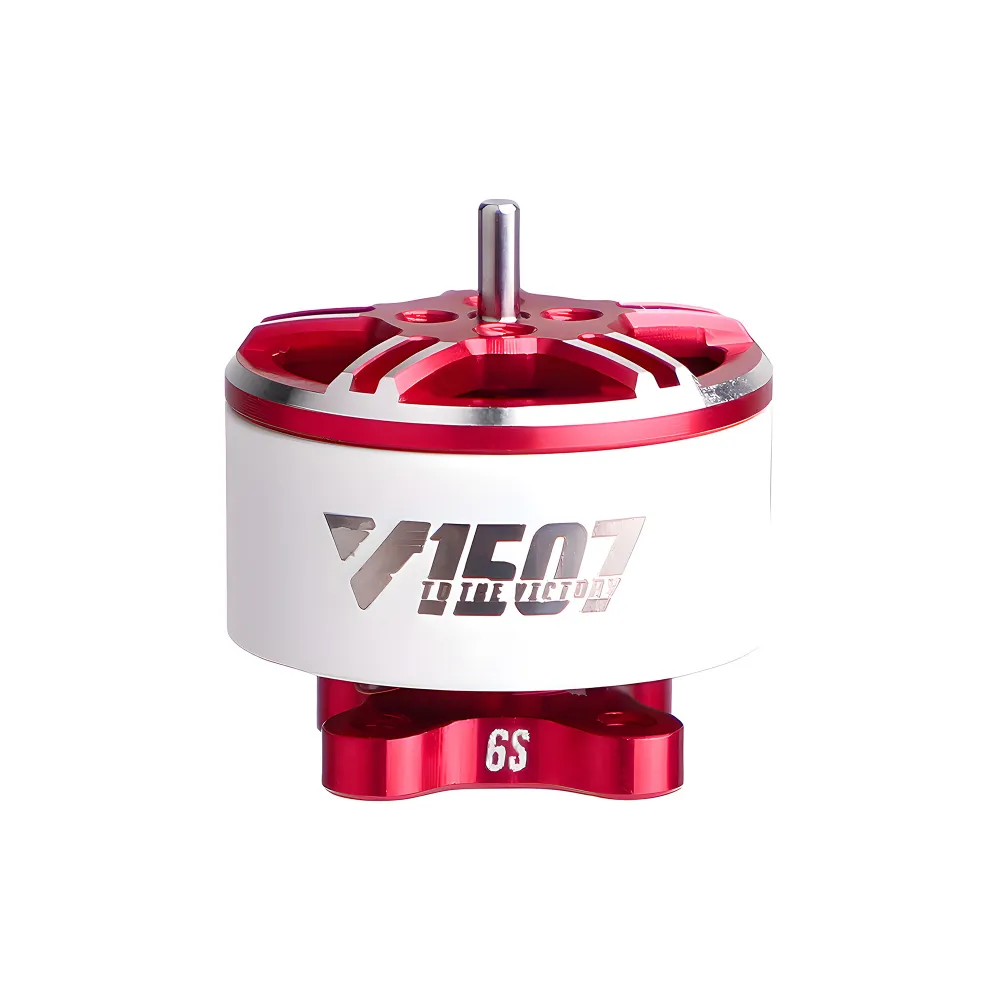

T-HOBBY V1507 3-4 Inch FPV Brushless Motor Dual Voltage
About T-Hobby V1507 FPV brushless motor for 3-4 Inch Drone:

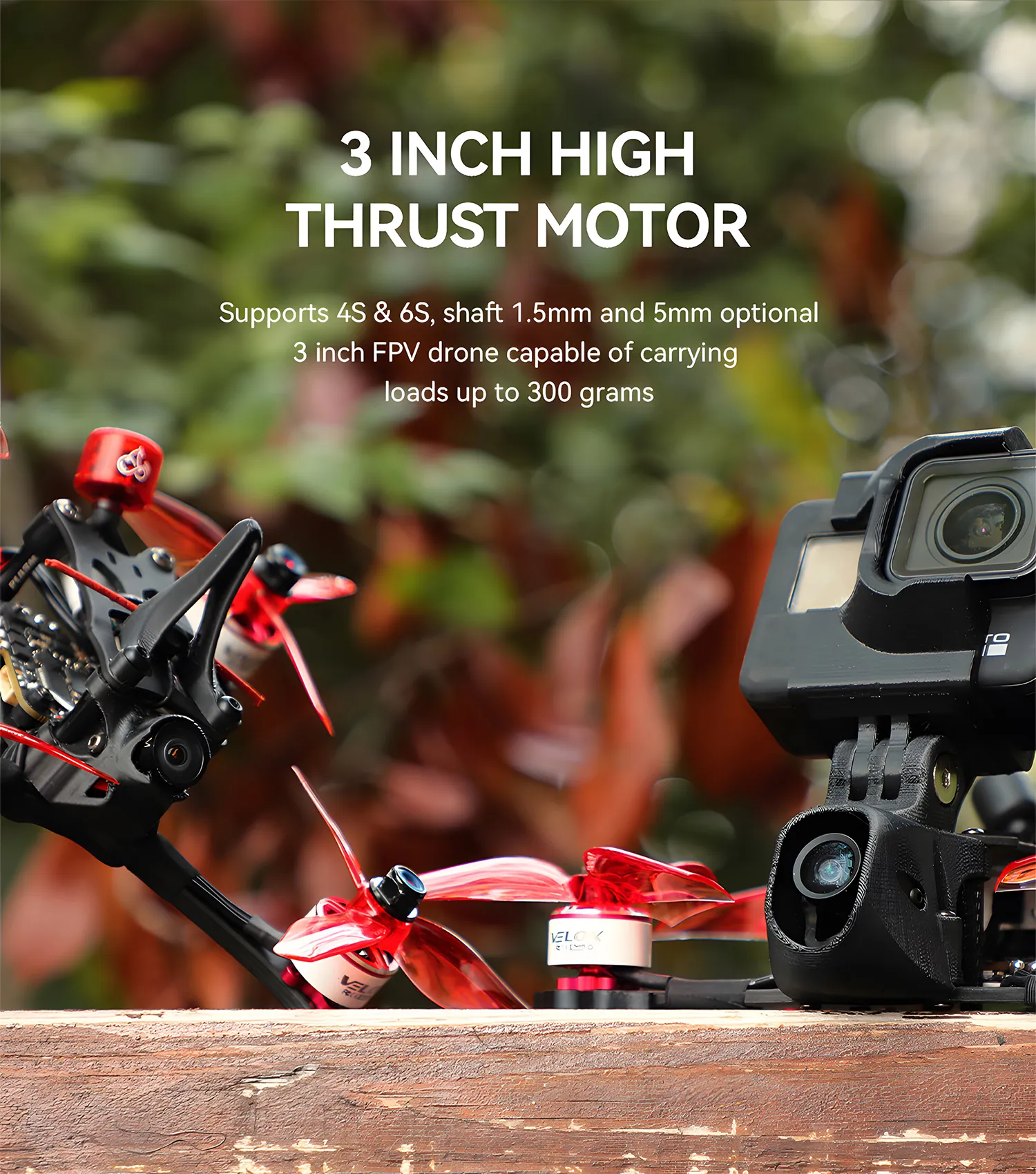

T-Hobby V1507 brushless motor delivers high thrust for 3-4 inch FPV drones, supporting 1000g+ payloads with dual shaft options (1.5mm/5mm). Features crash-resistant durability, thermal optimization, and non-protruding screws for seamless frame compatibility. Ideal for cinewhoop and freestyle builds.
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
Dual Shaft Options (1.5mm/5mm).
Non-Protruding Locking Screw.
High Thrust for Heavy Loads.
Optimized Thermal Performance.
Crash-Resistant Durability.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

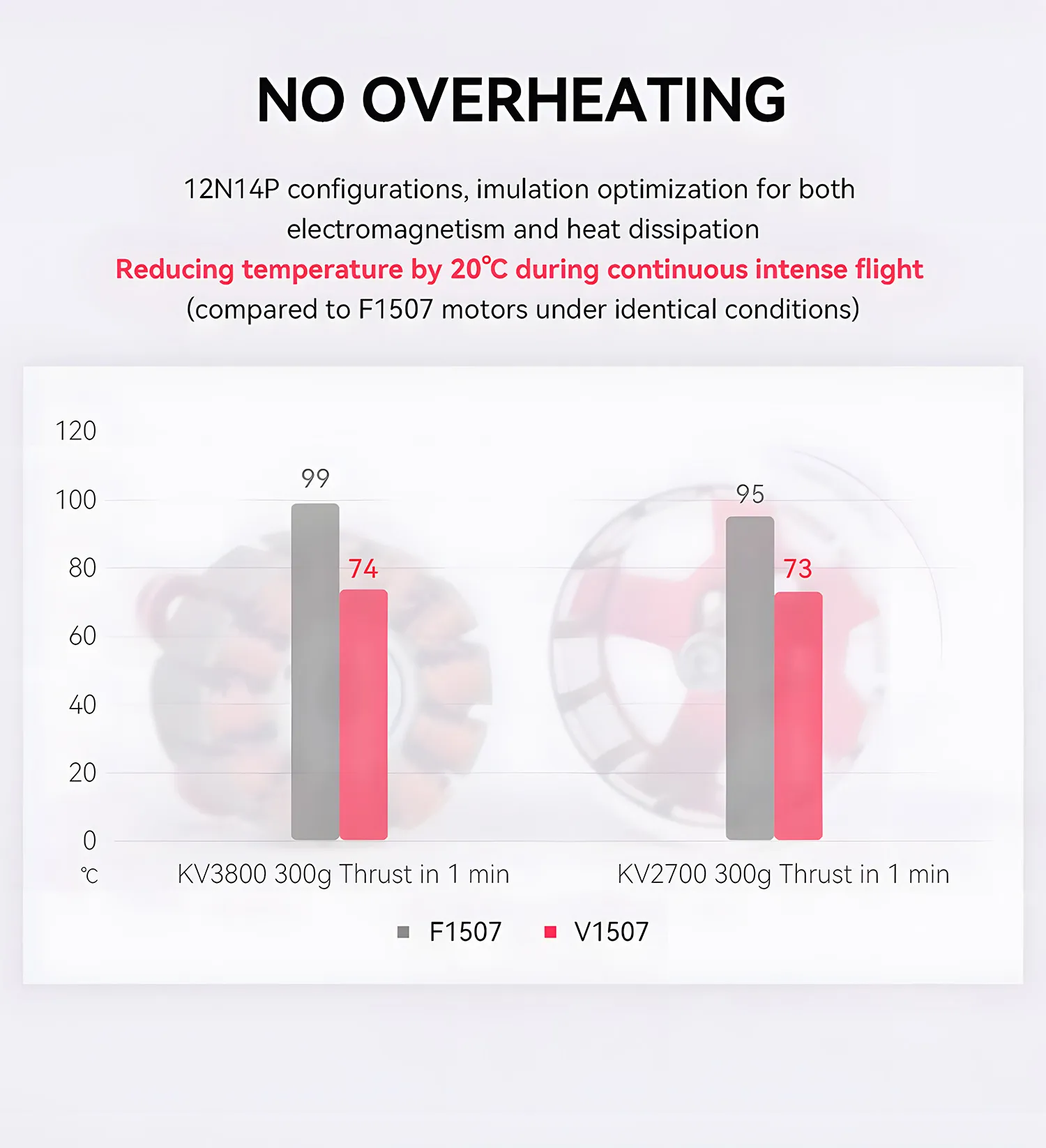

20°C Cooler Under Load
Electromagnetic and thermal simulation-optimized design maintains 74°C under 300g thrust—running 25°C cooler than standard F1507 motors during intense flight.

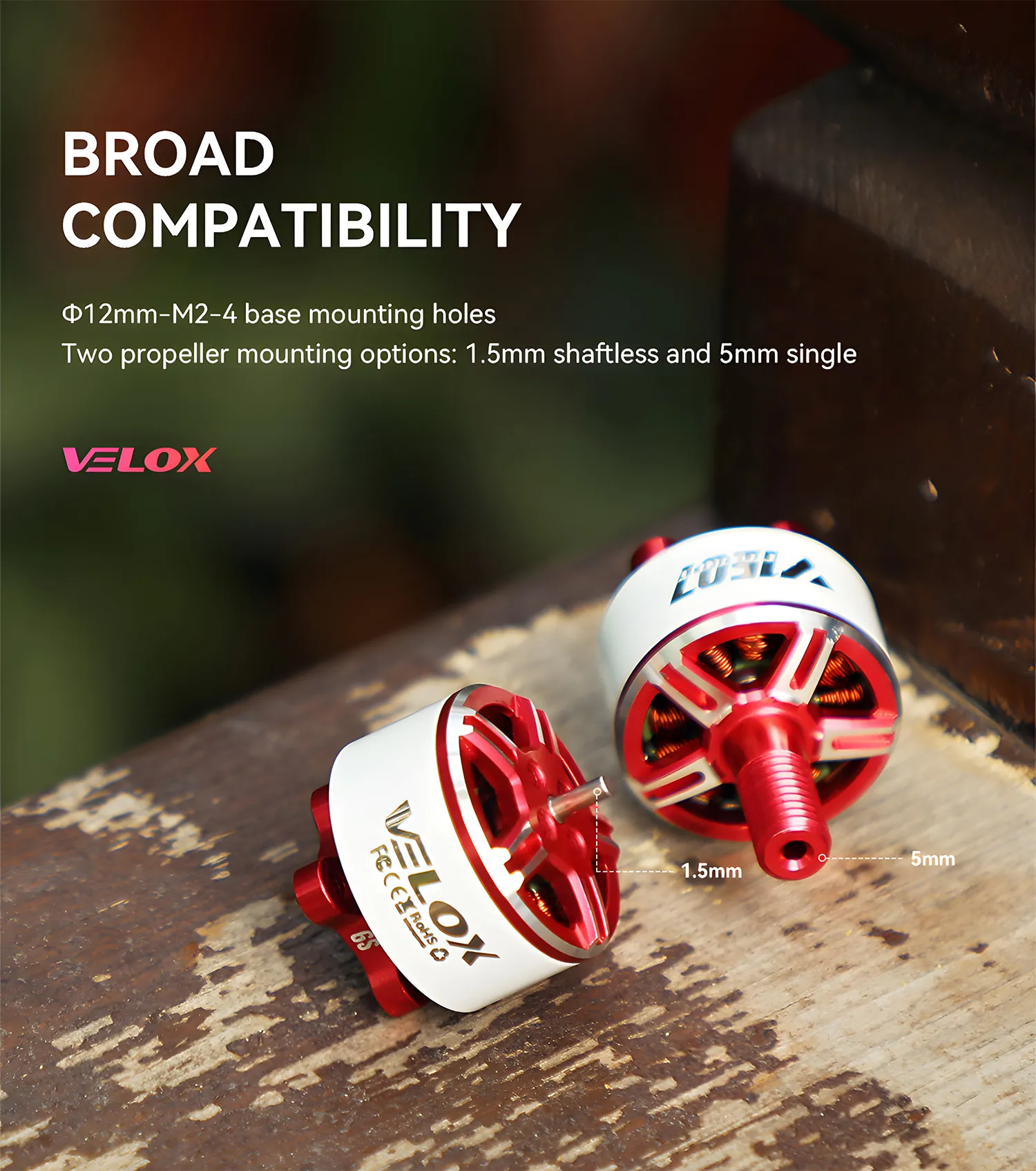

Broad Compatibility
Features Φ12mm-M2-4 base mounting holes and dual propeller mounting options (1.5mm shaftless/5mm single), ensuring seamless integration with diverse 3-4 inch FPV drone frames and propellers.

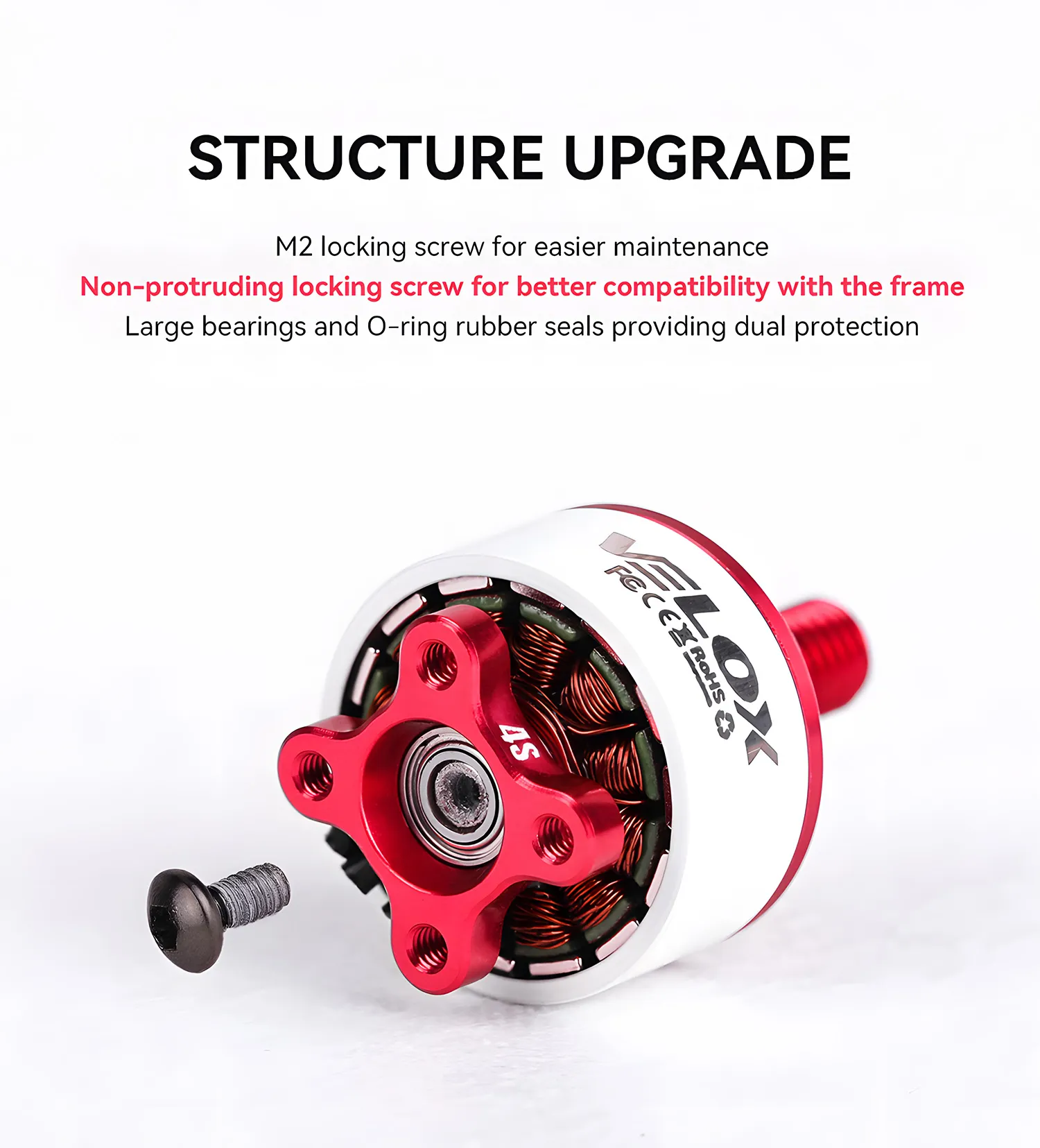

Structural Durability Upgrade
Features an M2 locking screw for easy maintenance, non-protruding design for frame compatibility, and large bearings with O-ring seals for dual protection against dust and impacts.

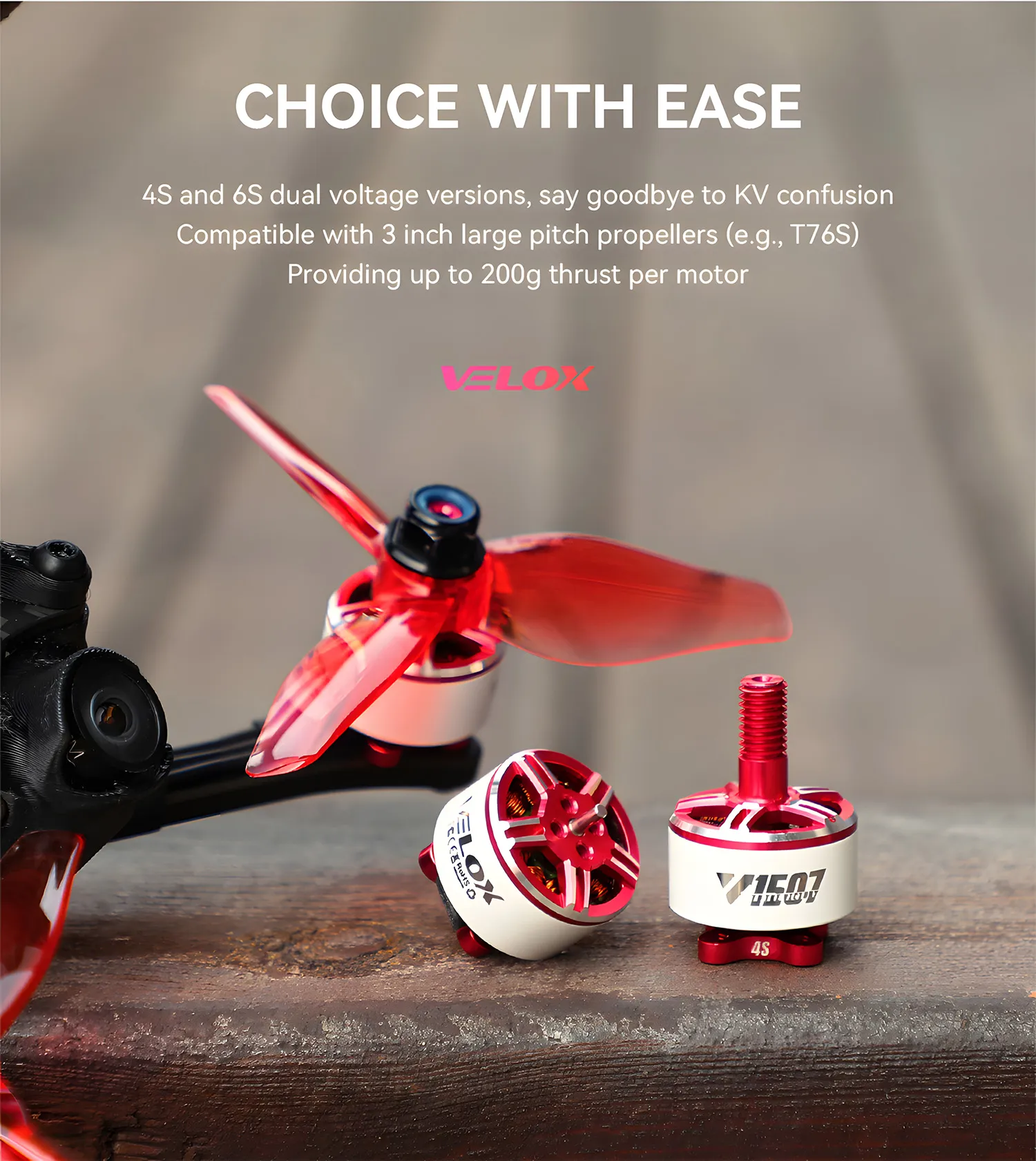

Dual-Voltage, Zero Confusion
Compatible with both 4S and 6S systems and delivering up to 200g thrust per motor, this brushless motor simplifies power selection while maximizing performance for 3-4 inch FPV builds.

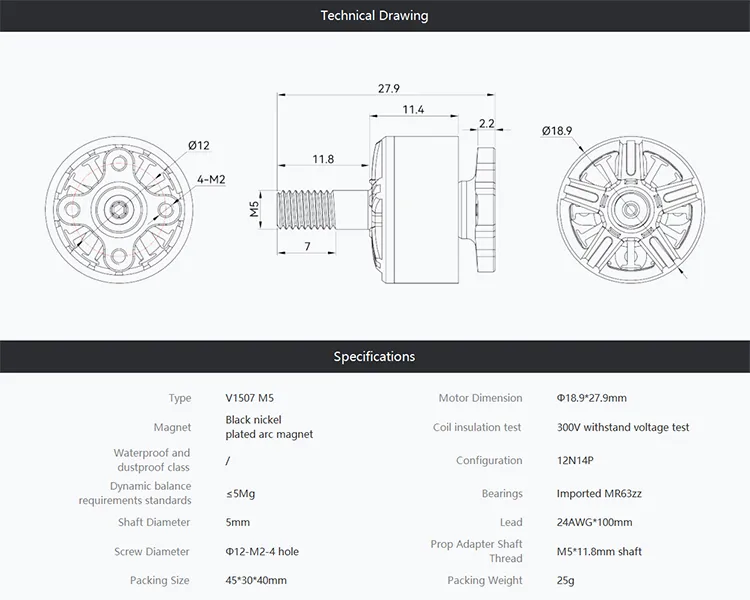

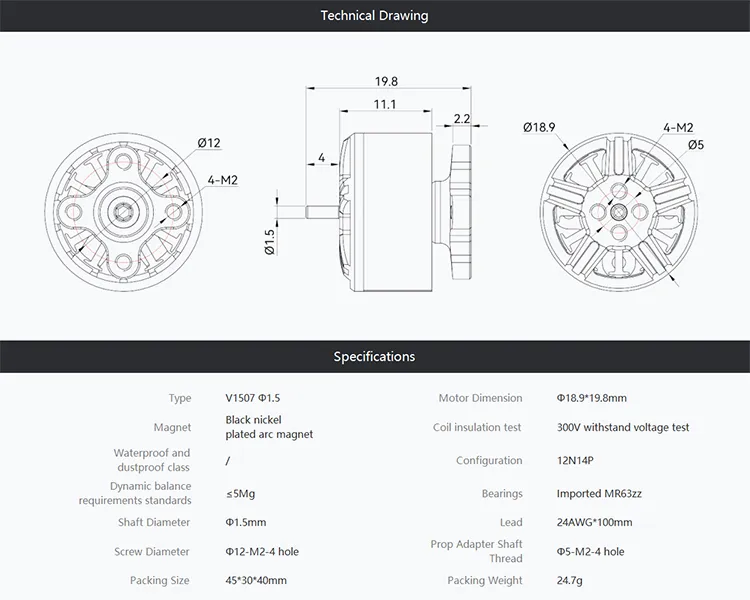

Product Drawing

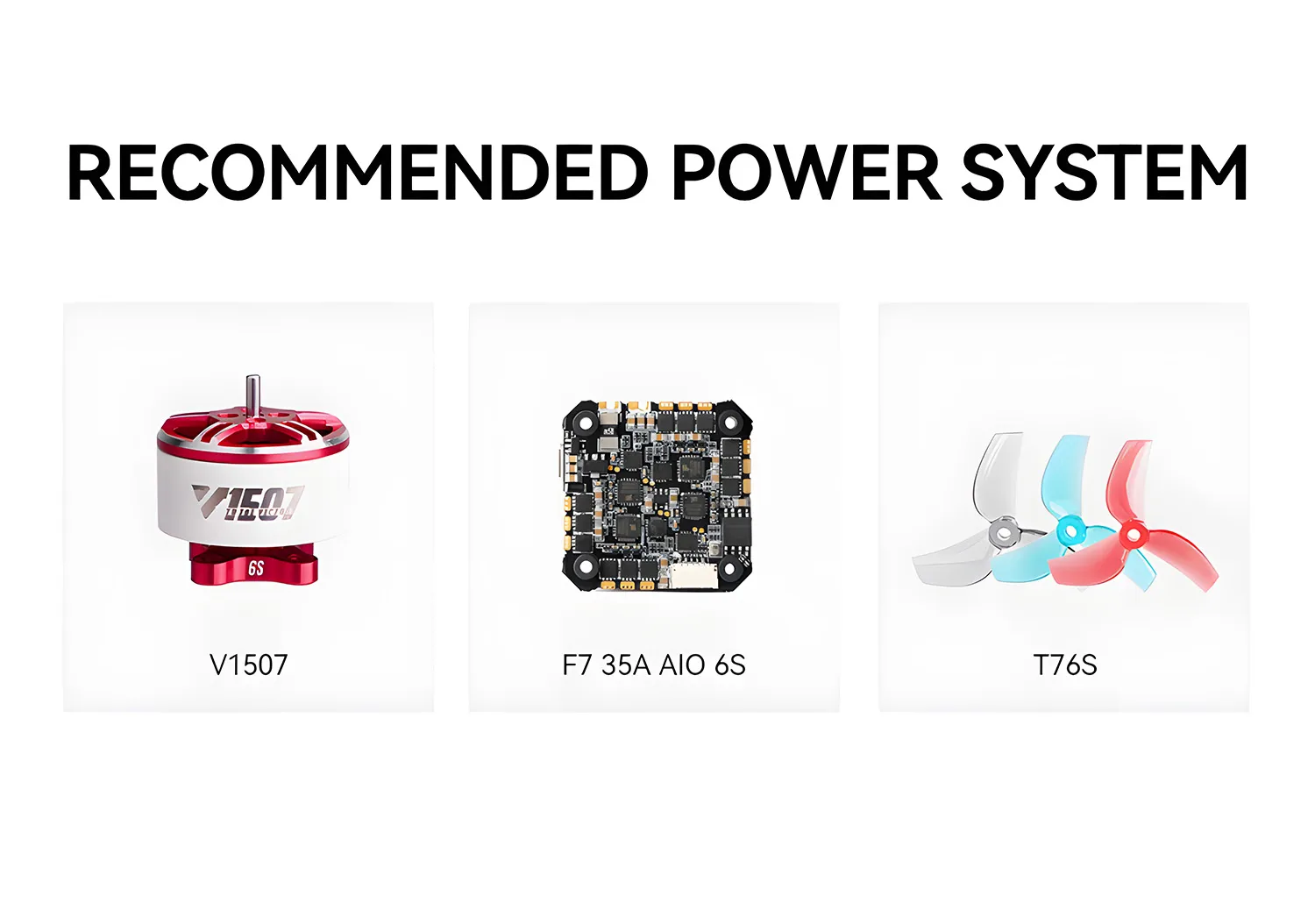

Recommendation
Reviews
J***********n
Verified
Installed these on a 3.5" freestyle build and they feel surprisingly powerful for their size. Plenty of punch on 4S, and throttle response is very smooth.
Shaft Option：1.5mmRated Voltage：6S
S********n
Verified
Put these on a 3-inch toothpick and it screams. Great torque for recovering from dives. Only issue is I wish the motor wires were slightly longer for my frame, but overall great value.
Shaft Option：1.5mmRated Voltage：4S
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What is the maximum thrust and payload capacity of this motor?
A: It delivers up to 200g thrust per motor and supports 3-inch cinewhoops with a total takeoff weight of 1000g+ (including 500g payloads like action cameras).
Q: Is this motor compatible with both 4S and 6S batteries?
A: Yes! Its dual-voltage design works seamlessly with 4S (14.8V) and 6S (22.2V) systems, offering flexibility for different power needs.
Q: What shaft sizes are available, and which should I choose?
A: It offers 1.5mm (shaftless for direct prop mounting) and 5mm (standard shaft) options. Choose 1.5mm for lightweight builds and 5mm for compatibility with most 3-4 inch props.
Q: What makes this motor more durable than others?
A: It features large bearings with O-ring seals for dust/impact protection, advanced thermal management (runs 20°C cooler than competitors), and a reinforced structure for crash resistance.
Q: Is the V1507 a good motor for a 3–4 inch FPV drone build?
A: Yes, it is specifically designed for 3–4 inch builds, offering strong thrust and stable control for both freestyle and cinematic flying.
