The TMOTOR Velox V45A 4in1 FPV ESC V2 has been upgraded with a 15% performance increase enabling you to fly with confidence even during high current situations.

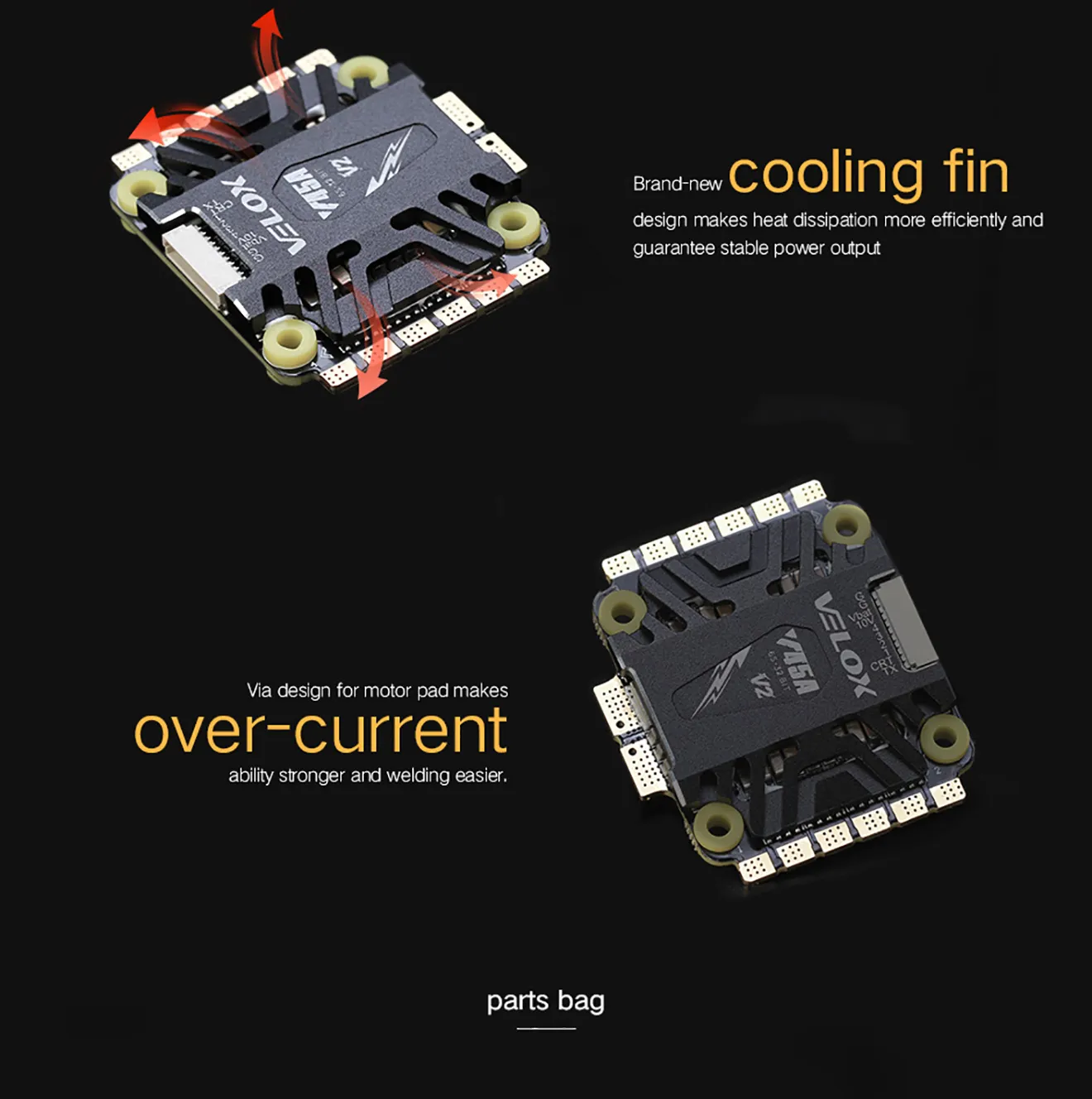

The brand new cooling fin design makes heat dissipation more efficient and increases the chance of stable power output. Spacious motor pads make soldering easier.

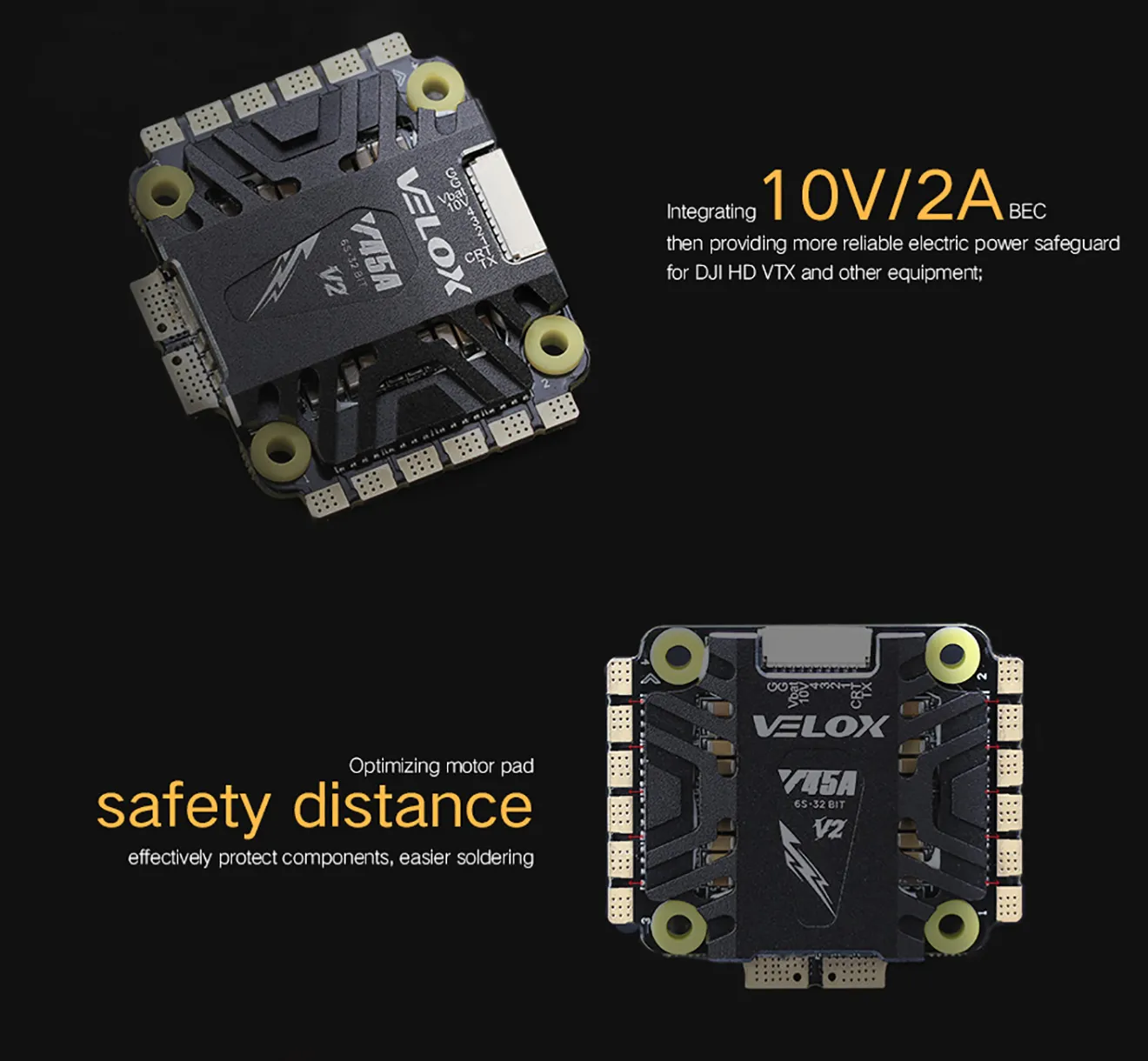

This 30.5x30.5mm FPV ESC comes with an integrated 10V/2A BEC, great for providing power for DJI Air Units or other FPV equipment.
1.No heatsink for reduced weight but with the durable 2. Support 3-6S voltage input 3. Double-side large-pitch pads
$12 Off Orders $199+
$6 Off Orders $109+
Collect
$54.90
$75.90
-28%
5.0|69Sold
Options (1)
45A 6S
Quantity
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
No heatsink for reduced weight but with the durable.
Support 3-6S voltage input.
Double-side large-pitch pads.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What components are recommended to pair with this TMOTOR Velox V45A V2 ESC?
A: This 4in1 ESC is recommended to be paired with MEPS 2207 motors or MEPS 2306 motors, the GEPRC GEP-MK5X O3 Squashed X Frame for Freestyle, and the RunCam Link Wasp Digital HD FPV Camera System.
Q: What are the main features of this FPV ESC?

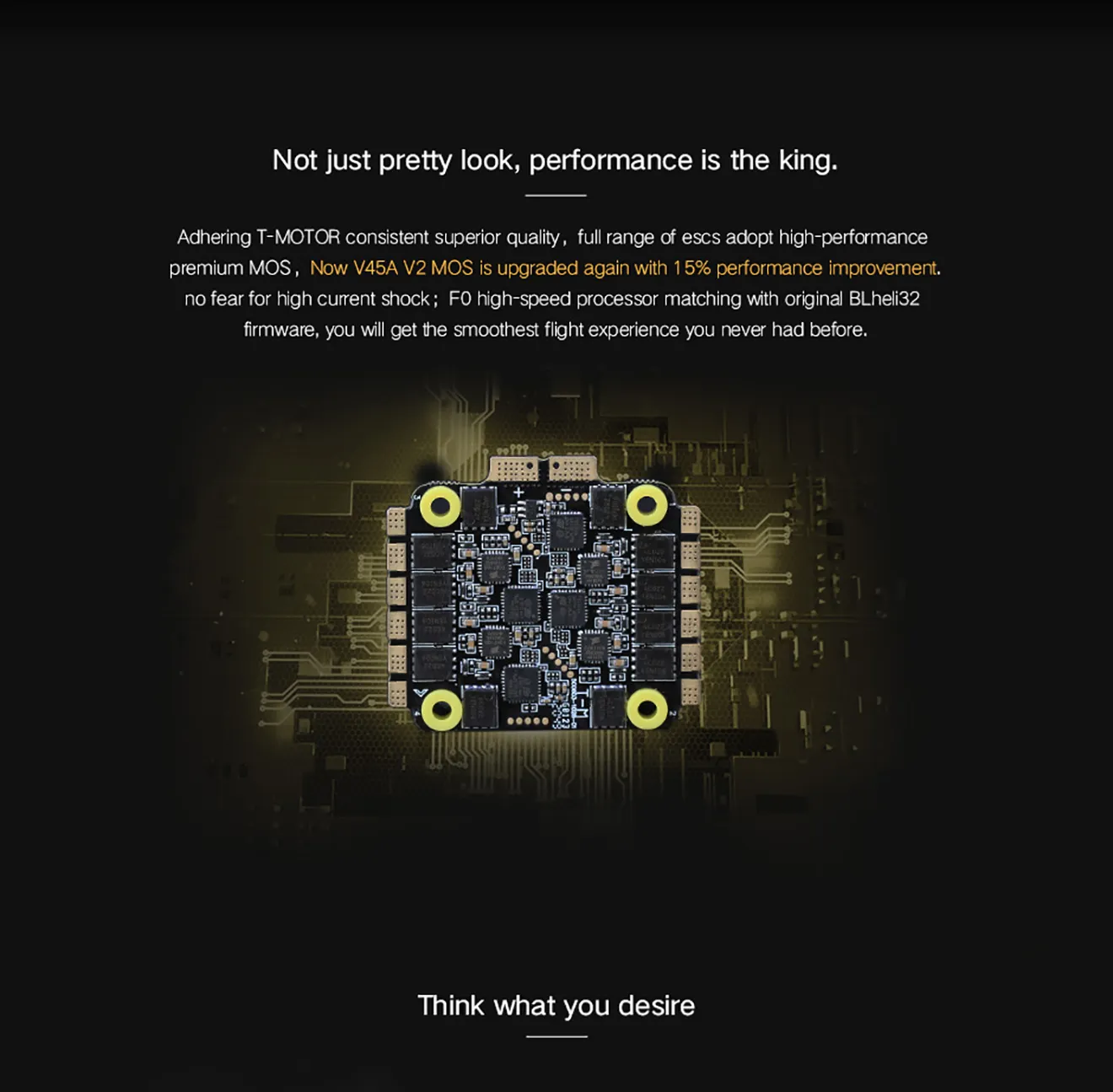

A: Compared to its predecessor, this ESC offers a 15% performance improvement, maintaining stable flight even at high throttle. The new heat sink design significantly enhances heat dissipation, improving motor output stability. Additionally, it features an integrated 10V/2A BEC that can power the DJI AIR UNIT or other FPV devices.
Q: What firmware does this ESC use?
A: This ESC uses BLHeli_32 firmware, allowing for advanced adjustments to parameters such as rotation direction and speed using compatible tuning software.

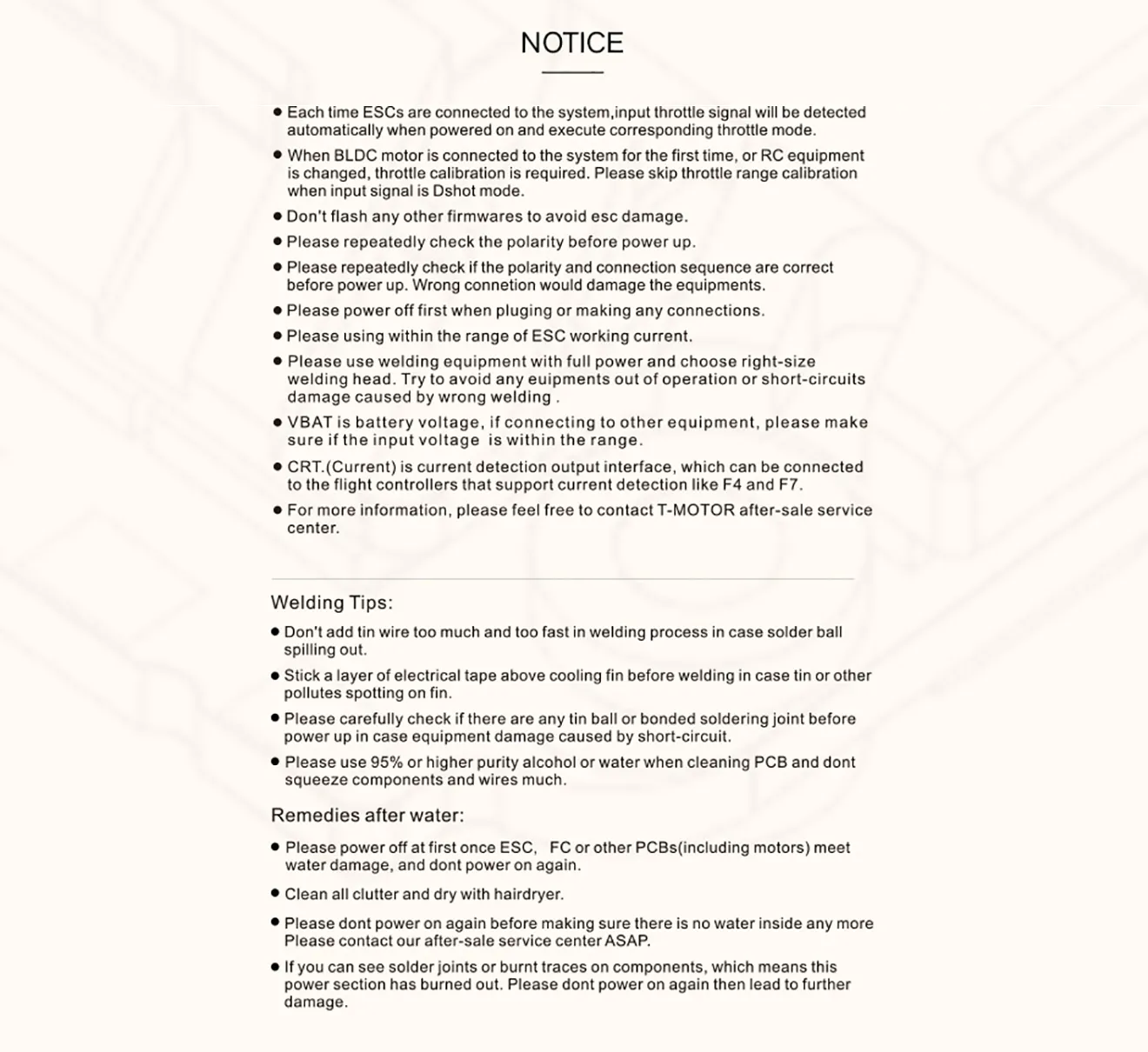

Q: What should I be aware of when using this ESC?
A: The ESC has a mounting hole distance of 30.5*30.5mm and supports a wide voltage input range of 2-6S. Ensure you use a compatible frame and electronic equipment during assembly to avoid installation issues.
