Local warehouse4pcs SZ2306 FPV Motors & 4pairs SZ4942 Propellers FPV Bundle for Freestyle

About 2306 Brushless Motors:

MEPS 2306, renowned for its exceptional quality, boasts a Uni-Bell design with a sunflower appearance, setting it apart with an industry-first fluorescent green color scheme. This robust 6S brushless motor is specifically engineered for FPV racing and freestyle on 5"-6" quadcopters.

To optimize its efficiency, we've integrated N52H arc magnets, surpassing the performance of its predecessor, the N45 magnets, resulting in top-level thrust. The 2306 brushless motor features 220℃ high-temperature resistant military-grade pure copper wire to elevate both the power limit and reliability. Additionally, NMB bearings are strategically employed to extend the lifespan of this exceptional 6S brushless drone motor.

Whether you require a 1750KV, 1950KV, or 2450KV brushless motor for your freestyle drone, the MEPS 2306 brushless motor stands out as an excellent choice. Elevate your flight experience with the smooth and powerful performance of the MEPS 2306 6S brushless drone motor!

Features:

● Application: Perfect suited for 5 inch FPV freestyle drone.

● Unique design: Remarkable durability with a uni-bell covering, and super low cogging torque, achieves the perfect combination of performance and aesthetics.

● Top Material: TC4 reinforced titanium alloy shaft and N52H arc magnets increase efficiency and shorten motor response time, allowing the motor to run as smoothly as silk.

● Freestyle Specialist: Super dynamic balance control (balance value ≤ 3mg) that provides a smooth and responsive flying experience.

● Three KV options available (1750,1950,2450): Different kvs match different batteries and propellers for different flying styles.

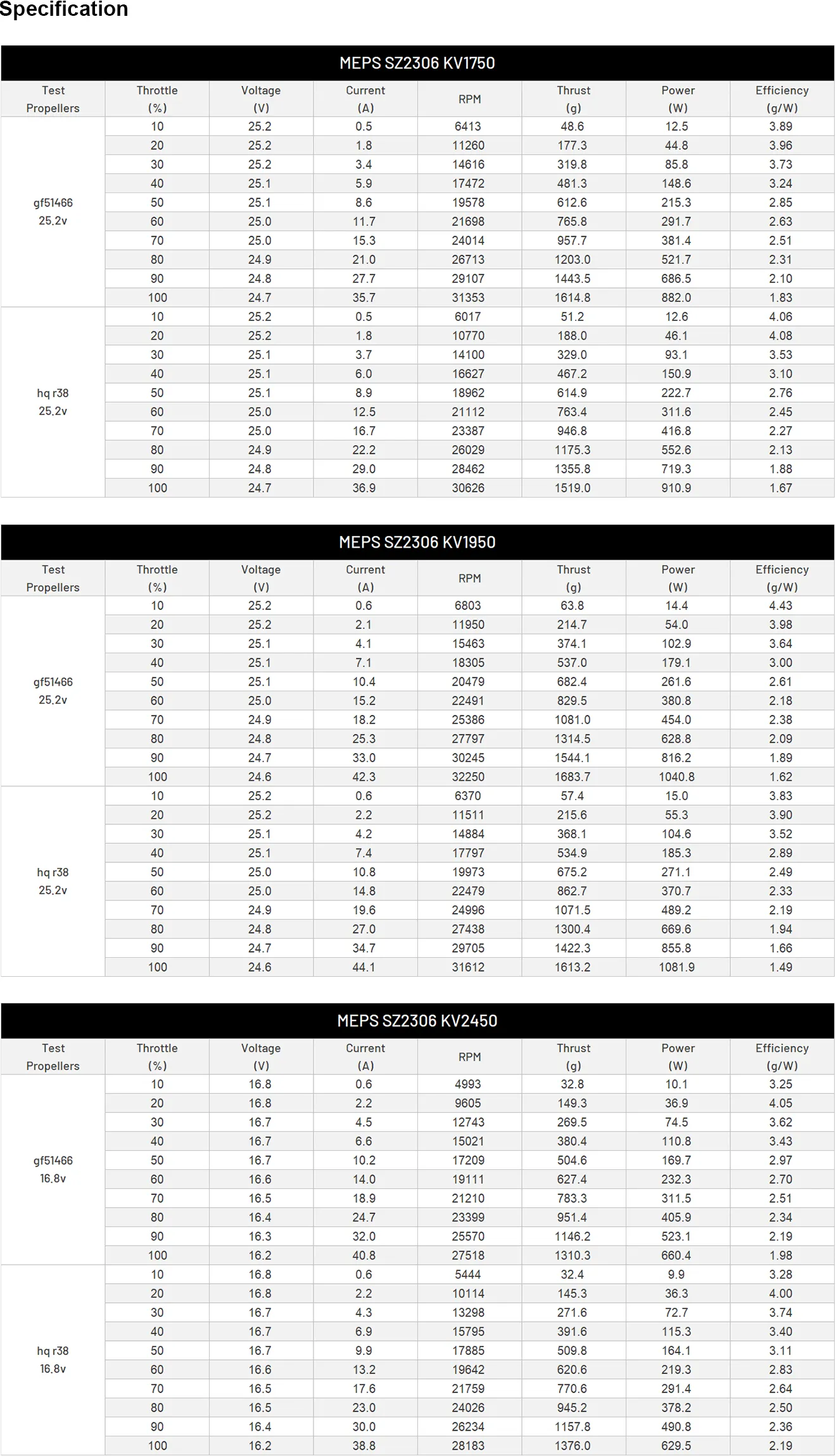

Specification:

● Model: MEPS 2306 freestyle motor

● Color: Cyan/Orange/Grey/Green (optional)

● KV: 1750kv/1950kv/2450kv (optional)

● Materials: 6082 aluminum bell, TC4 reinforced titanium alloy shaft, N52H arc magnets, military-grade high-temperature enameled wire,12.9-grade hexagon socket screws.

● Lead: 20#160mm

● Weight(including cable): 32g

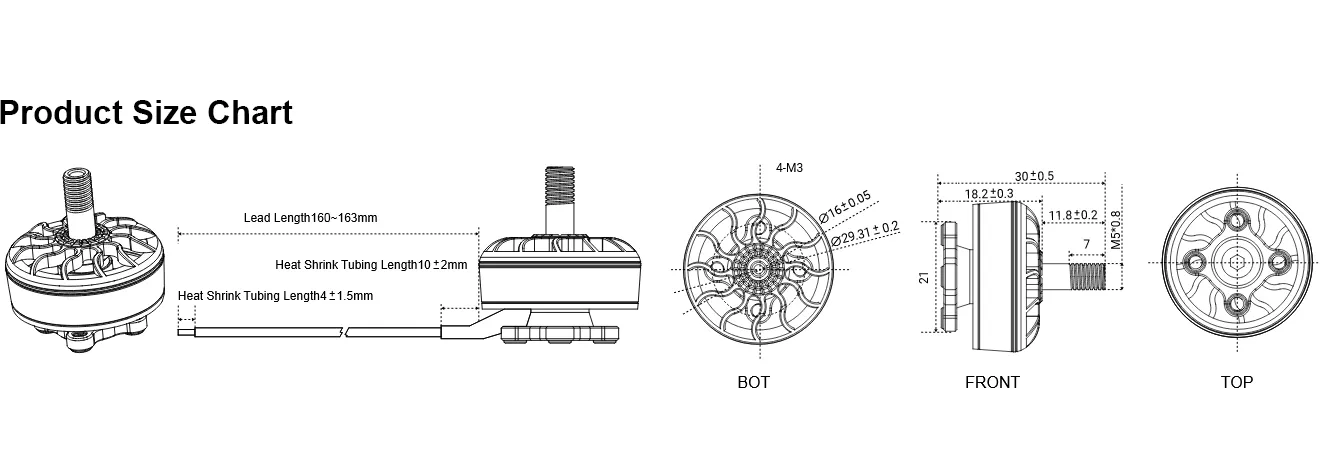

● Motor Diameter: 28.93*31.5mm

● Shaft Diameter: 5mm

● Rated Voltage(Lipo): 6S(1750KV/1950KV), 4S(2450KV)

● Configuration: 12N14P

● Internal Resistance: 72mΩ(1750KV), 68mΩ(1950KV), 48mΩ(2450KV)

● Idle Current(10V): 1.3A(1750KV), 1.5A(1950KV), 2.1A(2450KV)

● Max Power: 910.9W(1750KV), 1081.9W(1950KV), 680.4W(2450KV)

● Model: MEPS 4942 racing propeller

● Color: Grey

● Application: Perfect matching with SZ2207 motors for 5" racing dones, larger pitch for higher speed.

● Dimension: Pitch 4.5 inch, Moungting holes M5.

● Materials:  PC

● Blade: 3

● Weight: 3.7g each

● Model: MEPS Battery Strap

● Color: Green

● Size: 250x20 mm

Product Recommendation:

● MEPS 4942 freestyle FPV propeller

● MEPS F7 MINI flight controller / MEPS F7 flight controller / F7 HD flight controller

● MEPS 45A MINI FPV ESC / MEPS 60A FPV ESC

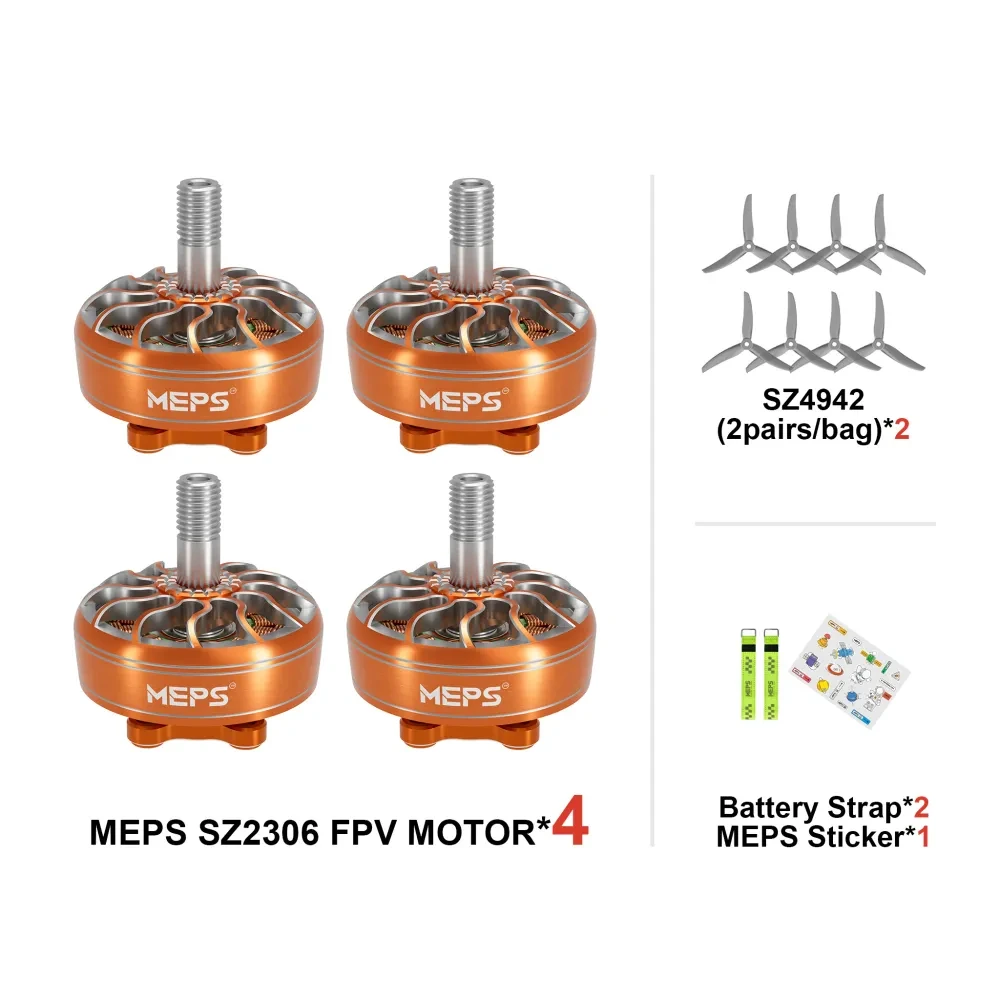

Package Included:

● 4pcs SZ2306 Motors

● 4 Pairs of SZ4942 Propellers

● 2pcs Battery Straps

● 1pc MEPS Sticker
