How does this adapter simplify hybrid FPV setups compared to DIY solutions?

Eliminates complex soldering and voltage regulation - just plug your analog VTX into the DJI Air Unit port. The built-in 10V BEC automatically handles power distribution, reducing setup time from 30+ minutes to under 2 minutes.

Will this work with my DJI O3 Air Unit or just older models?

Fully compatible with all DJI FPV systems including O3 Air Unit, Vista, and original Air Unit (2019). The universal plug design future-proofs your investment.

What's the max power output for the 10V BEC? Can it run my analog VTX + camera?

Delivers 3A continuous current (30W total) - enough to power most analog VTX (200-800mW) plus cameras like RunCam Phoenix or Foxeer Toothless simultaneously.

Does the metal housing actually help with heat dissipation?

Yes! Stress tests show the aluminum casing keeps components 18°C cooler than plastic housings during prolonged use, critical for maintaining stable VTX performance.

Can I use this to add analog backup to my digital-only drone?

Absolutely! The pass-through design lets you keep your HD feed while adding analog - just connect any 5.8GHz VTX to the dedicated port for failsafe redundancy.

Local warehouseT-HOBBY F7 PRO Flight Controller WiFi+Bluetooth For FPV Drones

About T-HOBBY F7 PRO Flight Controller WiFi+Bluetooth For FPV Drones:

Wireless freedom – Optimize and fly directly from your smartphone thanks to integrated Wi-Fi/Bluetooth

T-HOBBY

Pro Pilot’s ChoiceTop RatedCinematic Choice

$20 Off Orders $259+

$10 Off Orders $139+

Collect

$ 89.90 ~~$104.99~~

-14%

5 | 100+Sold

Options (1)

F7 Pro Full Function 30x30

Quantity

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● Dual Connectivity - WiFi & Bluetooth

● STM32F7 chip delivers 216MHz clock speed for ultra-responsive flight control and advanced filtering.

● Supports Betaflight/INAV/ArduPilot with pre-soldered connectors for ESC, GPS, and peripherals.

● Shock-absorbing silicone mounts and conformal coating protect against vibrations and moisture.

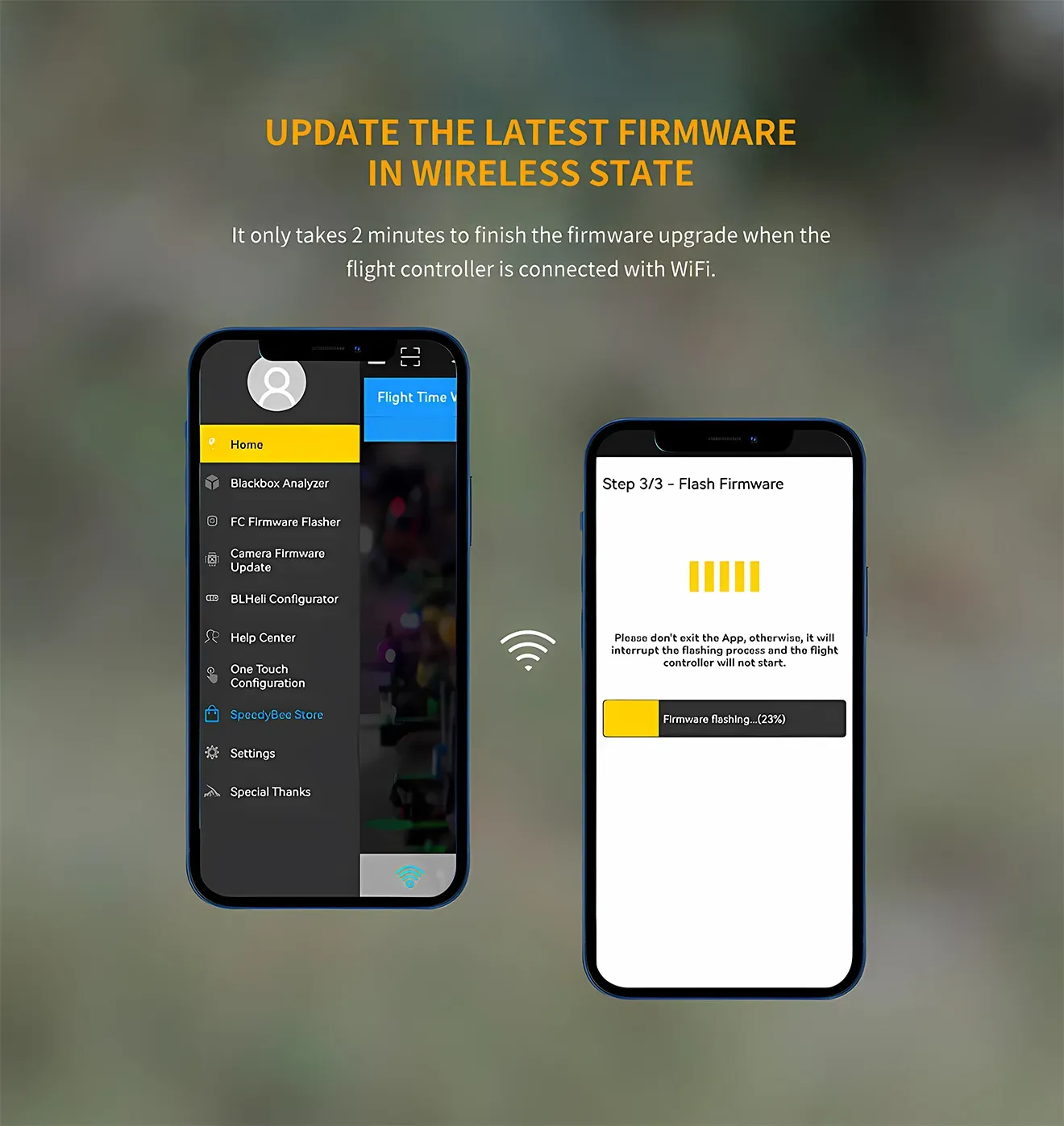

● Firmware updates via WiFi in 90 seconds - stay ahead with latest features without disassembly.

meps t motor t hobby sanrui brands new PC

f7 pro flight controller wifi bluetooth for fpv drones

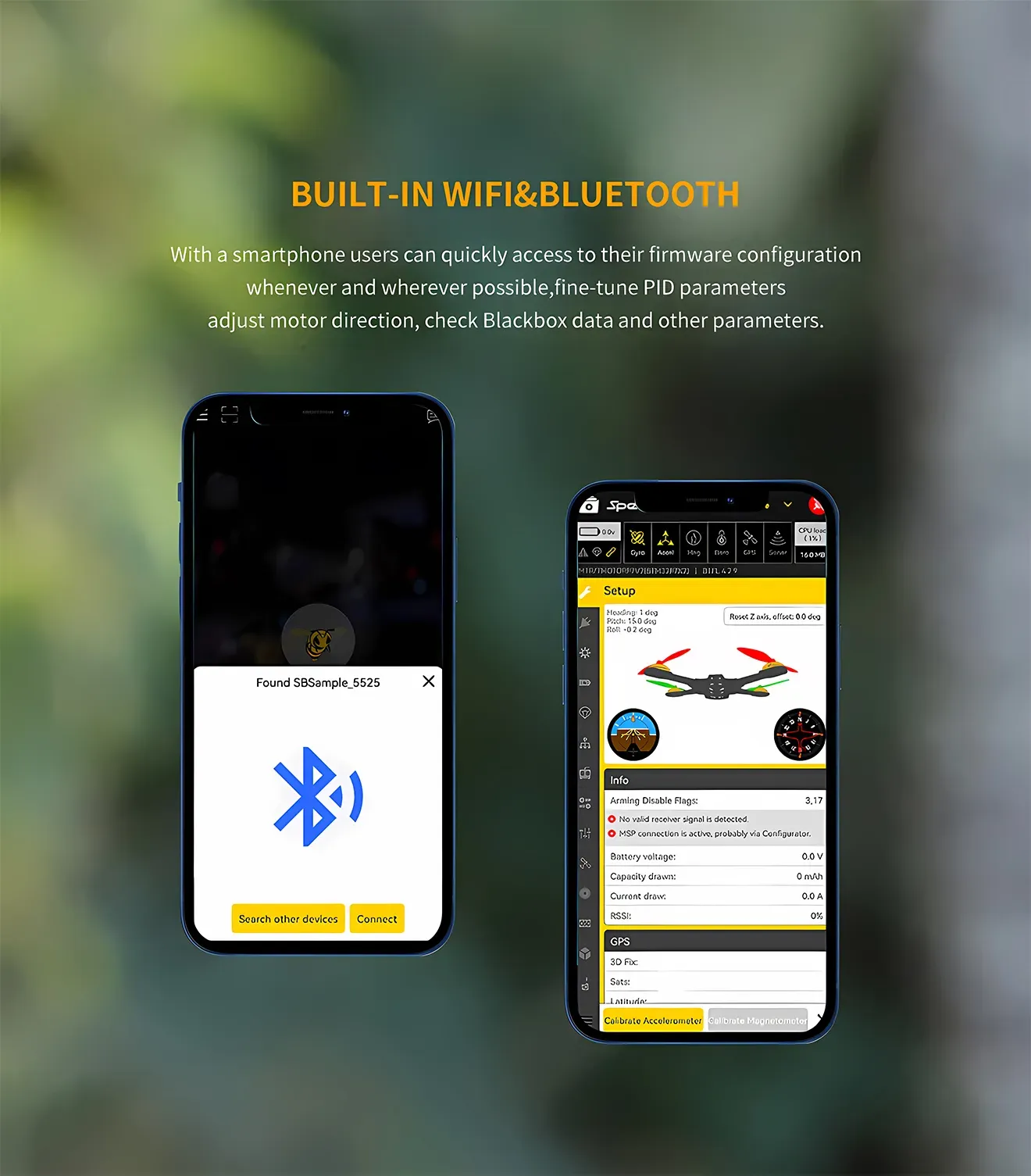

Forget the laptop forever! Our revolutionary integrated dual-band connectivity (Wi-Fi 5 GHz/Bluetooth 5.0) transforms your smartphone into a powerful FPV control center: ① Real-time PID tuning during flight ② Instant motor direction adjustment ③ Anywhere black box data analysis. The intuitive app interface (see image) offers professional control with beginner-friendly simplicity. Never miss a perfect flight moment again – 90% faster setup than via USB cable, with a rock-solid connection up to 150 m range. Your ultimate plug-and-fly experience starts here.

f7 pro flight controller wifi bluetooth for fpv

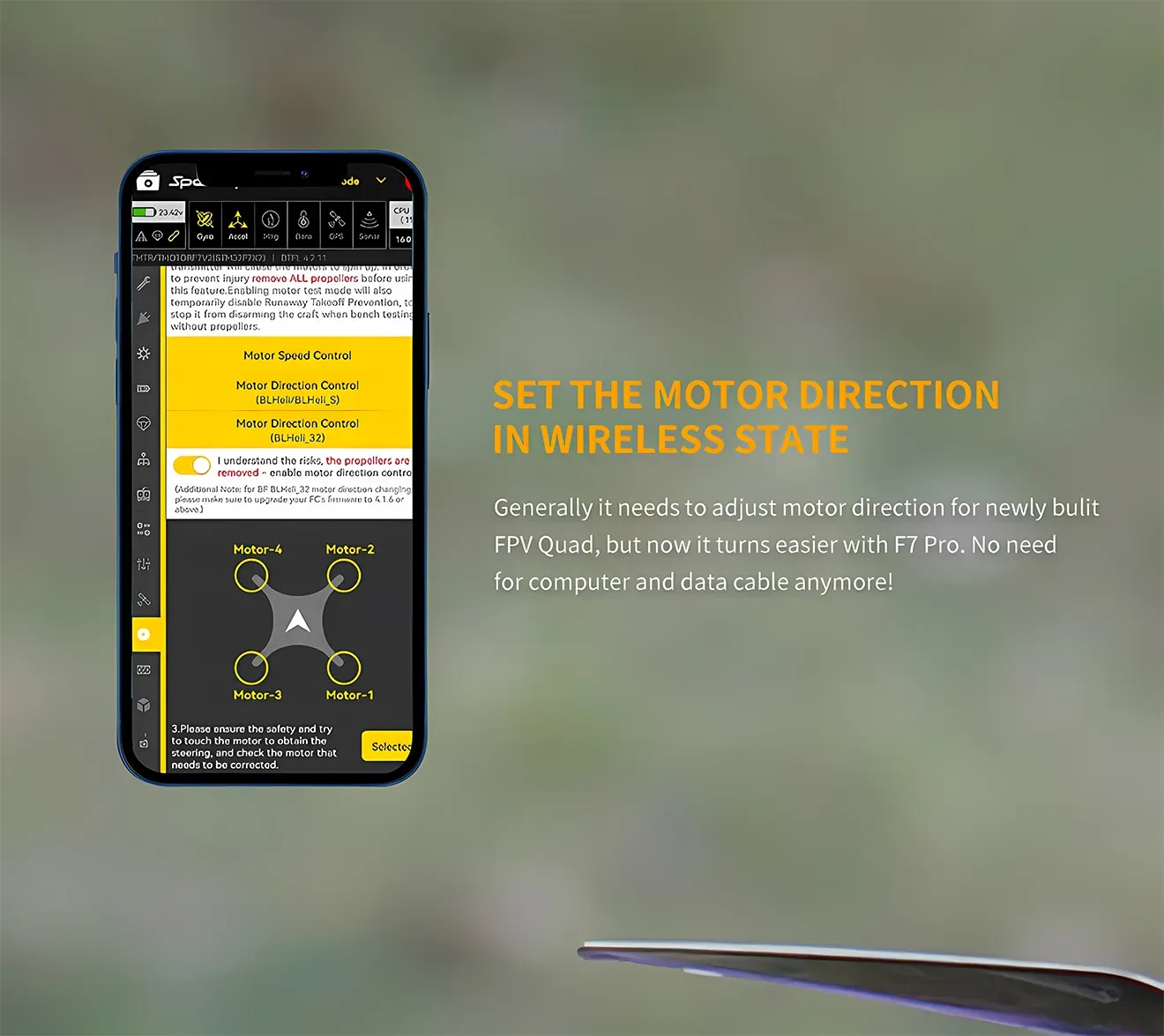

The F7 Pro's groundbreaking wireless technology eliminates the need for cumbersome USB connections – motor direction can now be adjusted via smartphone in less than 30 seconds (compared to over 5 minutes with traditional methods). Our app's intuitive, arrow-guided interface (shown) prevents installation errors, while the instant "save" function securely locks settings. Ideal for on-site repairs or new builds, this feature reduces setup time by 80% and works reliably within a range of 50 m. Fly faster, tinker less!

f7 pro flight controller with wifi bluetooth

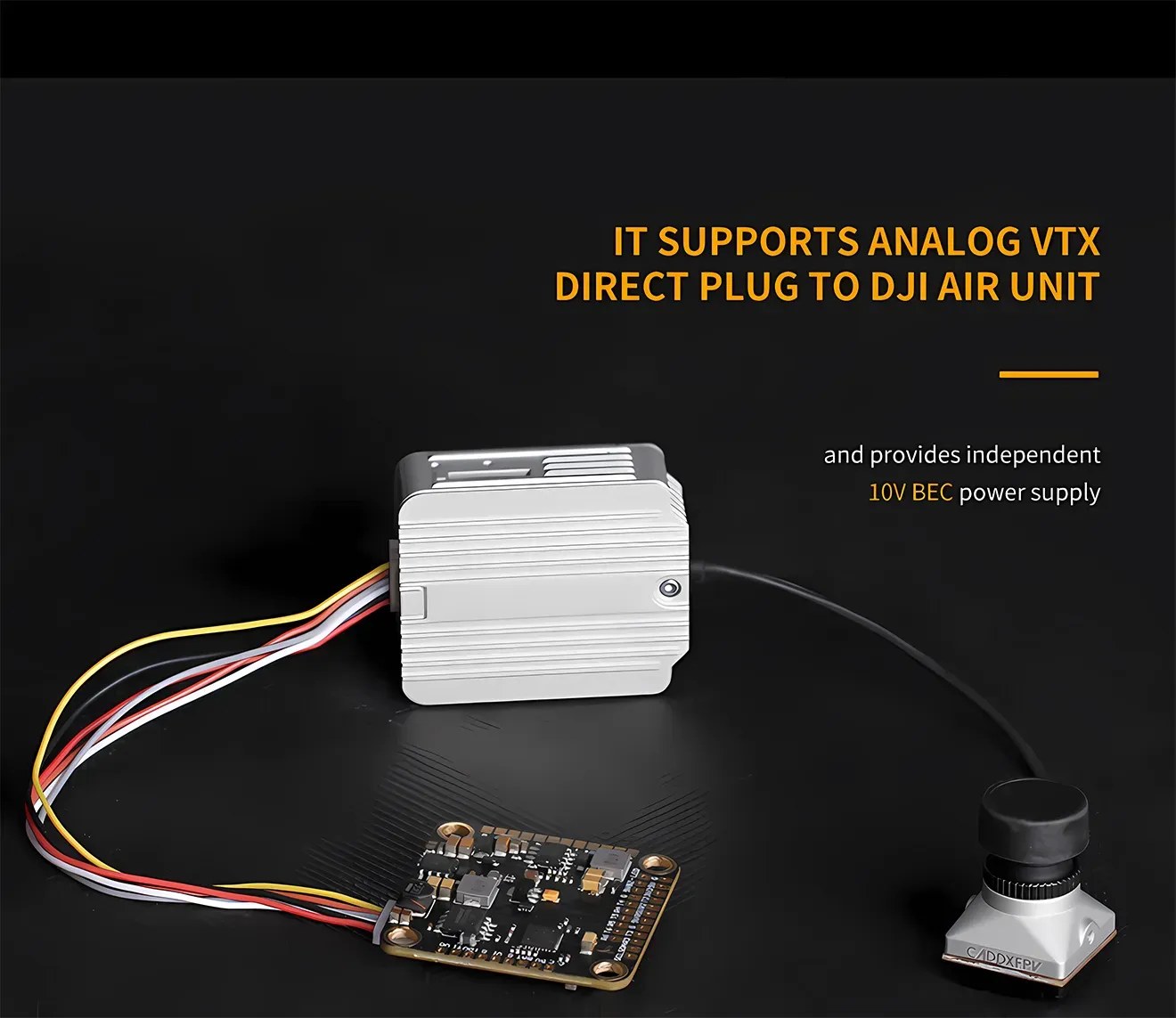

Seamless Analog/Digital Hybrid Setup – Unlock dual video systems with plug-and-play DJI/Analog VTX integration

f7 pro flight controller fpv wifi bluetooth

Specification

Recommendations

Reviews (1)

J***n

Love the WiFi & Bluetooth feature! Setup is so much easier without a cable. Super stable FC, highly recommend.

Model：F7 Pro Full Function 30x30

FAQ Feel free to ask us any questions

ASK A QUESTION
