High-Power Output – Delivers up to 500W in synchronous mode to fast-charge high-capacity batteries and get you back in the air instantly.
Dual-Channel Flexibility – Features two independent ports to charge different battery types at once, eliminating the wait for sequential charging.
Compact & Portable – The ultra-slim, pocket-sized design packs massive power into a small footprint, perfect for field charging and travel.
IPS Wide-Angle Screen – A 2.4-inch high-definition color display ensures crystal-clear visibility of battery data even in bright outdoor light.
Versatile Multi-Tool – Integrated signal tester and DC power modes allow you to test servos and receivers without needing extra equipment.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

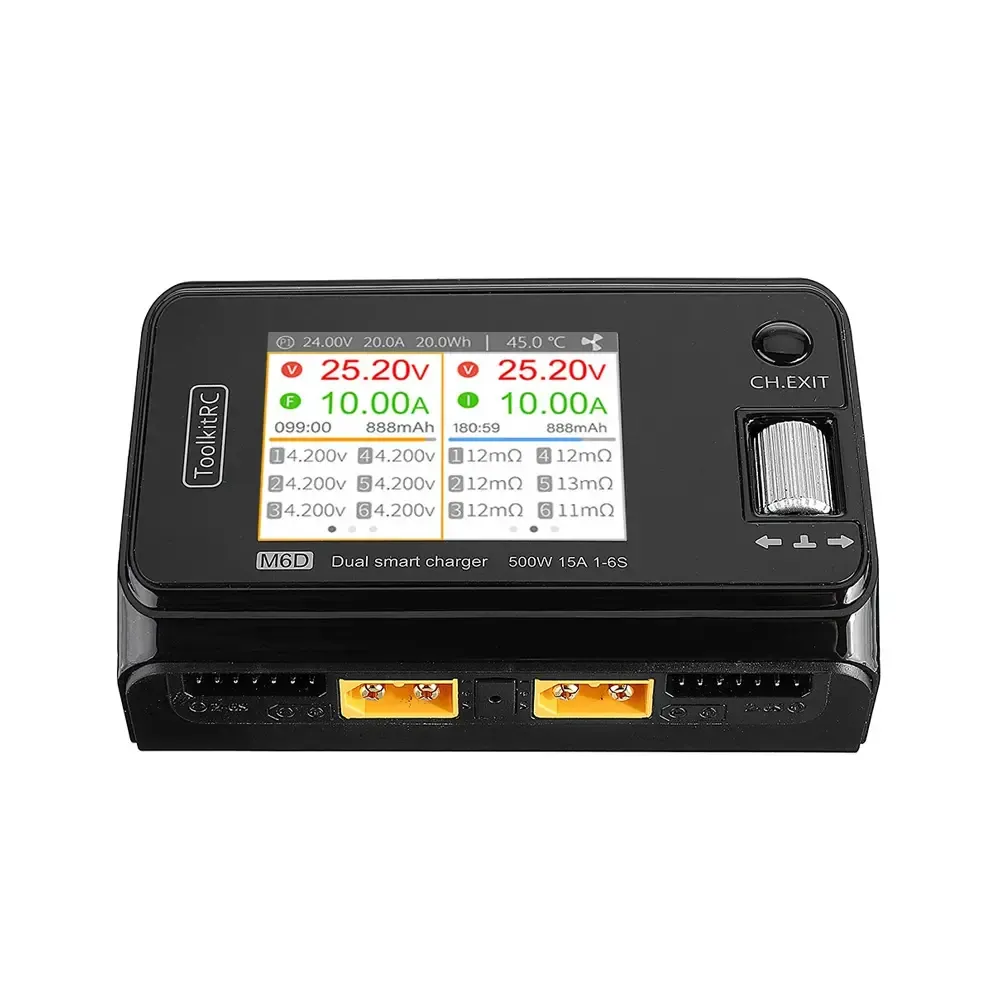

About ToolKitRC M6D 500W 15A 1-6S DC Dual Smart Charger

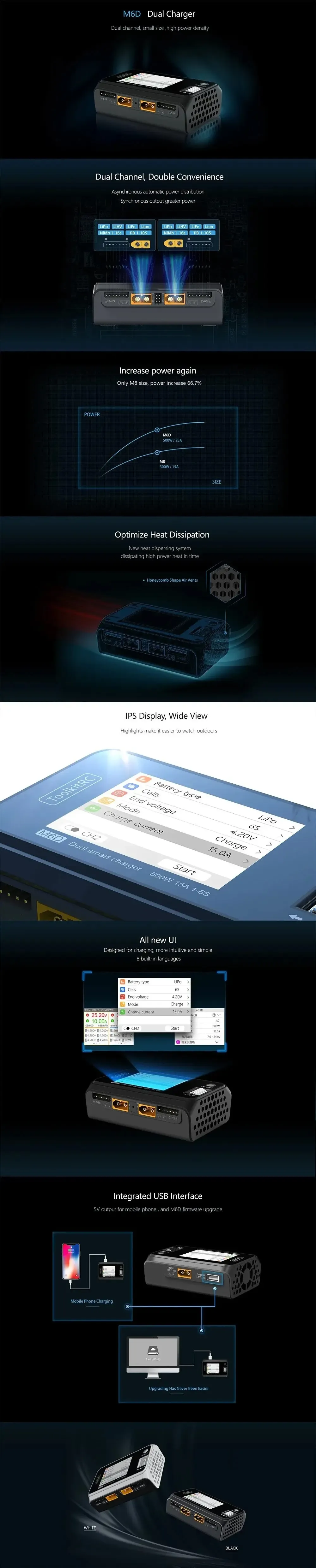

The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat dispersing system to dissipate high power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.
Features
● Dual-channel
● Small size
● High power density
● Optimize heat dissipation
Specifications
● Input: 7-28V@MAX30A
● Battery Type:
LiPo LiHV LiFe Lion@1-6S
NiMh @1-16S Pb @1-10S
● Bal Cur. : 800mA @2-6S
● Accuracy: <0.005V
● Charging Power:
0.1-15A@250W *2（Asynchronous mode）
0.1-25A@500W（Synchronous mode
● Discharging Power:
0.1-15A@250W*2 Recycle Mode
0.1-3A@12W*2 Normal Mode
● USB: 2.1A@5V upgrade@USB3.0
● Battery Voltage: 1.0V-5.0V @1-6S
● Battery Internal Resistance: 1-100mR @1-6S
● Display: LCD IPS 2.4 inch 320*240 resolution
● Size: 98mm*68mm*35mm
● Weight: 220g
● Size: 108.5mm*80.5mm*46mm
● Weight: 300g
Recommendations
Package Includes
Reviews
C************z
Verified
Lo uso para cargar baterías 4S, fácil de usar después de aprender un poco. Funciona bien y carga rápido. Llegó antes de lo esperado y bien protegido.
Specification：M6D
K**********s
Verified
Charging multiple packs at once, works reliably. Took a bit to learn menus but overall very capable. Shipping info was clear.
Specification：M6D
J**********e
Verified
Fonctionne bien. Livraison rapide.
Specification：M6D
N************t
Verified
Je l’utilise pour charger mes batteries 4S, assez simple après prise en main. Fonctionne bien. Mepsking propose pas mal de choix, j’ai trouvé facilement.
Specification：M6D
FAQFeel free to ask us any questions
ASK A QUESTION
Q: Does the ToolkitRC M6D have a built-in power supply?
A: No, the M6D is a DC charger, meaning it requires an external power source (such as a large battery or a DC power brick) with an input voltage of 7-28V.
Q: Can the M6D charge two different types of batteries at the same time?
A: Yes! In asynchronous mode, the two channels operate independently, allowing you to charge different cell counts (e.g., 3S and 6S) or different battery chemistries (e.g., LiPo and LiFe) simultaneously.
