GEPRC MATEN 5.8G 2.5W VTX PRO für FPV-Drohne mit großer Reichweite
About GEPRC MATEN 5.8G 2.5W FPV VTX PRO
The MATEN 5.8G 2.5W FPV VTX PRO high-power image transmission newly developed by the GEPRC team is now officially released. Performance of FPV video transmitter is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.
The unique appearance design and active fan cooling of FPV long range drone VTX provide stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. The built-in microphone can transmit the sound of the FPV drone in real time.
Features:
● High Power Transmission
● Adjustable Power Levels
● Robust Design
● Versatile Compatibility and Control
● Wide Compatibility and Installation Flexibility
Specifications:
● Model：GEPRC MATEN 5.8G 2.5W VTX PRO
● Size：36.3×36.3×15.1mm
● Mounting hole：20x20mm(M2),30.5×30.5mm(M2)
● Output power：25mW/200mW/600mW/1600mW/2500mW/Pit mode
● Frequency：5.8G
● Channel：72CH
● Input voltage：DC7-36V（2-8S Battery）
● Output voltage：5V@600mA
● Protocol：IRC Tramp
● Antenna interface：MMCX
● Cable interface：SH1.0 6pin
● Video format：PAL/NTSC
● Microphone: Built in microphone
● Weight：20g

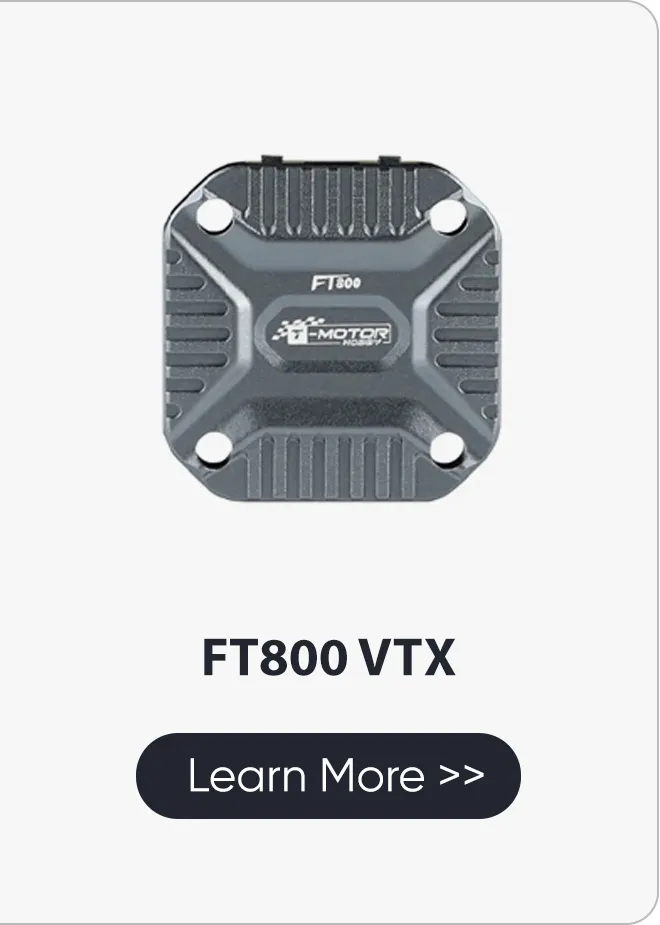

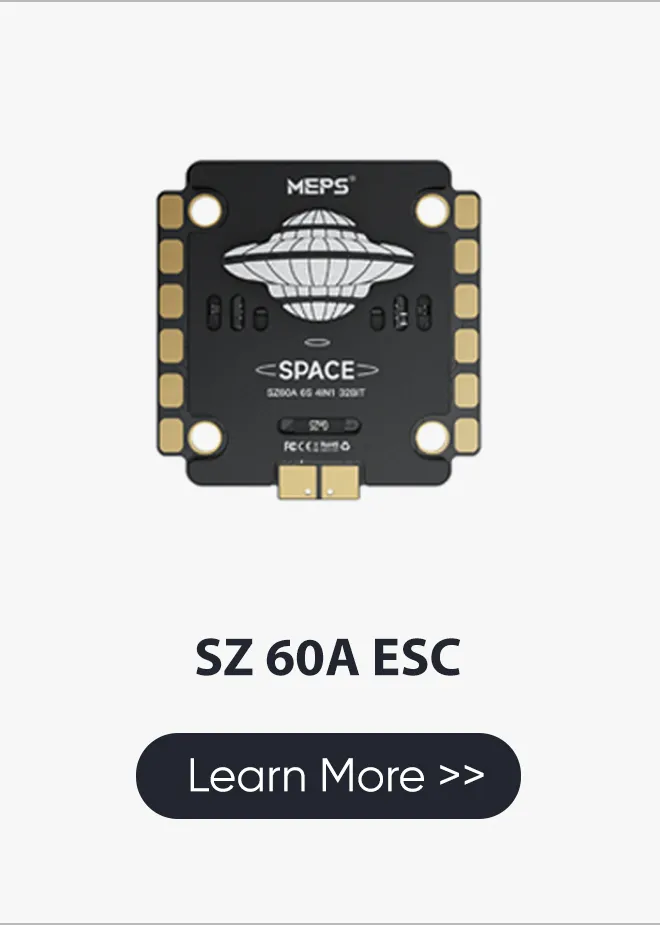

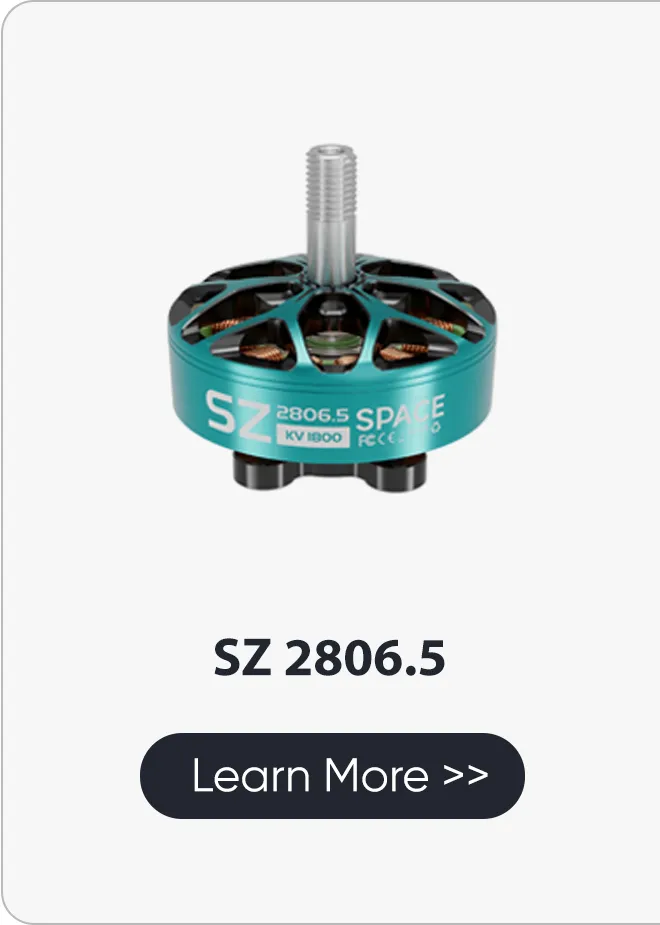

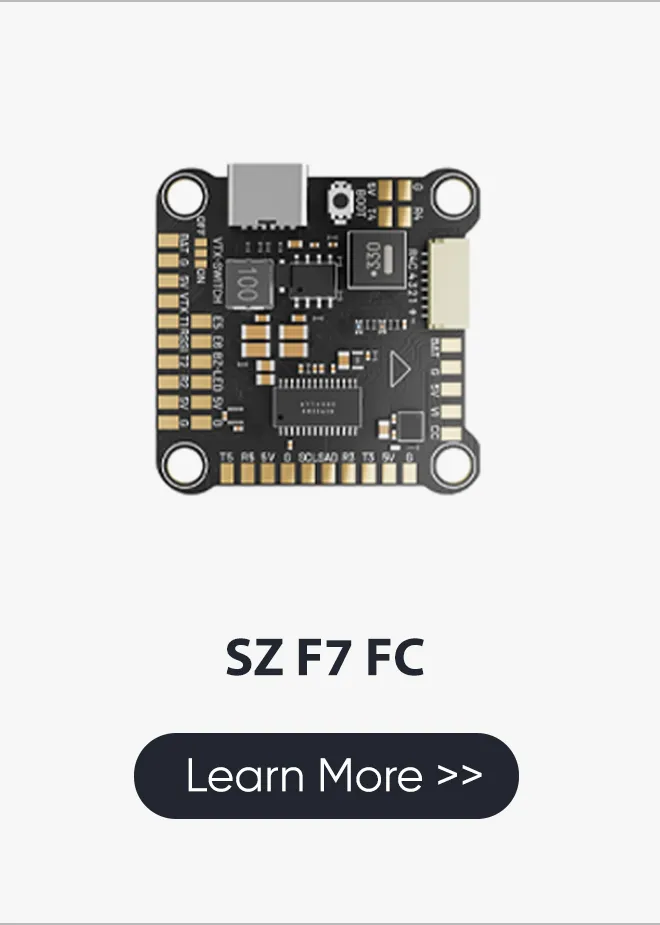

Product Recommendation:
Package included:
● 1 x GEPRC MATEN 5.8G 2.5W VTX PRO
