What components are integrated in this AIO board?

It includes an F411 FC, 6A 1S ESC, SPI ELRS 2.4 GHz receiver, and a 50 mW analog VTX in one board.

What firmware is used for the ESC?

It uses Bluejay firmware, which supports bidirectional DShot and up to 96 kHz PWM frequency for smoother motor response.

What gyro and MCU are used on this board?

The flight controller uses an STM32F411 MCU coupled with a BMI270 gyro.

T-HOBBY F411 1S 6A AIO Flight Controller for Tinywhoop

About T-HOBBY F411 1S 6A AIO Flight Controller for Tinywhoop :

The T-Hobby F411 AIO 1S 6A flight controller ELRS VTX Bluejay is a compact all-in-one board with plug-and-play motor support, built-in 6A ESC, ELRS RX, 50 mW VTX, and OSD — ideal for tinywhoop builds.

T-HOBBY

Sales：0Pcs

$59.92

~~$74.90~~

-20%

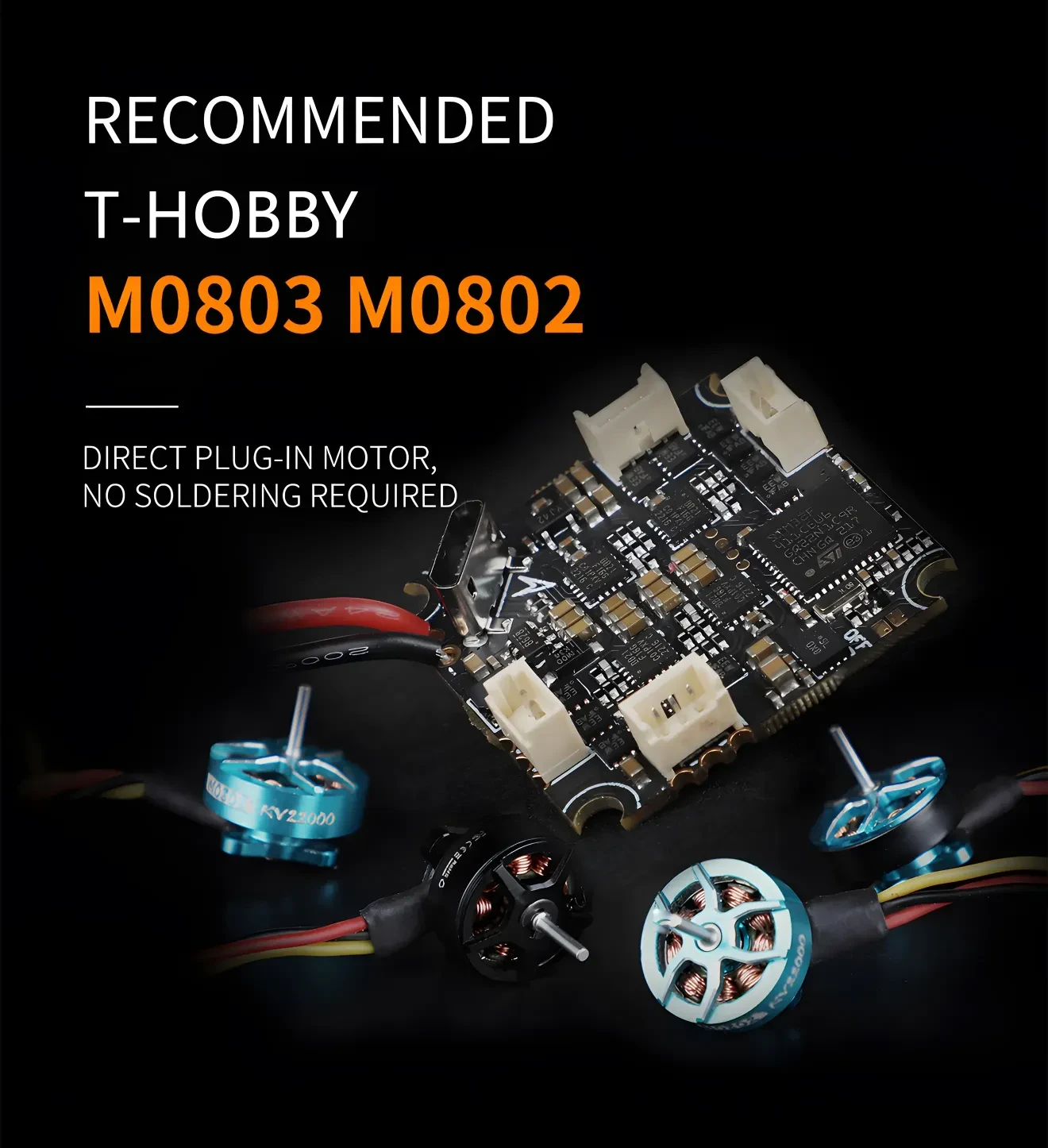

● Plug-&-Play Motor Interface

● Integrated 6A 4-in-1 ESC (1S)

● Built-in ELRS 2.4 GHz Receiver

● 50 mW Analog VTX + OSD

● Bluejay Firmware + High PWM

Learn more

Options (1)

Quantity

In Stock Expected ship within 48 hours after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

meps t motor t hobby sanrui brands new PC

All-in-One Simplicity

This F411 AIO integrates flight control, 6A ESCs, ELRS receiver, and VTX in one compact board—just solder your camera to build a complete whoop drone in minutes.

null

F4 Power, Compact Footprint

The STM32F411 FC chip delivers robust processing in a small, low-heat design—ideal for efficient 1S builds where space and reliability matter most.

null

All-in-One 1S Powerhouse

This integrated AIO comes pre-flashed with Bluejay firmware, boosting efficiency by 20% for optimized 1S performance right out of the box.

null

Integrated ELRS 2.4G Receiver

Features an SPI-integrated ELRS 2.4G receiver with on-board antenna for faster response, compact size, and robust signal reliability in a streamlined 1S AIO design.

null

Integrated 50mW Analog VTX

Featuring a built-in 50mW video transmitter with UFL connector for flexible antenna upgrades, this AIO eliminates external VTX wiring while maintaining clear analog video transmission.

null

Integrated Analog VTX OSD for Real-time Flight Info

T-Hobby F411 1S 6A AIO ELRS VTX BLUEJAY features an on-board OSD chip, allowing you to check crucial flight data in real time for a smarter, more intuitive flying experience.

null

Accessories

null

Recommendation
