Q:What are the characteristics of this motor?

A:The 2306 motor is suitable for most five-inch airplanes for racing or fancy flight, it is a cost-effective motor with excellent quality and unobtrusive appearance, as well as a good anti-collision and anti-drop ability.

Q:What kind of propellers, ESCs and flight controls does the SZ2306 motor fit?

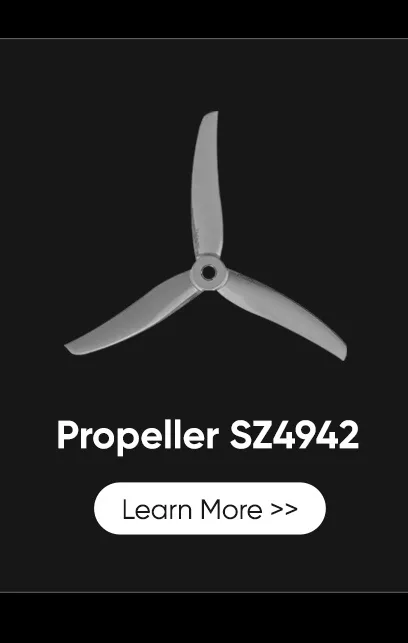

A:SZ2306 motor is suitable for 5-6 inches blade, 45A ESC and MEPS F7/F7HD FC or MINI SZ45A ESC and MEPS F7 MINI.

Q:What kind of LiPo battery can be used for SZ2306 motor?

A:We recommend using 6S lithium batteries for 1750kv and 1950kv, and 4S lithium batteries for 2450kv.

Q:What scenarios is the motor suitable for?

A:1750kv is suitable for long-distance range, power saving and easy to maneuver, the best choice for shooting. The 1950kv has high explosive power and is suitable for racing flights and violent flower flights. 2450kv is suitable for 4s batteries and can fly smoothly under 4s voltage.

Q:What's the problem of high-frequency shaking in flight after the motor is energized?

A:This is due to the high PID parameter of the flight control, you can try to reduce the I value and D value.

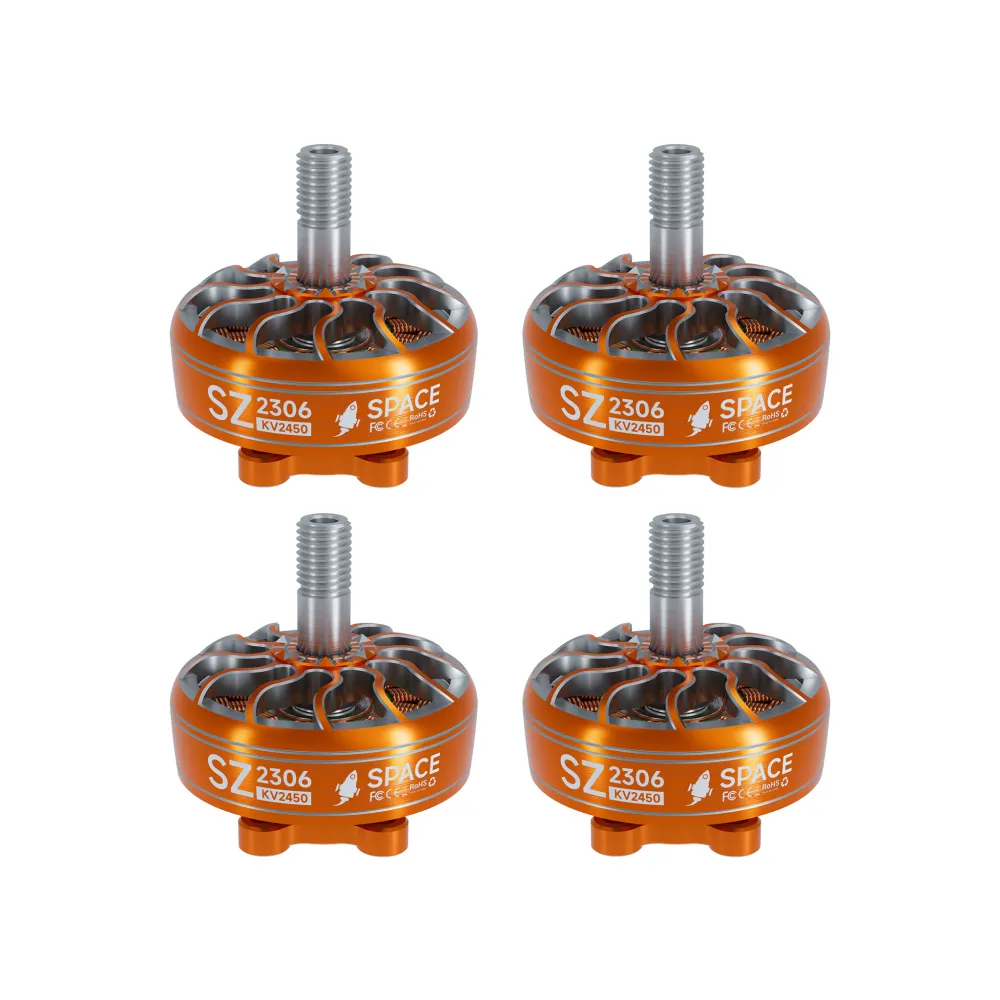

4pcs-sz2306-2450kv-fpv-brushless-motors-orange

Photos
Videos

SZ2306 2450KV Brushless Motor Freestyle 5inch FPV Build

Sales：66Pcs

$79.96

● 2450KV with high efficiency.

● Package Included: 4PCS/2PCS SZ2207 FPV Motors.

Learn more

Options (4)

4pcs-sz2306-2450kv-fpv-brushless-motors-grey

4PCS* 2450KV / Cool grey

4PCS* 2450KV / Orange

2pcs-sz2306-2450kv-fpv-brushless-motors-grey

2PCS* 2450KV / Cool grey

2pcs-sz2306-2450kv-fpv-brushless-motors-orange

2PCS* 2450KV / Orange

Quantity

In Stock Expected ship within 48 hours after order.

Free Shipping | For order over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 30 days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

Reviews

FAQ

Description of 2306 Brushless Motors:

Upgrade your drone with the MEPS SZ2306 Brushless Motor for fast, precise control. Its durable TC4 titanium alloy shaft and NMB ball bearings ensure a long lifespan. With a dynamic balance value ≤3mg, enjoy a smooth flight experience. The N52H arc-shaped curve magnets enhance efficiency and stability. SZ2306 FPV motor's lightweight Uni-Bell design with a sunflower appearance and fluorescent green color combines performance and aesthetics. Ideal for brushless motors and drone motors.

Package Included：

2pcs/4pcs * SZ2306 FPV Motors

sz2306-fpv-brushless-motors-with-4-colors-and-high-power

sz2306-fpv-brushless-motors-takeoff-at-top-speed

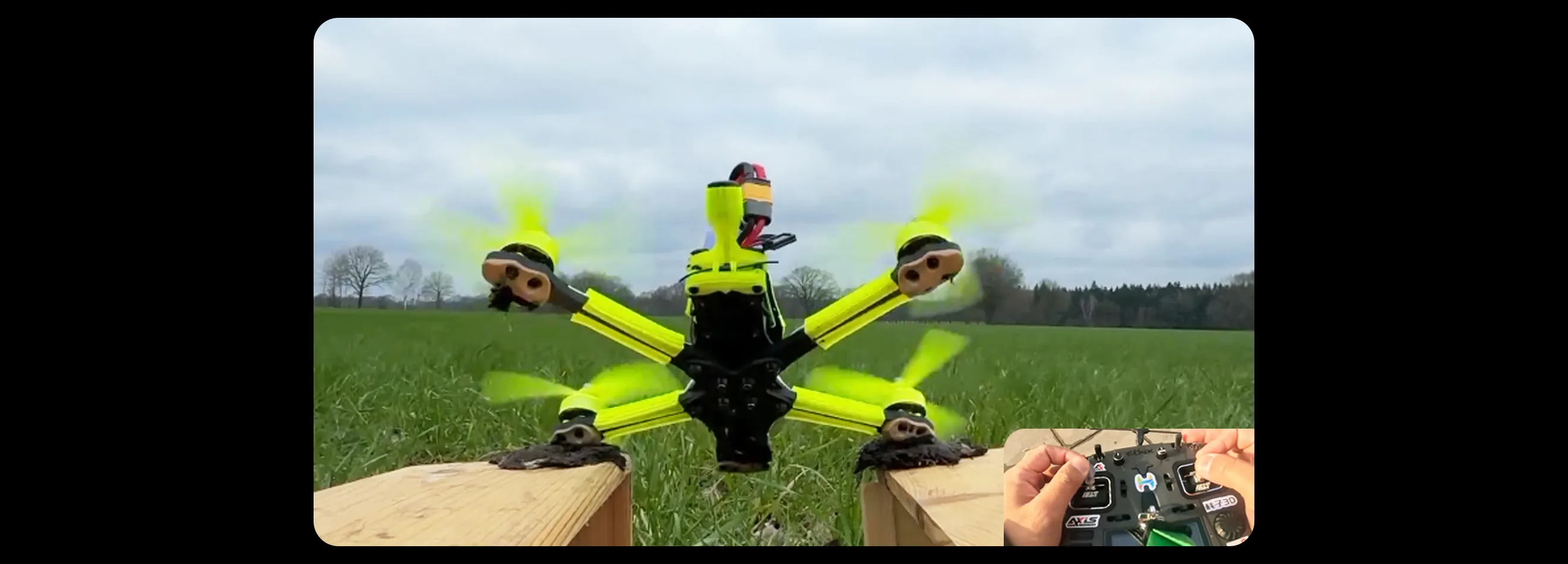

sz2306-fpv-brushless-motors-quick-takeoff

sz2306-fpv-brushless-motors-easily-unlock-freestyle-tricks

sz2306-fpv-brushless-motors-easily-unlock-gaps-dives

sz2306-fpv-brushless-motors-longer-flight-time

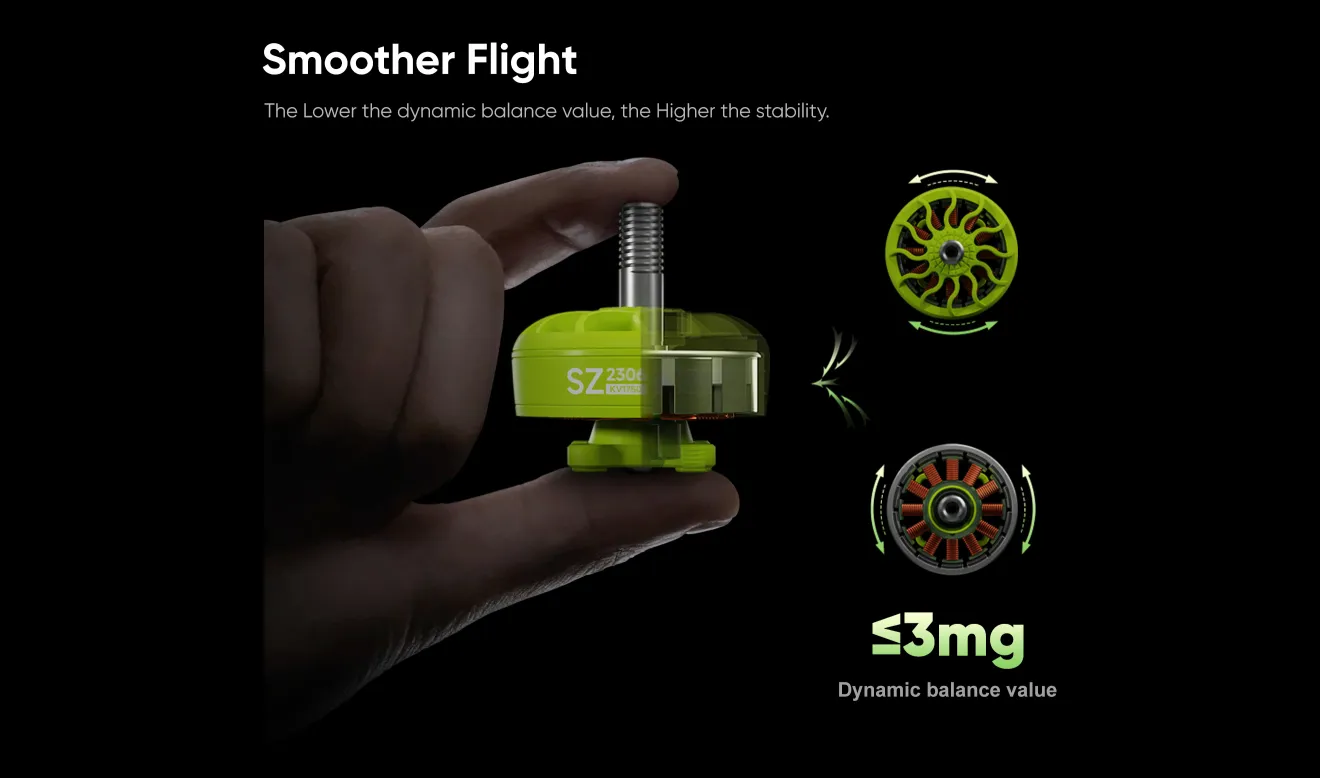

sz2306-fpv-brushless-motors-smoother-flight

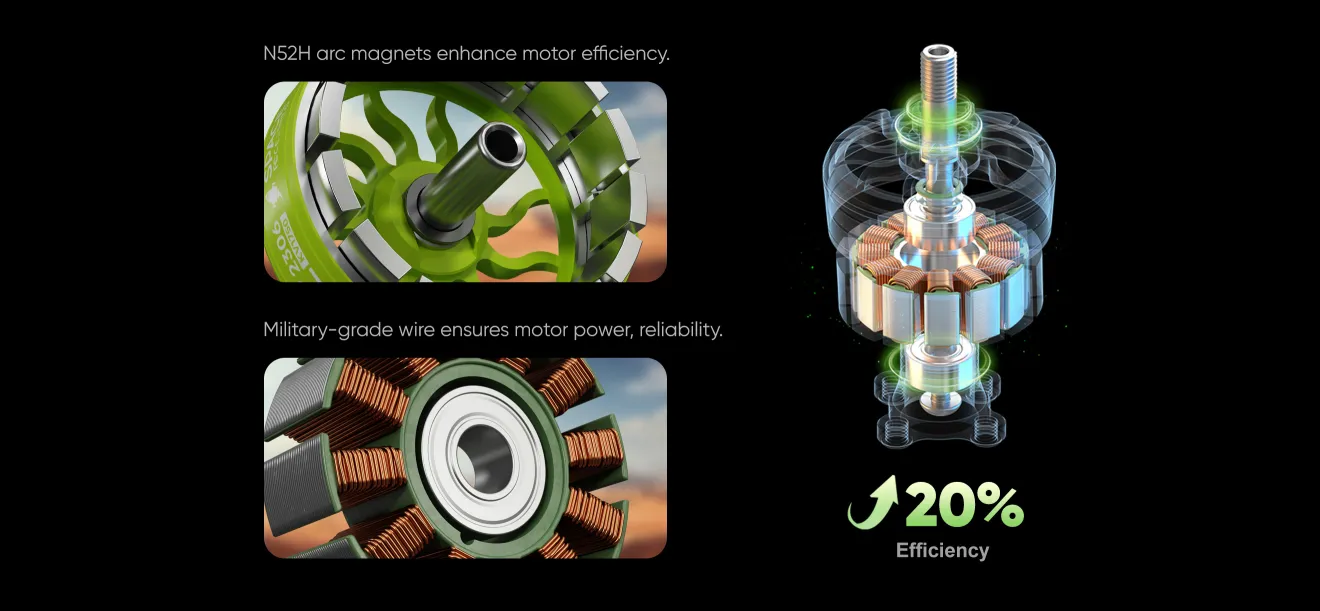

sz2306-fpv-brushless-motors-smoothness-by-20

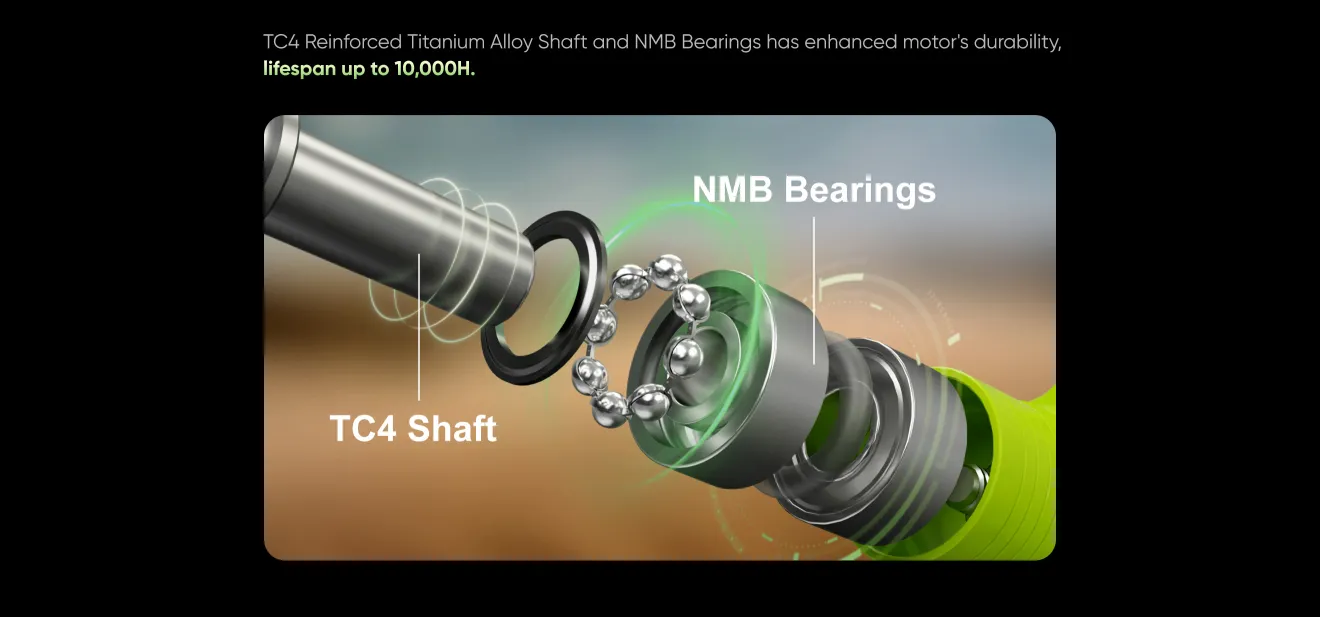

sz2306-fpv-brushless-motors-lifespan-up-to-10000h

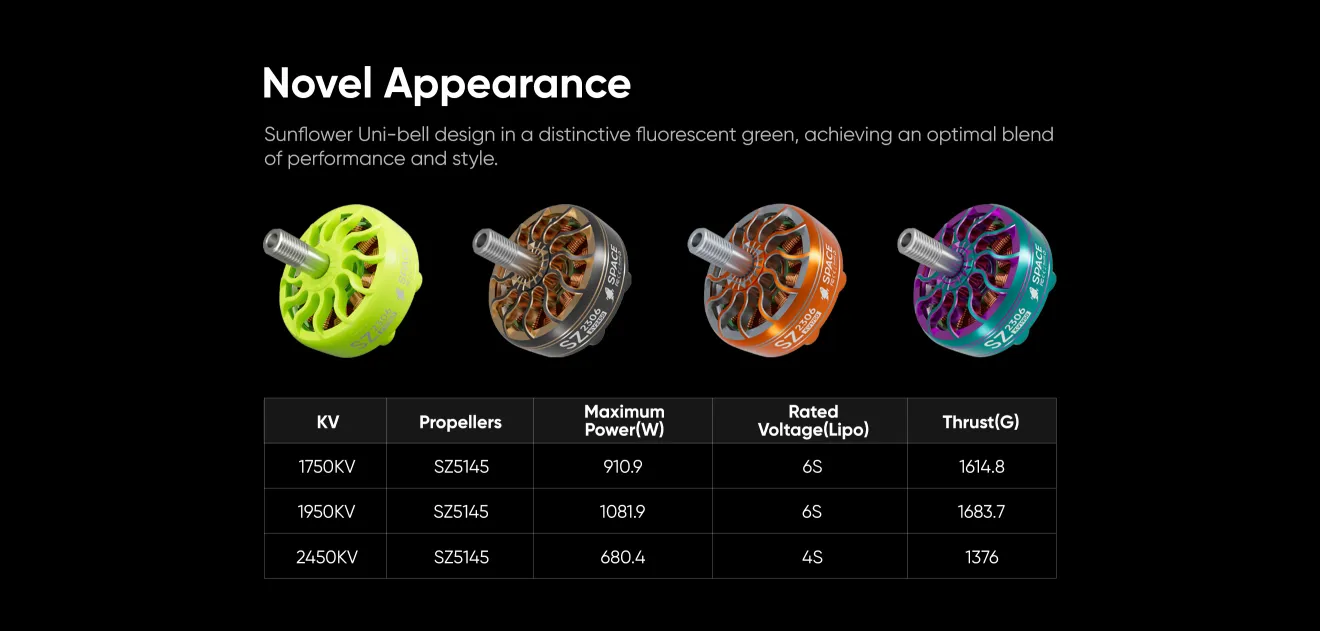

sz2306-fpv-brushless-motors-4-colors-4-kvs

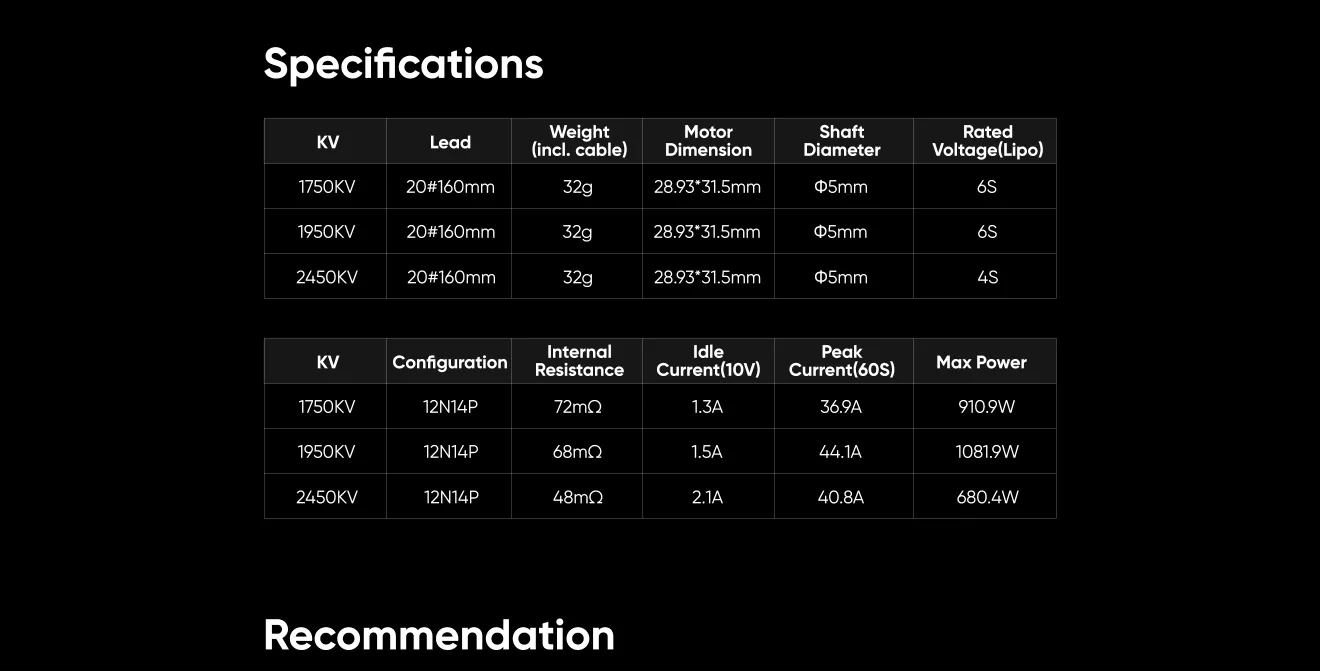

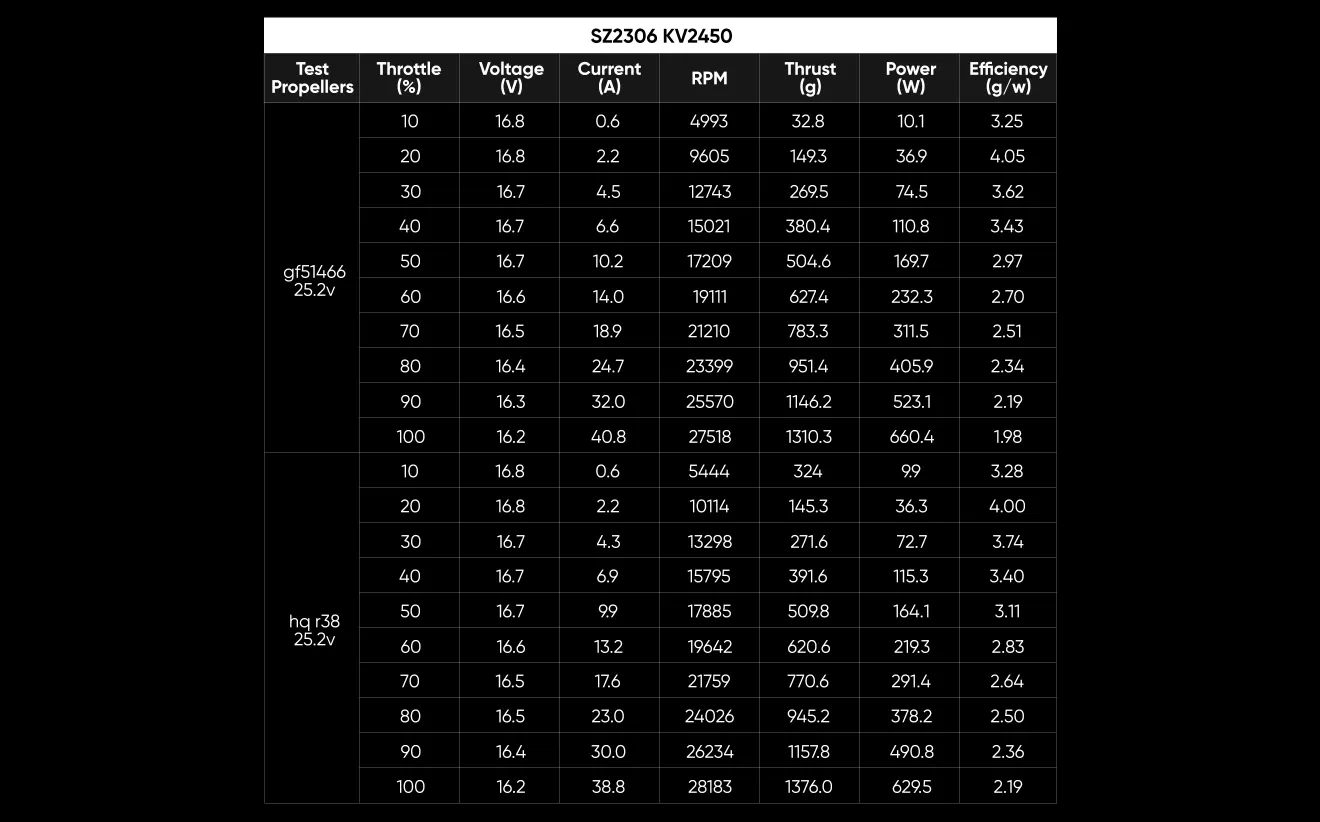

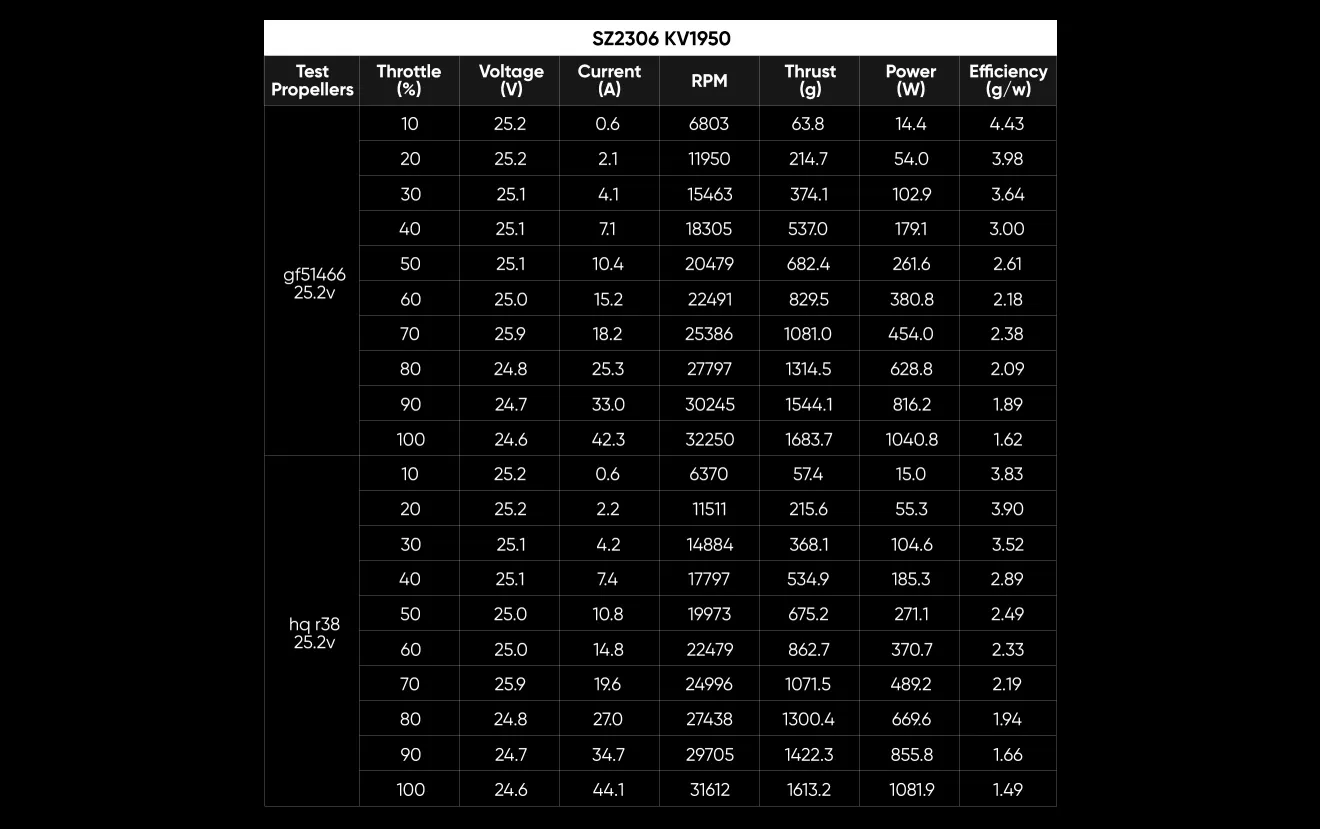

sz2306-fpv-brushless-motors-specifications-chart

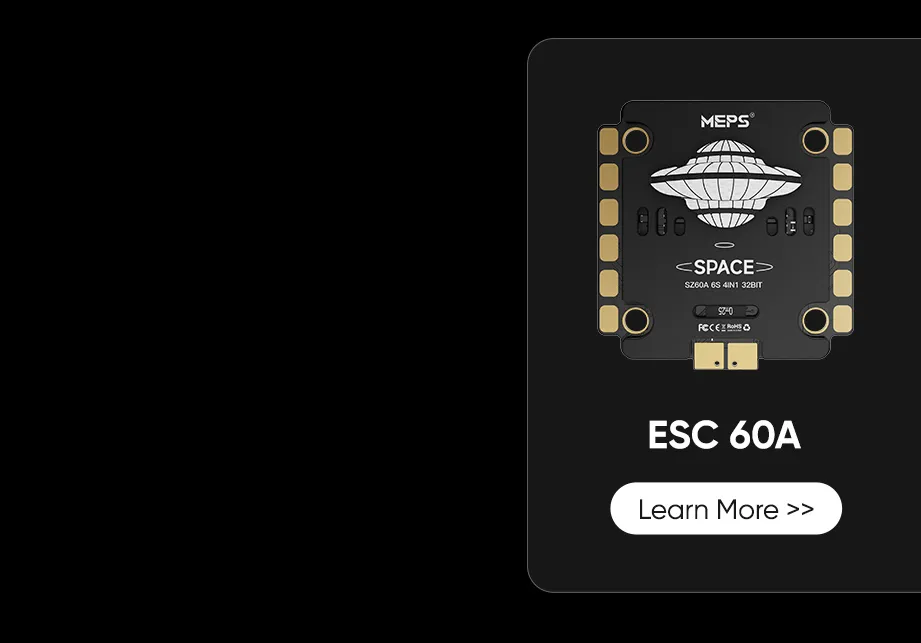

sz2306-fpv-brushless-motors-recommend-60a-esc

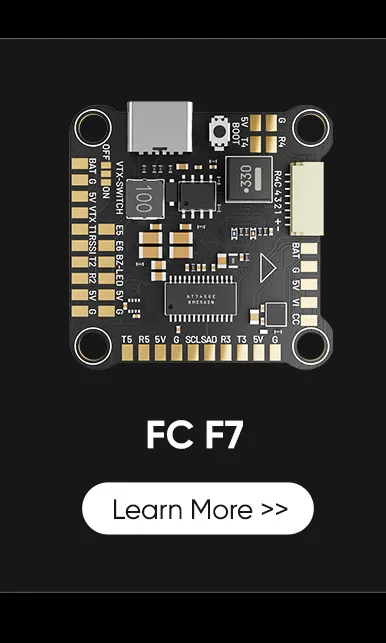

sz2306-fpv-brushless-motors-recommend-f7-fc

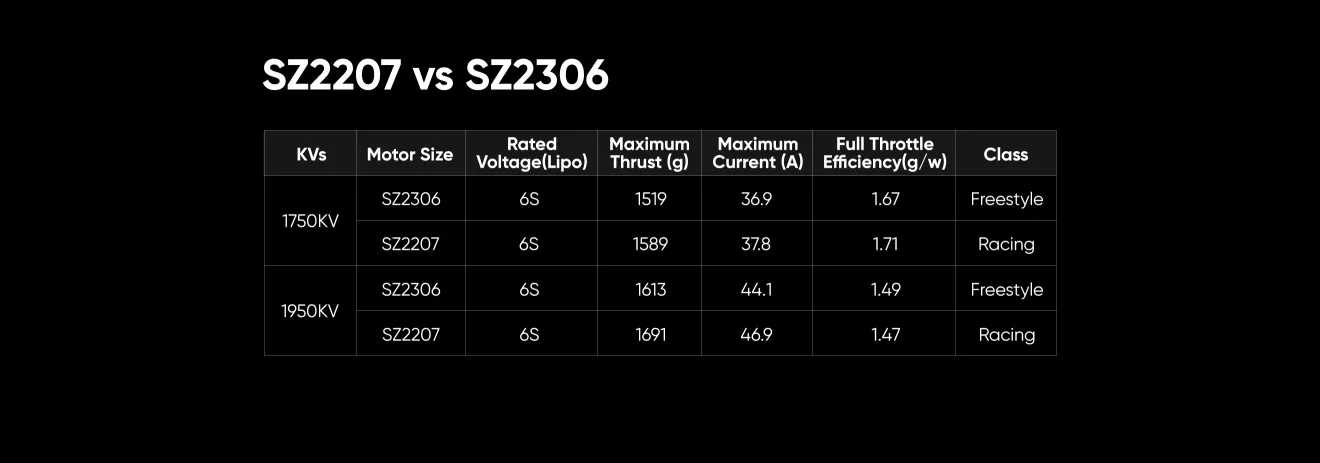

sz2306-fpv-brushless-motors-vs-sz2207-fpv-brushless-motors

KV	1750	1950	2450
Lead	20#160mm	20#160mm	20#160mm
Weight(incl. cable)	32g	32g	32g

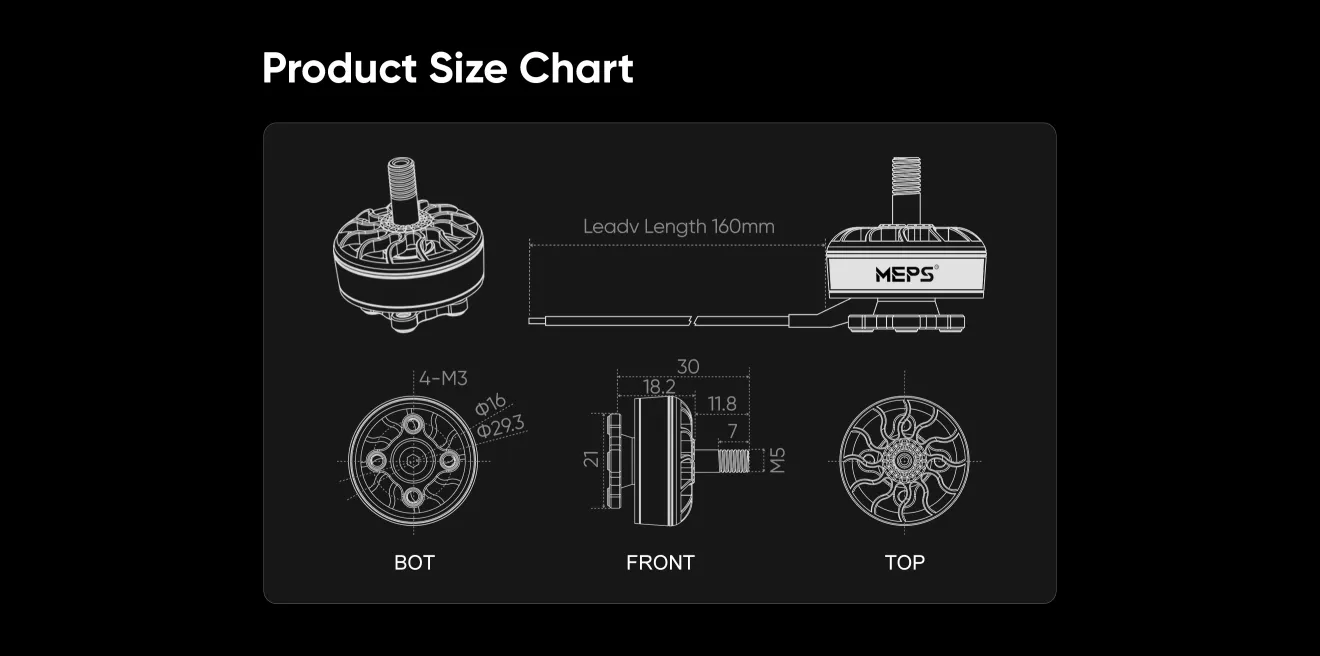

Motor Dimension	28.93*31.5mm	28.93*31.5mm	28.93*31.5mm
Shaft Diameter	φ5mm	φ5mm	φ5mm
Rated Voltage(Lipo)	6S	6S	4S
Configuration	12N14P	12N14P	12N14P
Internal Resistance	72mΩ	68mΩ	48mΩ
Idle Current(10V)	1.3A	1.5A	2.1A
Peak Current(60S)	36.9A	44.1A	40.8A
Max Power	910.9W	1081.9W	680.4W
