NewiFlight BLITZ F7 V1.2 Flight Controller – F722 & DJI Plug-and-Play for FPV Racing

About iFlight BLITZ F7 V1.2 Flight Controller：

The BLITZ F7 V1.2 Flight Controller from iFlight is designed for pilots who demand precision, stability, and clean digital integration. Powered by the high-performance STM32 F722 processor and upgraded ICM42688 gyro, it offers faster processing speeds and improved vibration resistance for smoother, more locked-in flights.


The integrated DJI HD VTX connector enables true plug-and-play digital builds, reducing soldering work and minimizing wiring errors. A refined power layout with LC filtering helps eliminate electrical noise that can cause video interference or unstable performance. With 6 UART ports and onboard 32MB Blackbox storage, this flight controller gives advanced pilots full flexibility for racing, freestyle, or cinematic FPV builds.

iFlight
$25 Off Orders $369+
$15 Off Orders $249+
Collect
$ 62.99
4.8 | 100+Sold
Options (1)
blitz f7 v1.2 flight controller green
BLITZ F7 V1.2 Flight Controller
Quantity
pilot gift days pc gift
In Stock Expected ship within 5 days after order.
Estimated Transit Time: 5-15 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Powerful STM32 F722 Processor ensures ultra-fast loop times and stable performance for aggressive FPV flying.
ICM42688 Gyro delivers smoother signal filtering and reduced vibration interference for cleaner flight control.
Native DJI HD VTX Plug-and-Play Port eliminates complex soldering and speeds up digital FPV builds.
6 Dedicated UARTs allow flexible expansion for GPS, receivers, telemetry, and more.
Built-in 32MB Blackbox + LC Filter provides clean power delivery and detailed flight data logging for tuning.
Payment | Every order you place with us is safe & secure
Share
Copy

Specifications:

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

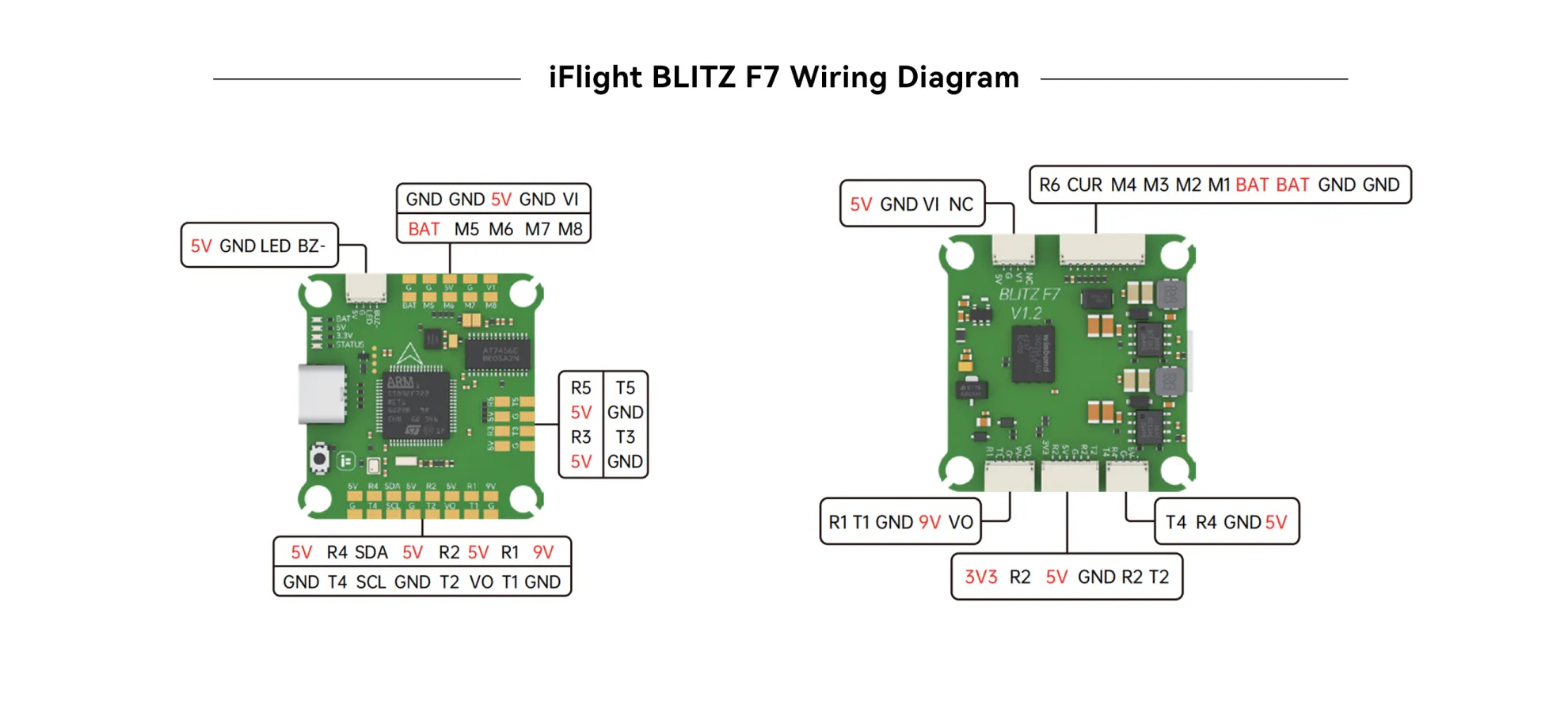

Wiring Suggestion：

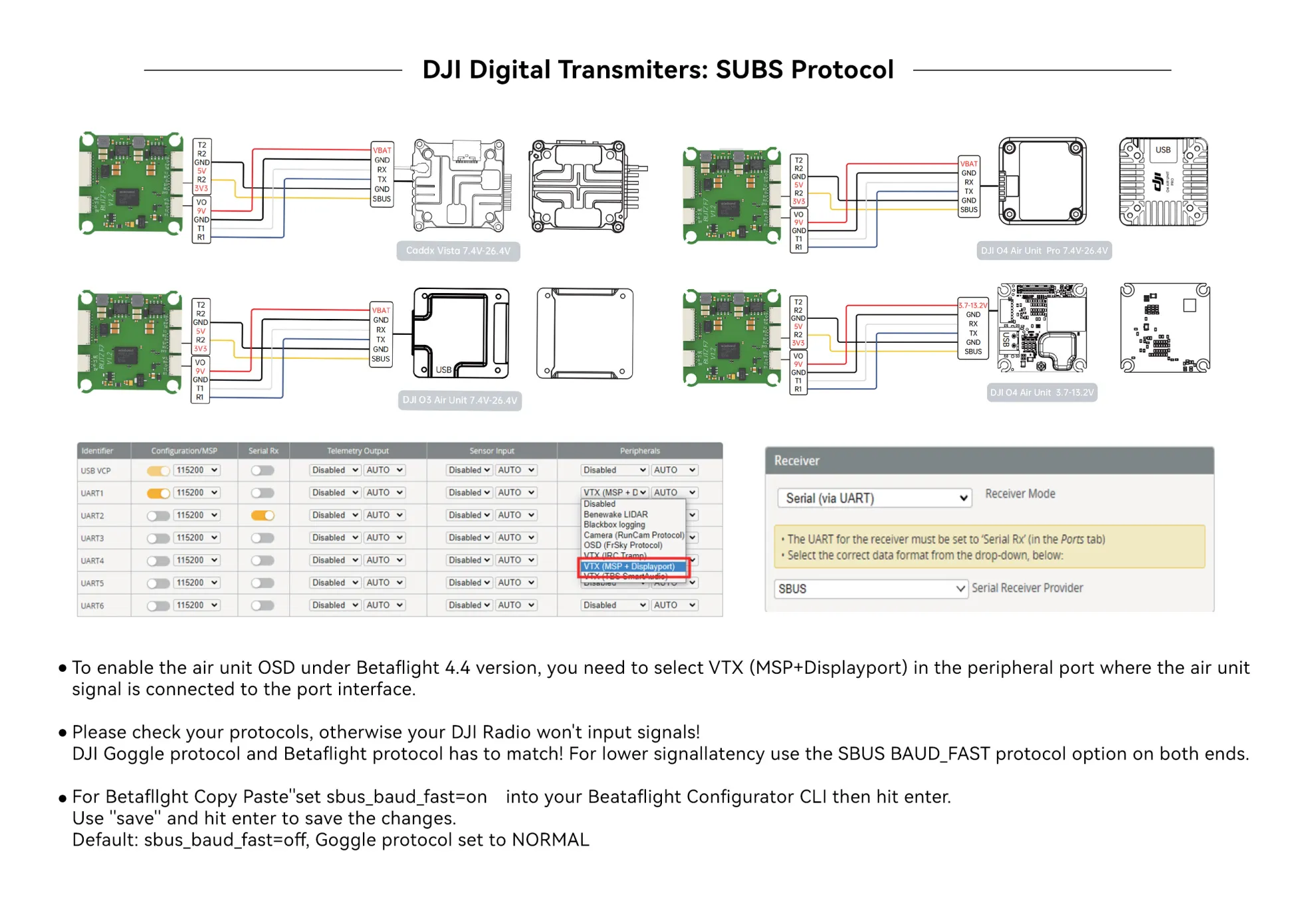

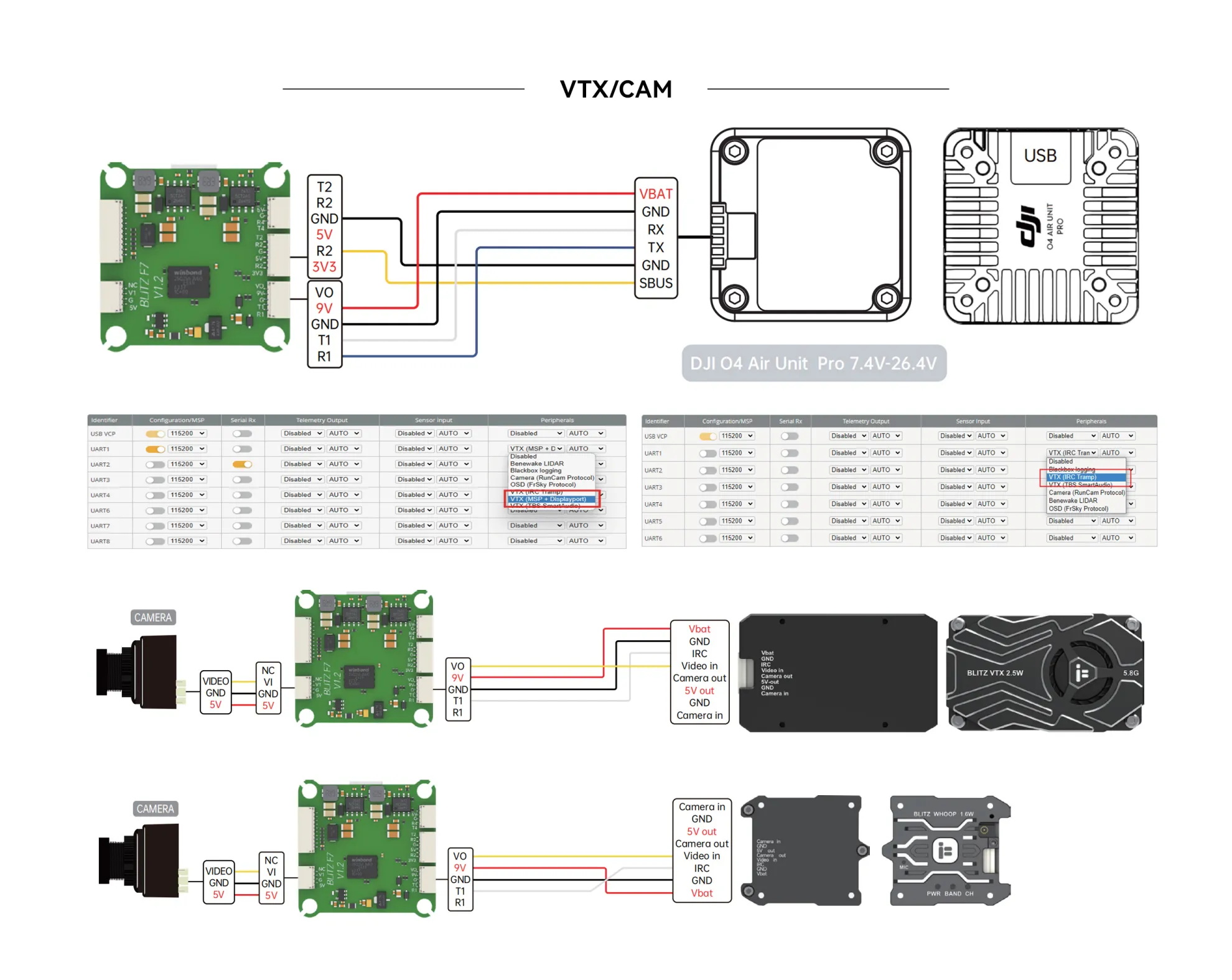

UART 1 for VTX HD / Analog

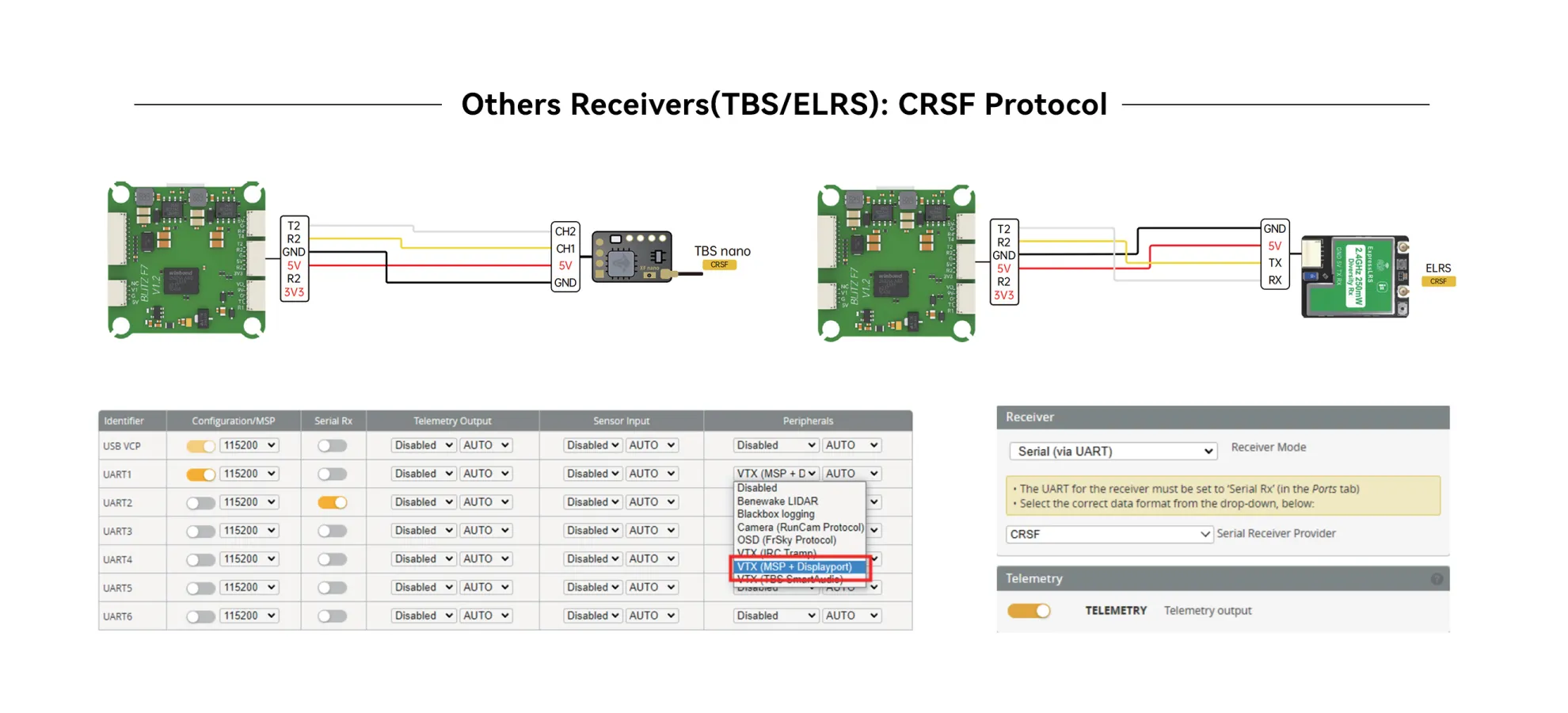

UART 2 for a Receiver

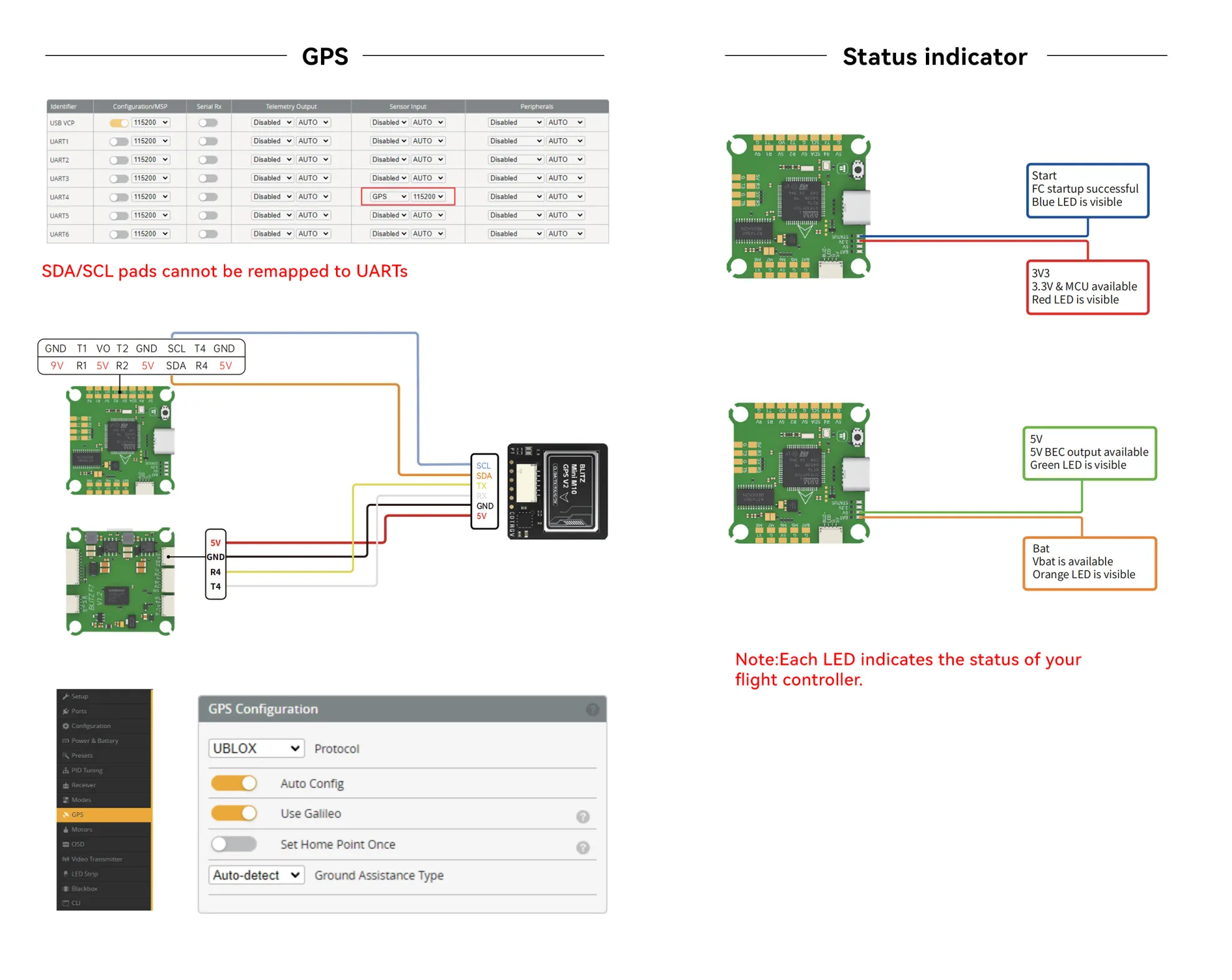

UART 3/4/5 for GPS or other sensors that require a serial port

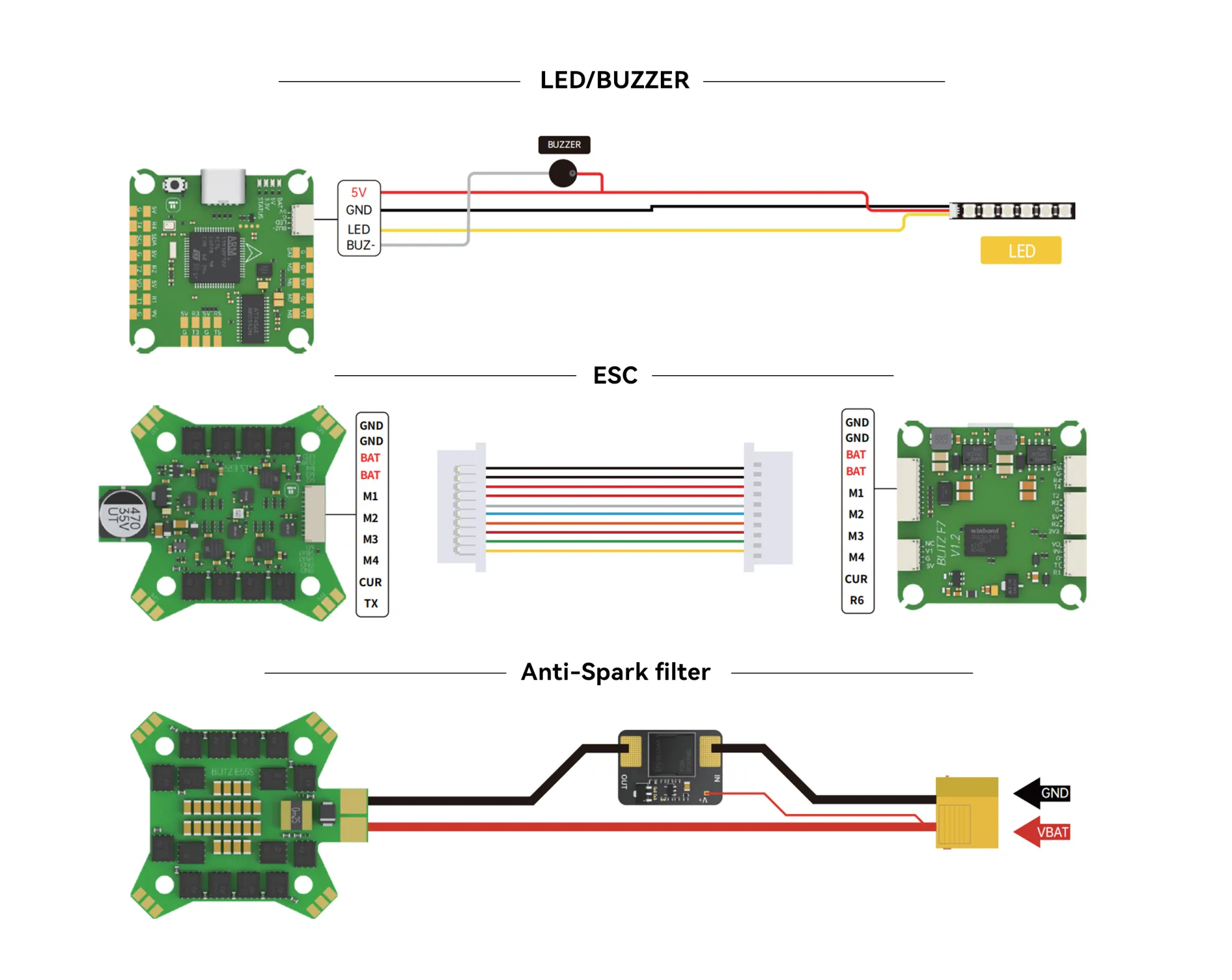

UART 6 for ESC Telemet

iflight blitz f7 v12 flight controller1
iflight blitz f7 v12 flight controller2
iflight blitz f7 v12 flight controller3
iflight blitz f7 v12 flight controller4
iflight blitz f7 v12 flight controller5
iflight blitz f7 v12 flight controller6

Packing List:

1 x BLITZ F7 V1.2 Flight Controller

1 x FC connectors (as above)

1 x silicon grommets
