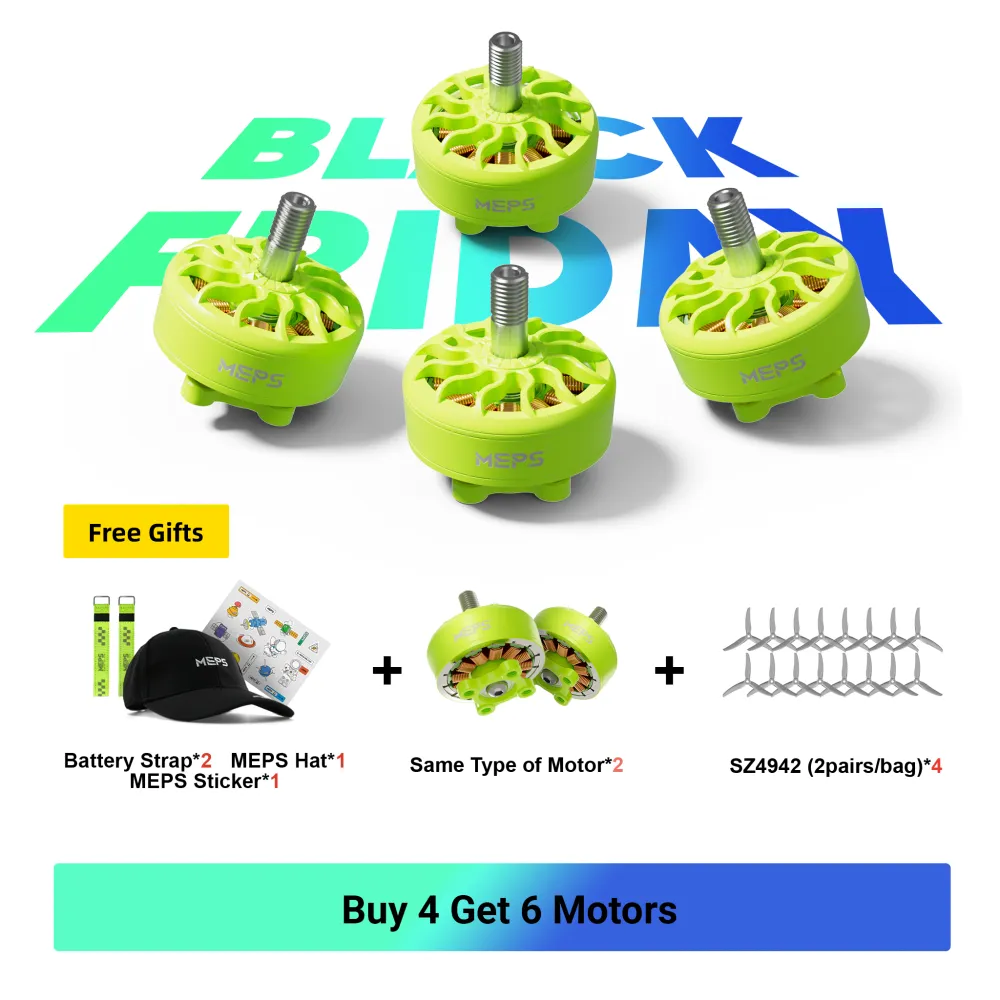

SZ2306 FPV Freestyle-Motoren 6 Stück mit kostenlosen 4942 Propellern

About this product:

MEPS 2306 is made of top materials and come in Uni-Bell design with a sunflower appearance style in industry's first fluorescent green color scheme. It is a very strong and powerful brushless motor for FPV racing and FPV freestyle on 5"-6" quadcopters.

To improve its efficiency, we utilize N52H arc magnets over prior N45 magnets to make thrust to a TOP level, utilize 220℃ high-temperature resistant military-grade pure copper wire to increase the power limit and reliability of motor, utilize NMB bearings to increase its lifespan.

If you are looking for a 1750KV brushless motor, 1950KV brushless motor or 2450KV brushless motor for freestyle drone, MEPS 2306 brushless motor is definitely a good choice. MEPS 2306 will provide smoother flight experience for you!

Features:

● Application: Perfect suited for 5 inch FPV freestyle drone.

● Unique design: Remarkable durability with a uni-bell covering, and super low cogging torque, achieves the perfect combination of performance and aesthetics.

● Top Material: TC4 reinforced titanium alloy shaft and N52H arc magnets increase efficiency and shorten motor response time, allowing the motor to run as smoothly as silk.

● Freestyle Specialist: Super dynamic balance control (balance value ≤ 3mg) that provides a smooth and responsive flying experience.

● Three KV options available (1750,1950,2450): Different kvs match different batteries and propellers for different flying styles.

Specification:

● Model: MEPS 2306 freestyle motor

● Color: Cyan/Orange/Grey/Green (optional)

● KV: 1750kv/1950kv/2450kv (optional)

● Materials: 6082 aluminum bell, TC4 reinforced titanium alloy shaft, N52H arc magnets, military-grade high-temperature enameled wire,12.9-grade hexagon socket screws.

● Lead: 20#160mm

● Weight(including cable): 32g

● Motor Diameter: 28.93*31.5mm

● Shaft Diameter: 5mm

● Rated Voltage(Lipo): 6S(1750KV/1950KV), 4S(2450KV)

● Configuration: 12N14P

● Internal Resistance: 72mΩ(1750KV), 68mΩ(1950KV), 48mΩ(2450KV)

● Idle Current(10V): 1.3A(1750KV), 1.5A(1950KV), 2.1A(2450KV)

● Max Power: 910.9W(1750KV), 1081.9W(1950KV), 680.4W(2450KV)

● Model: MEPS 4942 racing propeller

● Color: Grey

● Application: Perfect matching with SZ2207 motors for 5" racing dones, larger pitch for higher speed.

● Dimension: Pitch 4.5 inch, Moungting holes M5.

● Materials:  PC

● Blade: 3

● Weight: 3.7g each

● Model: MEPS Battery Strap

● Color: Green

● Size: 250x20 mm

● Model: MEPS hat

● Color: Black

Product Recommendation:

● MEPS 4942 freestyle FPV propeller

● MEPS F7 MINI flight controller / MEPS F7 flight controller / F7 HD flight controller

● MEPS 45A MINI FPV ESC / MEPS 60A FPV ESC

Package Included:

● 6pcs SZ2306 Motors

● 8 Pairs of SZ4942 Propellers

● 1pc MEPS Hat

● 2pcs Battery Straps

● 1pc MEPS Sticker
