The FPV drone bundle kit features the MEPS F411 7A AIO Flight Controller and 1103 whoop motors, is designed for exceptional performance in micro drone racing. The AIO Flight Controller integrates a 4IN1 ESC, SPI ELRS 2.4G receiver, and Analog VTX OSD, offering a streamlined and lightweight solution that simplifies assembly. With a STM32F411 chip and BMI270 gyroscope, it ensures precise control and low latency. The 1103 whoop motors are crafted with a Uni-Bell structure, providing high crash resistance and efficient power delivery, suitable for both 6S and 4S configurations. This FPV bundle kit is perfect for pilots seeking for a high performance whoop drone setups.
Zahlung | Jede Bestellung, die Sie bei uns aufgeben, ist sicher & geschützt
Teilen
Kopieren
Beschreibung
FAQ
About F411 7A 1S AIO:
The MEPS F411 7A 1S AIO, recognized as the best 1s ESC, is an integrated brushless flight controller that seamlessly combines a 4IN1 ESC, SPI ELRS 2.4G receiver, Analog VTX OSD, and a 25/50mW Analog VTX. This all-in-one solution, known for being the top choice in the category of 1s aio flight controllers, eliminates the need for soldering during the build process, ensuring an easy and hassle-free assembly.
Featuring a UFL connector, it provides the flexibility to replace the VTX antenna easily, coupled with the advantage of a switchable external VTX.
The motor plug ports are thoughtfully designed to narrow inward, preventing any interference between the frame loop and AIO components, making it the ideal toothpick aio flight controller. Plus, there's NO need to weld for the direct plug-in motor, making it the best micro aio flight controller. This design enhancement not only ensures a smoother build process but also enhances spatial efficiency, optimizing the integration of components within the frame. For those looking for the best aio flight controller for their mini quadcopter, the MEPS F411 7A 1S AIO stands out as the perfect choice.
Features:
● Application: Designed with 25.5*25.5mm mounting holes.
● F4 FC Chip Utilization: Utilizes the STM32F411 FC chip, providing a small footprint and low heat generation.
● Integrated 7A 1S 4IN1 ESC: Comes with a pre-flashed BLHELI_S firmware, resulting in a 20% increase in efficiency.
● Integrated SPI ELRS 2.4G Receiver: Features a 4.3 version of SPI-integrated ELRS 2.4G receiver for faster response, on-board antenna, compact size, and a robust signal.
● Integrated 25/50mW Analog VTX: Allows the use of a UFL connector for the freedom to replace the VTX antenna, with the added benefit of a switchable external VTX.
● Integrated Analog VTX OSD: Equipped with an on-board OSD chip, providing real-time monitoring of flight information.
Specification:
● Model: MEPS F411 AIO 7A
● Color: Black
● Input Voltage: 1S Lipo
● MCU: STM32F411
● Gyroscope: BMI270
● Firmware: BLHELI_S & MEPSF4SX1280
● Continuous Current: 7A
● Peark Current: 8A
● Telemetry: Support
● Receiver: SPI ELRS 2.4G
● Video Transmitter: 25/50mW Analog VTX
● OSD: AT7456E
● BEC: 5V1.5A
● UART: 2 Sets
● Mounting Holes: 25.5*25.5mm
● Dimension: 29.5*29.5mm
● Weight: 6.7g
About 0802 Brushless Motor:
MEPS SPACE 0802 small drone motor have an awesome performance on power and thrust, perfect design on dynamic balance. It is a perfect micro motor for micro drones.
It uses the Uni-Bell structure design providing high crash-resistance while not adding more weight, providing high reliability and explosive power and thrust for FPV pilots at an affordable price. It is the best 0802 motors.
Every motor comes with a set of mounting screws, a set of washers and a c-clip.
If you are looking for a 19000KV brushless motor or 22000KV brushless motor for micro drones, MEPS 0802 brushless motor is definitely a good choice.
Features:
● Application: Perfect for micro drones.
● High Performance and Efficiency: Delivering high thrust for its size and better overall efficiency that lasts longer and performs more consistently.
● Lightweight and Durable: Weighing only 1.8g. Made of selected materials and a delicate design, ensuring durability while keeping the overall weight light.
● Smooth and Precise Control: With a linear throttle, providing precise control and handling, giving you a smooth flight operation experience.
● Unique for Tinywhoop: Explicitly designed for micro drones to provide stable and reliable performance.
● Compatible with Various Frames: Can be used with various micro drone frames, ensuring its versatility and flexibility.
Specification:
● Model: MEPS 0802 tinywhoop FPV motor
● Color: Golden
● KV: 19000kv/22000kv (optional)
● Materials: Stainless steel solid shaft
● Lead: JST30#40mm±2mm
● Weight(including cable): 1.8g±0.2g
● Motor Dimension: Φ11.2mm*13.8mm
● Shaft Diameter: Φ1mm
● Rated Voltage(Lipo): 1S
● Configuration: 9N12P
● Idle Current(10V): ≤0.5A
● Peak Current(60S): 3.4A(19000KV), 4.3A(22000KV)
● Max Power: 14.1W(19000KV), 18.0W(22000KV

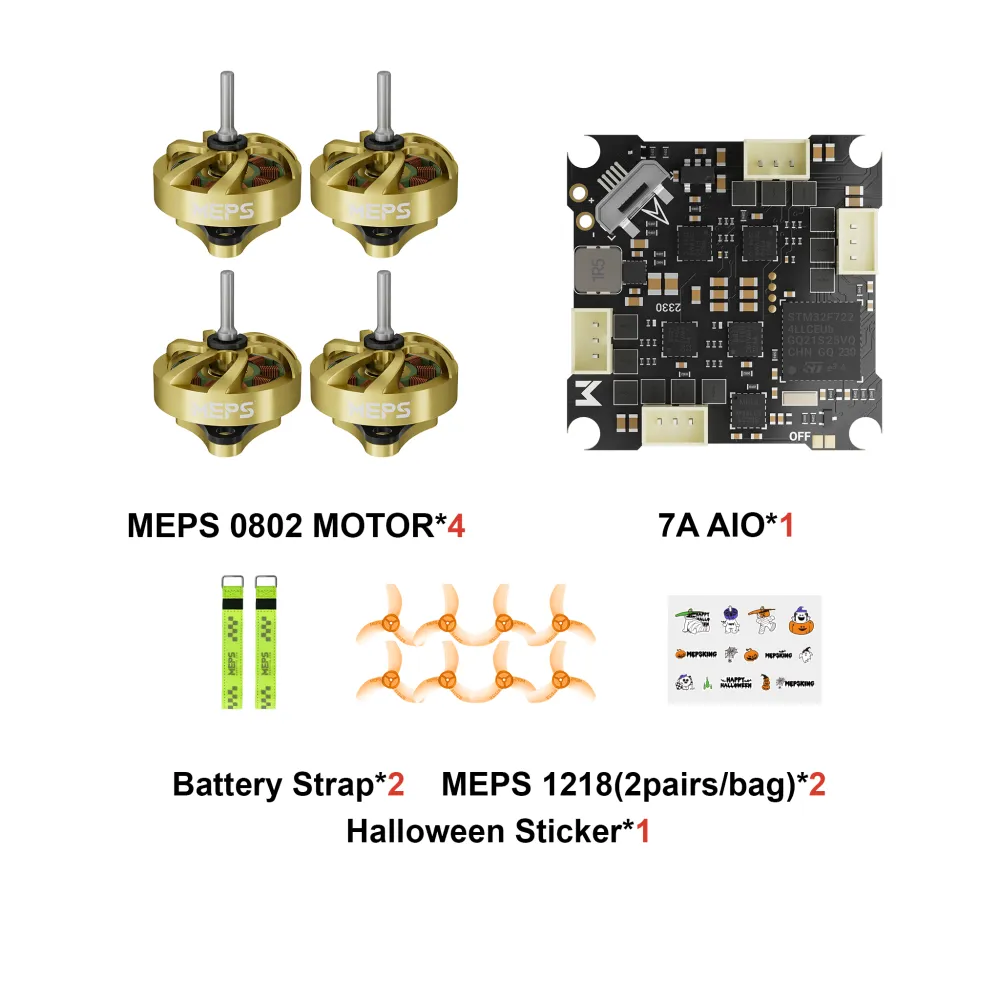

Package Included
● 1pc* MEPS F411 AIO 7A flight controller
● 4pcs* 0802 Brushless Motors
● 2pc* Battery Strap
● 2pc* MEPS 1218(2pairs/bag)
● 1pc* Halloween Sticker
