T-HOBBY C80A 80A 5-12S Single Cinematic ESC für FPV-Drohne

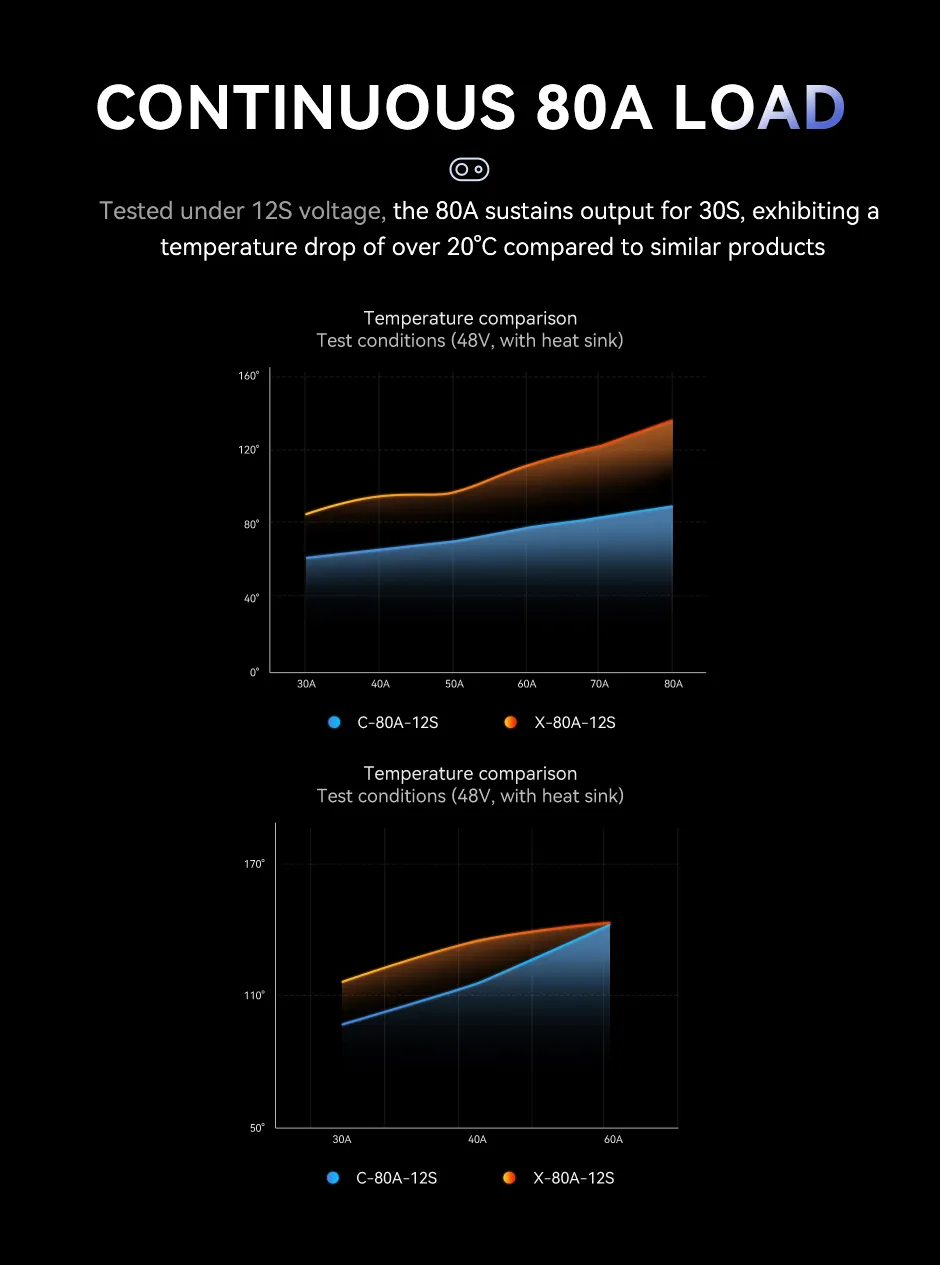

Superior Heat-Dissipation Performance

Tested under 12S voltage, sustains 80A continuous output for 30S with over 20℃ lower temperature compared to similar products, ensuring reliable power delivery under extreme conditions.

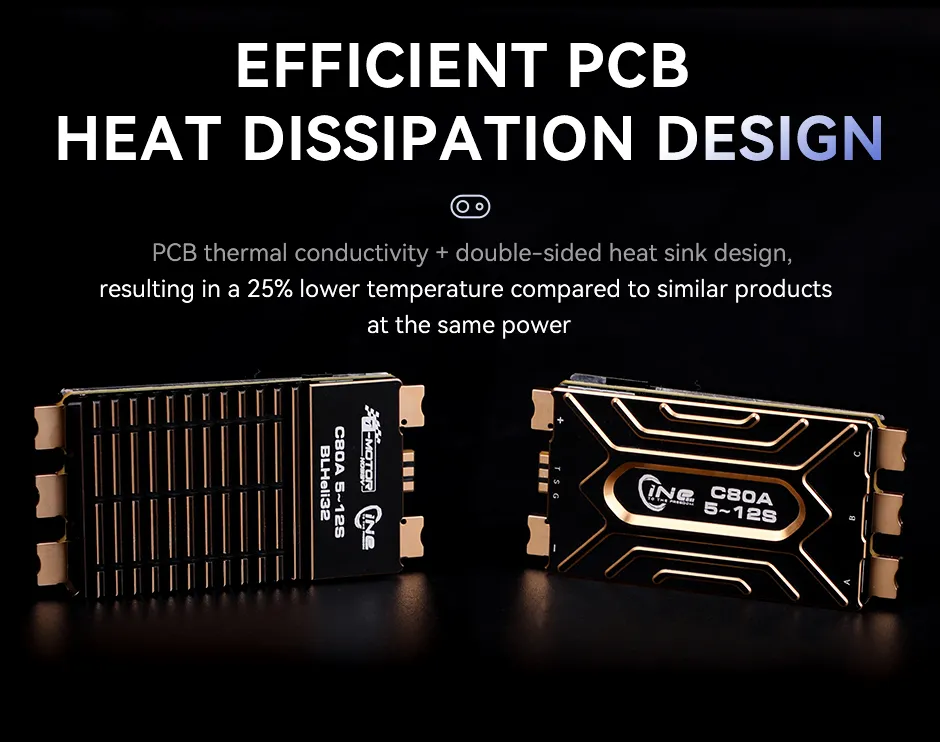

Efficient PCB Heat-Dissipation Design

Featuring PCB thermal conductivity and double-sided heat sink technology, this ESC operates 25% cooler than comparable products at the same power output for enhanced reliability.

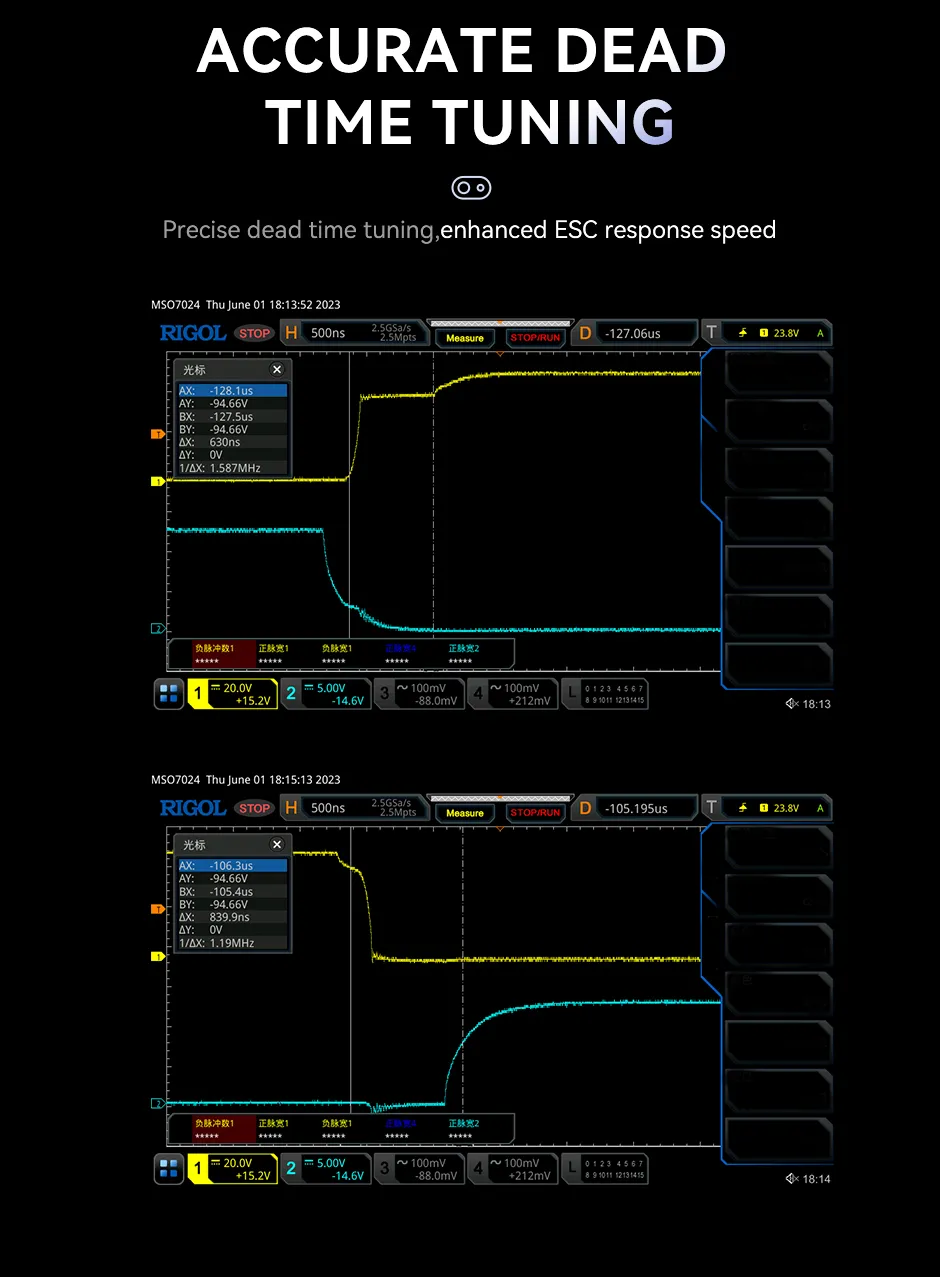

Accurate Dead-Time Tuning

With precise dead-time optimization verified by oscilloscope testing, this ESC achieves enhanced response speed and smoother throttle control for superior cinematic flight performance.

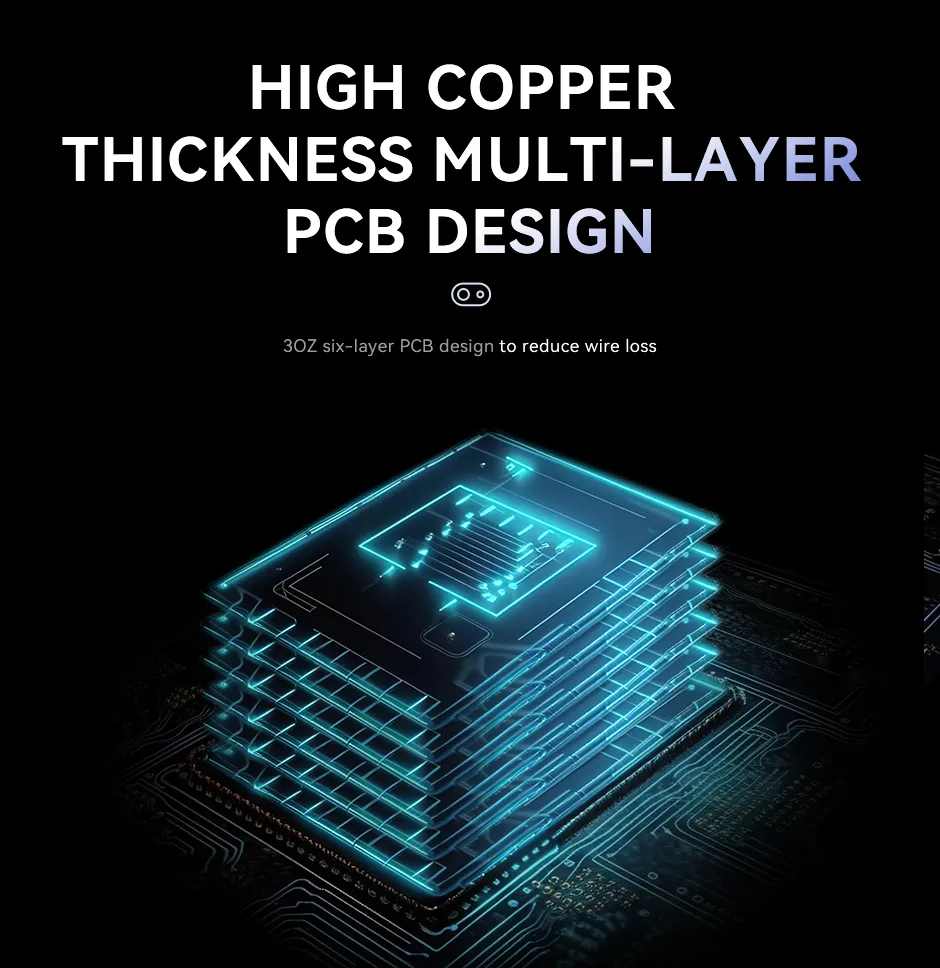

High Copper Thickness Multi-Layer PCB Design

3OZ six-layer PCB design minimizes wire loss and enhances current handling, delivering stable 80A continuous power for cinematic FPV drones.

Features:

● PCB thermal conductivity + double-sided heat sink design resulting in a 25% lower temperature compared to similar products at the same power

● Precise dead time tuning, enhanced ESC response speed

● 3OZ six-layer PCB design to reduce wire loss

● 12S voltage

● 80 amps

Specifications:

● Input voltage: 5-12S

● Peak current: 100A

● Firmware: BLHeli32

● Size: 55*28*10mm

● Weight: 32g

● Current: 80A

● ESC: Single

● BEC: None

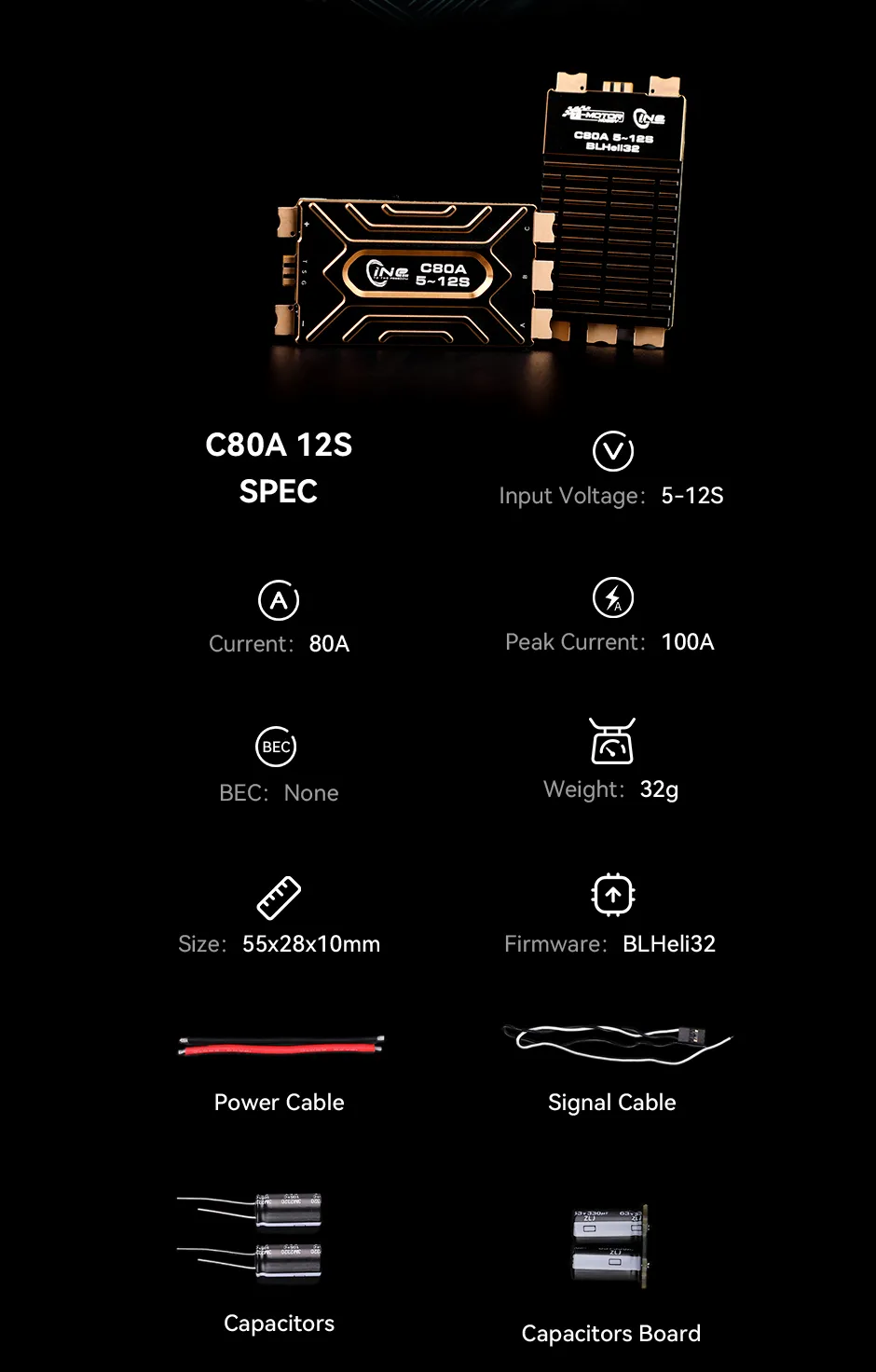

Package Includes:

● 1x TMOTOR C80A 5-12S Single FPV  Electronic Speed Control

● 2x Capacitor Boards

● 1x Signal Cable

● 2x Capacitor
